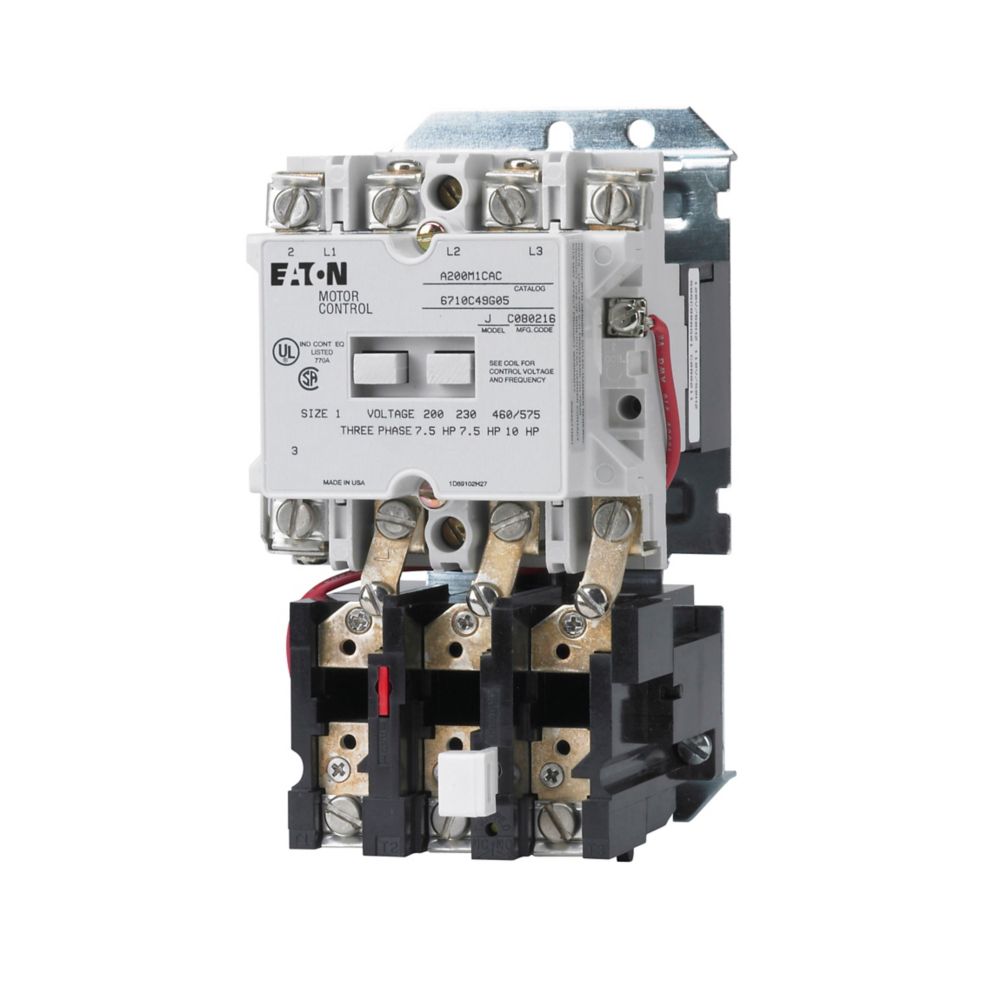

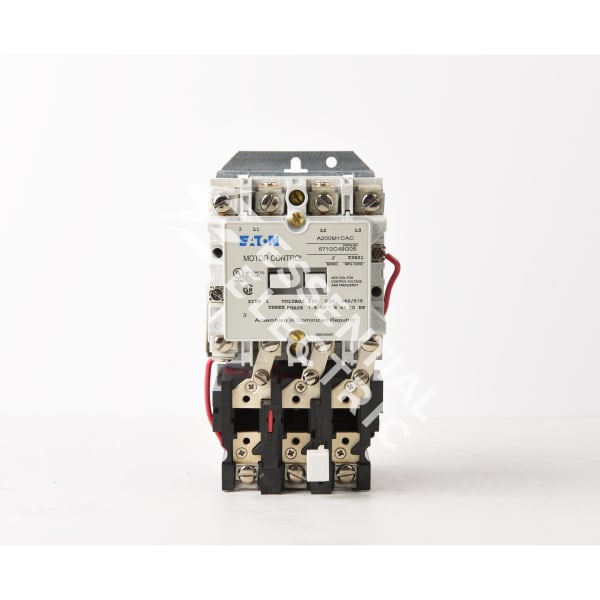

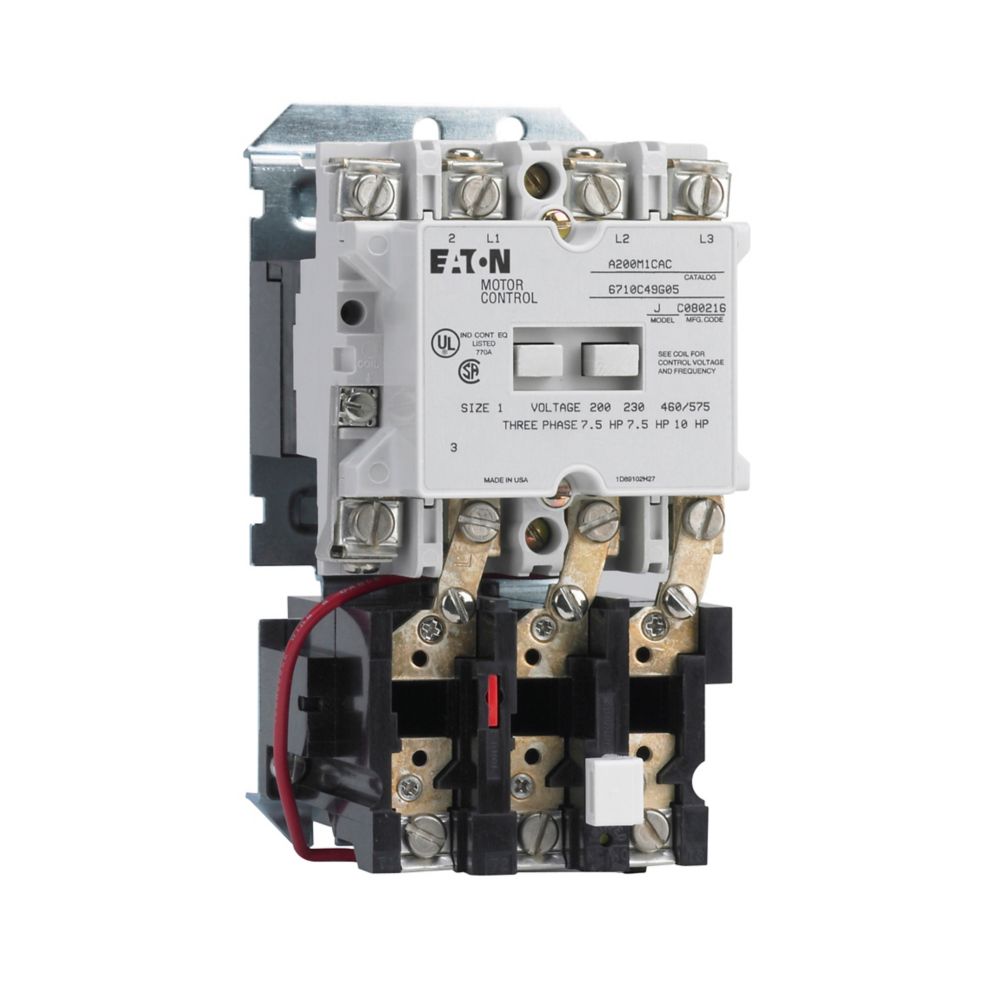

A200M1CACD - Cutler Hammer 27A 3-Pole 120V Coil NEMA 1 Motor Control Starter

A200M1CACD

A200M1CACD is a Cutler Hammer Freedom A200 series motor control starter designed for non-reversing motor applications with a 120V/60 Hz or 110V/50 Hz coil voltage.This motor starter features a 27 amp rating, 3 poles, and NEMA Size 1 frame, supporting motor horsepower ratings of 2 HP at 115V, 7-1/2 HP at 208/240V, and 10 HP at 480/600V. It is surface mounted and UL Listed and CSA Certified for safety and reliability.

Key Specifications
• Amperage: 27 Amps
• Voltage: 120V/60 Hz or 110V/50 Hz coil voltage
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: Full Voltage, 600 VAC max
• Series/Frame: A200 Series, Size 1
• Trip Unit: Magnetic, Non-Reversing
• Motor Power Ratings: 2 HP at 115V, 7-1/2 HP at 208/240V, 10 HP at 480/600V
• Certifications: UL Listed, CSA Certified
• Weight: 4.3 lb approx.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M1CACD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 1

Product Data

• UPC : 786678232461
• GTIN : 00786678232461
• Country of Origin : Dominican Republic
• Dimensions : 4.94 in x 7.17 in x 3.31 in (Length/Depth x Height x Width)
• Weight : 43 lb
• Certification : UL Listed,CSA Certified
