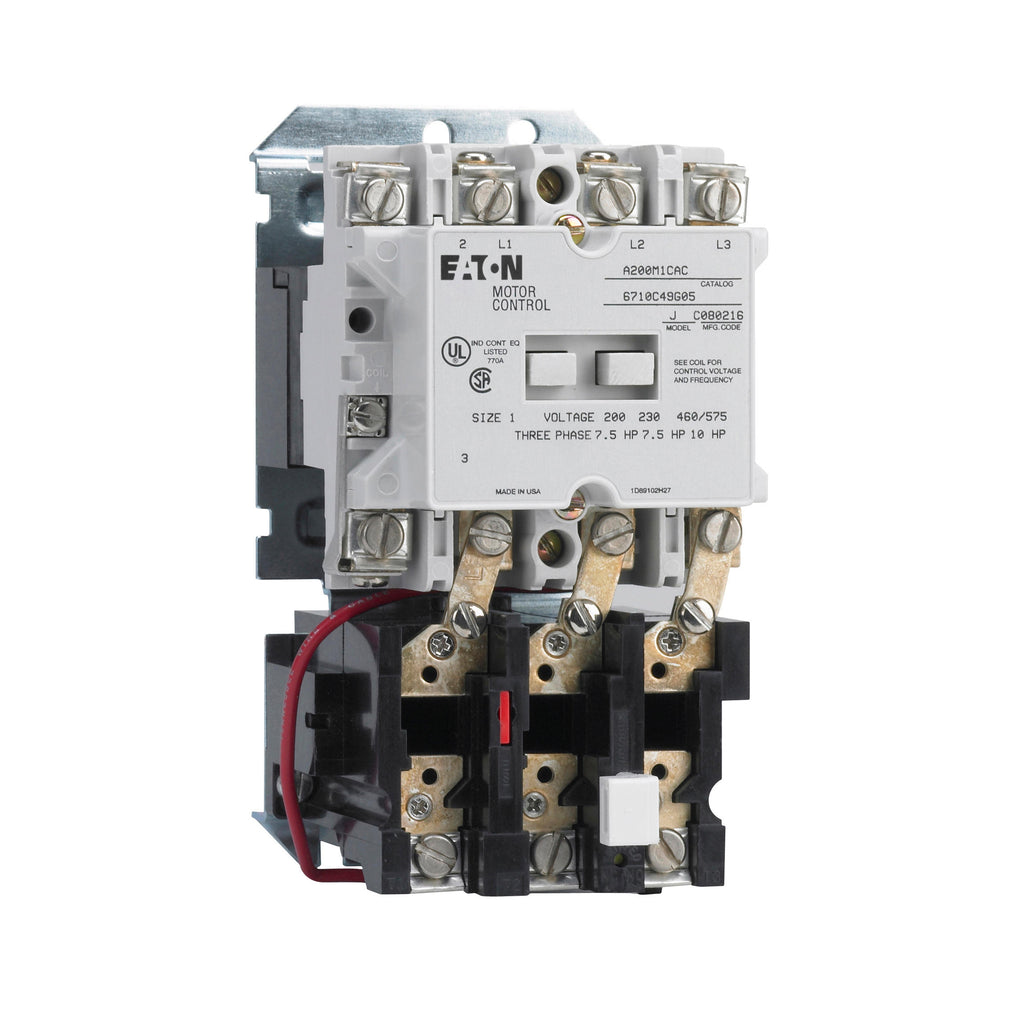

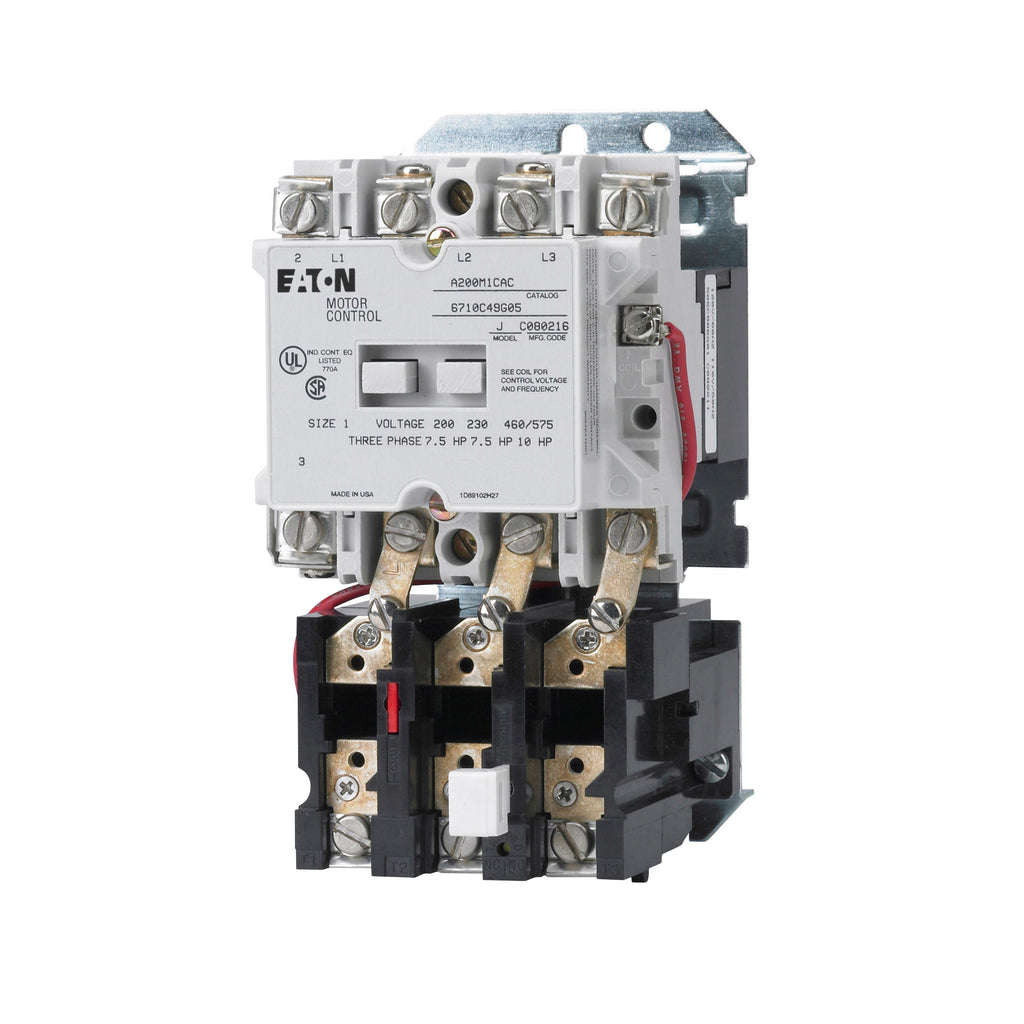

A200M1CW - Cutler Hammer 27A 600V 3-Pole Motor Control Starter Size 1 Non-Reversing

A200M1CW

A200M1CW is a Cutler Hammer 27 Amp, 600 Volt, 3-pole motor control starter designed for non-reversing motor applications.This Eaton Freedom NEMA motor control starter features a 240V/60 Hz coil voltage, Size 1 frame, and supports up to 2 hp at 115V, 7-1/2 hp at 208/240V, and 10 hp at 480/600V. It is CSA certified and ideal for three-phase motor control with reliable performance.

• Amperage: 27A
• Voltage Rating: 600 VAC
• Coil Voltage: 240 VAC, 60 Hz
• Number of Poles: 3
• Size: 1
• Type: Non-Reversing Motor Starter
• Series: A200
• Horsepower Ratings: 2 hp at 115V, 7-1/2 hp at 208/240V, 10 hp at 480/600V
• Certifications: CSA Certified
• Phase: Three-phase magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M1CW
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 240
• Nema Rating : 1

Product Data

• UPC : 786678231181
• GTIN : 00786678231181
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified,UL Listed
