A10CN0 Eaton Cutler-Hammer NEMA Size 1 Full Voltage Non-Reversing Motor Starter, 27A 600V 3-Pole

A10CN0

A10CN0 Eaton Cutler-Hammer NEMA Size 1 Full Voltage Non-Reversing Motor Starter, 27A 600V 3-Pole

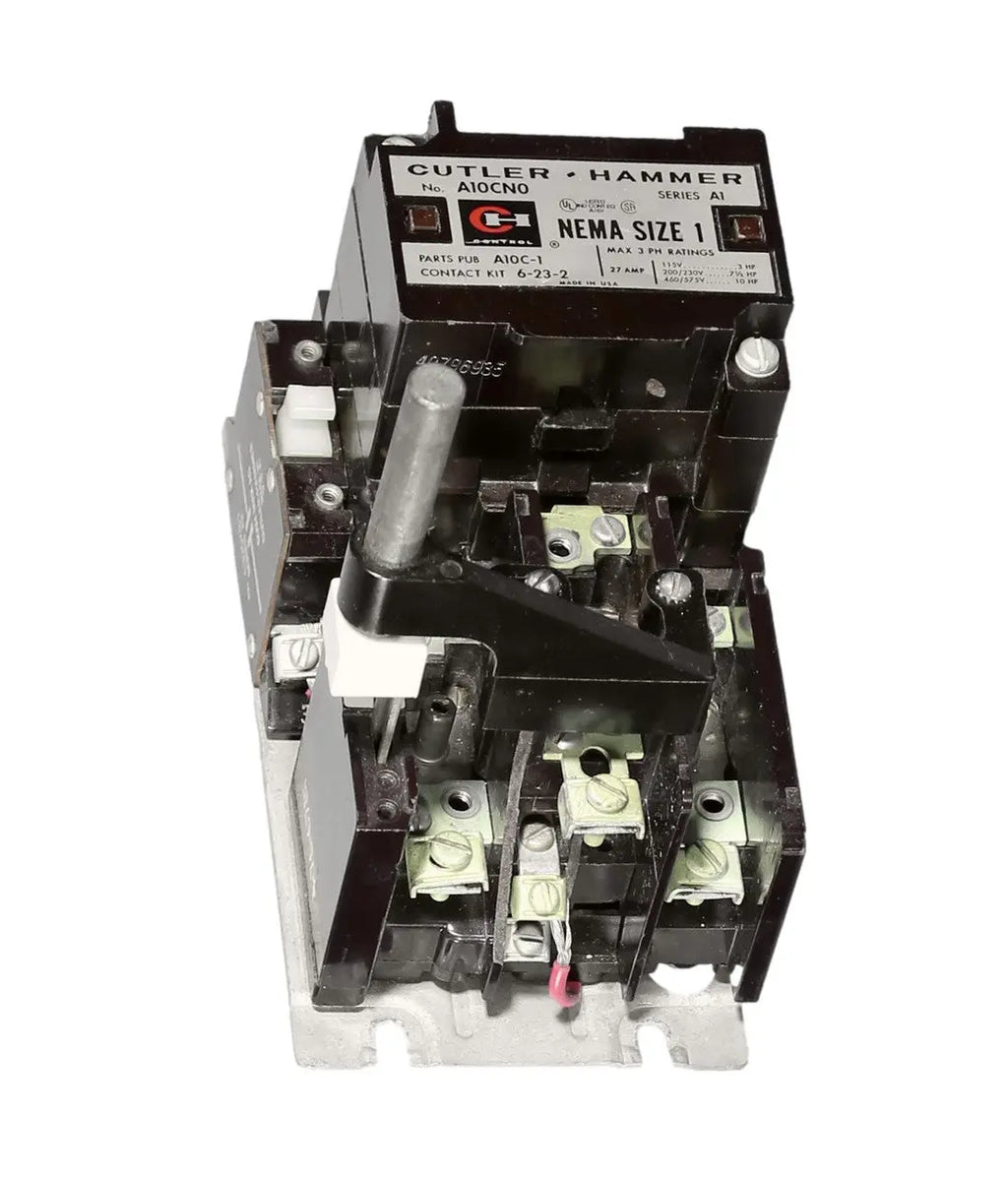

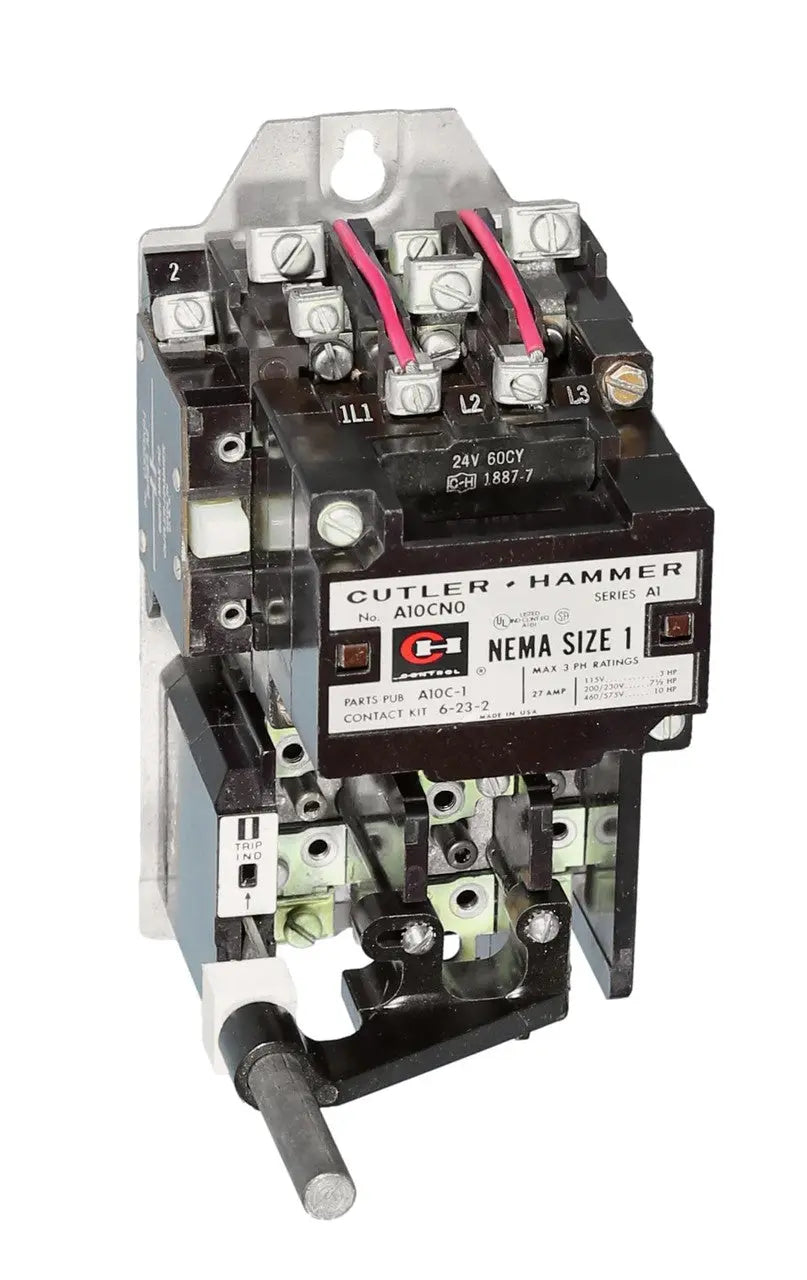

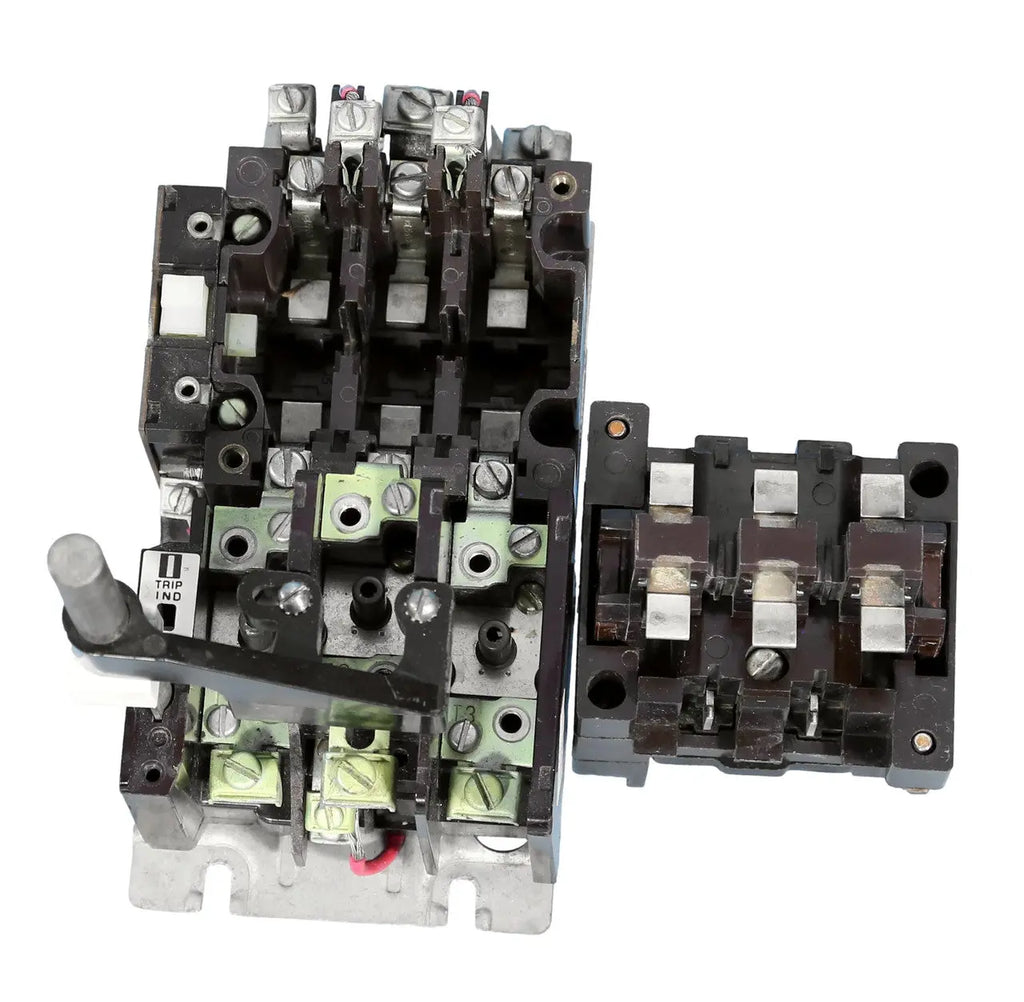

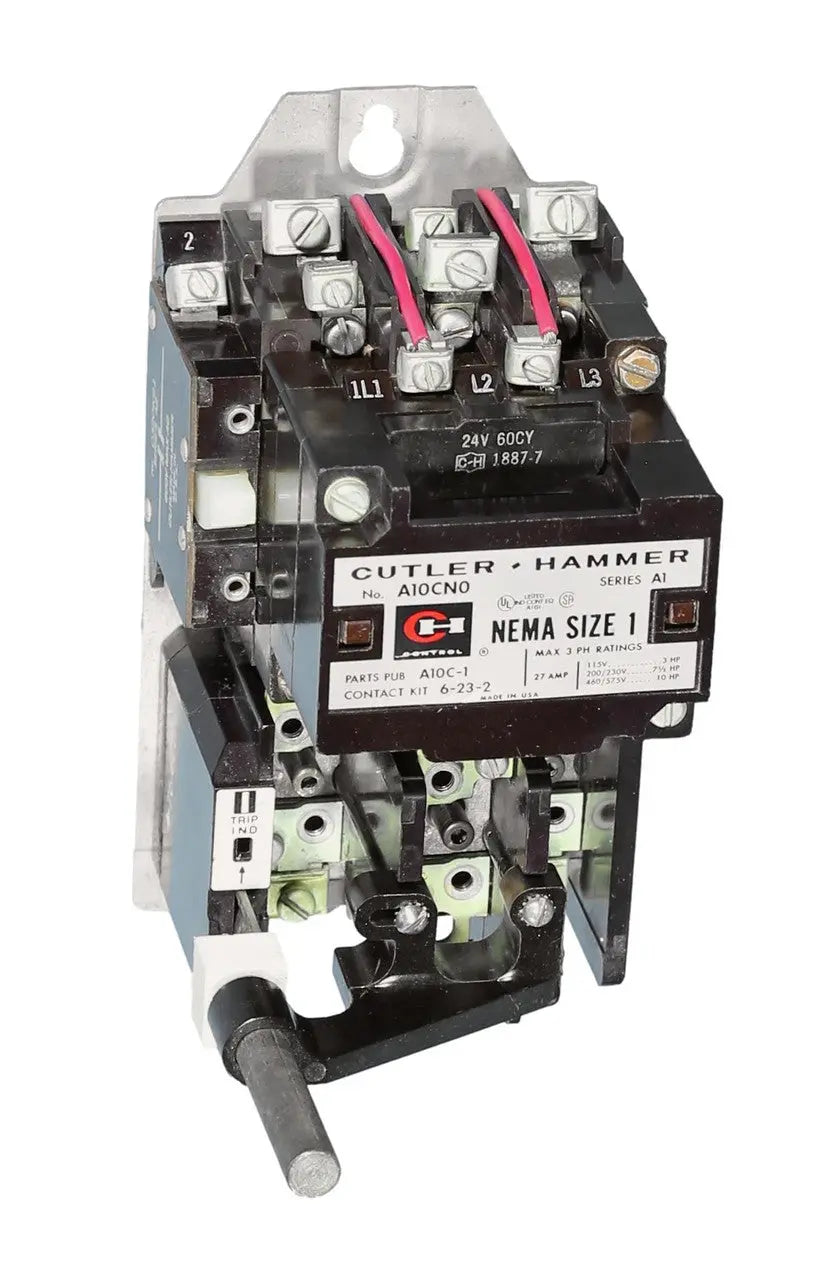

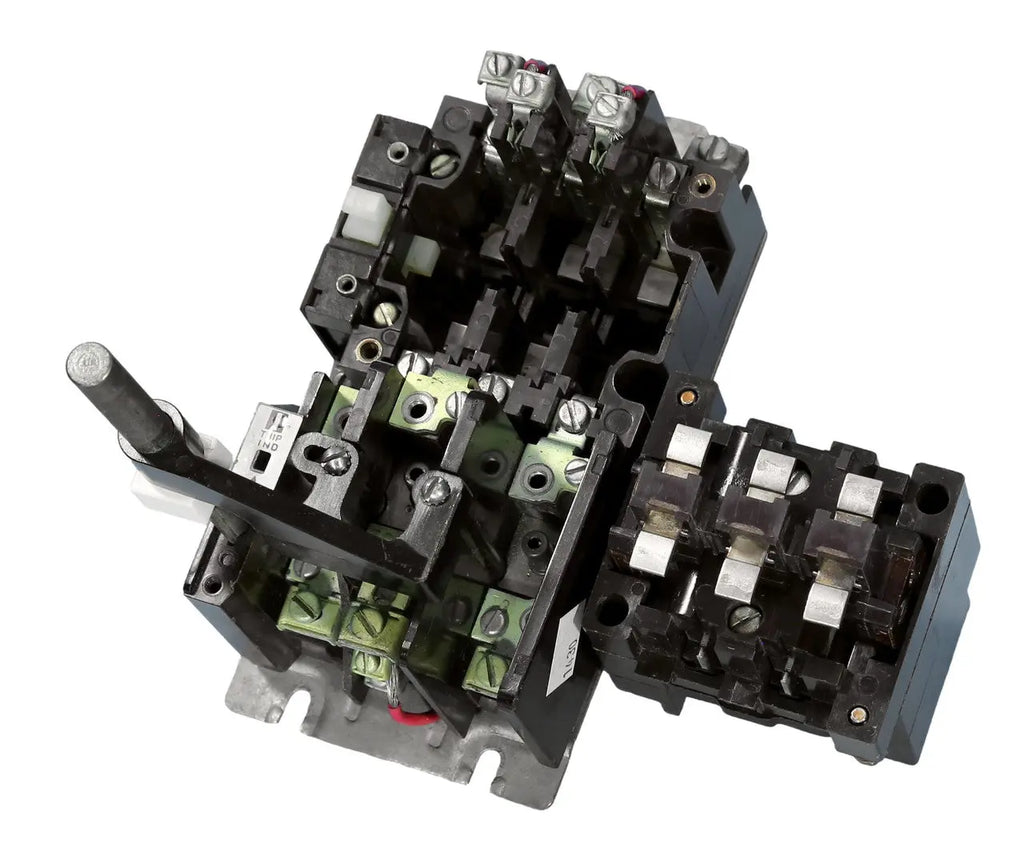

The Eaton Cutler-Hammer A10CN0 is a NEMA Size 1 full voltage non-reversing magnetic motor starter rated 27 A continuous at 600 V AC across three poles. Built on the Series A1 platform, it controls three-phase motors to 3 HP at 115 V, 7.5 HP at 200/230 V, and 10 HP at 460/575 V, with an integral melting-alloy overload relay for running protection.

The open construction and three-pole layout make this starter a datasheet-referenced selection for motor control assemblies specified to NEMA ICS 2 sizing. The standard control coil is rated 120 V 60 Hz (110 V 50 Hz).

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Three-phase motor control for pumps, fans, and blowers
• HVAC and air-handling equipment
• Conveyor and material-handling drives
• Machine tool and process motor branch circuits
• Motor control center and control panel assemblies

Key Features

• Non-reversing operation: Single-direction full voltage starting for standard motor loads.
• Integral overload relay: Melting-alloy thermal element provides motor running overcurrent protection.
• NEMA Size 1 rating: 27 A continuous duty on a three-pole, three-phase circuit.
• 600 V class: Suitable for line voltages through 600 V AC.
• Open construction: Panel-mount format for integration into larger control assemblies.

Specifications

• Manufacturer: Eaton (Cutler-Hammer)
• Catalog Number: A10CN0
• Product Line: Series A1
• Type: Full voltage non-reversing magnetic motor starter
• NEMA Size: 1
• Construction: Open type
• Continuous Current: 27 A
• Maximum Voltage: 600 V AC
• Poles: 3
• Phase: 3-phase
• Coil Voltage: 120 V 60 Hz / 110 V 50 Hz
• Horsepower: 3 HP at 115 V; 7.5 HP at 200/230 V; 10 HP at 460/575 V
• Overload Relay: Melting-alloy thermal, 3 elements

Product Identification

• Manufacturer: Eaton (Cutler-Hammer)
• Catalog Number: A10CN0
• Product Line: Series A1

FAQ

What is the A10CN0? It is an Eaton Cutler-Hammer Series A1 NEMA Size 1 full voltage non-reversing magnetic motor starter rated 27 A at 600 V AC.

What is the continuous current rating? The A10CN0 carries 27 A continuous as a NEMA Size 1 device.

What horsepower can it control? It is rated 3 HP at 115 V, 7.5 HP at 200/230 V, and 10 HP at 460/575 V on three phase.<

Specifications

• Part Number: A10CN0
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Series A1
• Type : A
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Nema Rating : 1

Product Data

• Weight : 2 lb
