Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
A055C1D0R0-150E

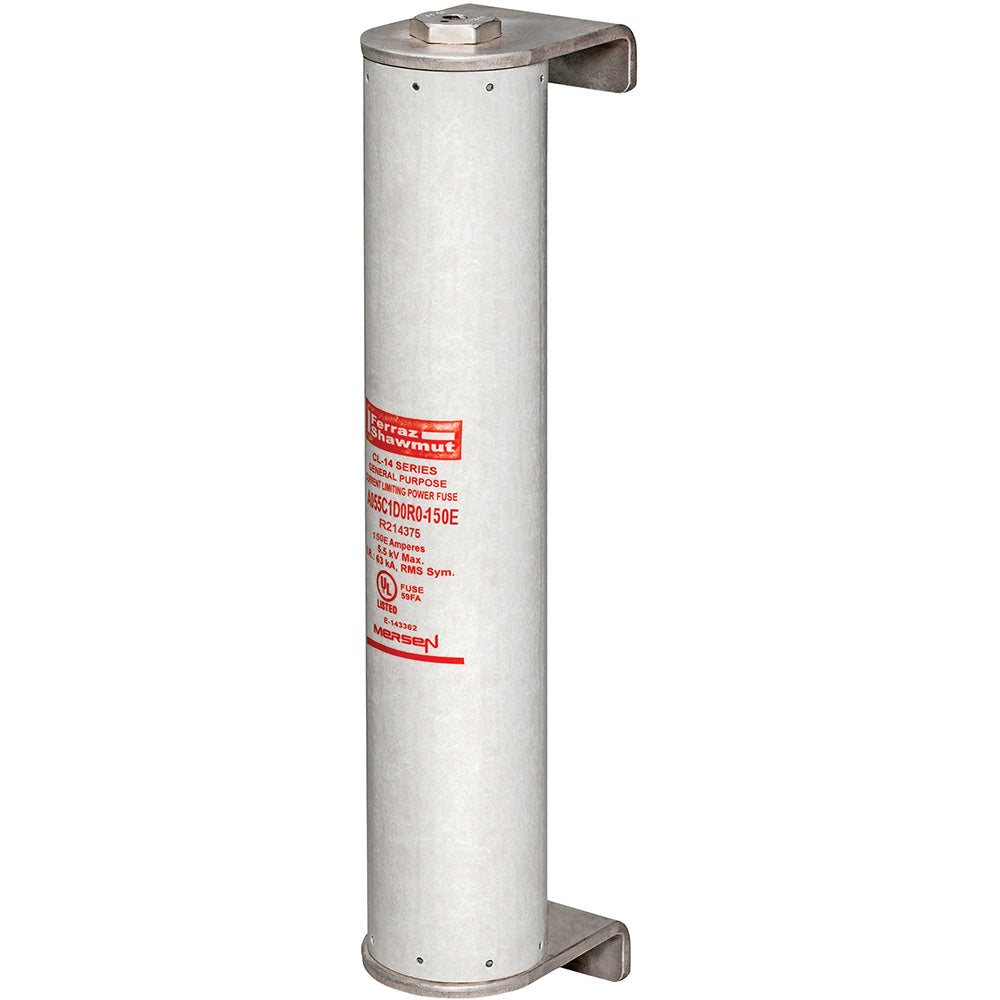

A055C1D0R0-150E is a Mersen AMP-TRAP medium voltage transformer protection fuse rated for 150 amperes at 5.5 kVAC with a 63 kiloampere interrupt rating. This Class E fuse features a clip-lock mounting system with visual indicator for reliable transformer and general purpose medium voltage circuit protection in indoor applications. The D0R0 series design provides current-limiting performance for superior equipment protection and is UL approved for North American applications. Key Specifications
- Part Number: A055C1D0R0-150E
- Manufacturer: Mersen
- Amperage Rating: 150 A
- Voltage Rating: 5.5 kVAC
- Interrupt Rating: 63 kA
- Fuse Class: E
- Series: D0R0
- Mounting Type: Clip-lock
- Indication System: Visual Indicator
- Application: Transformer Protection
- Certification: UL Approved
Specifications
- Part Number: A055C1D0R0-150E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CL-14 Series
- Type : A055C1
- Voltage : 5500
- Amperage : 150
- AIC rating : [email protected]
- Diameter : 4.31
- Class Rating : E
- Barrels : 1
- Clip Center : 15.25
Product Data
- UPC : 078200180392
- GTIN : 00782001803926
- Weight : 15
