Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

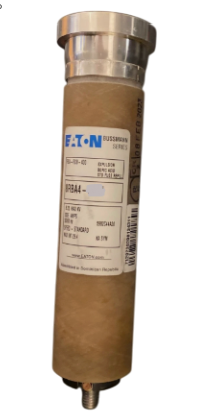

15RBA4-100E
15RBA4-100E is a Eaton RBA4 Medium Voltage Fuse designed for reliable circuit protection in medium voltage applications. This fuse features a single barrel design and is rated for 14.4kV and 100A, providing robust performance in demanding environments. The fuse is a standard speed expulsion type, suitable for use in a variety of industrial and commercial power distribution systems.Engineered for durability and safety, the 15RBA4-100E is constructed with a glass epoxy body and is part of the Eaton RBA4 series. It is designed to meet the requirements of ANSI C37.42-1996 and ANSI C37.46-2000 standards. The fuse is intended for use in systems where a continuous current rating of 100E or below is required, with a melting time of 300 seconds at an rms current between 200% and 240% of the continuous rating.
- Part Number: 15RBA4-100E
- Manufacturer: Eaton
- Series: RBA4
- Mounting Type: Single Barrel
- Voltage Rating: 14.4kV
- Amperage Rating: 100A
- Interrupt Rating: 29.4kA @ 14.4kV
- Speed: Standard Speed
- Construction: Glass Epoxy
- Standards: ANSI C37.42-1996, ANSI C37.46-2000
- Application: Medium Voltage Power Distribution
Specifications
- Part Number: 15RBA4-100E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : RBA
- Type : RBA4
- Voltage : 14400
- Amperage : 100
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 786670233107
- GTIN : 00786670233107
- Dimensions : 10.5 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 1.99
