Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
9422CSB30

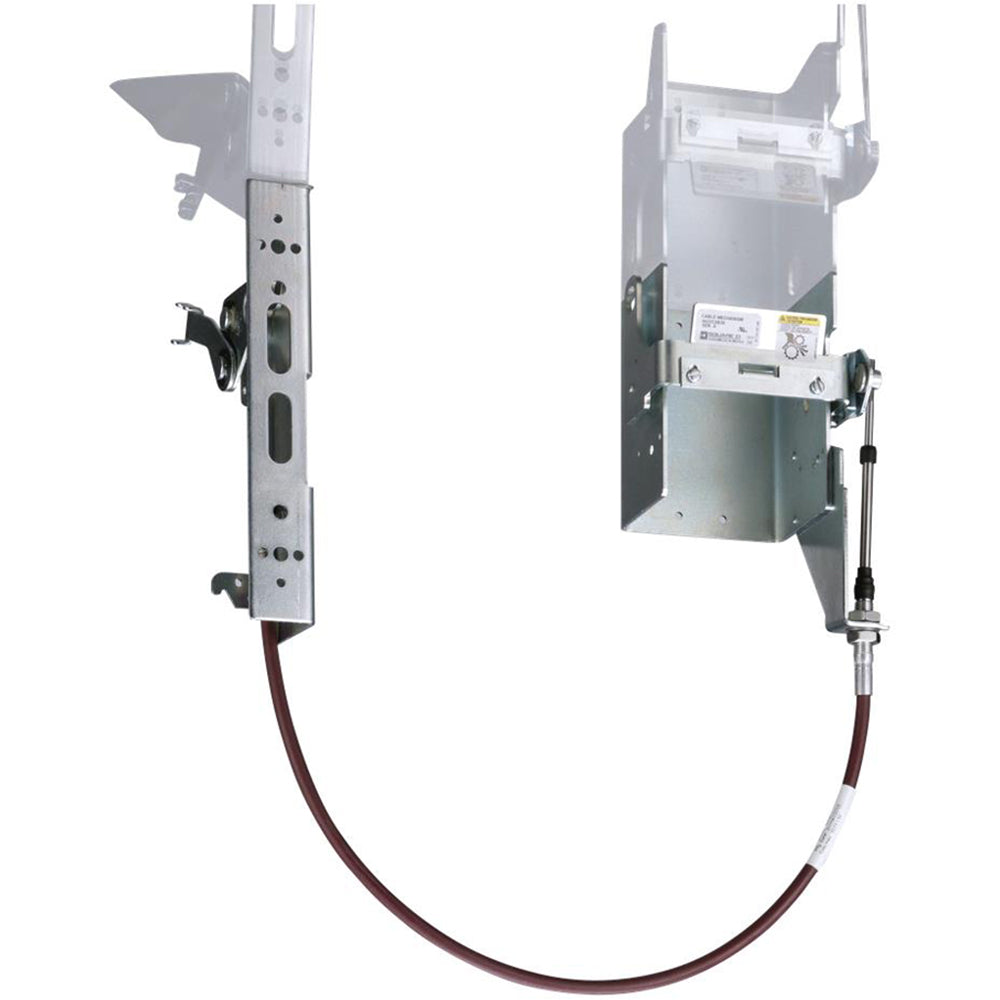

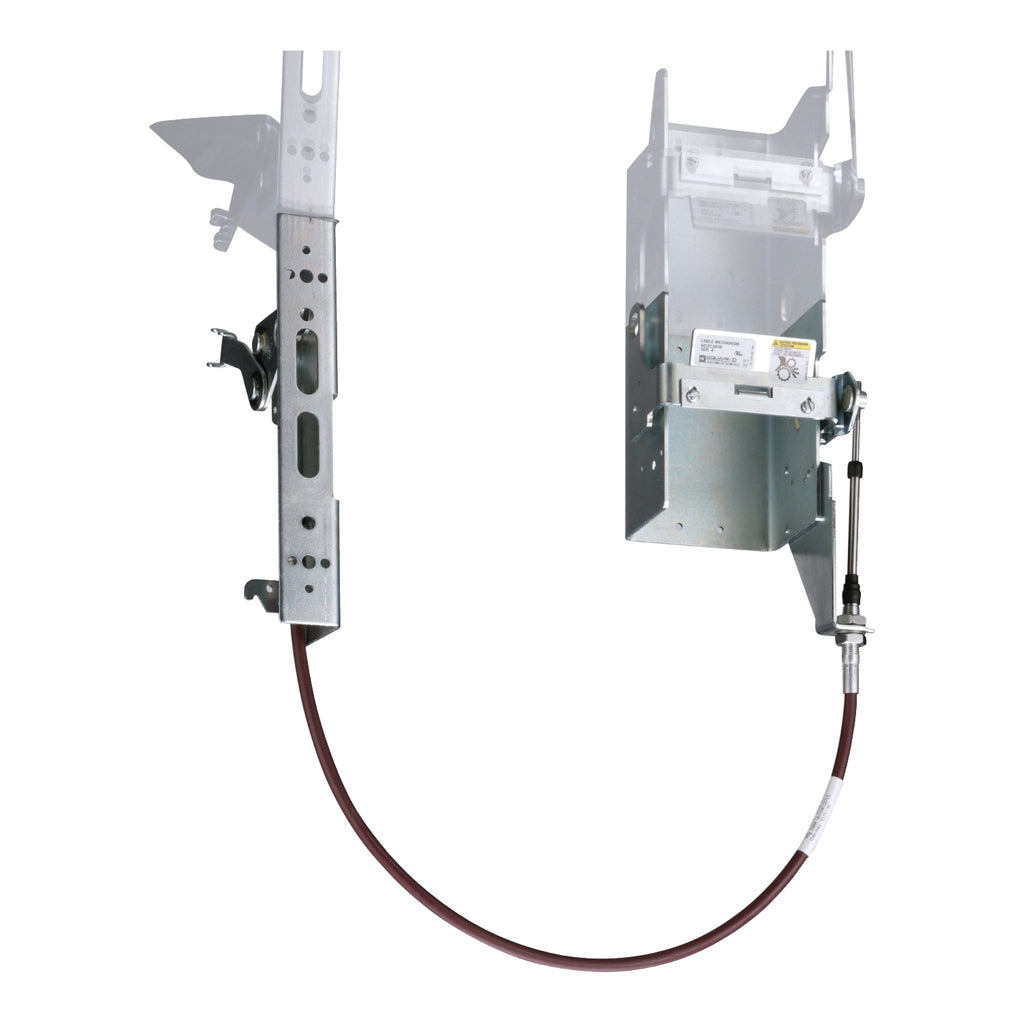

9422CSB30 is a Square D cable operated circuit breaker mechanism designed for PowerPact B frame breakers with a 125 amp rating and 3 poles.This flange mounted disconnect mechanism features a 36 inch cable for remote operation of 125A PowerPact B circuit breakers. It supports 3 poles and is suitable for industrial power distribution applications requiring reliable cable operation. The product meets multiple certifications including UL, CSA, IEC, CE, CCC, and NOM standards.
- Amperage: 125A
- Number of Poles: 3
- Mounting Type: Flange Mounted
- Operating Mechanism: Cable Operated
- Frame Type: PowerPact B
- Cable Length: 36 inches
- Certifications: UL Listed, CSA Certified, IEC, CE Marked, CCC Certified, NOM
- Interrupt Rating: Not specified
- Trip Unit: Not applicable (mechanism only)
Specifications
- Part Number: 9422CSB30
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Operating Handles
- Family : Powerpact
- Type : 9422
Product Data
- UPC : 78590109350
- GTIN : 00785901000000
- Country of Origin : Mexico
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 5.37
- Certification : CCC Certified, CE Marked, CSA Certified, IEC, NOM, UL Listed
