Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
9080LBC363101

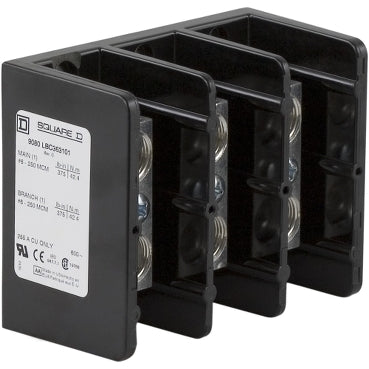

9080LBC363101 is a Square D Linergy 3 pole power distribution block designed for industrial and commercial power distribution applications. This block provides reliable and efficient power distribution with a copper conductor rated for 255A and 600V AC/DC. The 9080LBC363101 features a phenolic block housing and is designed to NEMA standards. It includes one lug opening on the main side and one on the branch side, making it ideal for distributing power to multiple loads. The block is surface mountable and suitable for use in a variety of panelboard and switchgear installations.
- 3 pole configuration
- 255A rated current
- 600V AC/DC voltage rating
- Phenolic block material
- Surface mount type
- UL component recognized
- CSA certified
- Height: 4 in (101.60 mm)
- Width: 5 in
- Wire strip length: 1.19 in (line and load)
- SCCR: 100 kA UL 508 A
- One lug opening on main side, one on branch side
Specifications
- Part Number: 9080LBC363101
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
Product Data
- UPC : 785901097679
- GTIN : 00785901097679
- Country of Origin : United States
- Dimensions : 4 in (101.6 mm) x 5 in (127 mm) x 2.61 in (66.29 mm) (Height x Width x Depth)
- Weight : 1.86
- Certification : CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01
