Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9001KYK117

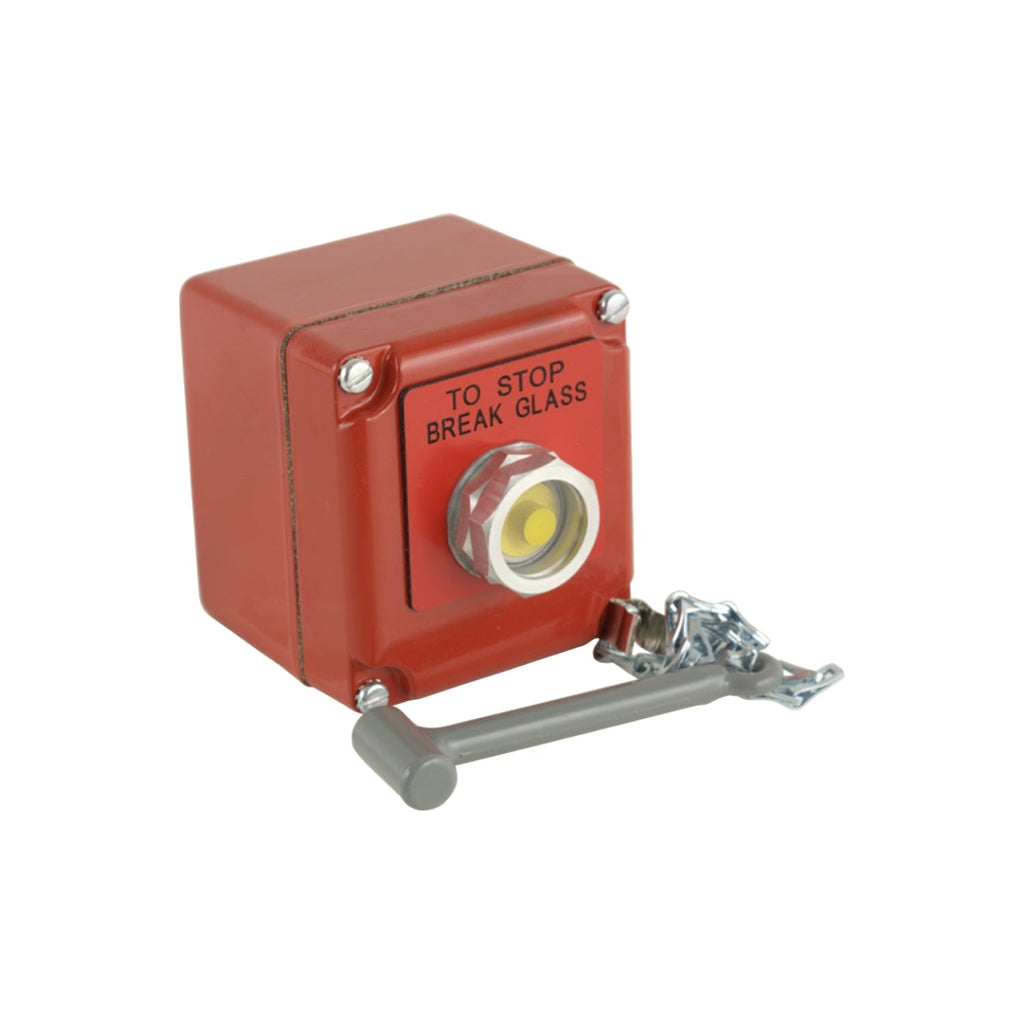

9001KYK117 is a Schneider Electric Harmony 9001K complete control station designed for motor control applications with a 10 Amp, 600VAC rating and zinc die-cast enclosure.This control station features one push button with 1 normally open (NO) and 1 normally closed (NC) contact, labeled STOP-BREAK GLASS, suitable for surface mounting. It is rated for NEMA 1, 3, 4, and 13 environments, providing robust protection and reliability in harsh conditions. The unit includes screw-clamp terminals and an easy, secure mounting system with automatic self-grounding operators.
- Amperage: 10 Amps
- Voltage: 600 VAC
- Contact Configuration: 1NO + 1NC
- Enclosure Material: Zinc Die-Cast
- Mounting Type: Surface Mount
- NEMA Ratings: 1, 3, 4, 13
- Series: Harmony 9001K
- Operator Type: Push Button
- Legend: STOP-BREAK GLASS
- Terminals: Screw-Clamp
- Certifications: Meets multiple industry safety standards
Specifications
- Part Number: 9001KYK117
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Control Station
- Family : Harmony 9001K
- Type : 9001KY
Product Data
- UPC : 785901039846
- GTIN : 00785901039846
- Country of Origin : Mexico
- Dimensions : Depth 6.55 in (166.37 mm) Width 2.23 in (56.64 mm) Height 3.5 in (88.90 mm)
- Weight : 3.25 lb
- Certification : UL Listed CSA Certified CE Marked
