9001KR8RH25 - Schneider Electric Harmony 9001K Metal Mushroom Pushbutton 30mm 3-Position Spring Return 10A 250V

9001KR8RH25

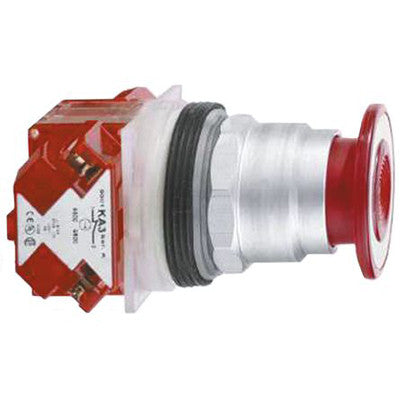

9001KR8RH25 is a Schneider Electric Harmony 9001K series metal mushroom pushbutton designed for industrial motor control applications.

This modular pushbutton features a 30mm mounting diameter, a chromium-plated metal bezel, and a red mushroom head. It operates with a 3-position spring return mechanism and includes 2 normally closed (NC) screw clamp terminals. The device is rated for 10 amps at 250 volts and complies with IEC 60947-5-1 and IEC 60947-1 standards, including a 2.5 kV dielectric test rating. It is dusttight and oiltight with an IP66 rating, suitable for harsh environments.

• Manufacturer: Schneider Electric
• Series: Harmony 9001K
• Type: Metal Mushroom Pushbutton
• Mounting Diameter: 30 mm
• Actuator Color: Red
• Positions: 3-position spring return
• Contact Configuration: 1 NC late + 1 NC
• Terminal Type: Screw Clamp
• Current Rating: 10 A
• Voltage Rating: 250 V
• Standards: IEC 60947-5-1, IEC 60947-1
• Ingress Protection: IP66

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KR8RH25
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Push Button
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901034087
• GTIN : 03389118040182
• Country of Origin : Mexico
• Weight : 0.28
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
