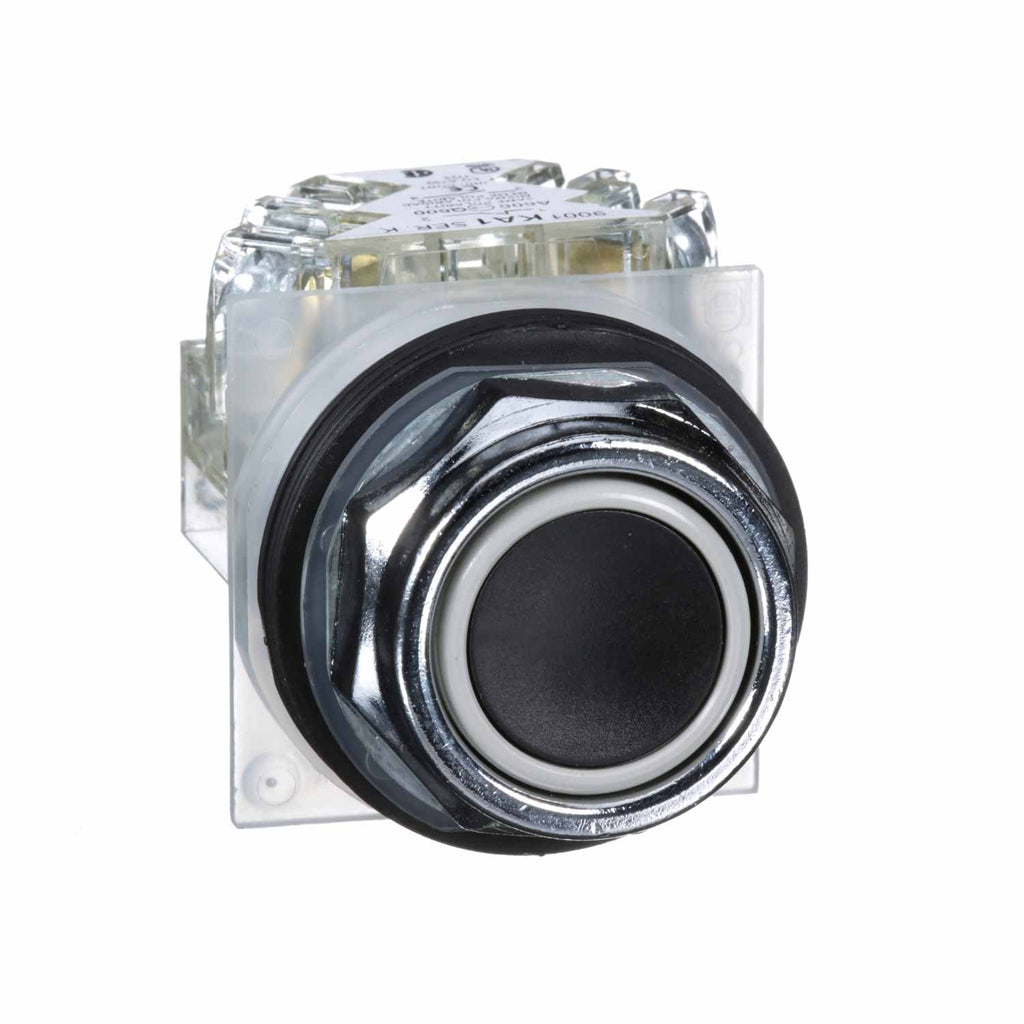

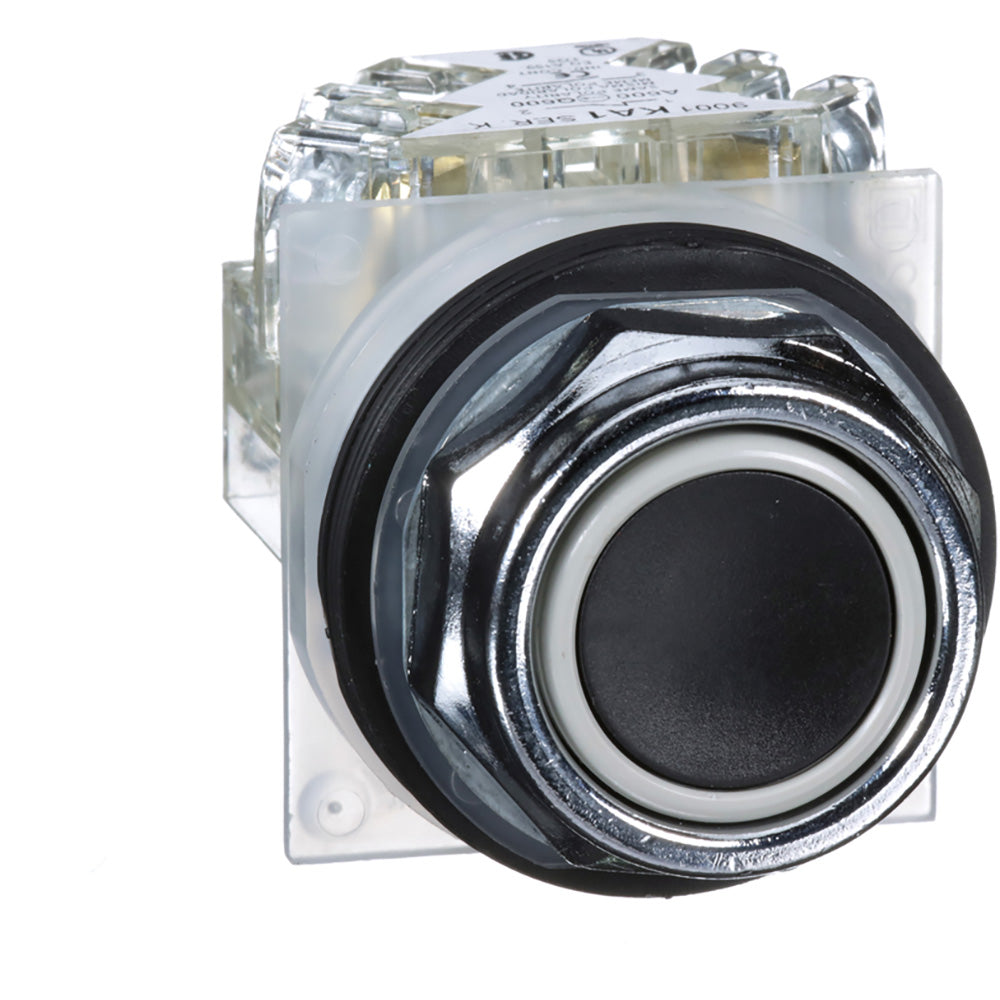

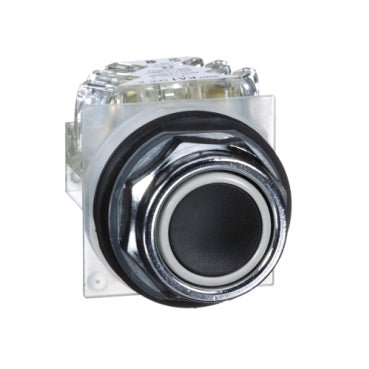

9001KR1BH13 - Schneider Electric 30mm Push Button 10A 600VAC Full Guard Black Metal Flush 1NO 1NC

9001KR1BH13

9001KR1BH13 is a robust 30mm push button operator designed for heavy-duty industrial applications. This non-illuminated push button features a full guard, black metal flush design, and spring return actuator for reliable operation in demanding environments. It is part of the Schneider Electric Harmony 9001K series and offers a modular assembly with screw clamp terminals for easy installation. Engineered for durability, the 9001KR1BH13 push button is rated for 10A at 600VAC and includes both normally open (1NO) and normally closed (1NC) contacts. The device is IP66 rated, NEMA 1/2/3/3R/4/6/12/13 certified, and features automatic self-grounding for added safety. Its chromium-plated bezel and silver alloy contacts ensure long-term reliability and corrosion resistance.

• Manufacturer: Schneider Electric
• Series: Harmony 9001K
• Amperage: 10A
• Voltage: 600VAC
• Contacts: 1NO 1NC
• Mounting Type: Panel
• Enclosure Type: Full Guard, Flush
• Actuator Type: Spring Return
• Terminal Type: Screw Clamp
• IP Rating: IP66
• NEMA Rating: 1/2/3/3R/4/6/12/13
• Operating Temperature: -25°C to 70°C
• Material: Black Chromium Plated Metal
• Panel Cutout: 30mm
• Self-Grounding: Yes
• ABS Certified: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KR1BH13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Push Button
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 1NO, 1NC

Product Data

• UPC : 038911091073
• GTIN : 03389110910735
• Country of Origin : Mexico
• Weight : 0.28
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA, CE, JIS
