8501RS43V20

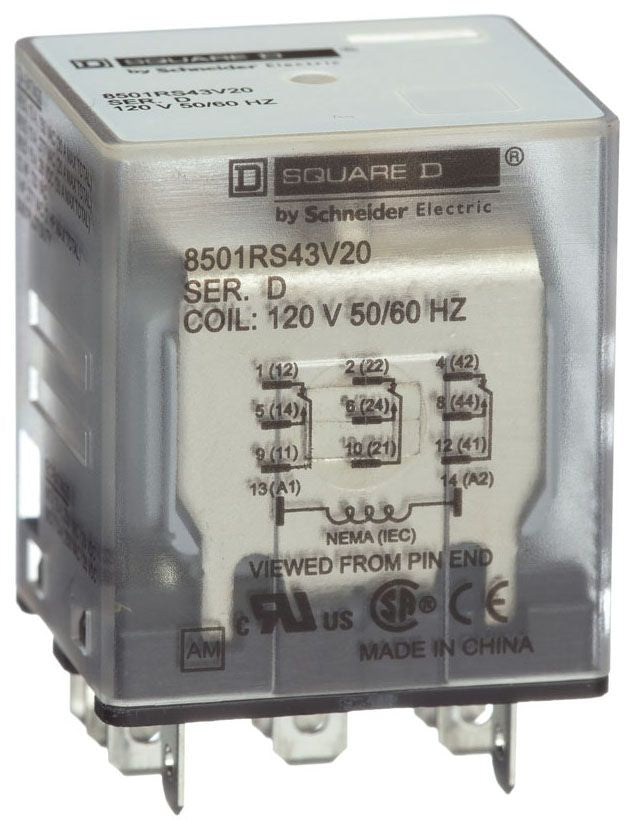

8501RS43V20 is a Schneider Electric Type R miniature plug-in relay designed for control circuit logic applications with 3PDT contact configuration.
This relay features three normally open and three normally closed contacts rated at 15 amperes resistive at 277 VAC and 28 VDC, with a 10 ampere resistive rating at 277 VAC. It delivers 1 HP at 277 VAC and 1/2 HP at 120 VAC, with a B300 inductive rating. The relay mounts via an 11-blade socket interface compatible with 8501NR43 or 8501NR43B relay sockets, enabling quick and easy replacement. It features a non-latching 120 VAC coil and is UL listed, UL component recognized, and CSA certified.
- Part Number: 8501RS43V20
- Manufacturer: Schneider Electric
- Brand: Square D
- Contact Configuration: 3PDT (3 NO, 3 NC)
- Coil Voltage: 120 VAC
- Contact Rating: 15A at 277 VAC
- Horsepower Rating: 1 HP at 277 VAC, 1/2 HP at 120 VAC
- Mounting Type: Socket (11-blade)
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -40 degrees F to 158 degrees F
- Weight: 1.00 lbs
- Country of Origin: China
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501RS43V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Fuse Part And Accessory
Product Data
- UPC : 785901137122
- GTIN : 785901137122
- Country of Origin : China
- Dimensions : 1.07 in (27.3 mm) x 1.2 in (30.6 mm) x 1.6 in (41.8 mm) (Height x Width x Depth)
- Weight : 0.13 lb
- Certification : CE Certified, CSA Certified, UL Listed
