Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
CH60J3I

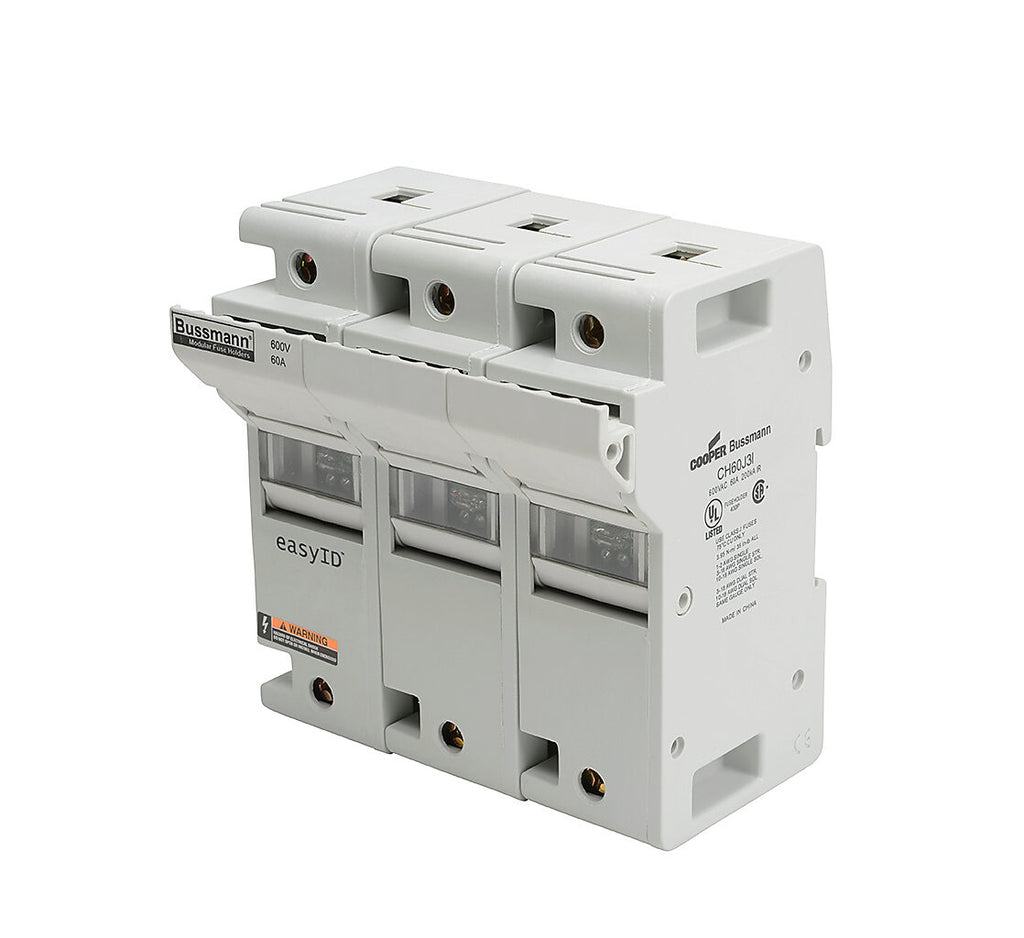

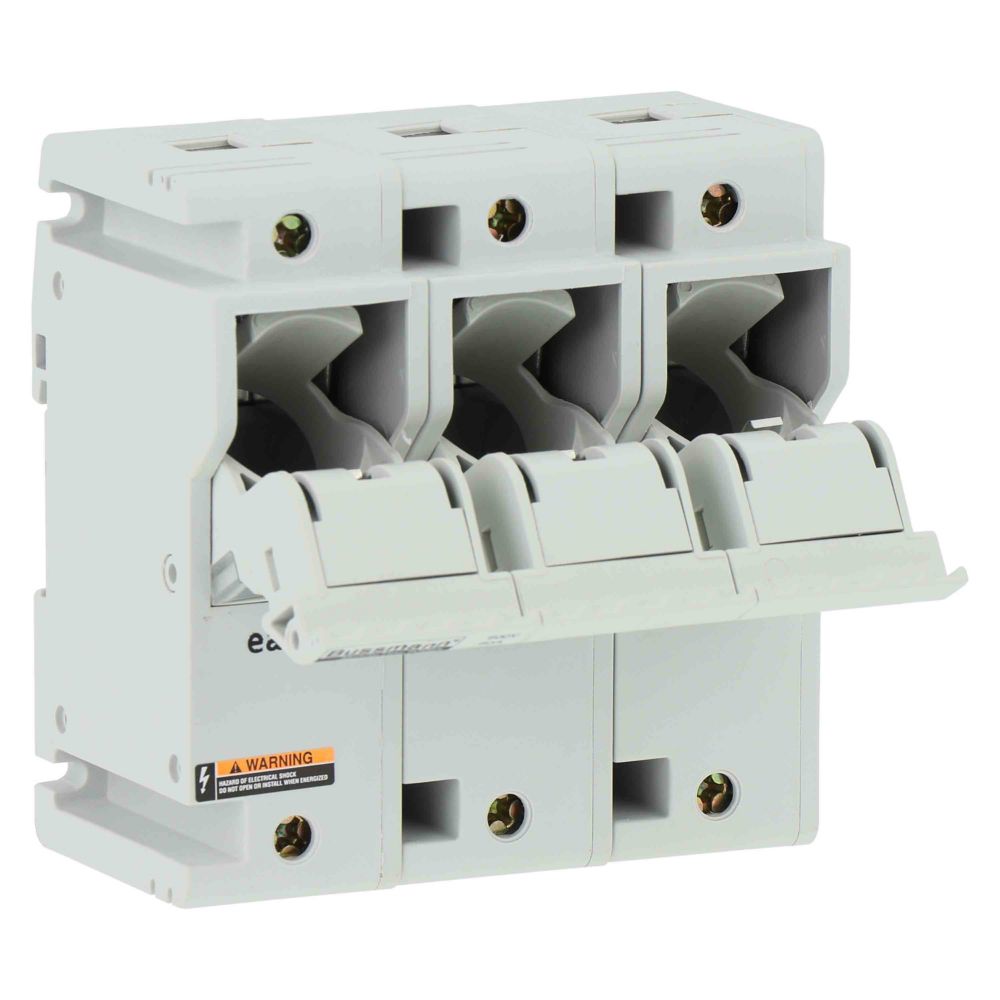

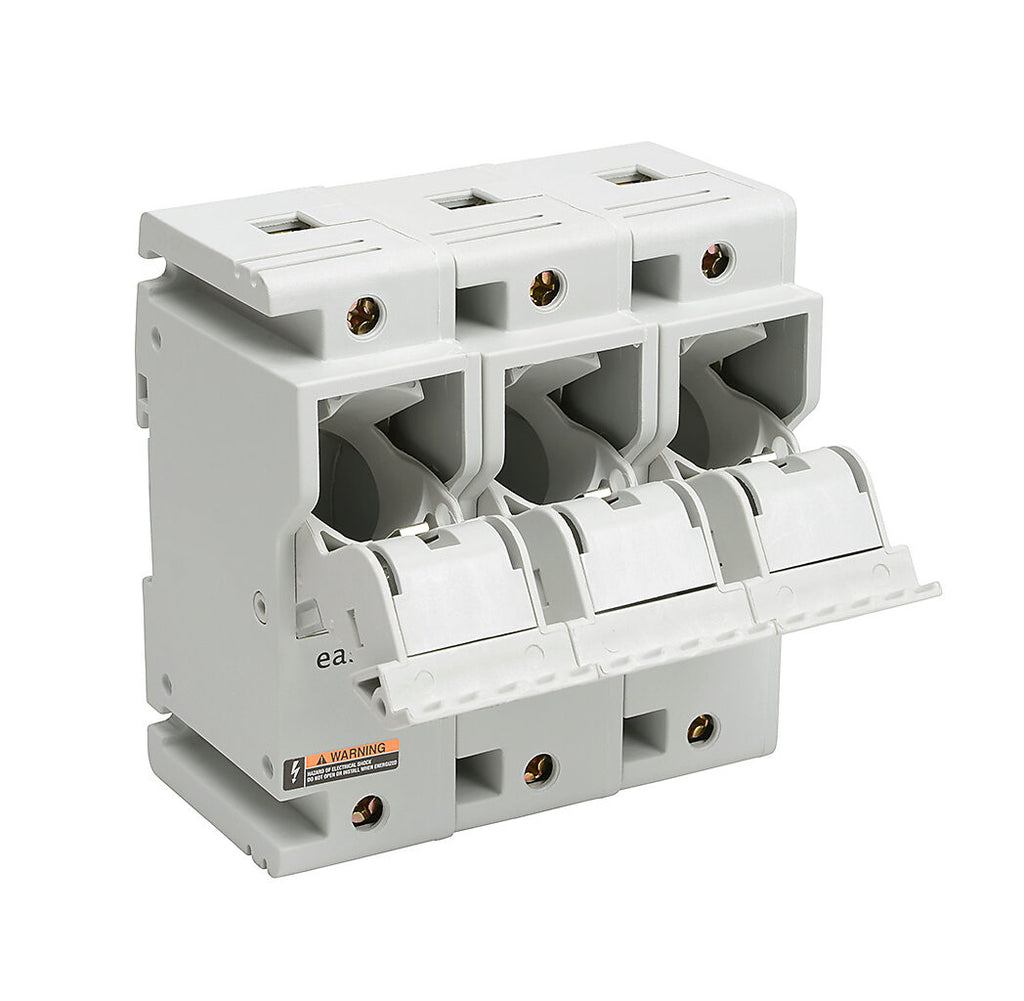

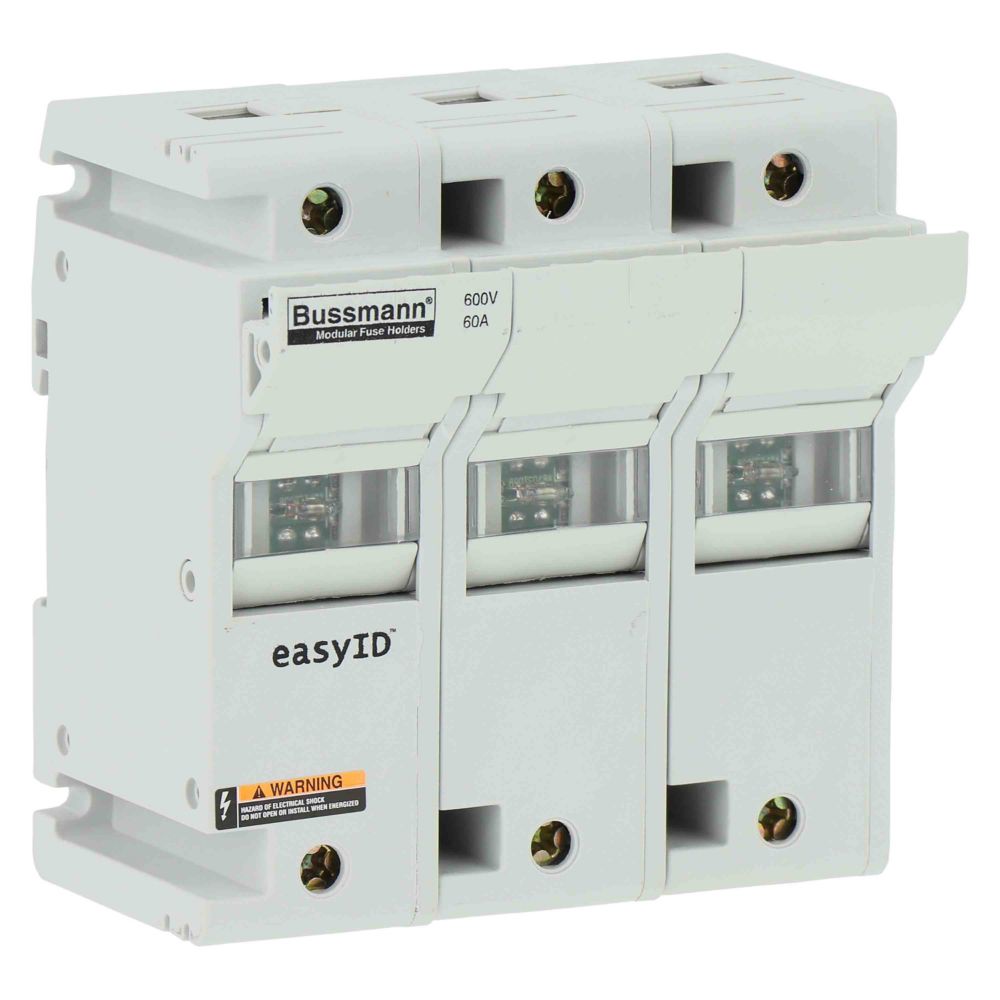

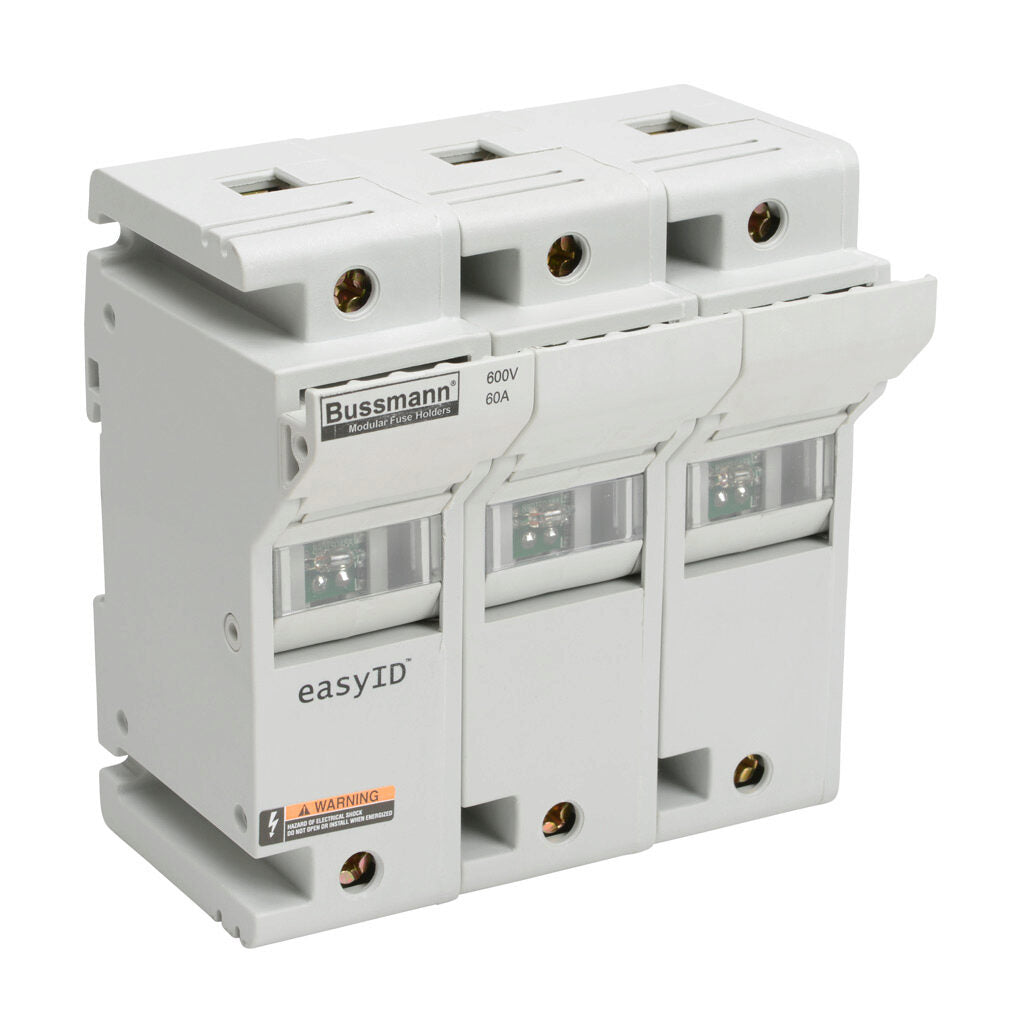

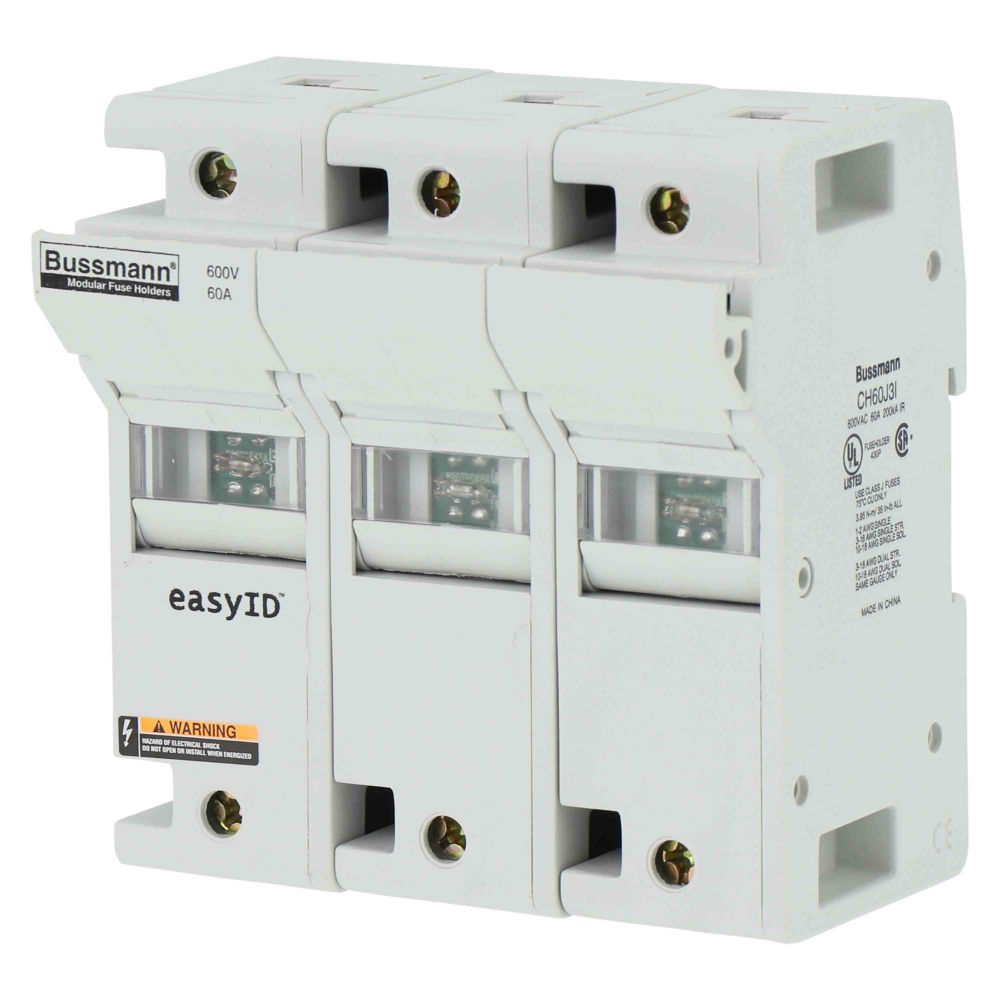

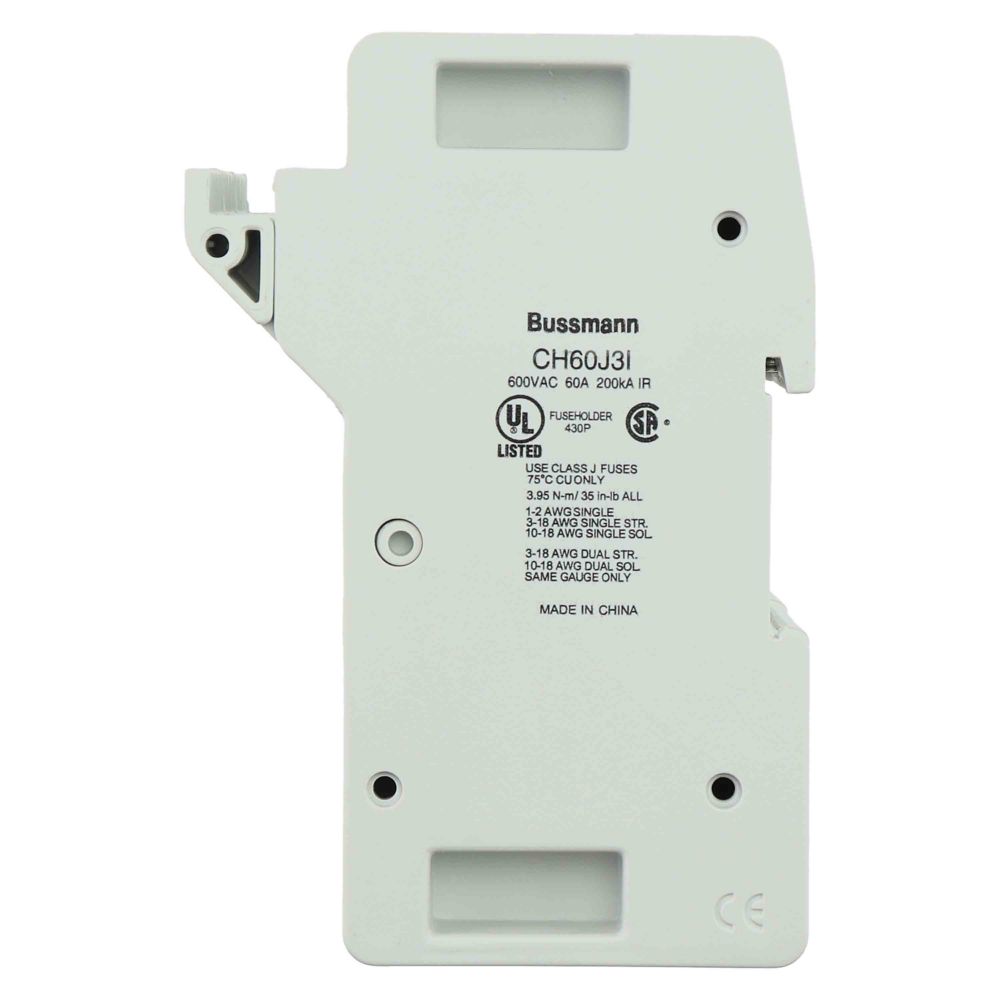

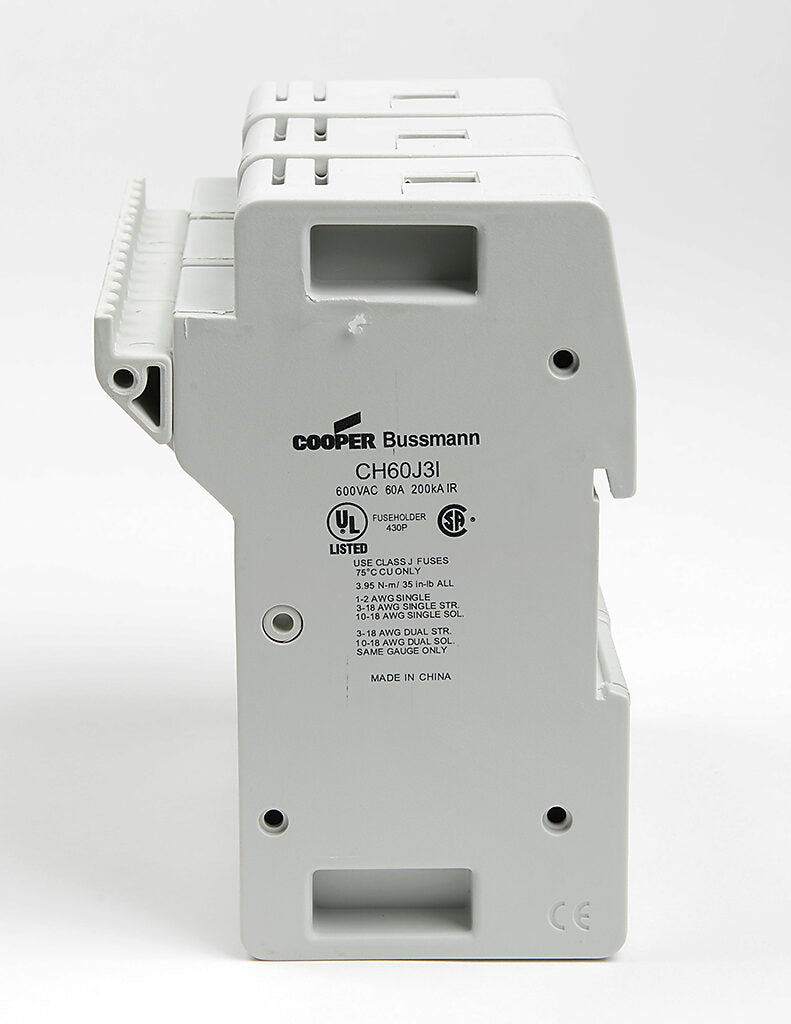

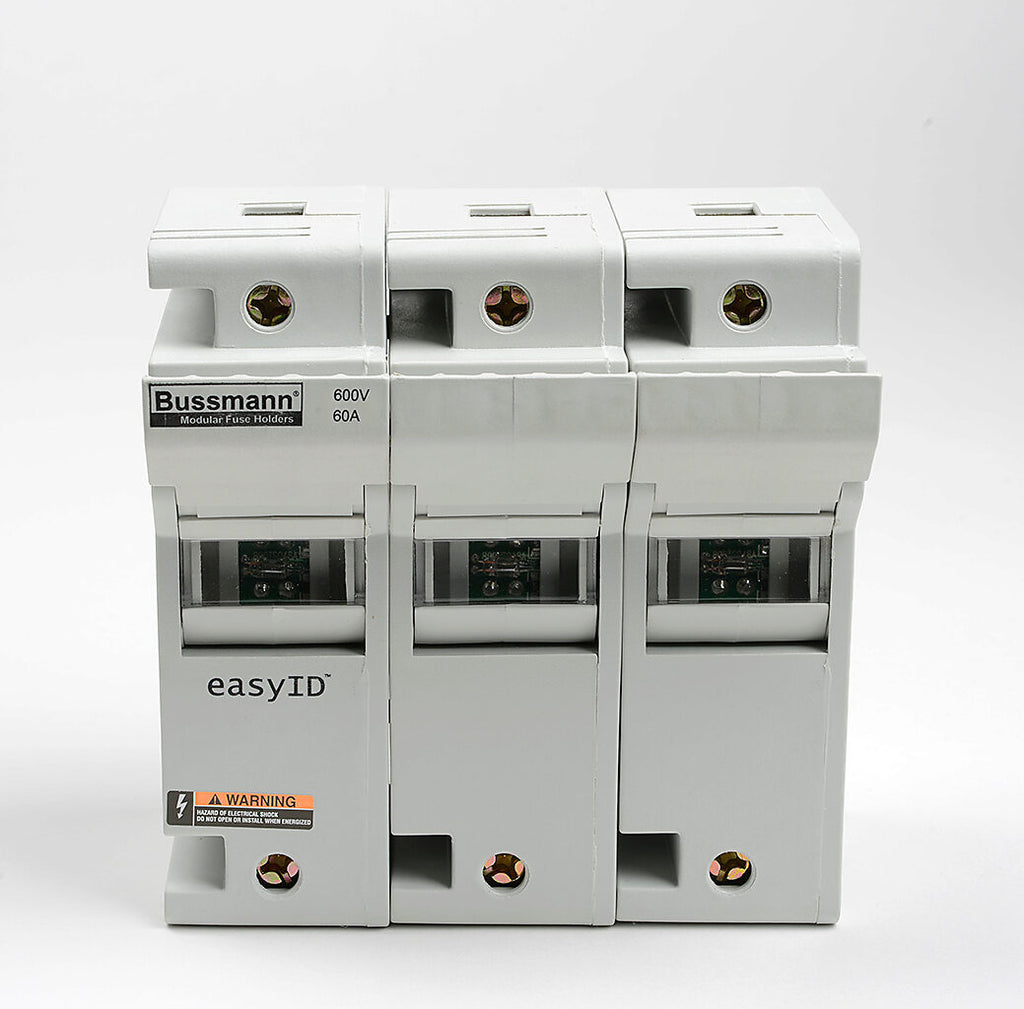

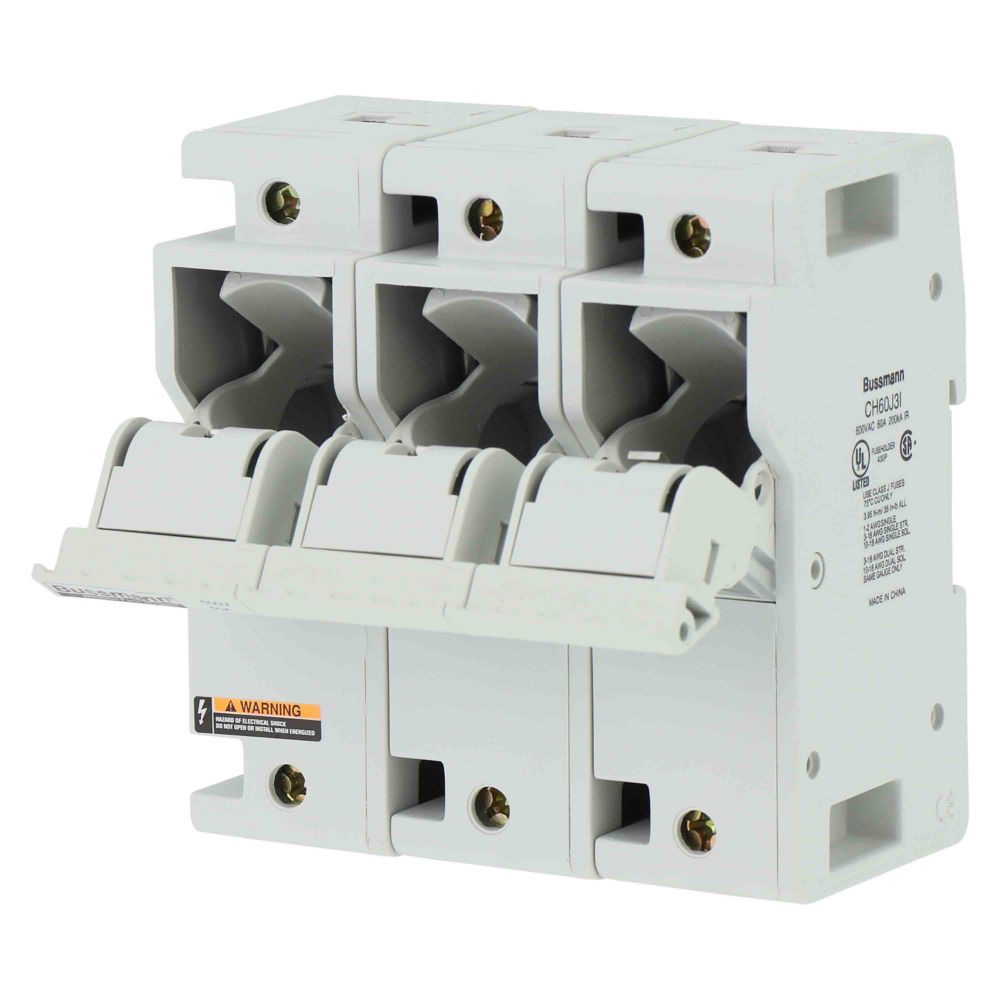

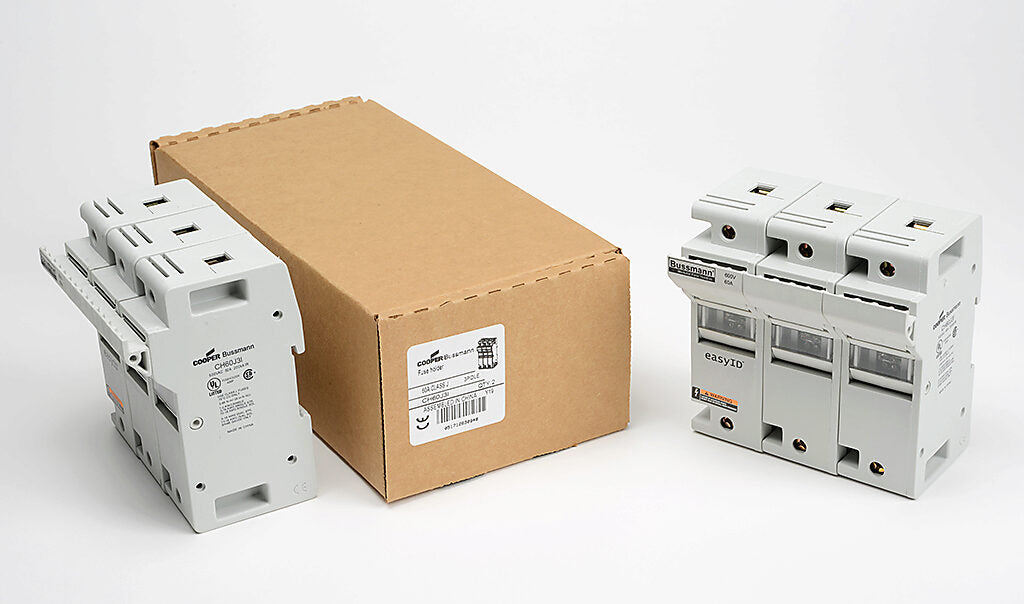

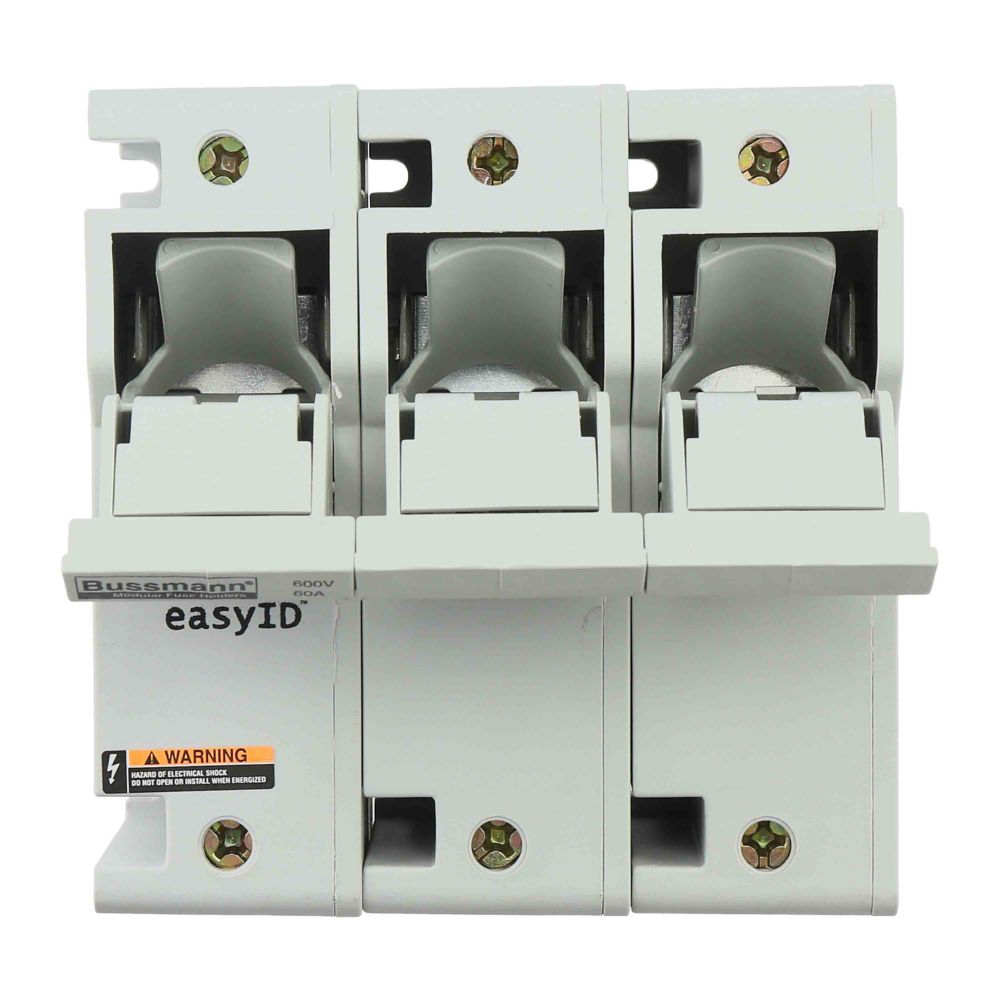

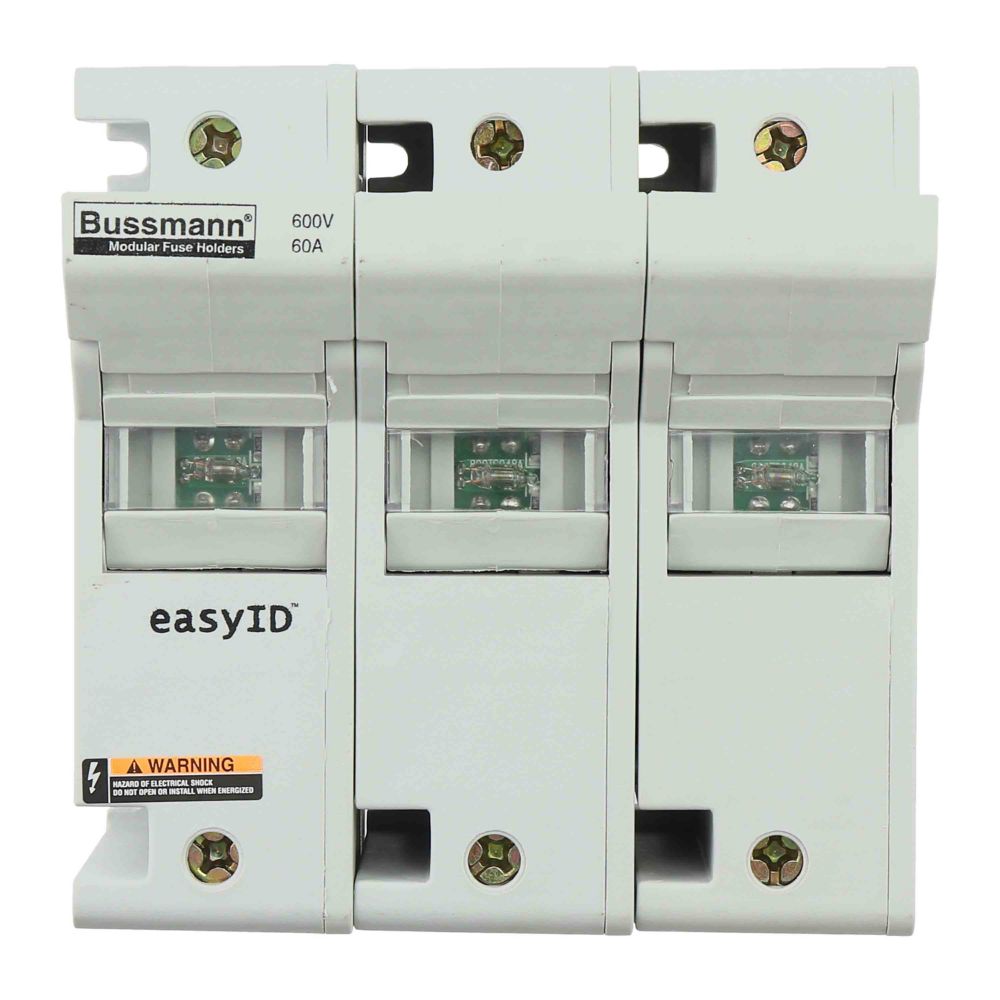

CH60J3I is a three-pole modular fuse holder from Eaton Bussmann's CH Series, designed for Class J fuses up to 60A and 600VAC/DC applications. This fuse holder features a thermoplastic housing, tin-plated copper clips, and is rated for 85°C maximum operating temperature. It is designed for 35mm DIN rail mounting and provides an IP20 finger-safe rating for added safety. The unit is suitable for industrial and commercial power distribution systems requiring reliable fuse protection.
- Part Number: CH60J3I
- Manufacturer: Eaton Bussmann
- Series: CH Series
- Number of Poles: 3
- Amperage Rating: 60A
- Voltage Rating: 600VAC/DC
- Mounting Type: 35mm DIN Rail
- Fuse Type: Class J
- Interrupt Rating: 200kA RMS Sym.
- Operating Temperature: -40°C to 85°C
- Terminal Torque: 24 in-lb
- Certifications: UL 512, CSA C22.2 No. 39, CE
Specifications
- Part Number: CH60J3I
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Fuse Holders
- Family : CH Series
- Type : CH
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 051712630948
- GTIN : 00051712630948
- Country of Origin : China
- Dimensions : 4.72 in x 4.88 in x 3.31 in (Length/Depth x Height x Width)
- Weight : 1.7
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CE, CSA Certified, UL Listed
