Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501NR82

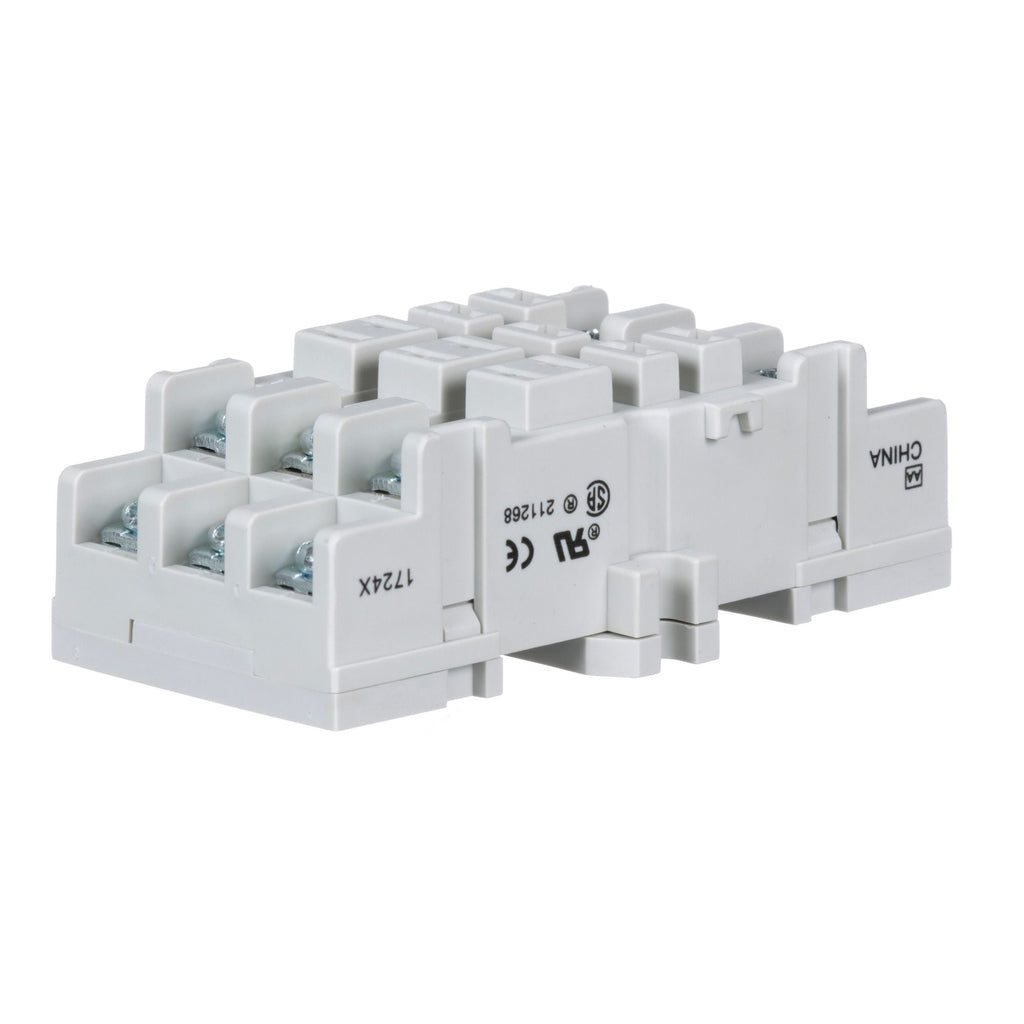

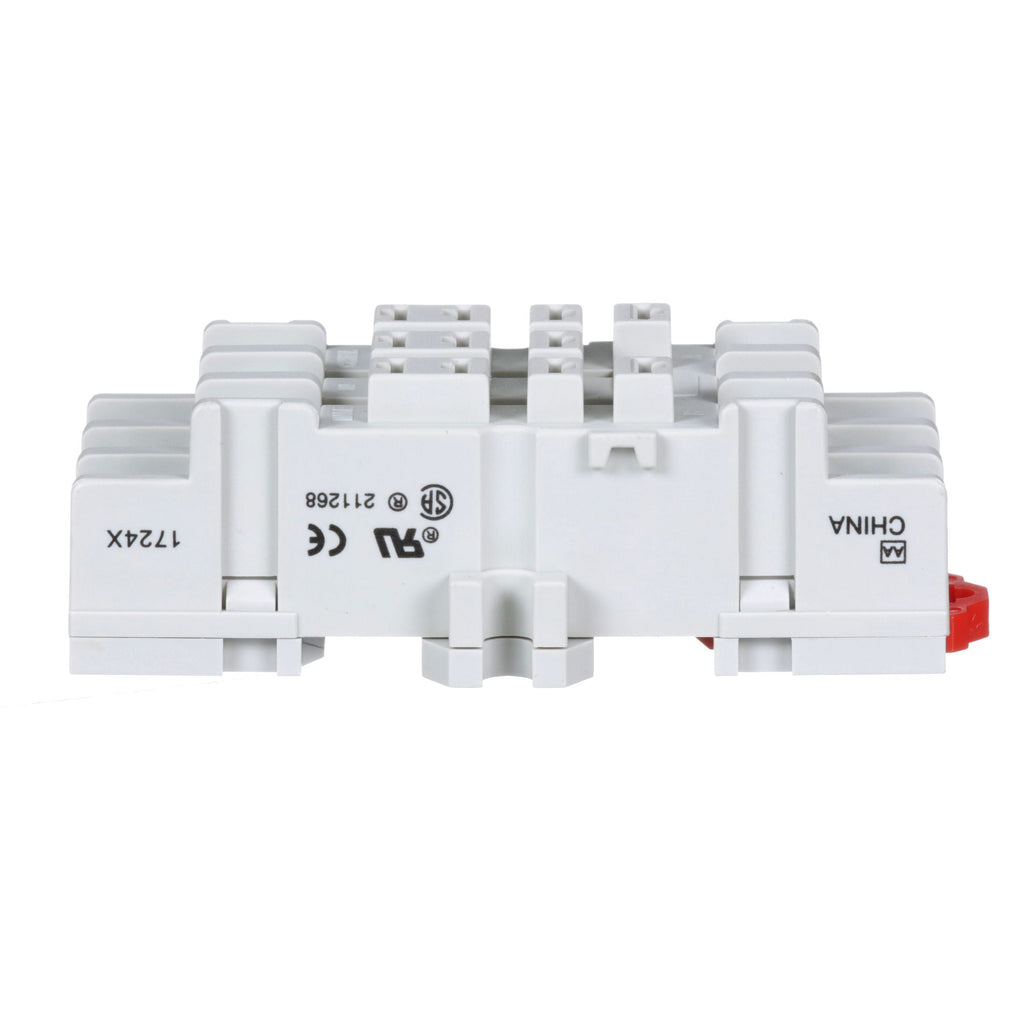

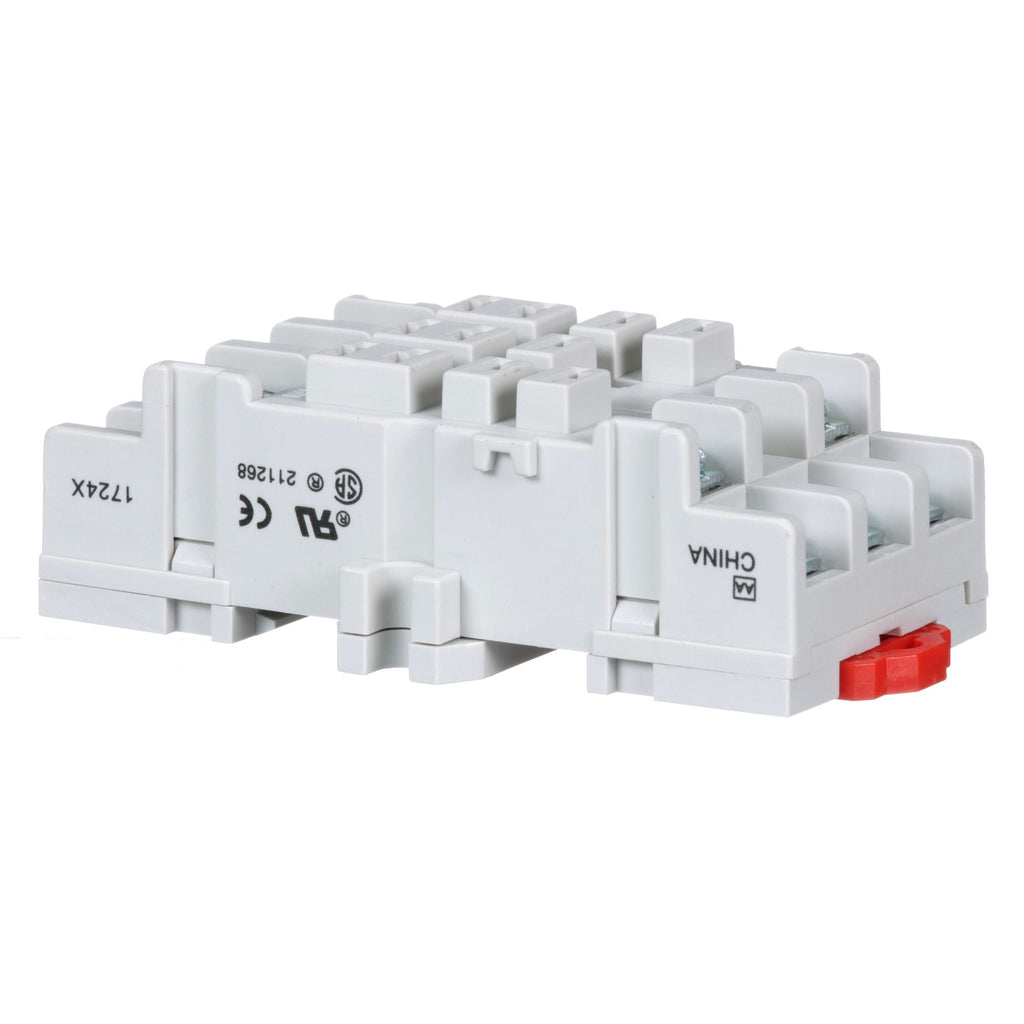

8501NR82 is a Schneider Electric relay socket designed for motor control applications, compatible with 8510KU plug-in relays.
This relay socket features 11 tubular pins arranged in a double tier configuration, supports 15 Ampere current at 300 Volt AC, and offers flexible mounting options including 35mm DIN rail or direct panel mounting. It uses single-tiered screw clamp terminals for secure wiring and is engineered for space-saving and easy installation in industrial control systems.
- Key Specifications
- Manufacturer: Schneider Electric
- Part Number: 8501NR82
- Relay Socket Type: Plug-in, Type N
- Pin Count: 11 tubular pins, double tier
- Current Rating: 15 Amp
- Voltage Rating: 300 Volt AC
- Mounting Type: DIN rail or direct panel mount
- Terminal Type: Single tiered screw clamp
- Compatible Relay: 8510KU series
- Application: Motor control and industrial automation
- Dimensions: Approximately 1.69 in x 3.13 in x 3.15 in
- Part Number: 8501NR82
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relay Socket
- Voltage : 250
- UPC : 785901583868
- GTIN : 00785901583868
- Country of Origin : China
- Dimensions : 3.1 in (80 mm) x 1.7 in (43 mm) x 1.02 in (26 mm) (Height x Width x Depth)
- Weight : 0.14
- Certification : CE Certified, CSA Certified, UL Recognized
