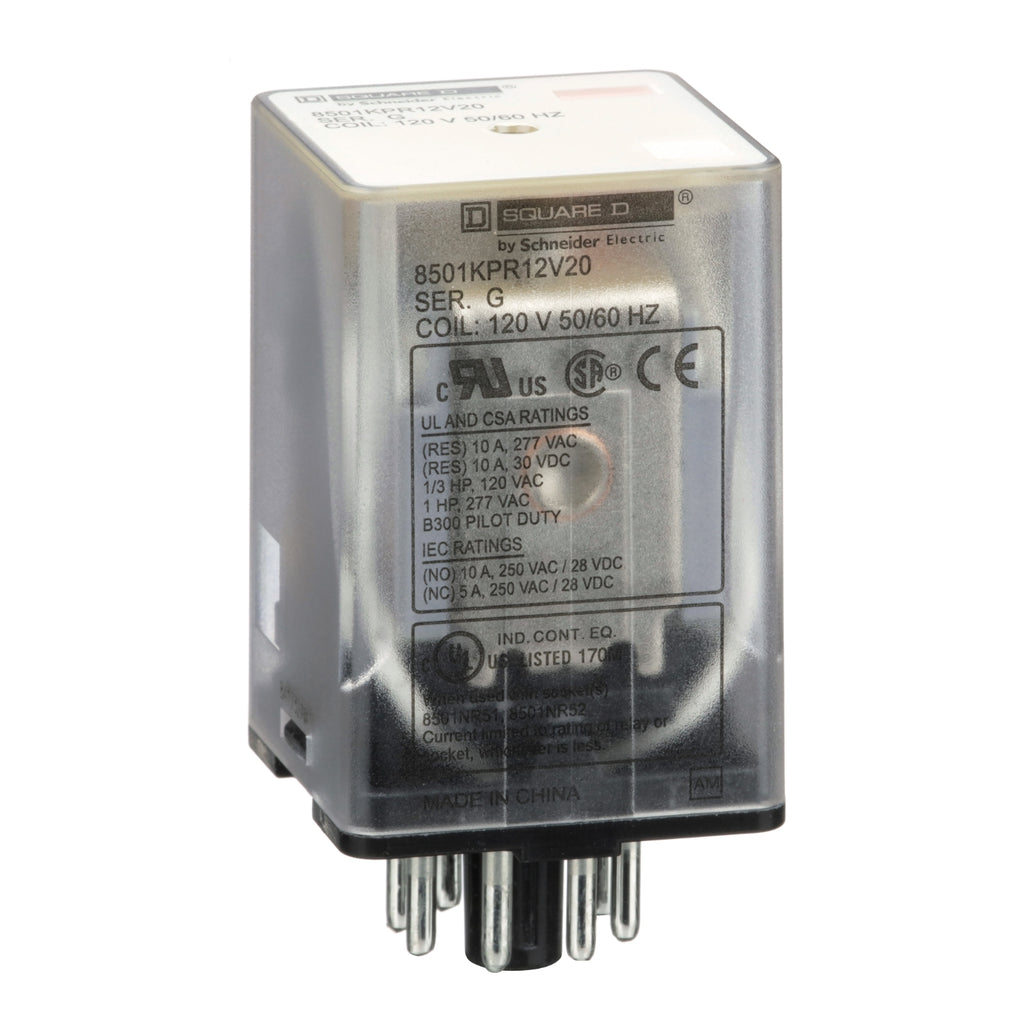

8501KPR12V20 - Square D 120V AC 10 Amp DPDT Motor Control Relay Class 8501

8501KPR12V20

8501KPR12V20 is a Square D Class 8501 motor control relay designed for reliable industrial motor control applications.This relay features a 120 VAC coil voltage and dual pole double throw (DPDT) contacts rated for 10 amperes at 277 VAC and 28 VDC. It includes two normally open and two normally closed contacts, supporting a 1/3 HP motor rating at 120 VAC. The plug-in mounting type allows easy installation and replacement. It is built for durability and consistent performance in demanding environments.

• Coil Voltage: 120 VAC
• Contact Rating: 10 Amps at 277 VAC and 28 VDC
• Contact Configuration: DPDT (2CO - 2 Changeover)
• Motor Rating: 1/3 HP at 120 VAC
• Mounting Type: Plug-In
• Class/Series: 8501
• Number of Poles: 2
• Contact Type: Two Normally Open, Two Normally Closed
• Application: Motor Control
• Dimensions: Approx. 2.66" Height x 1.4" Width
• Certifications: CA Prop65 Warning

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KPR12V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : K

Product Data

• UPC : 785901147329
• GTIN : 00785901147329
• Country of Origin : China
• Weight : 0.3 lb
• Certification : CE Certified, CSA Certified, UL Listed
