8501KPDR12V53 - Square D 24VDC 10A DPDT Plug-In Relay, 2CO, 277VAC, 28VDC, 1/3HP, Type KP, UL 508

8501KPDR12V53

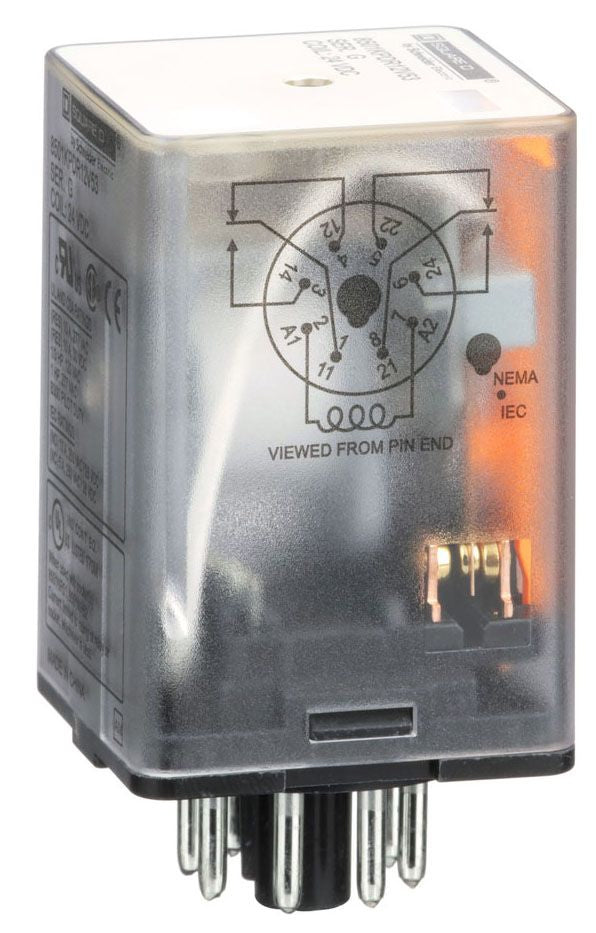

8501KPDR12V53 is a Square D general purpose plug-in relay designed for reliable motor control applications.

This relay features two normally open and two normally closed contacts, offering a double-pole double-throw (DPDT) configuration. It is rated for 10A at 277VAC and 28VDC, with a 1/3HP rating at 120VAC, and is suitable for a variety of industrial control circuits. The relay is UL 508 listed and is designed for easy plug-in mounting.

Key Specifications

• Part Number: 8501KPDR12V53
• Manufacturer: Square D
• Category: Motor Control
• Amperage: 10A at 277VAC, 10A at 28VDC
• Voltage: 24VDC coil, 277VAC/28VDC contact
• Poles: DPDT (2 Form C)
• Mounting Type: Plug-in, socketable
• Interrupt Rating: 3A at 120VAC inductive (UL 508), 1.5A at 240VAC inductive (UL 508), 10A at 277VAC
• Series/Frame: Type KP, tubular
• Trip Unit: Not applicable (general purpose relay)
• Certifications: UL 508
• Contact Configuration: 2NO, 2NC
• HP Rating: 1/3HP at 120VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KPDR12V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays

Product Data

• UPC : 78590127817
• GTIN : 00785901278177
• Country of Origin : China
• Dimensions : 1.4 in (35.56 mm) x 2.66 in (67.56 mm)
• Weight : 0.2 lb
• Certification : CE Certified, CSA Certified, UL Listed
