Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501CO8V24

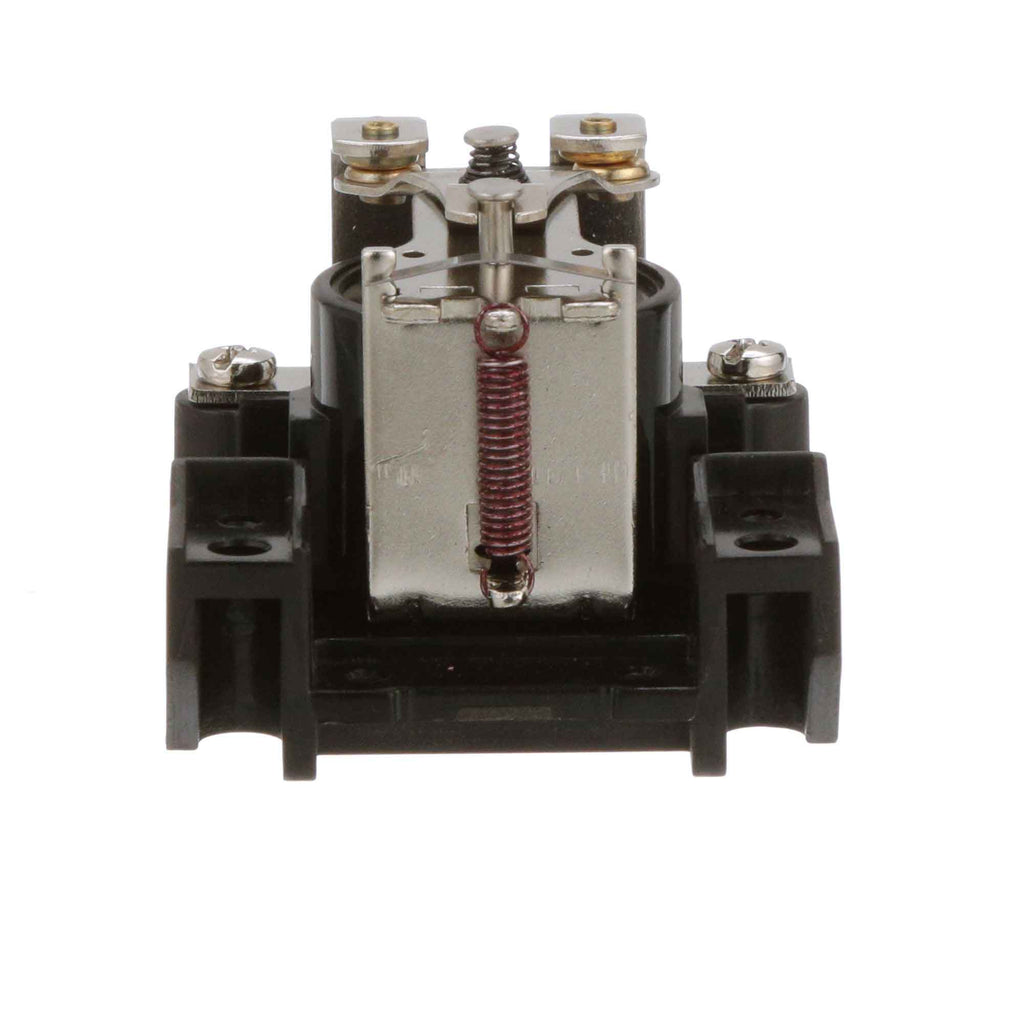

8501CO8V24 is a Square D power relay designed for motor control applications with a 24 VAC coil voltage.
This relay features a single-pole single-throw (SPST) configuration with 0 normally open (NO) and 1 normally closed (NC) contact. It is rated for 30 amps resistive current and supports up to 2 horsepower motors at 600 VAC maximum switching voltage. The relay is intended for single-phase use and includes screw clamp terminal connections for secure wiring.
- Part Number: 8501CO8V24
- Manufacturer: Square D
- Relay Type: Power Relay, SPST
- Contact Configuration: 0 NO, 1 NC
- Coil Voltage: 24 VAC
- Current Rating: 30 A resistive
- Horsepower Rating: 2 HP
- Maximum Switching Voltage: 600 VAC
- Phase: Single-phase
- Terminal Connection: Screw clamp
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501CO8V24
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : C
Product Data
- GTIN : 00785901089803
- Dimensions : Depth 14.84 in (377 mm) Width 13.39 in (340 mm) Height 46.85 in (1190 mm)
- Weight : 0.52
