8501CDO16V53 - Square D Power Relay 24VDC Coil 2PDT 30A Resistive 1.5HP Motor Control

8501CDO16V53

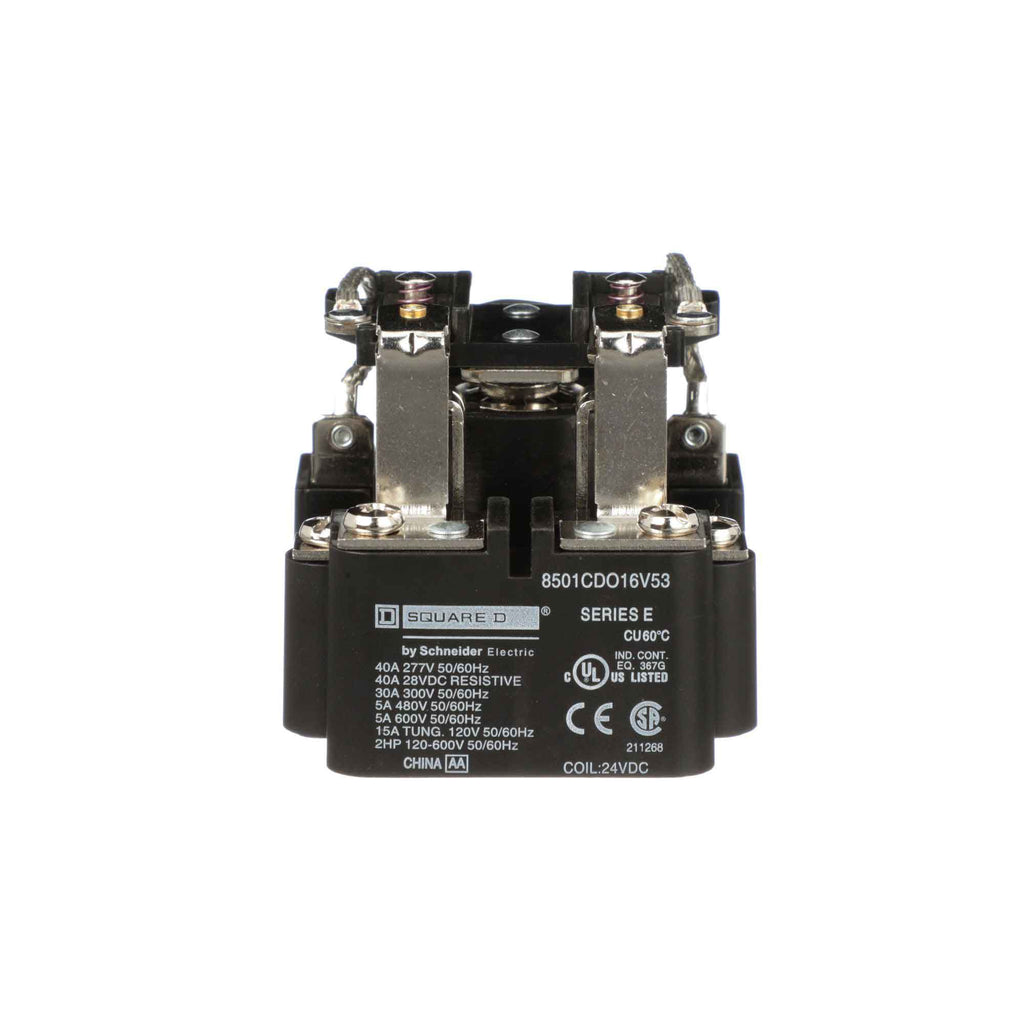

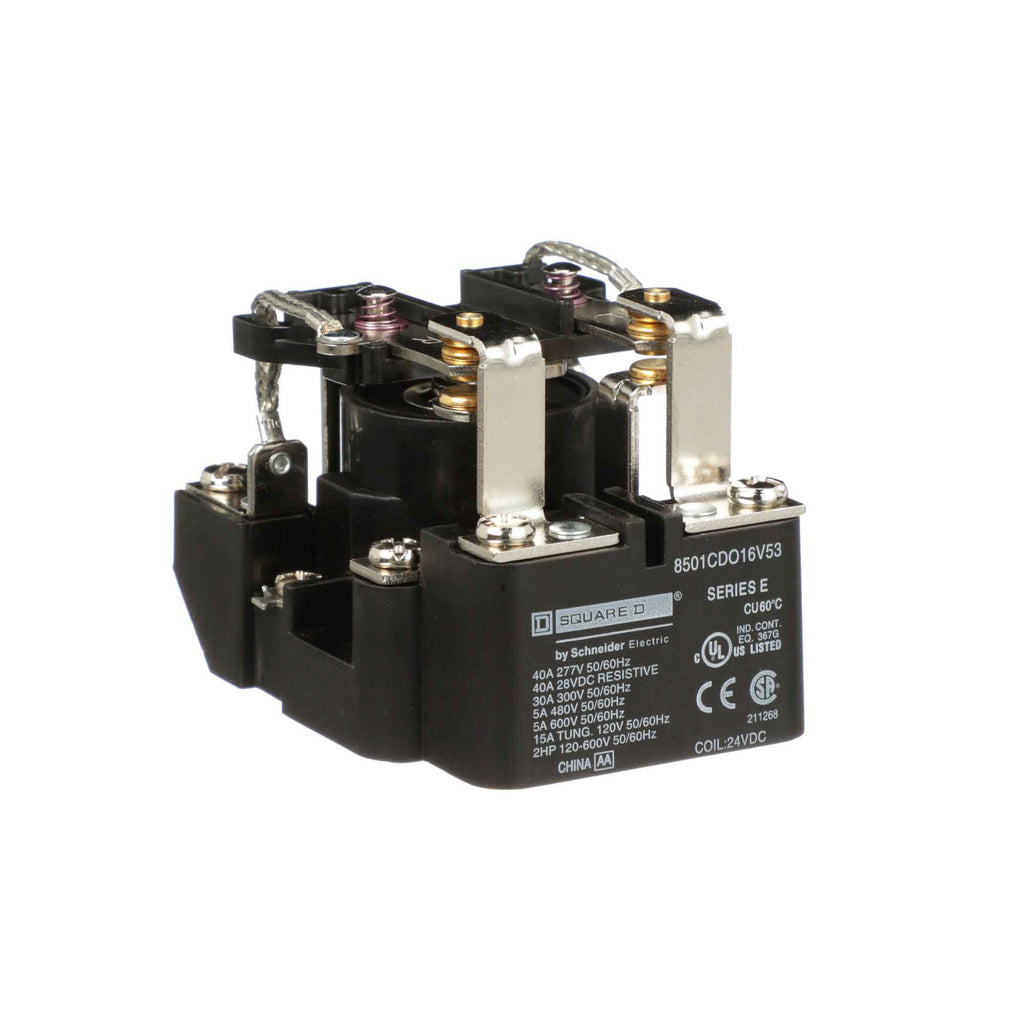

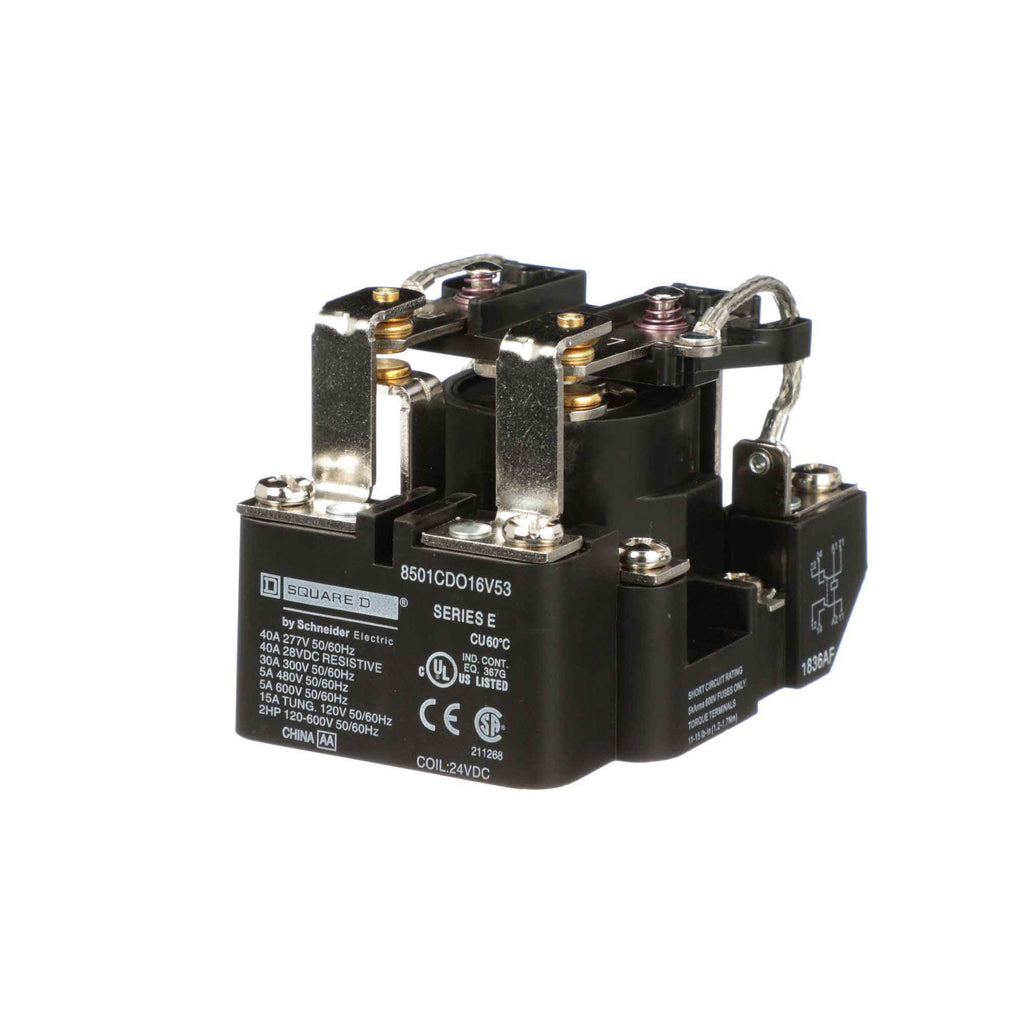

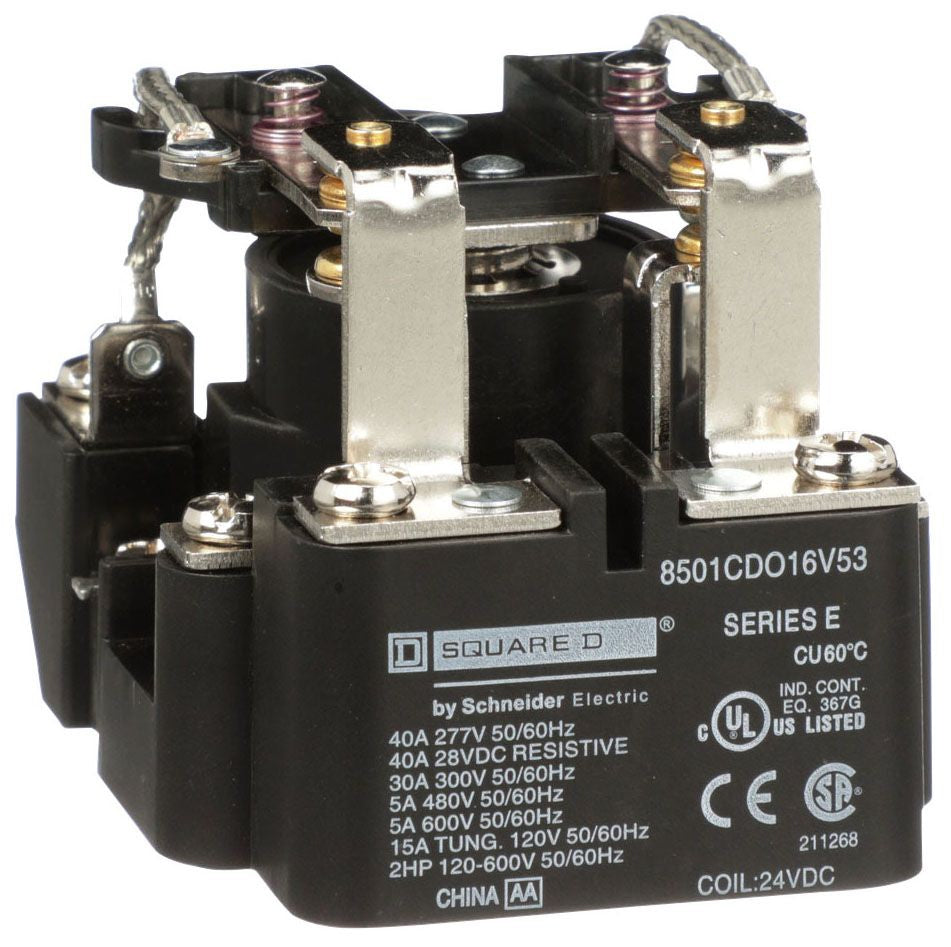

8501CDO16V53 is a Square D power relay designed for motor control applications with a 24 VDC coil and double pole double throw (DPDT) contacts.

This relay features heavy duty contacts rated for controlling small single phase motors up to 1.5 HP at 120 VAC, 230 VAC, or 600 VAC, with a 30 A resistive rating at 300 VAC. It has riveted construction to enhance mechanical life and is UL Listed and CSA Approved for safety and reliability. The open style construction allows visible confirmation of contact state.

• Type: Power Relay, Class 8501 Type C
• Coil Voltage: 24 VDC

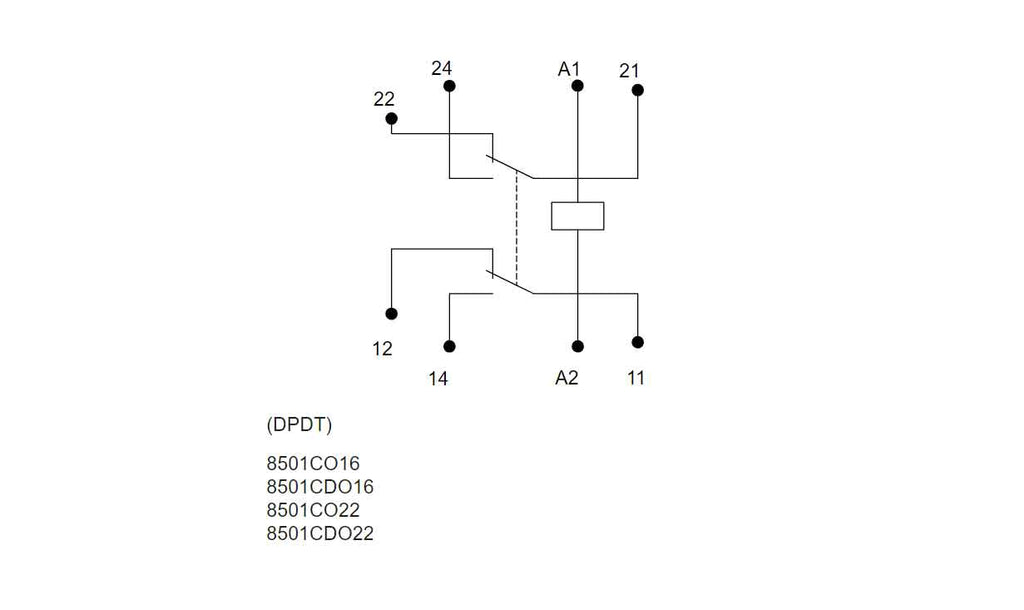

• Contact Configuration: DPDT (2 Normally Open, 2 Normally Closed)
• Rated Current: 30 A resistive at 300 VAC
• Motor Rating: 1.5 HP single phase at 120/230/600 VAC
• Maximum Switching Voltage: 600 VAC
• Mounting Type: Panel Mount
• Construction: Riveted for increased mechanical life
• Certifications: UL Listed, CSA Approved

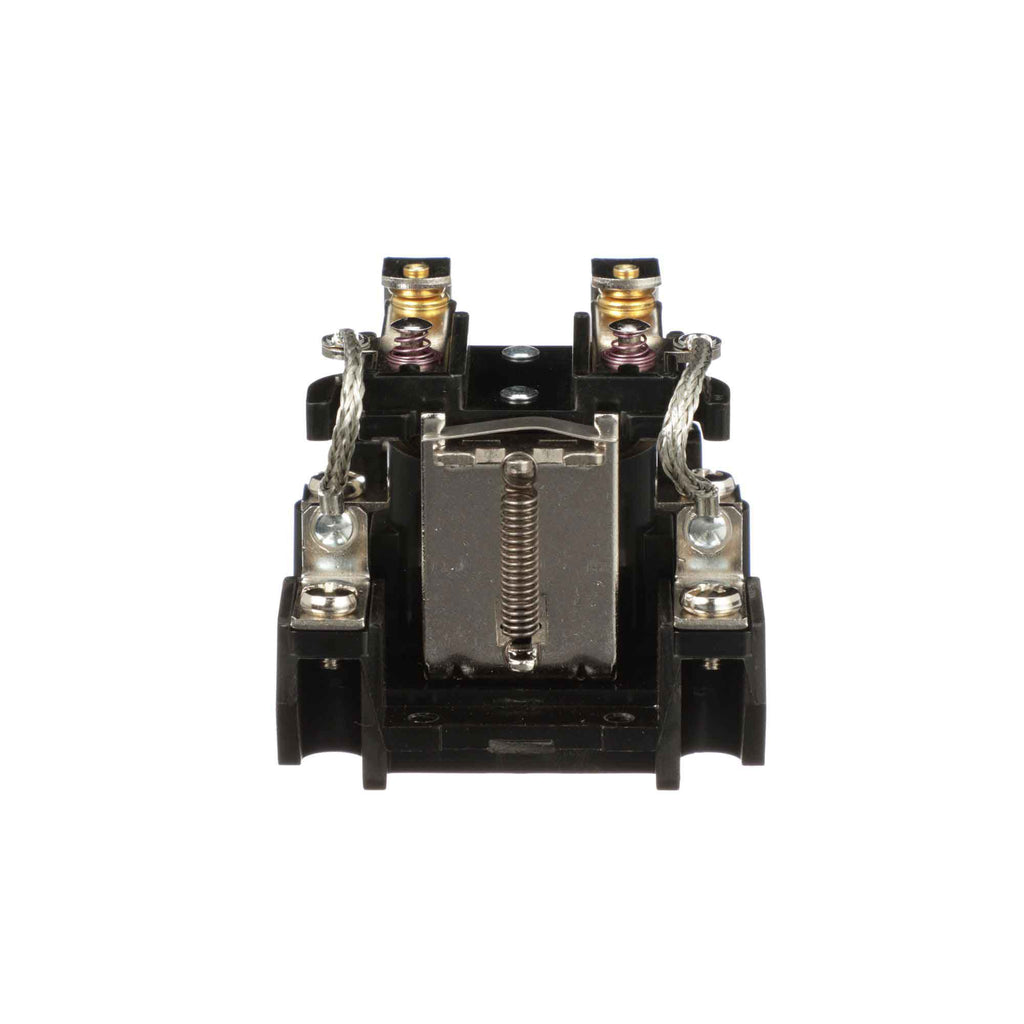

• Open style for visible contact state confirmation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CDO16V53
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052197
• GTIN : 00785901052197
• Country of Origin : China

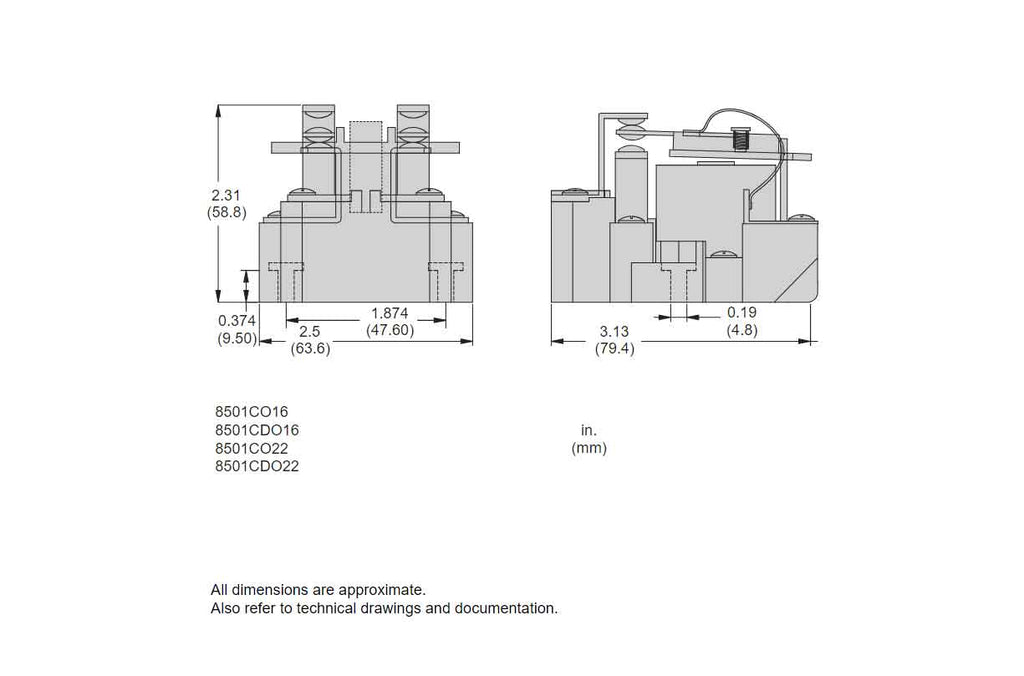

• Dimensions : 2.5 in x 3.12 in
• Weight : 0.61
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
