8501CO8V20

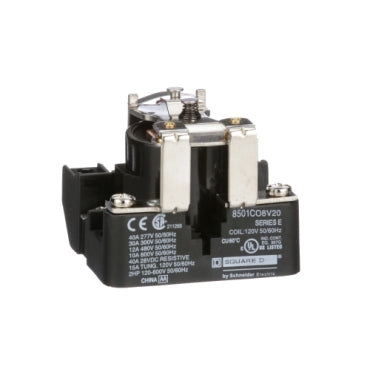

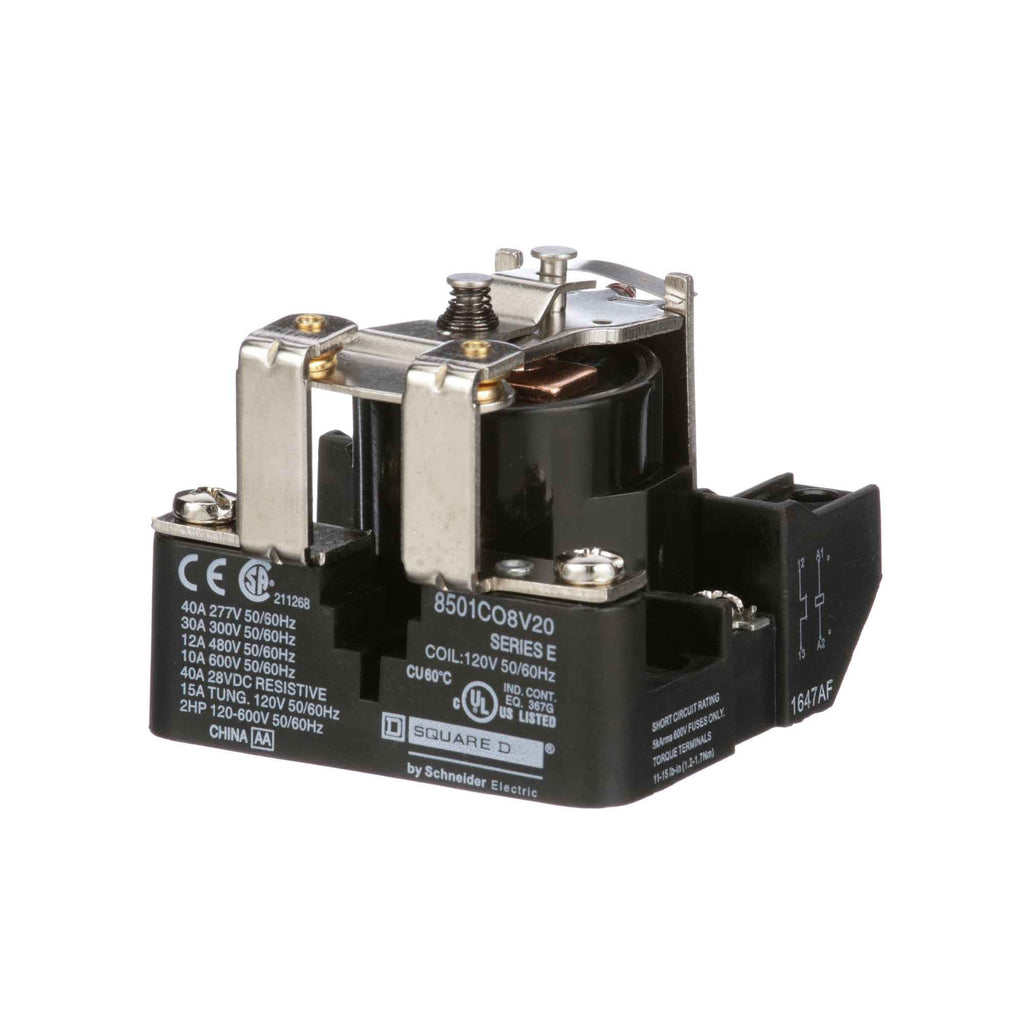

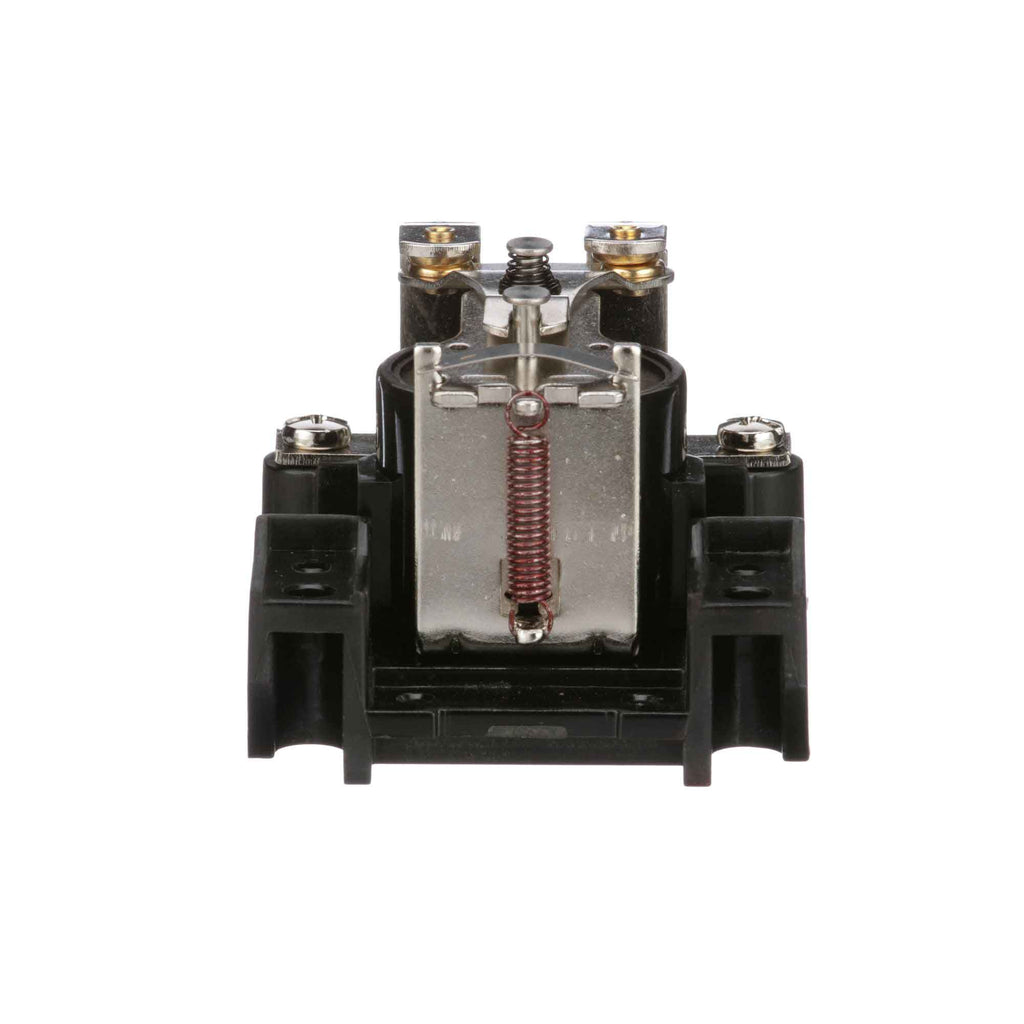

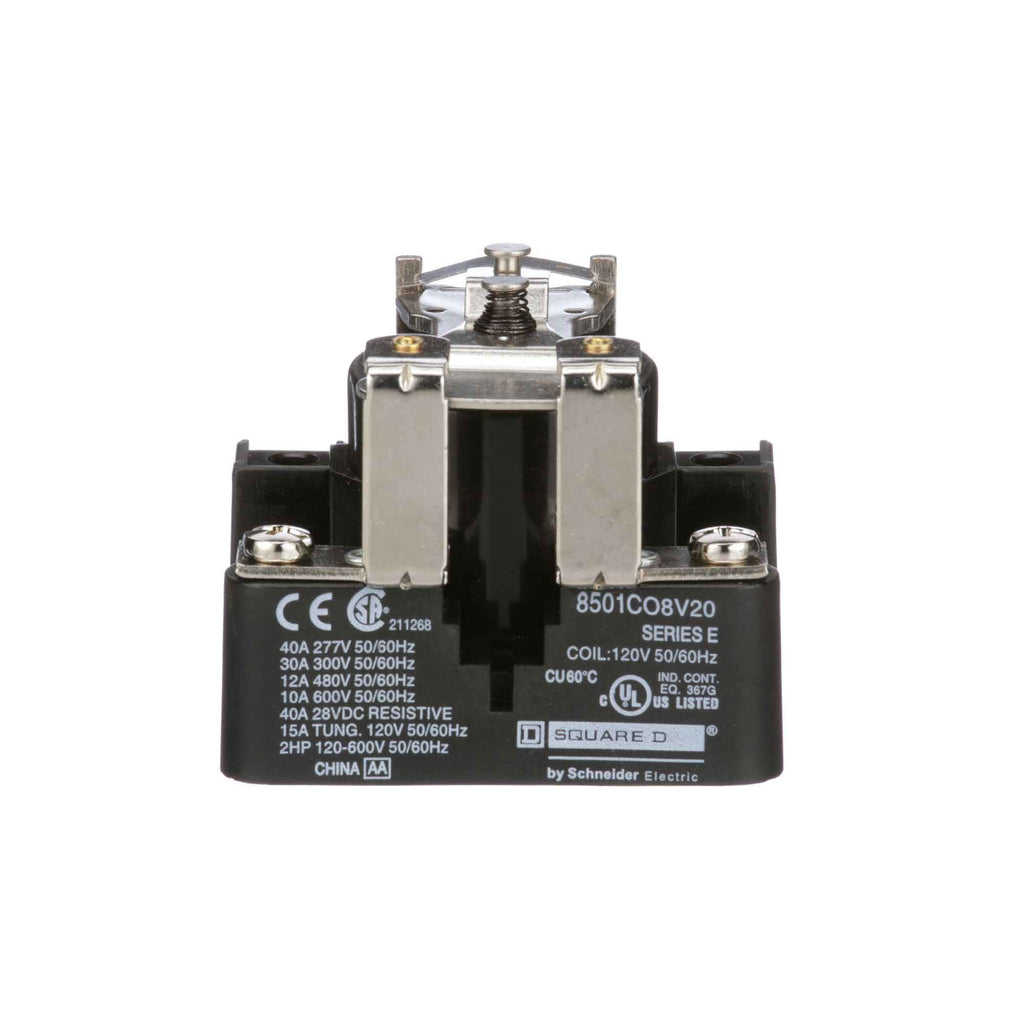

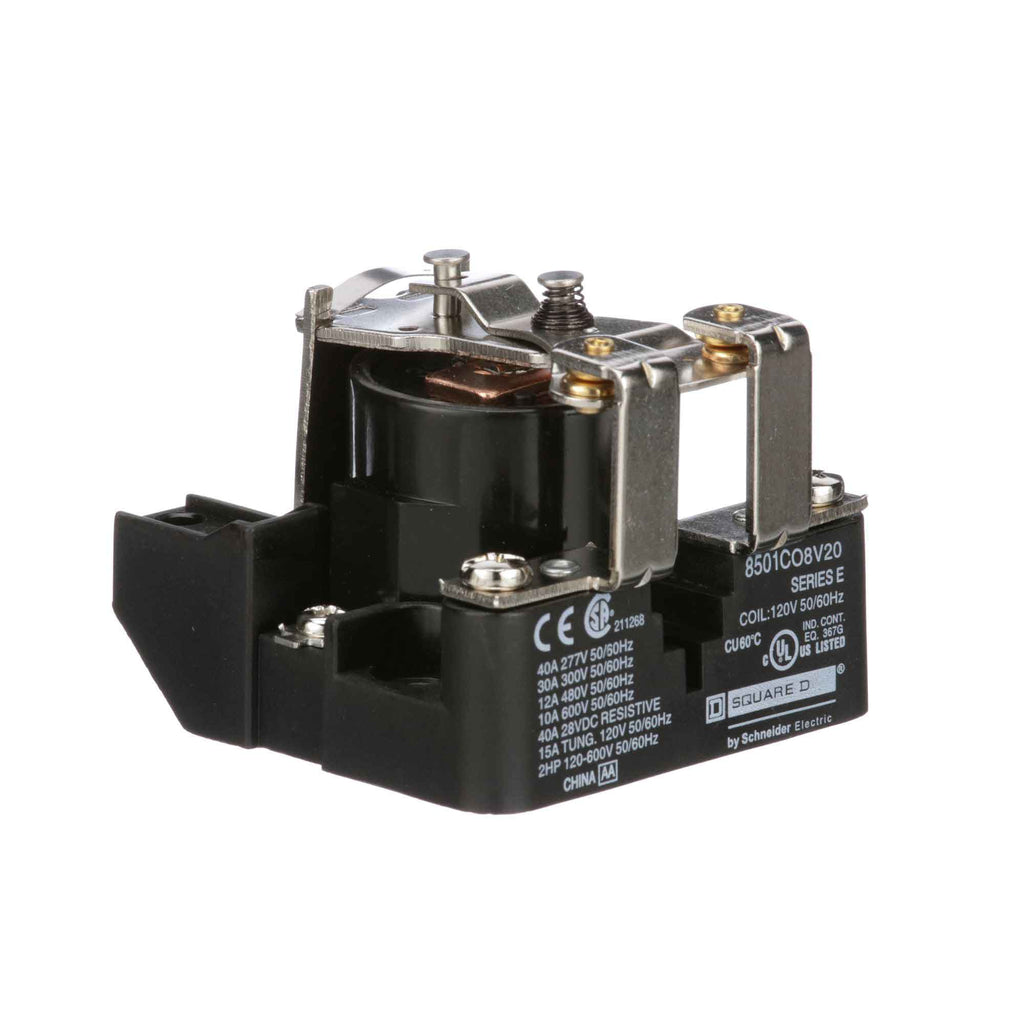

8501CO8V20 is a Square D power relay designed for motor control applications with a 120 VAC coil and single pole single throw (SPST) switch function.
This Type C relay features heavy duty contacts rated for controlling small single phase motors and other light loads, supporting up to 2 HP at 120 VAC, 230 VAC, or 600 VAC. It has a 30 amp resistive rating at 300 VAC and includes 1 normally closed (NC) contact. The relay is UL listed and CSA certified, ensuring compliance with safety standards.
- Manufacturer: Square D
- Part Number: 8501CO8V20
- Type: Power Relay, Type C
- Coil Voltage: 120 VAC, 50/60 Hz
- Contact Configuration: SPST, 1 Normally Closed (NC)
- Resistive Current Rating: 30 A at 300 VAC
- Motor HP Rating: 2 HP single phase at 120 VAC, 230 VAC, or 600 VAC
- Application: Motor control and light load switching
- Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501CO8V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : C
Product Data
- UPC : 785901089773
- GTIN : 00785901089773
- Country of Origin : China
- Dimensions : Depth 14.84 in (377 mm) Width 13.39 in (340 mm) Height 46.85 in (1190 mm)
- Weight : 0.5
