8501CO7V29 - Square D 30A 480VAC DPST 2NO Power Relay for Motor Control

8501CO7V29

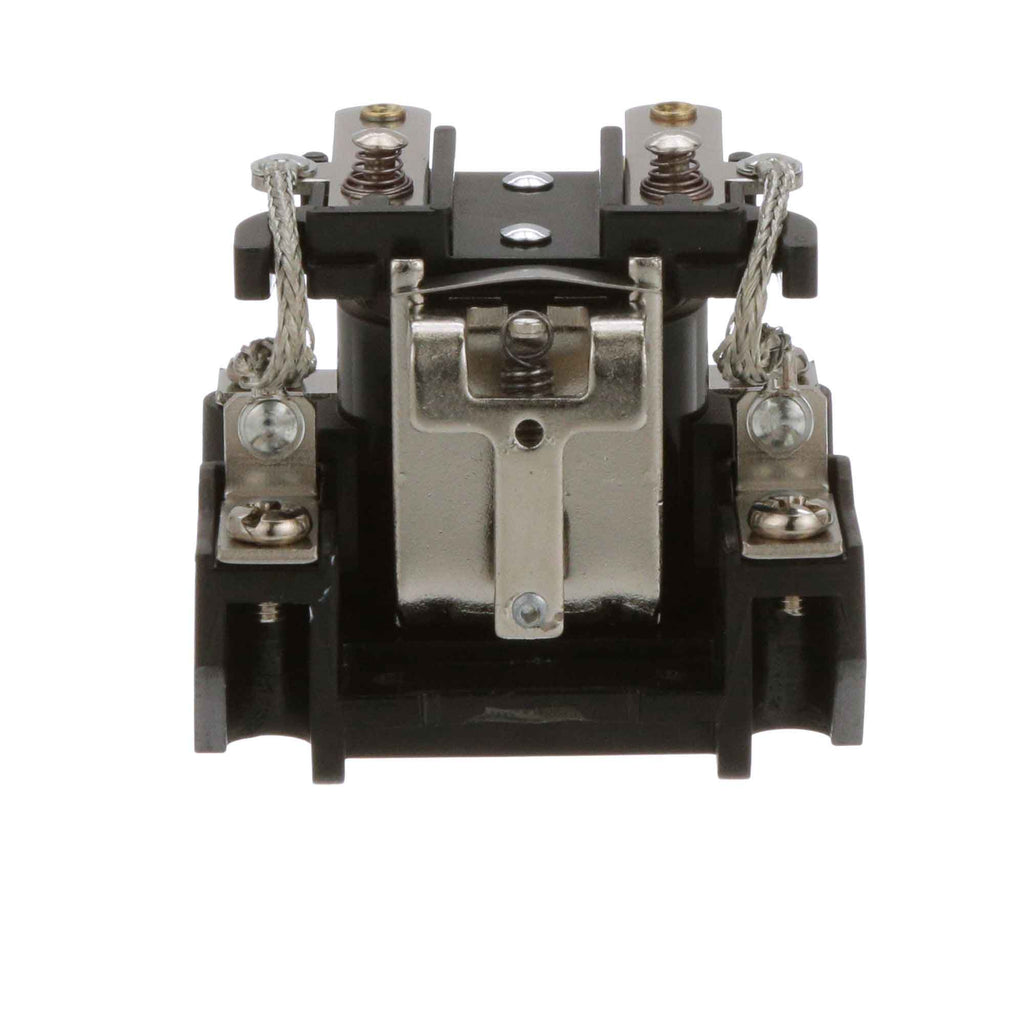

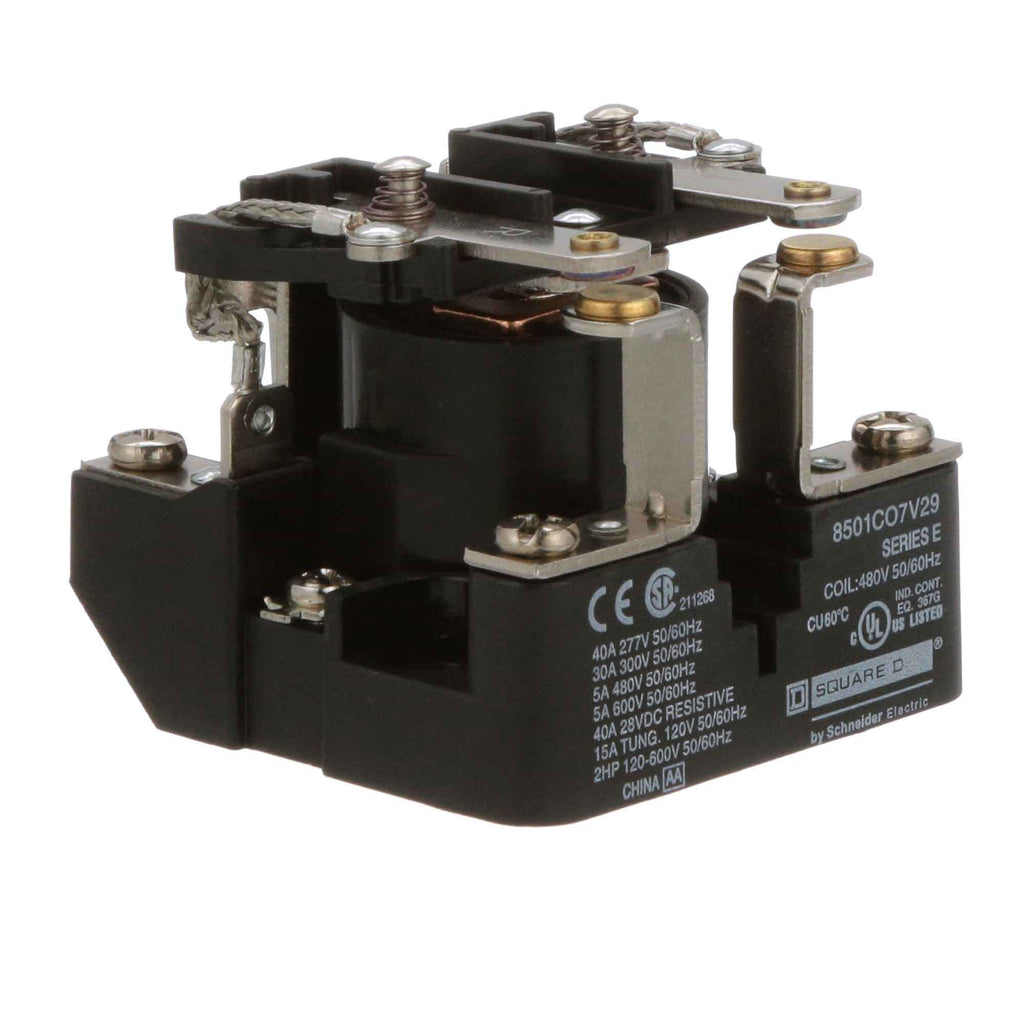

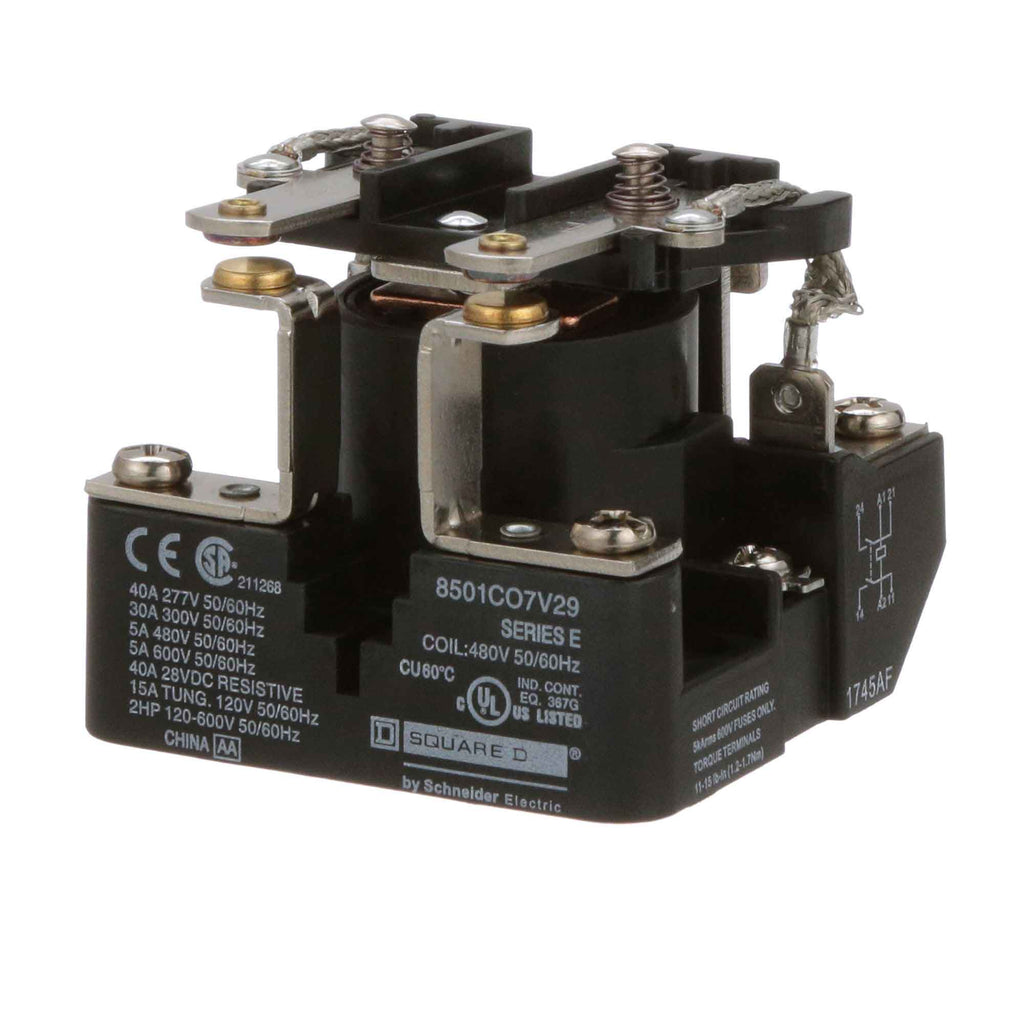

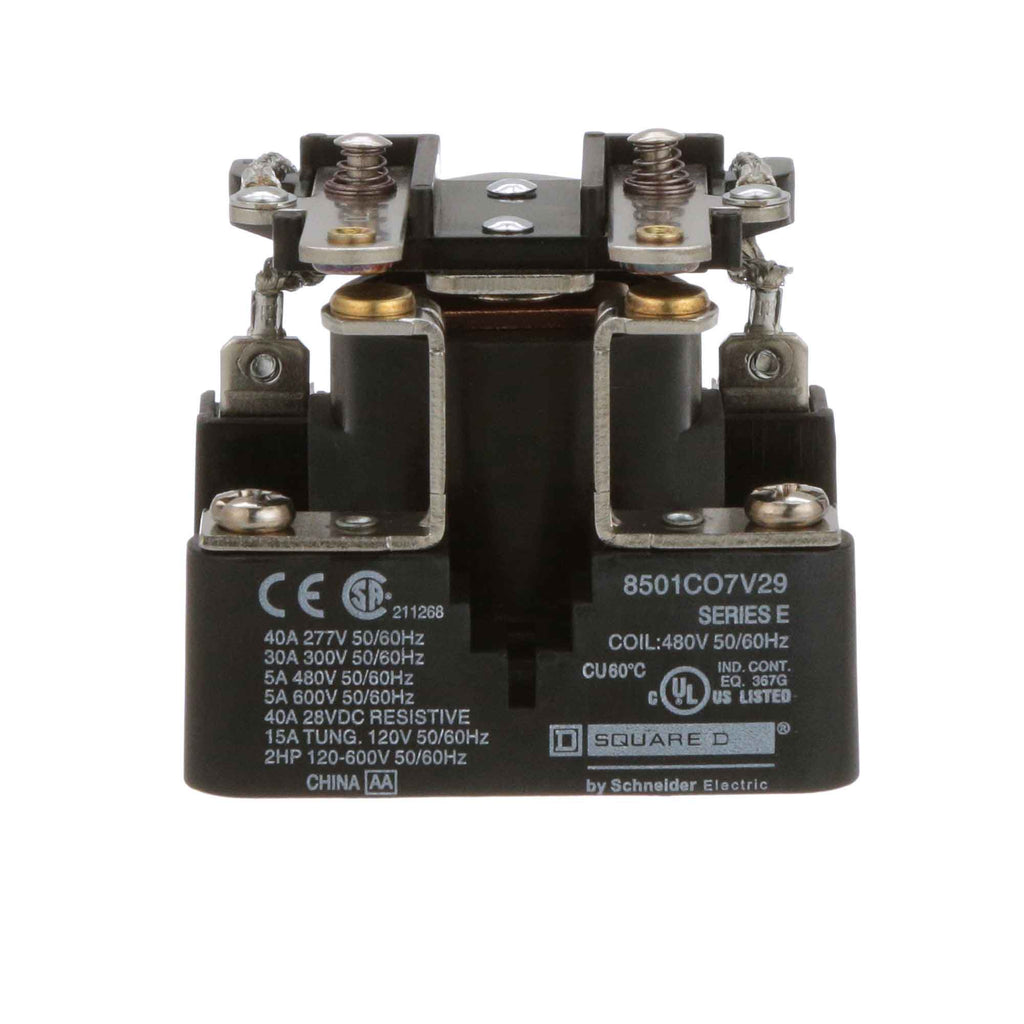

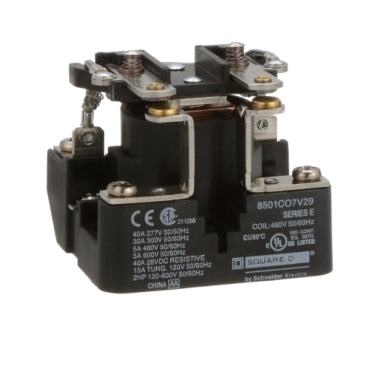

8501CO7V29 is a Square D power relay designed for motor control applications with a 30 amp resistive rating and 480 VAC coil voltage.

This relay features a DPST (Double Pole Single Throw) configuration with 2 normally open contacts, suitable for controlling small single phase motors up to 1.5 HP at 120, 230, or 600 VAC. It has heavy duty contacts for durability and is UL Listed and CSA Approved. The open style construction allows visible confirmation of contact state, and it is part of the Class 8501 series.

Key Specifications
• Amperage: 30 A resistive at 300 VAC
• Voltage: 480 VAC coil, rated for motors at 120, 230, 600 VAC

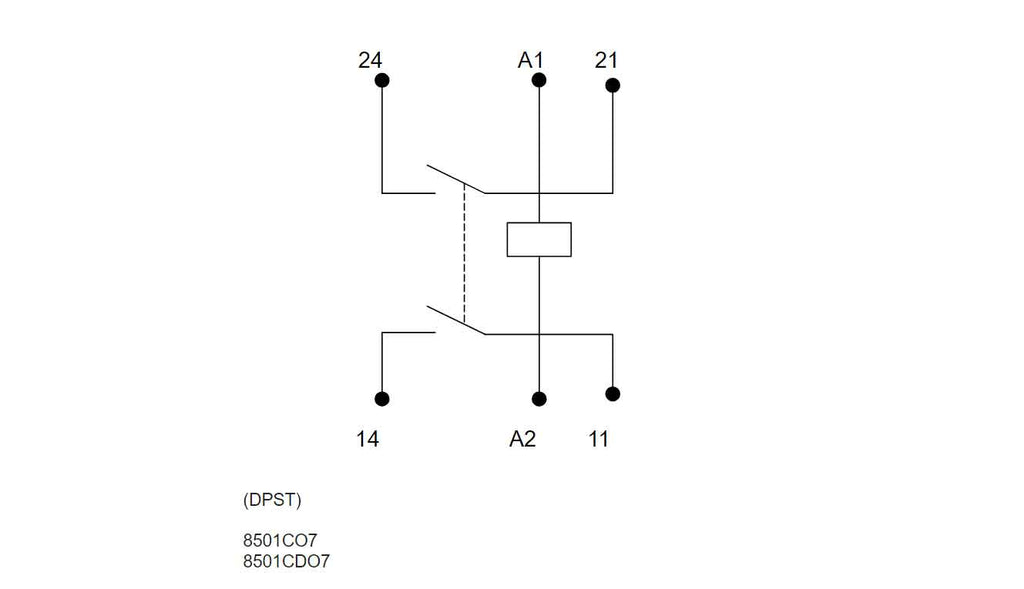

• Poles: 2 poles (DPST)
• Contact Configuration: 2 Normally Open (2NO)
• Horsepower Rating: 1.5 HP single phase motors
• Mounting Type: Panel mount
• Series/Frame: Class 8501
• Certifications: UL Listed, CSA Approved
• Construction: Open style for visible contact state
• Heavy duty riveted contacts for increased mechanical life

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO7V29
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901059592
• GTIN : 00785901059592
• Country of Origin : China

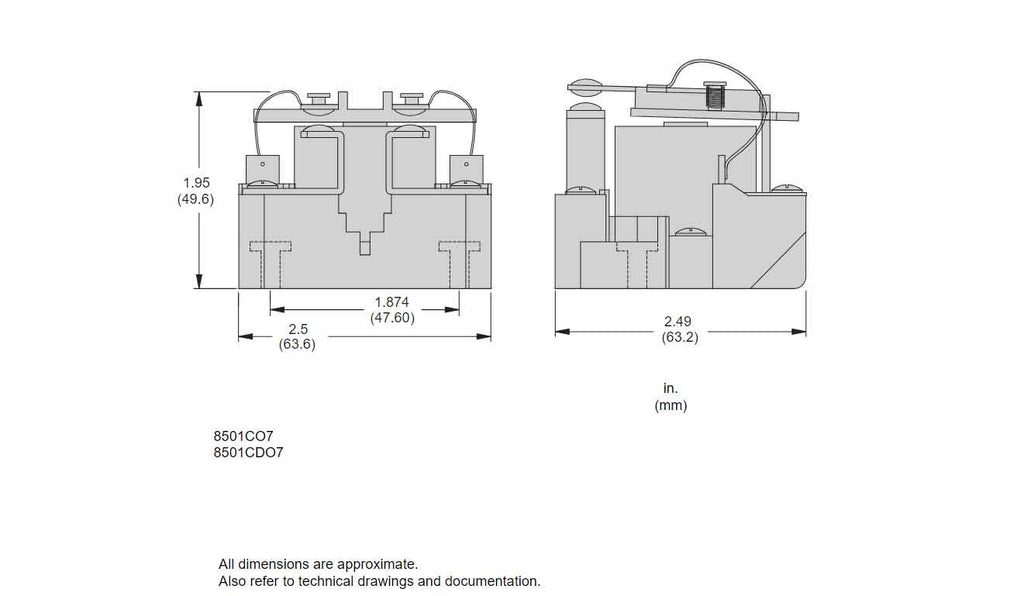

• Dimensions : 2.5 in
• Weight : 0.6
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
