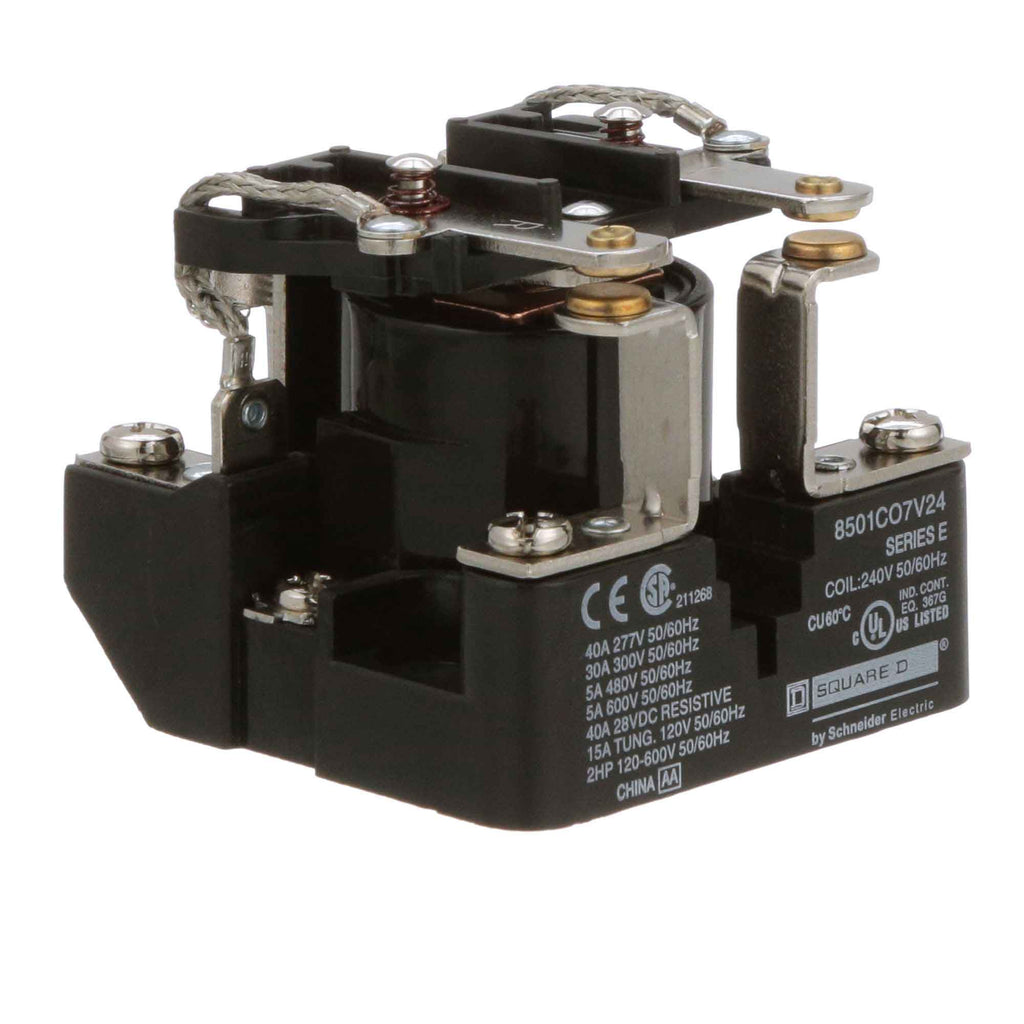

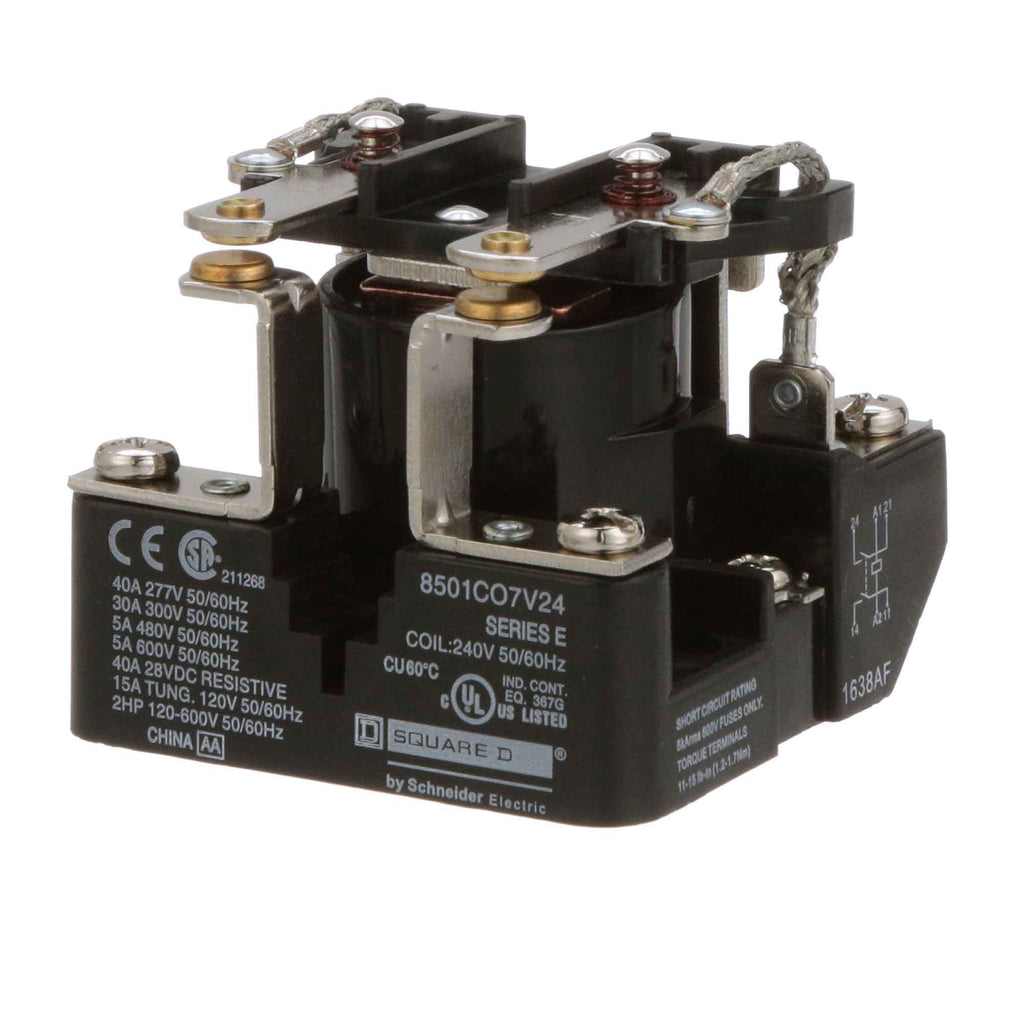

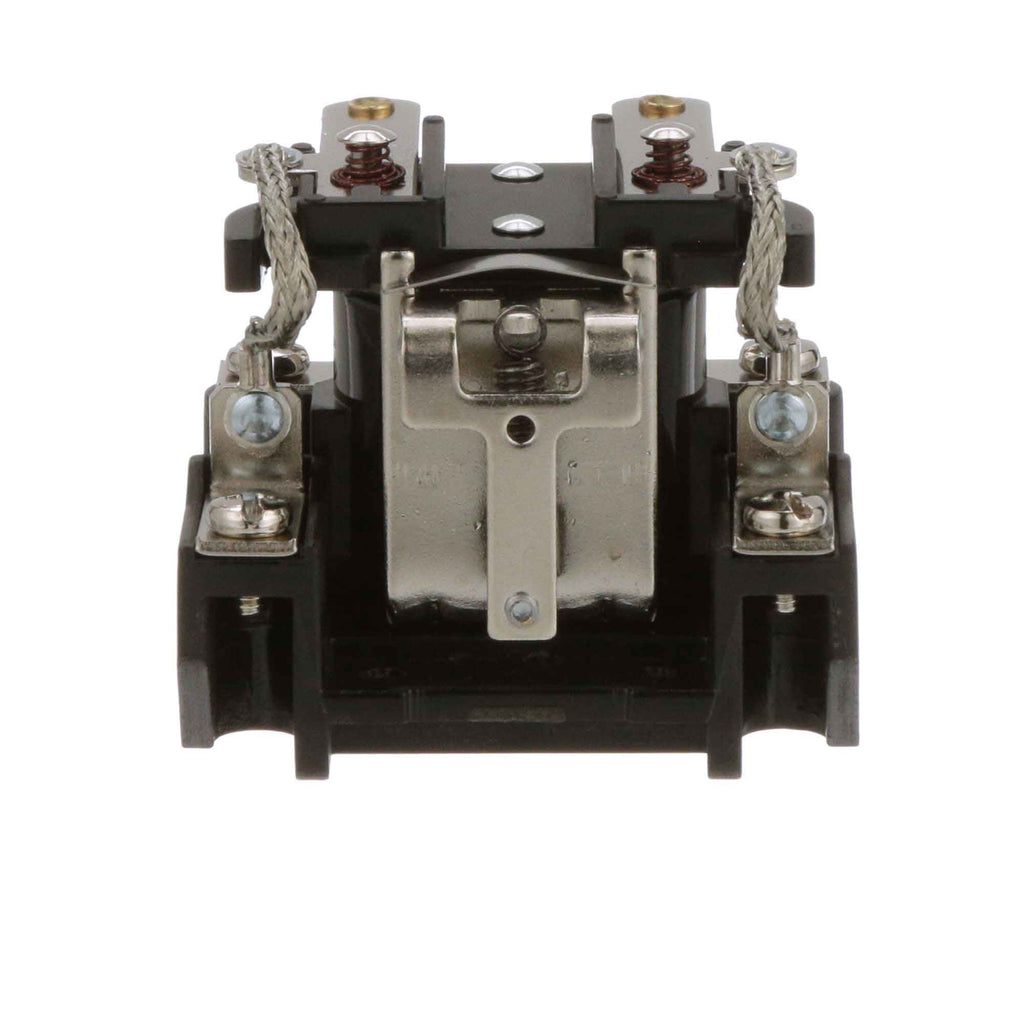

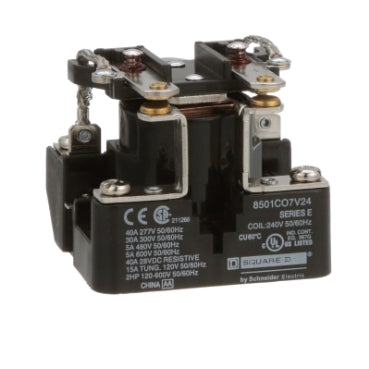

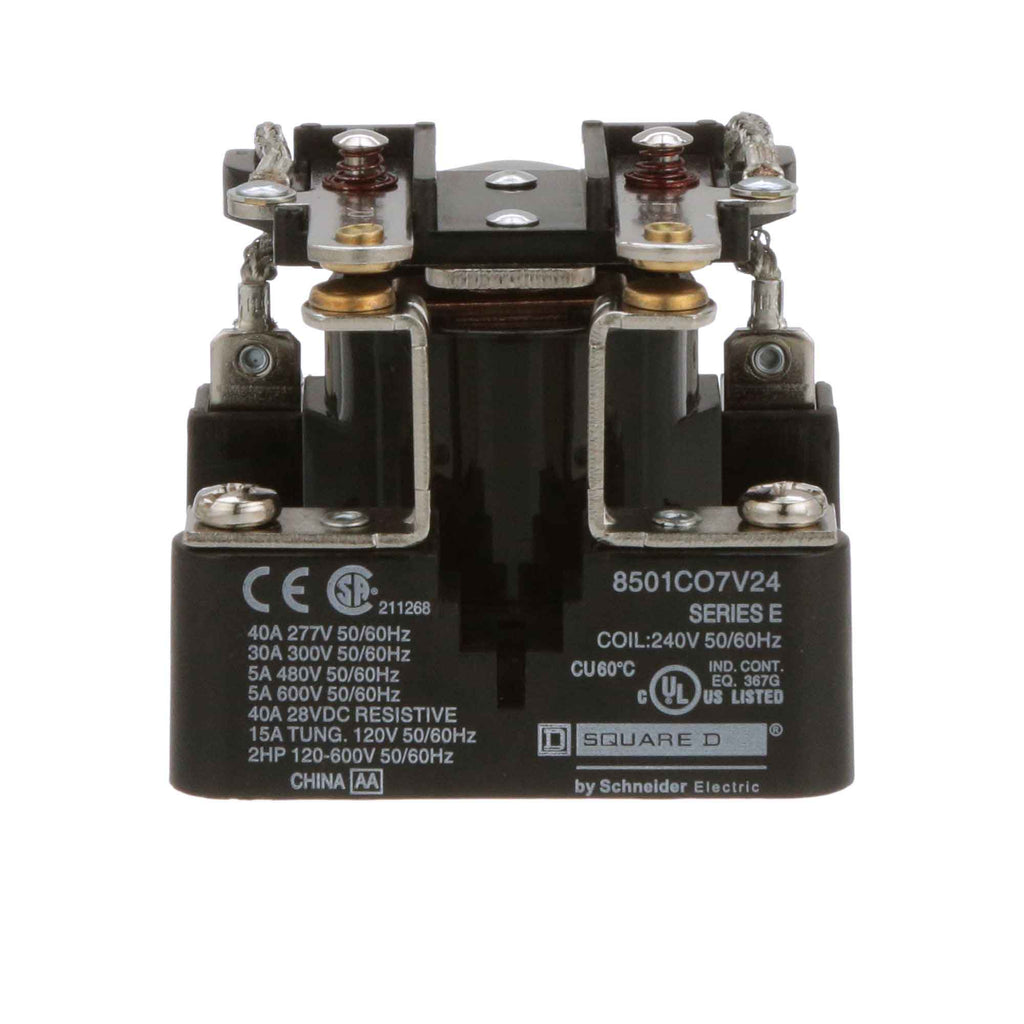

8501CO7V24 - Square D 240 VAC 30A 2-Pole DPST Power Relay Panel Mount

8501CO7V24

8501CO7V24 is a Square D power relay designed for motor control applications with a 240 VAC coil voltage and 30 amp load capacity.This relay features a 2-pole double-pole single-throw (DPST) configuration with heavy-duty fixed contacts suitable for single-phase motors up to 1.5 HP at 120 VAC, 230 VAC, or 600 VAC. It supports resistive loads rated at 30 A at 300 VAC and 5 A at 600 VAC. The relay is panel mountable with screw clamp terminals and complies with NEMA 1 standards.

Key Specifications
• Coil Voltage: 240 VAC, 50/60 Hz
• Contact Configuration: 2-Pole DPST (2 Normally Open contacts)
• Load Amperage: 30 A at 300 VAC, 5 A at 600 VAC
• Mounting Type: Panel Mount
• Terminal Type: Screw Clamp
• Maximum Load Voltage: 600 VAC

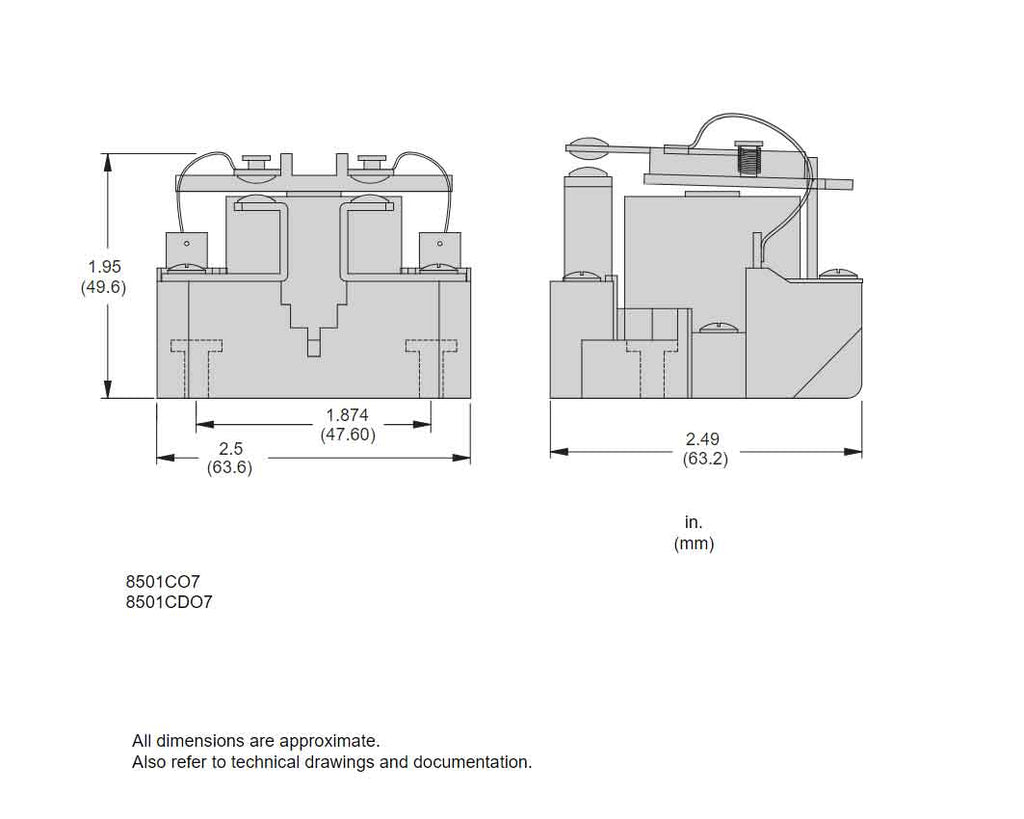

• Dimensions: Approximately 2.25 in H x 2.43 in W x 2.5 in D
• NEMA Rating: NEMA 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 8501CO7V24
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C



Product Data

• UPC : 785901052074
• GTIN : 00785901052074
• Country of Origin : China
• Dimensions : Depth 12.95 in (329.0 mm) Width 30.31 in (770.0 mm) Height 35.04 in (890.0 mm)
• Weight : 0.6
• Certification : CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
