8501CO7V14 - Square D Power Relay Type C 30A 2 HP 24 VAC Coil DPST Motor Control

8501CO7V14

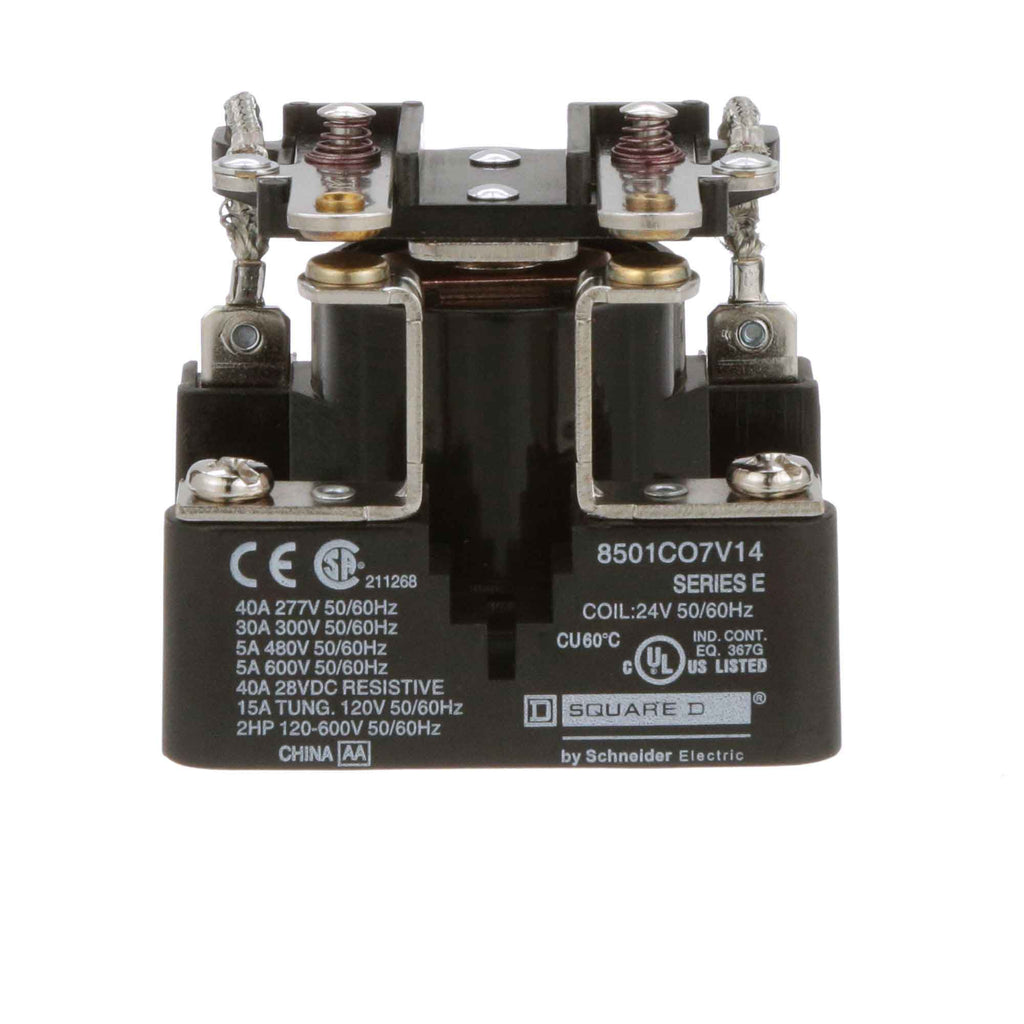

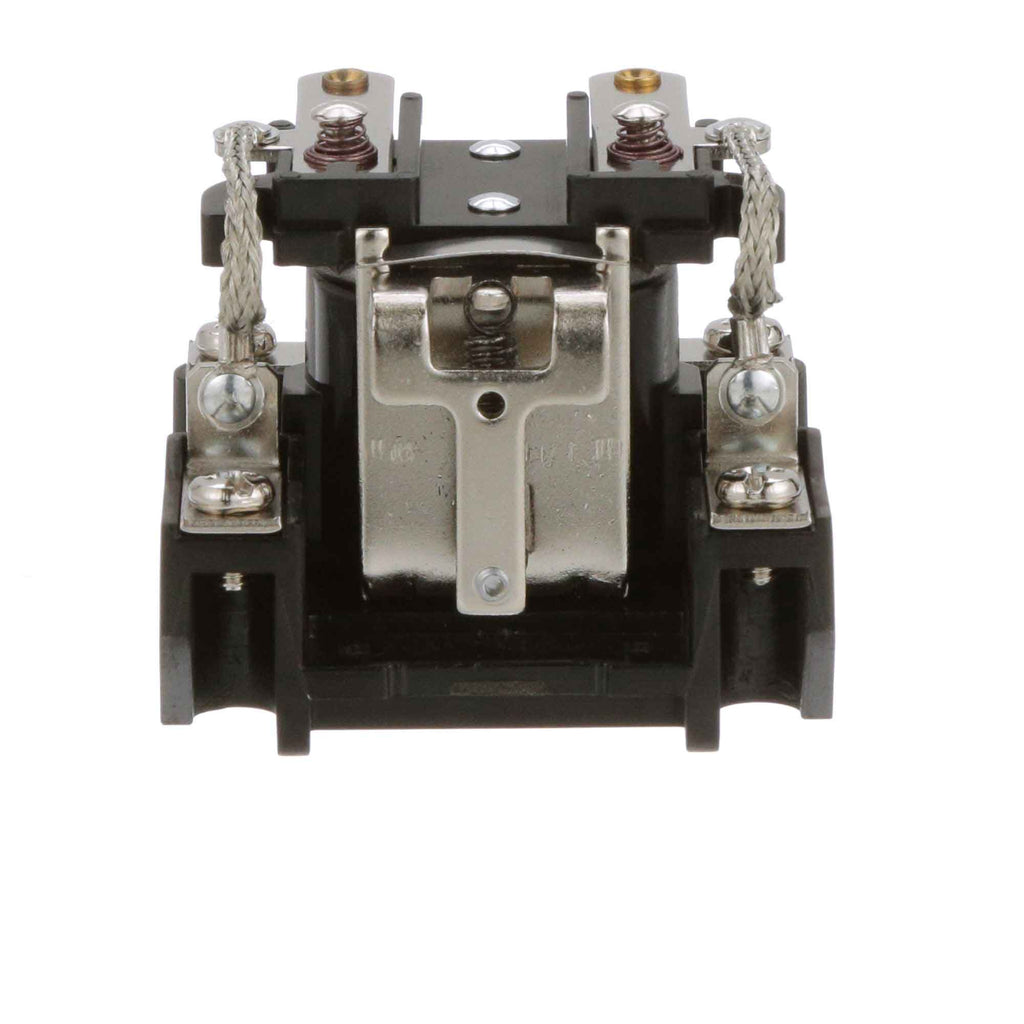

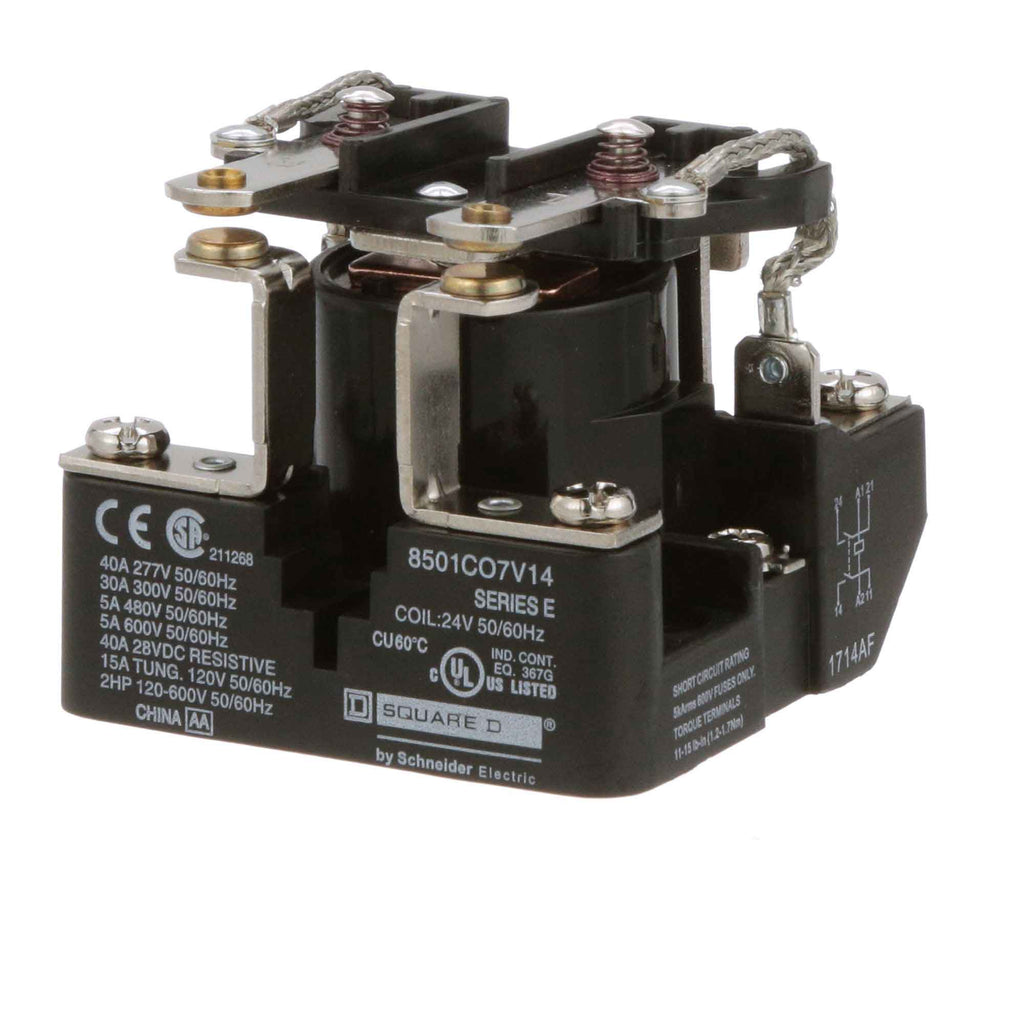

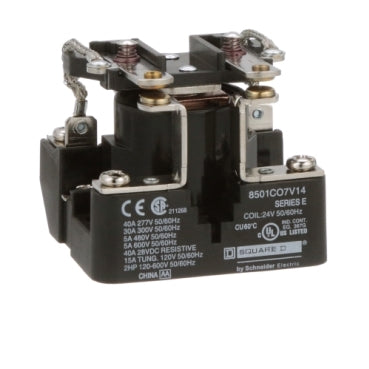

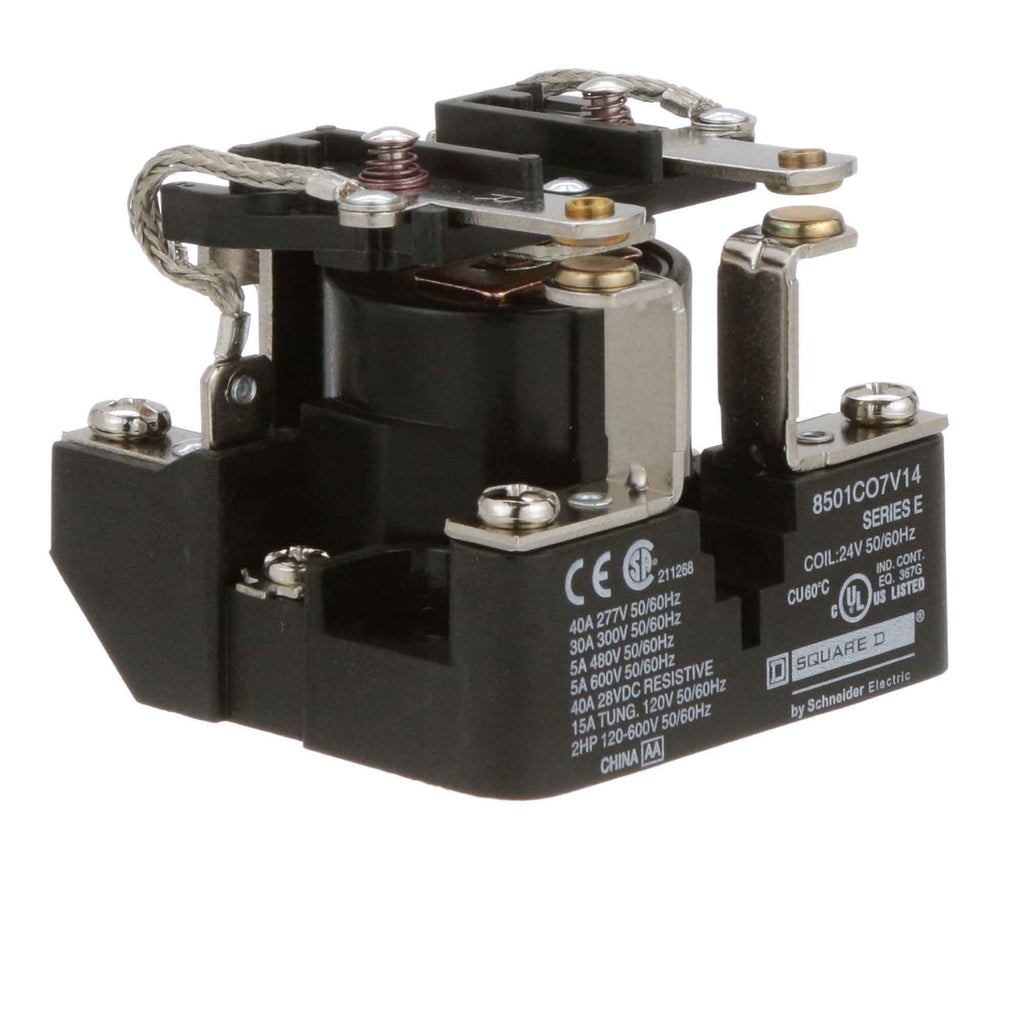

8501CO7V14 is a Square D Type C power relay designed for motor control applications with a 30A resistive rating and 2 HP horsepower rating.

This power relay features a DPST contact configuration with two normally open contacts and a 24 VAC coil. It is rated for 30A resistive current at 300 VAC and suitable for controlling small single phase motors and other light loads. The relay supports a maximum switching voltage of 600 VAC and is designed for panel mounting with screw clamp terminals. It is UL listed and CSA certified, making it reliable for electric heater, pumping, conveyor, and material handling applications.

• Type: Power Relay, Type C
• Amperage: 30 A resistive at 300 VAC
• Horsepower Rating: 2 HP
• Coil Voltage: 24 VAC 50/60 Hz
• Contact Configuration: DPST, 2 Normally Open contacts
• Maximum Switching Voltage: 600 VAC
• Phase: Single phase
• Mounting Type: Panel mounting
• Terminal Type: Screw clamp terminals
• UL Listed and CSA Certified
• Ambient Temperature Range: -22 to 122 °F (-30 to 50 °C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO7V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052067
• GTIN : 00785901052067
• Country of Origin : China

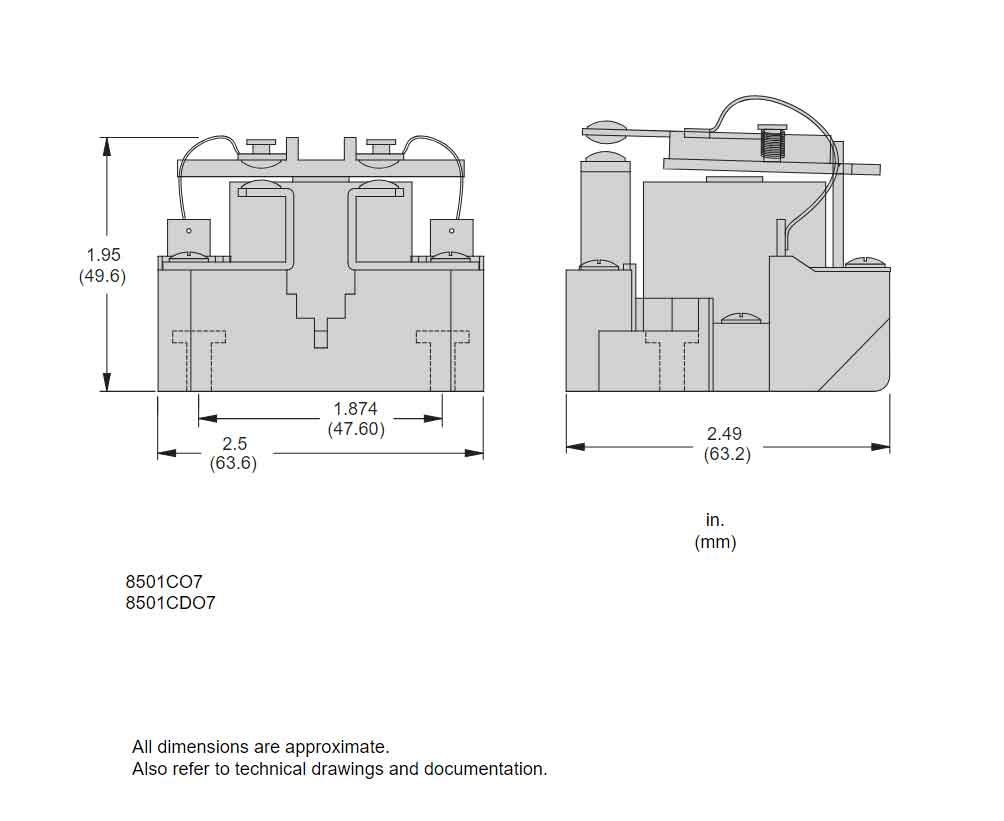

• Dimensions : 2.5 in
• Weight : 0.55
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
