2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description

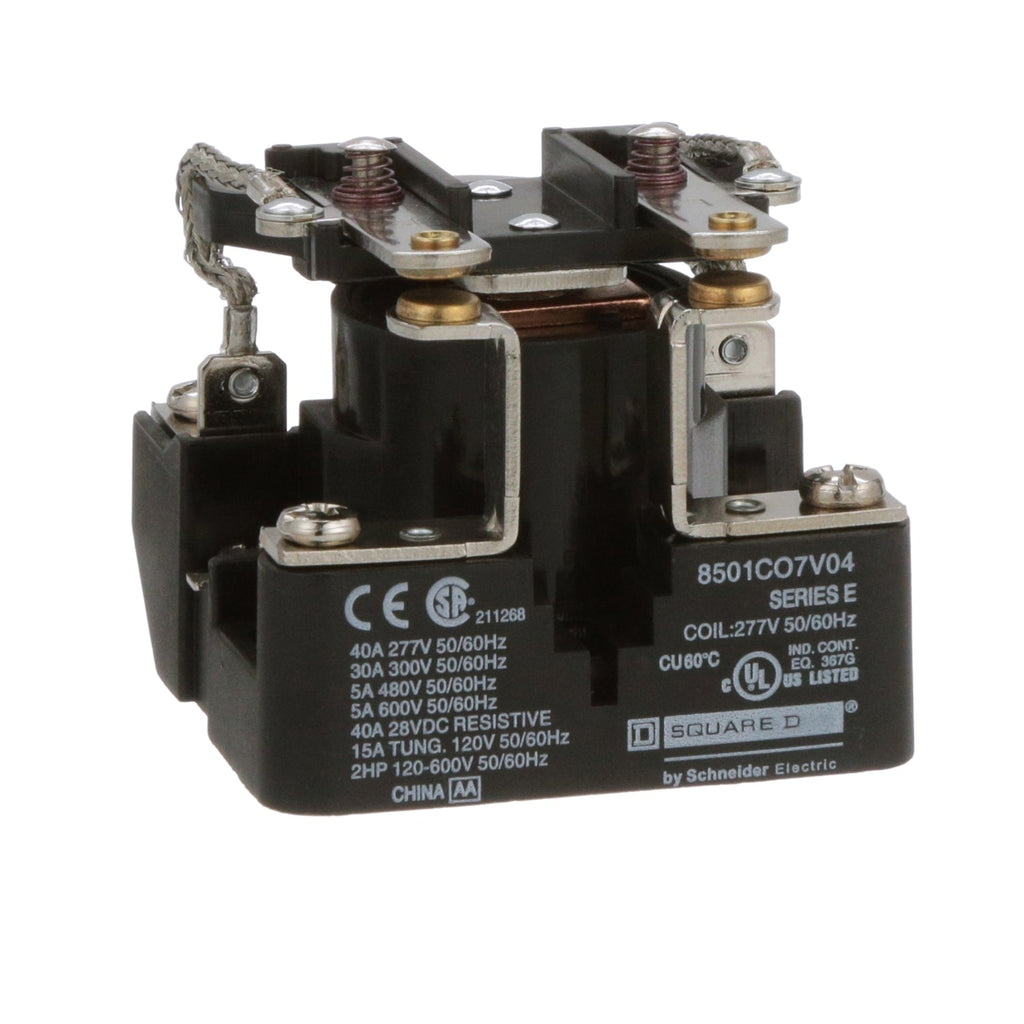

8501CO7V04
8501CO7V04 is a Square D general purpose power relay designed for motor control applications with a 277 VAC coil and 30 amp resistive rating.This relay features a DPST (Double Pole Single Throw) contact configuration with 2 normally open contacts, supporting up to 2.0 HP motors at 300 VAC. It has a plug-in mounting type and is part of the Class 8501 series. The relay meets UL, CSA, and CE certifications, ensuring reliable and safe operation in industrial environments.
- Key Specifications
- Amperage: 30 Amps resistive
- Voltage Rating: 277 VAC coil, 300 VAC max switching voltage
- Contact Configuration: DPST, 2 Normally Open (2 NO)
- Horsepower Rating: 2.0 HP at 300 VAC
- Mounting Type: Plug-in
- Series/Frame: Class 8501
- Frequency: 60 Hz
- Certifications: UL, CSA, CE
- Compact design suitable for space-constrained applications
- Nonreplaceable coil
- Part Number: 8501CO7V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : C
- UPC : 785901059585
- GTIN : 00785901059585
- Country of Origin : China
- Dimensions : 2.5 in
- Weight : 0.58
- Certification : UL listed file E78351 CCN NLDX; CSA; CE
