Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501CO6V29

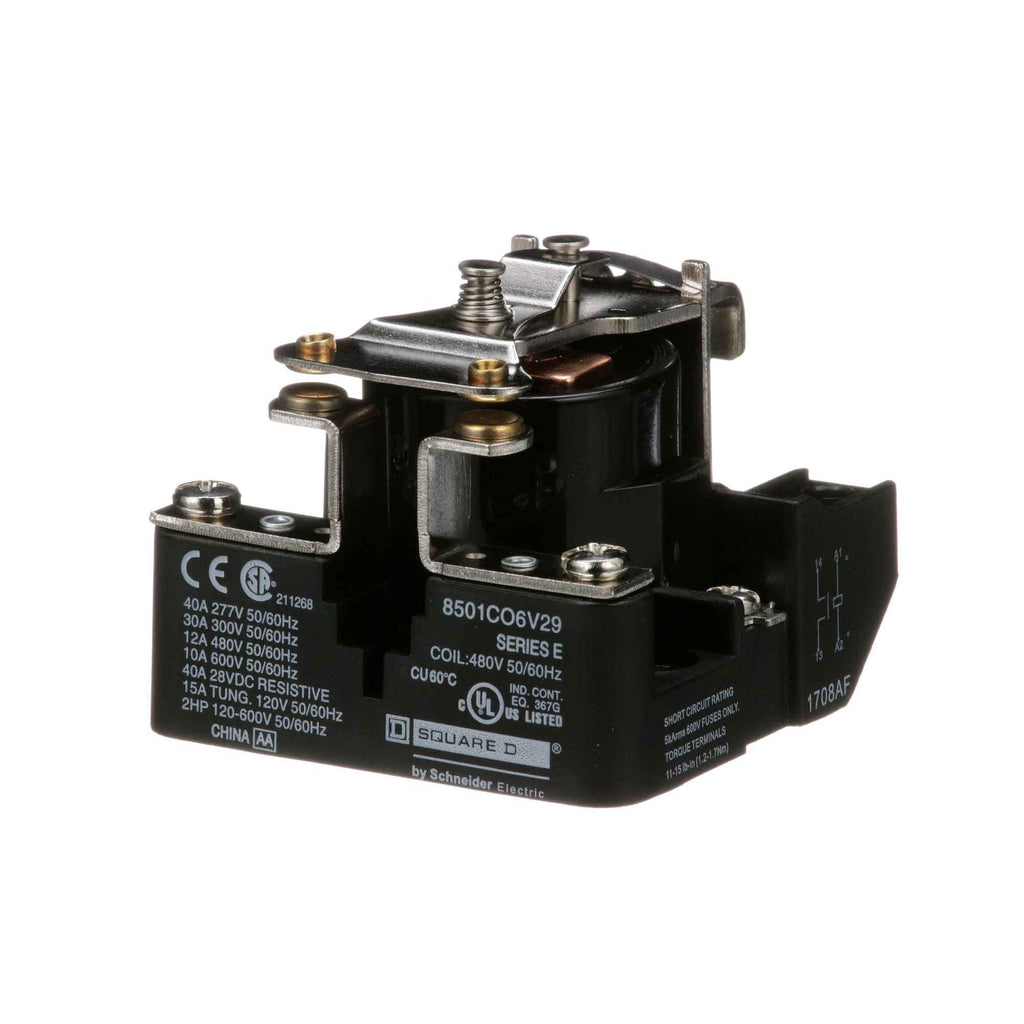

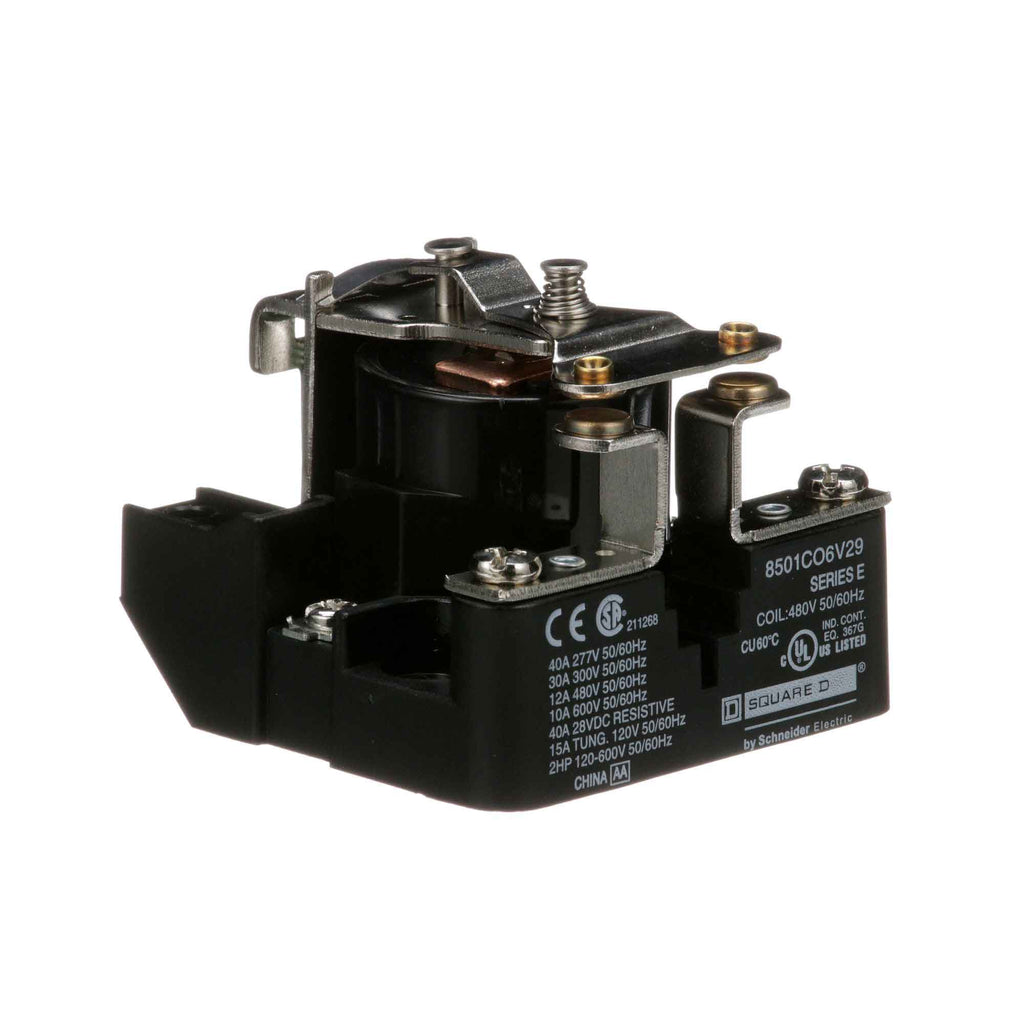

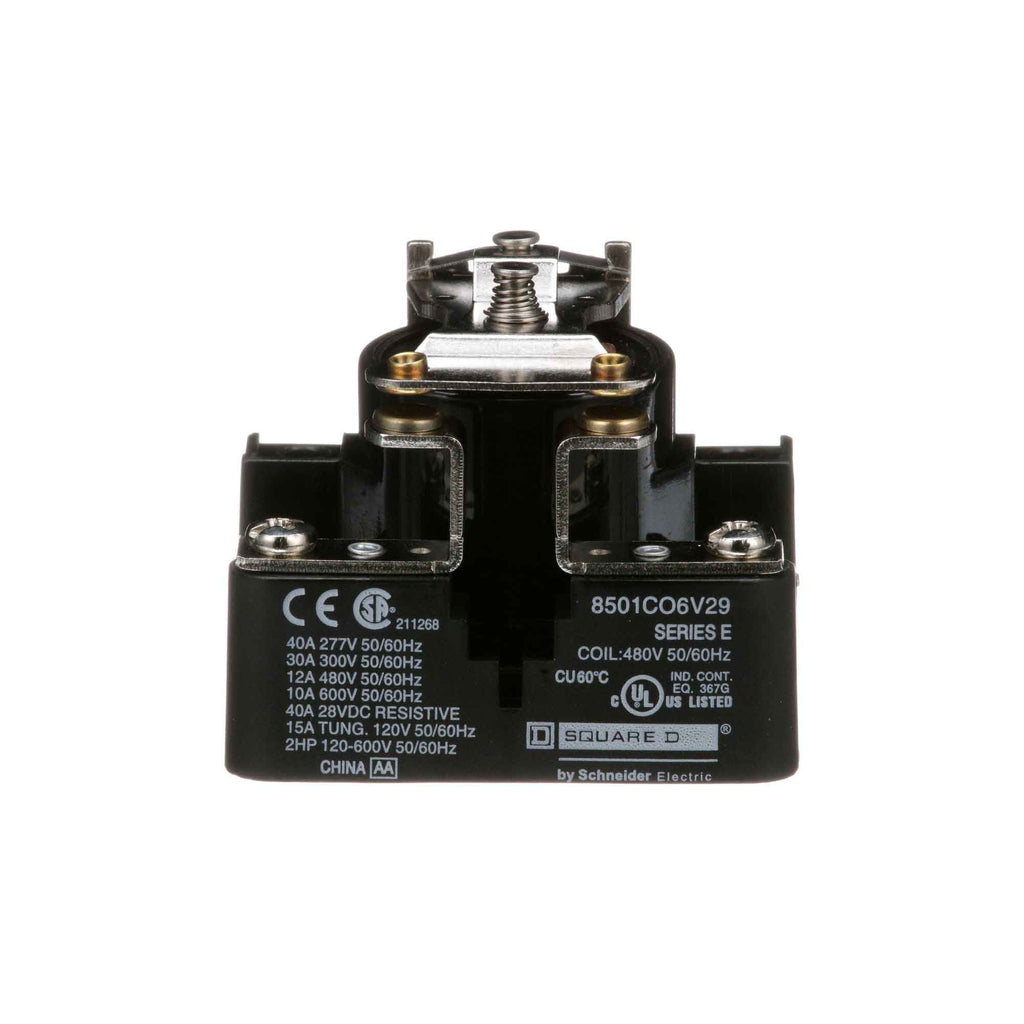

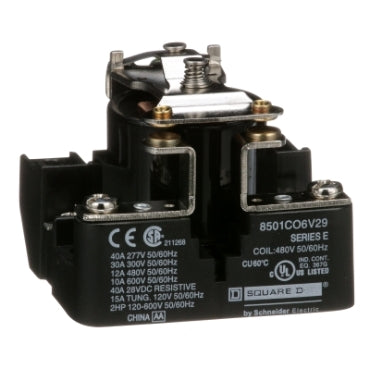

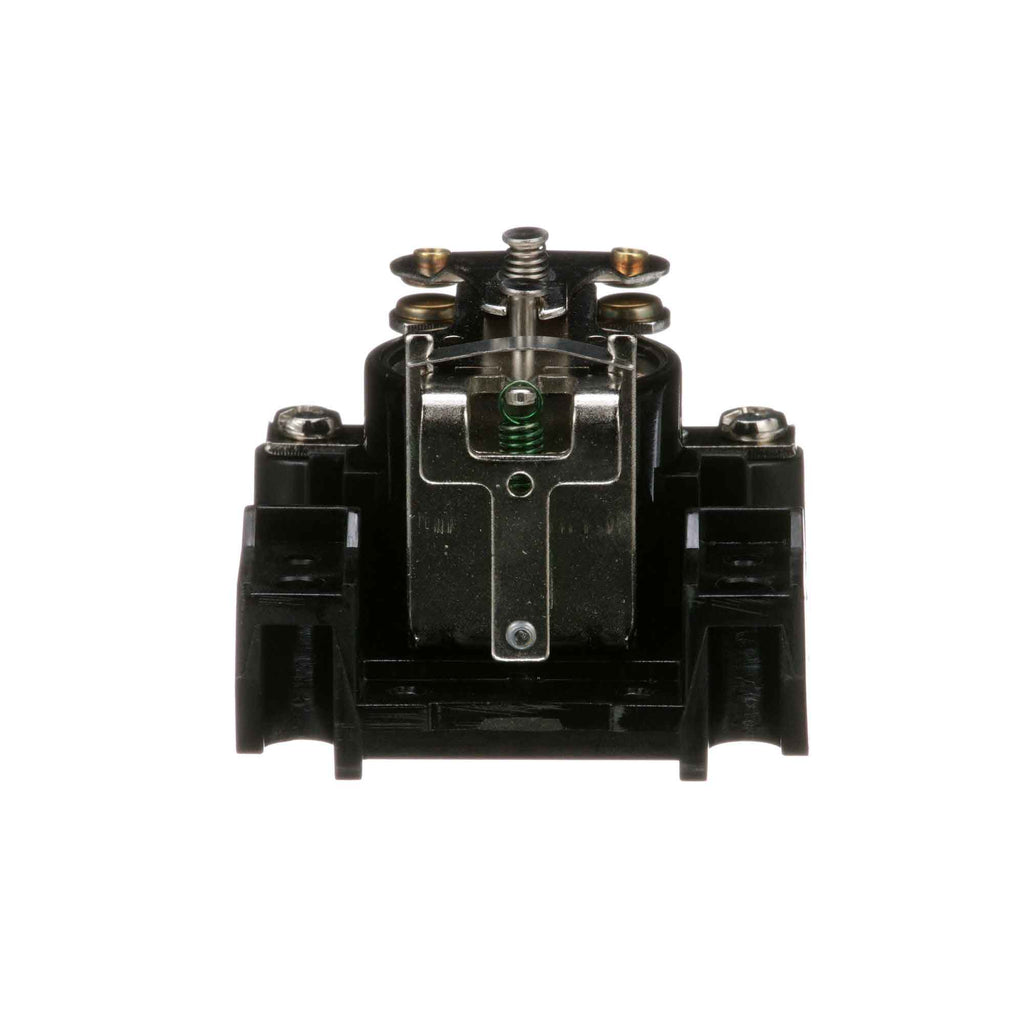

8501CO6V29 is a Square D power relay designed for motor control applications, offering reliable switching and easy installation.
This panel-mount relay features a 480V AC coil, silver tin oxide contacts, and a single-pole, single-throw (SPST) configuration with one normally open (1NO) contact. It is suitable for use with Class 8501 motor control systems and is rated for both 50Hz and 60Hz operation. The relay is UL listed and CSA certified for safety and compliance.
-
Key Specifications
- Part Number: 8501CO6V29
- Manufacturer: Square D
- Category: Motor Control
- Amperage: 40A (load), 30A @ 300VAC, 10A @ 600VAC
- Voltage: 480V AC (coil), 120V/240V/277V (load)
- Poles: 1 (SPST)
- Mounting Type: Panel Mount
- Interrupt Rating: Not specified
- Series/Frame: Class 8501
- Trip Unit: Not applicable
- Certifications: UL Listed, CSA Certified
- Contact Material: Silver Tin Oxide

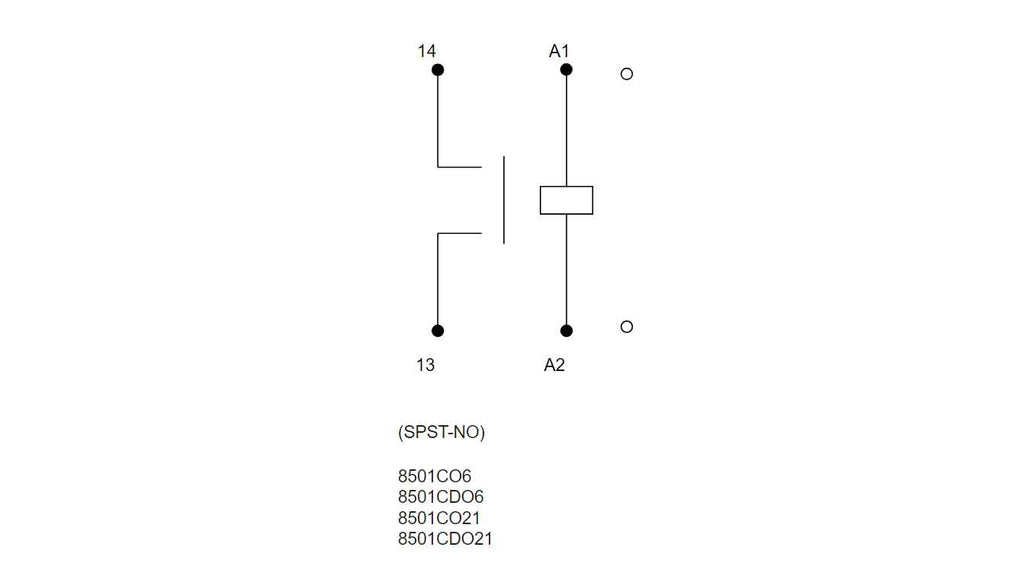

- Contact Configuration: 1NO (Fixed)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8501CO6V29
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : C
Product Data
- UPC : 785901059547
- GTIN : 00785901059547
- Country of Origin : China
- Weight : 0.53
- Certification : CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
