8501CO6V20 - Square D 30A 120VAC 1-Pole Power Relay Class 8501C

8501CO6V20

8501CO6V20 is a Square D Class 8501C power relay designed for motor control applications.This relay features a 120 VAC coil voltage with a single pole single throw (SPST) normally open contact configuration. It is rated for 30 amps resistive at 300 VAC and 10 amps at 600 VAC, suitable for controlling small single-phase motors, electric heaters, pilot lights, and other light loads. The relay has a durable open frame construction and is UL listed and CSA certified.

• Manufacturer: Square D
• Part Number: 8501CO6V20
• Series: Class 8501C
• Coil Voltage: 120 VAC, 50/60 Hz
• Contact Form: 1 Pole, 1 Normally Open (SPST)
• Amperage Rating: 30 A @ 300 VAC, 10 A @ 600 VAC
• Voltage Rating: Up to 600 VAC
• Mounting Type: Panel Mount
• Terminal Type: Screw Clamp
• UL Listed and CSA Certified

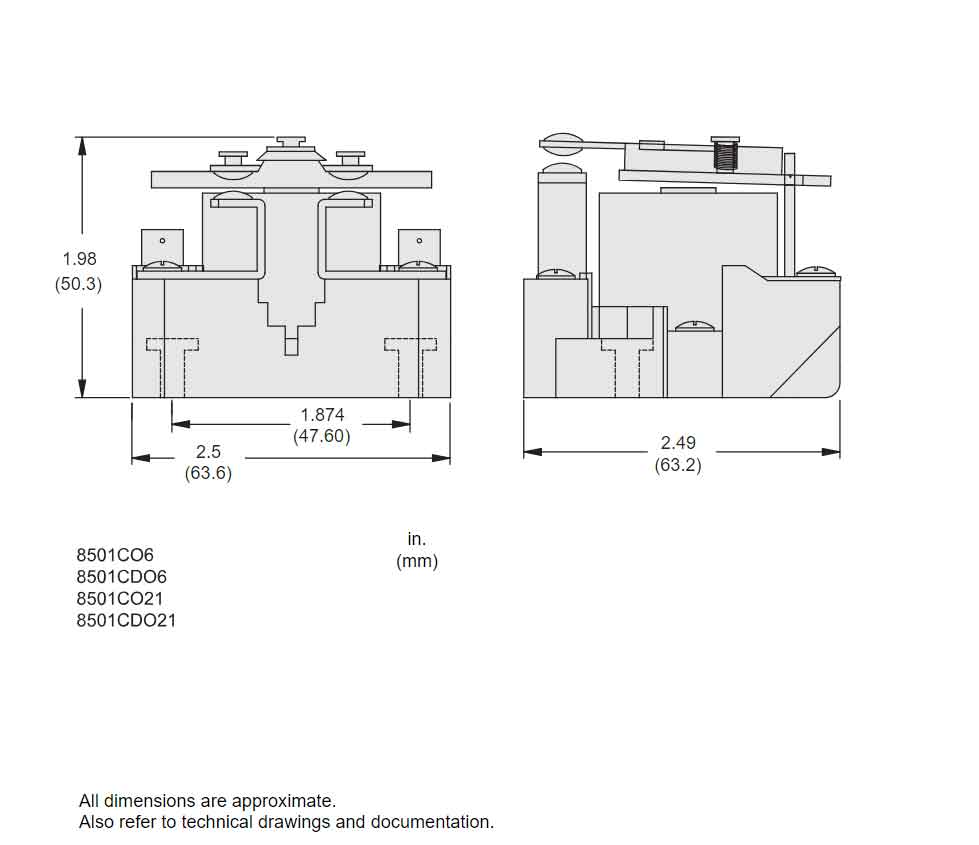

• Dimensions: 2.25 x 2.5 x 2.43 inches (HxWxD)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO6V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052036
• GTIN : 00785901052036
• Country of Origin : China
• Dimensions : 2.5 in (63.50 mm) x 2.43 in (61.72 mm)
• Weight : 14.87
• Certification : CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
