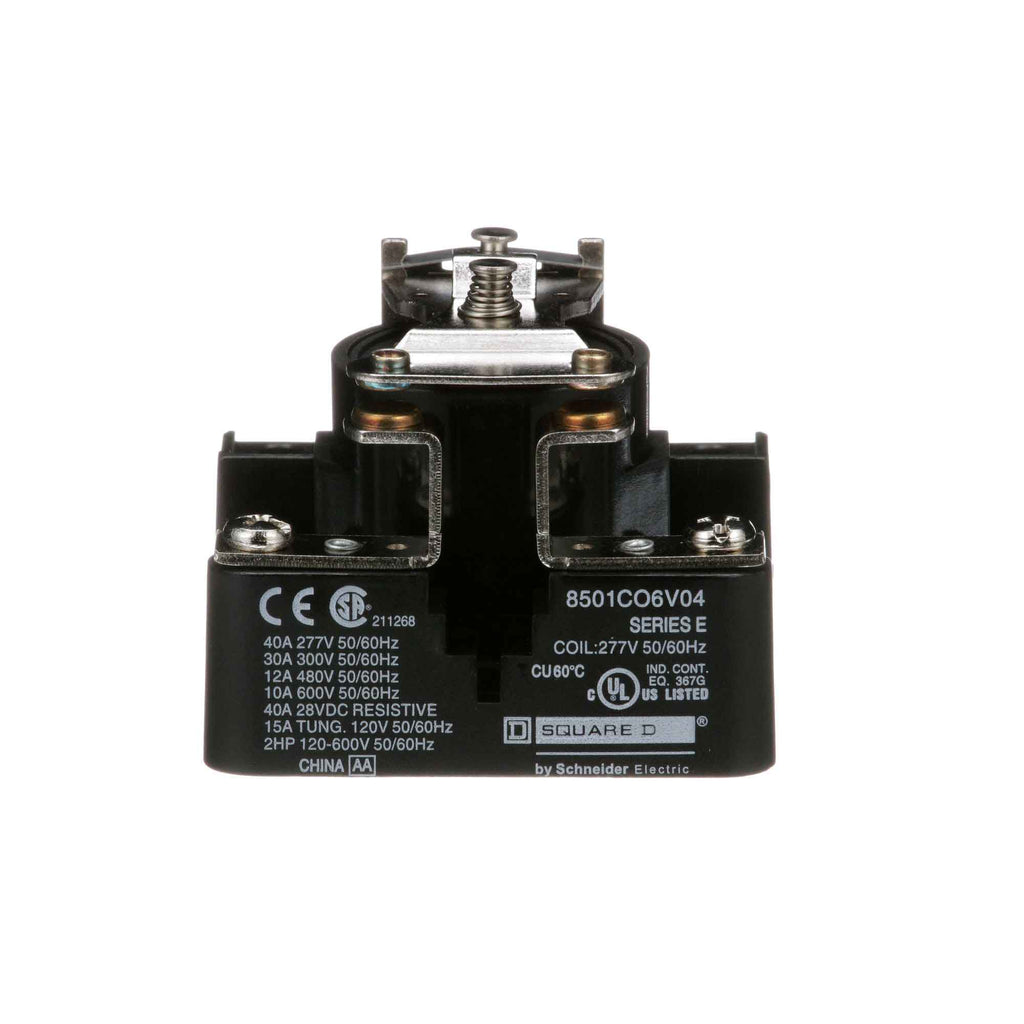

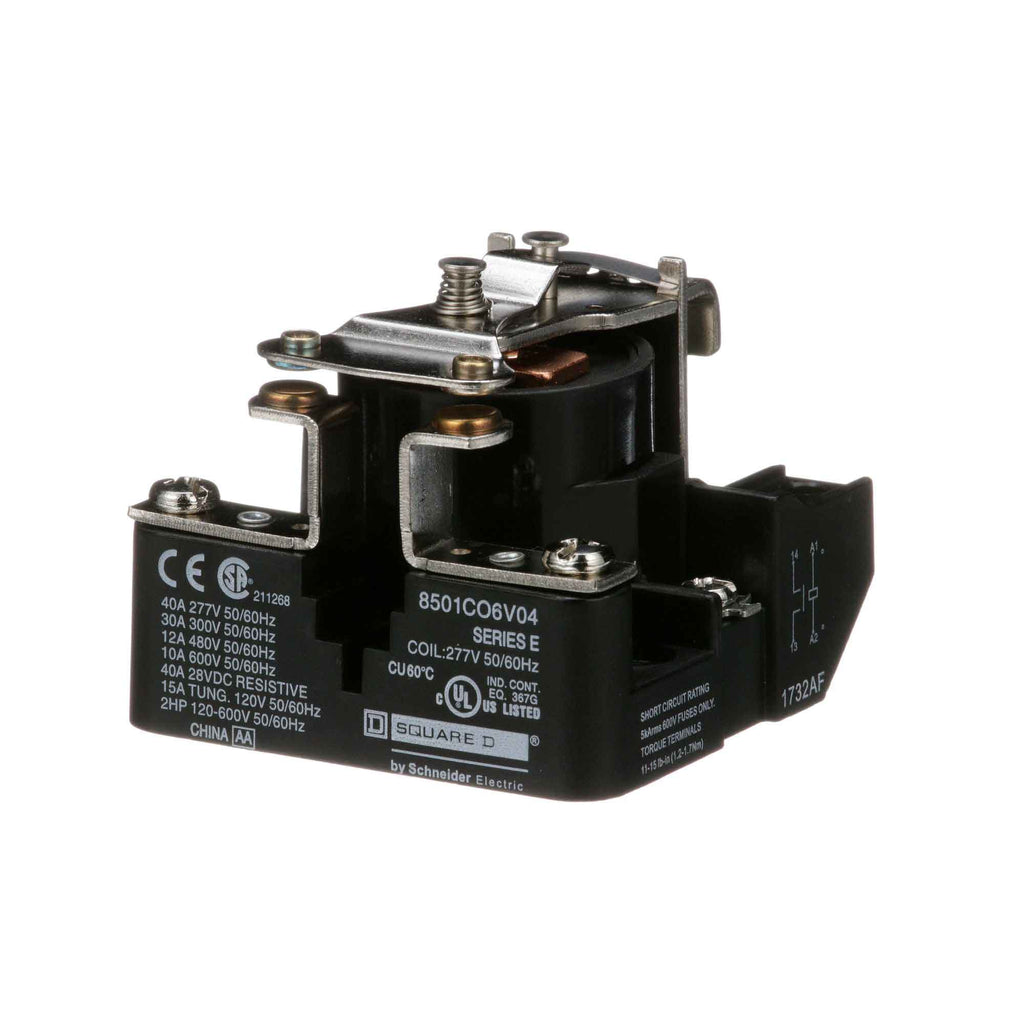

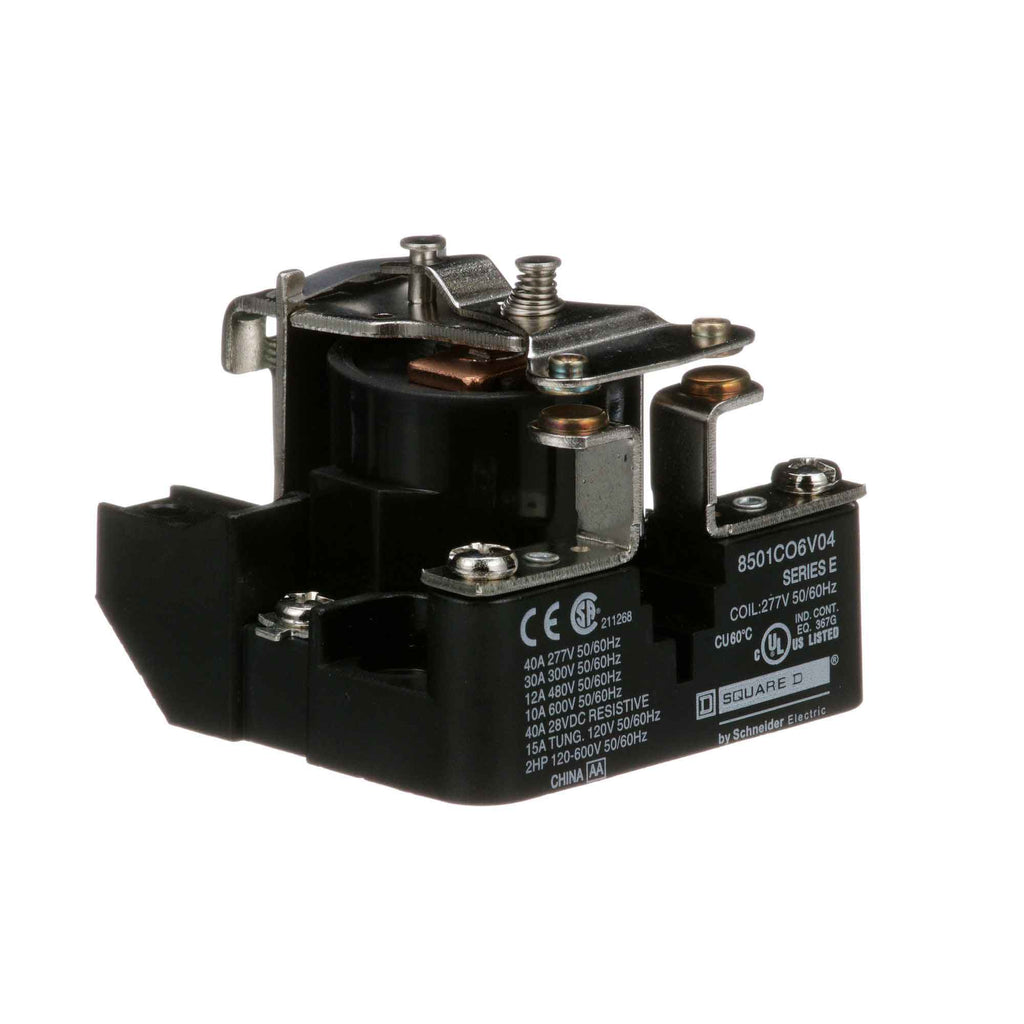

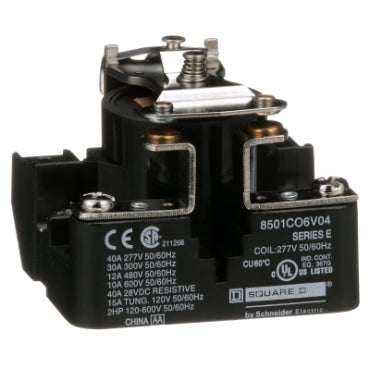

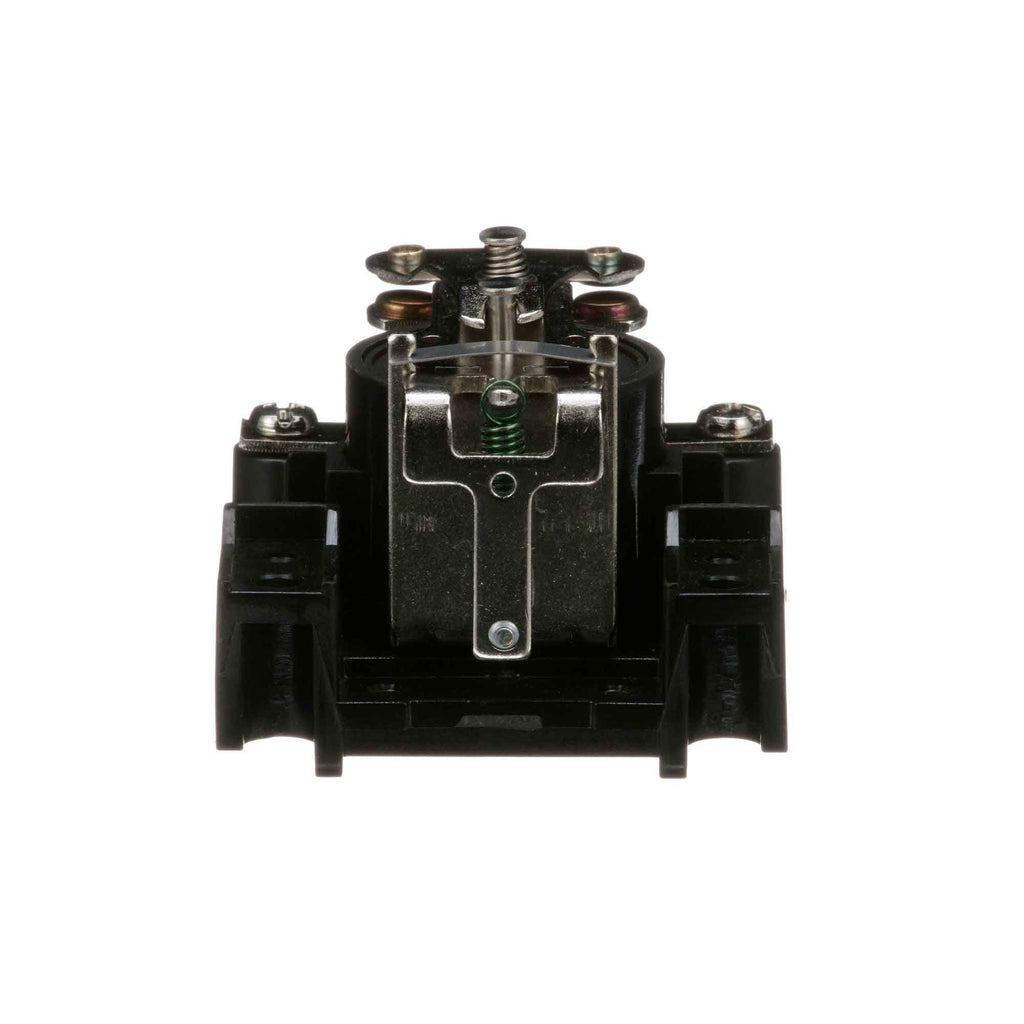

8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C

SKU: 8501CO6V04-New
Condition: New
Price:
$67.59
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

8501CO6V04 - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
8501CO6V04 - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply
8501CO6V04 - Square D 277 VAC 30A 1-Pole SPST 1NO Panel Mount AC Operated Power Relay Type C - Essential Electric Supply

Description

8501CO6V04


8501CO6V04 is a Square D Class 8501 Type C open-frame power relay designed for motor control applications in industrial environments. This relay features a 277 VAC coil, 1-pole SPST configuration with 1 normally open contact, and is rated for 30A resistive at 300 VAC or 10A at 600 VAC. Suitable for single-phase motor control, it offers reliable performance and is panel mountable for easy installation. Engineered for durability, the 8501CO6V04 relay is UL listed and CSA certified, ensuring compliance with industry safety standards. Its screw clamp terminals provide secure connections, and the relay is designed for use with Class 8501 motor control systems. The compact design and robust construction make it ideal for a wide range of industrial control applications.
  • Part Number: 8501CO6V04
  • Manufacturer: Square D
  • Series: Class 8501
  • Type: C Power Relay
  • Coil Voltage: 277 VAC
  • Load Rating: 30A @ 300 VAC, 10A @ 600 VAC
  • Motor Rating: 2.0 HP
  • Contacts: 1NO, SPST
  • Mounting: Panel Mount
  • Terminal Type: Screw Clamp
  • Standards: UL Listed, CSA Certified

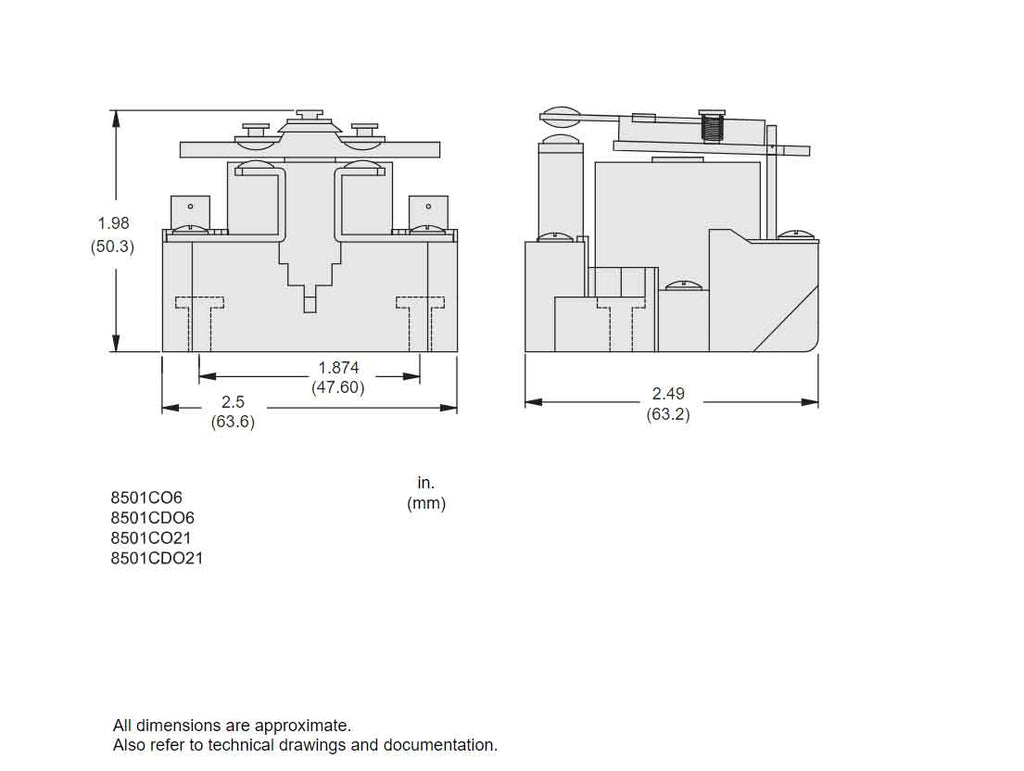

  • Dimensions: 2.25 x 2.5 x 2.43 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 8501CO6V04
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Motor Control Part And Accessory
  • Section : Relays
  • Family : Class 8501
  • Type : C

Product Data

  • UPC : 785901059554
  • GTIN : 00785901059554
  • Country of Origin : China
  • Weight : 0.52
  • Certification : CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
