8501CO16V24 - Square D 30A 240VAC DPDT Power Relay Type C for Motor Control

8501CO16V24

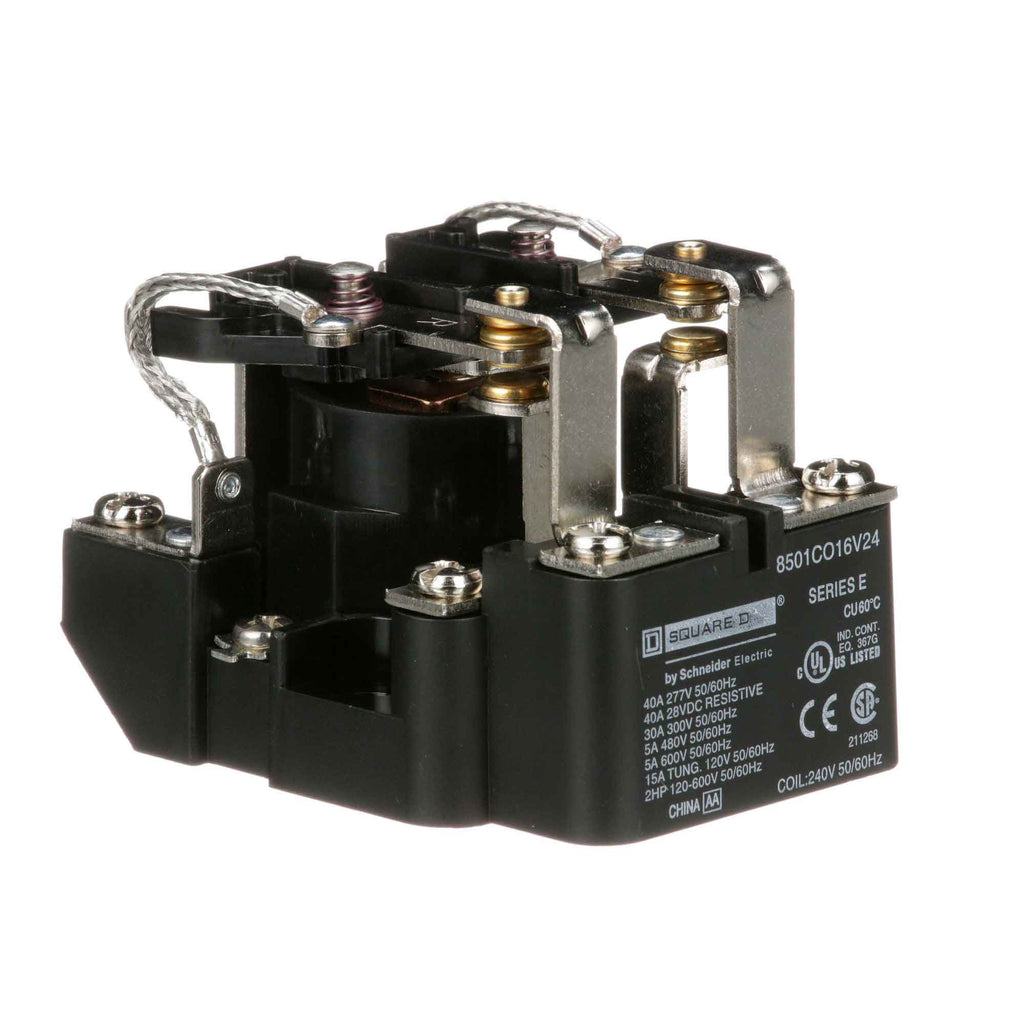

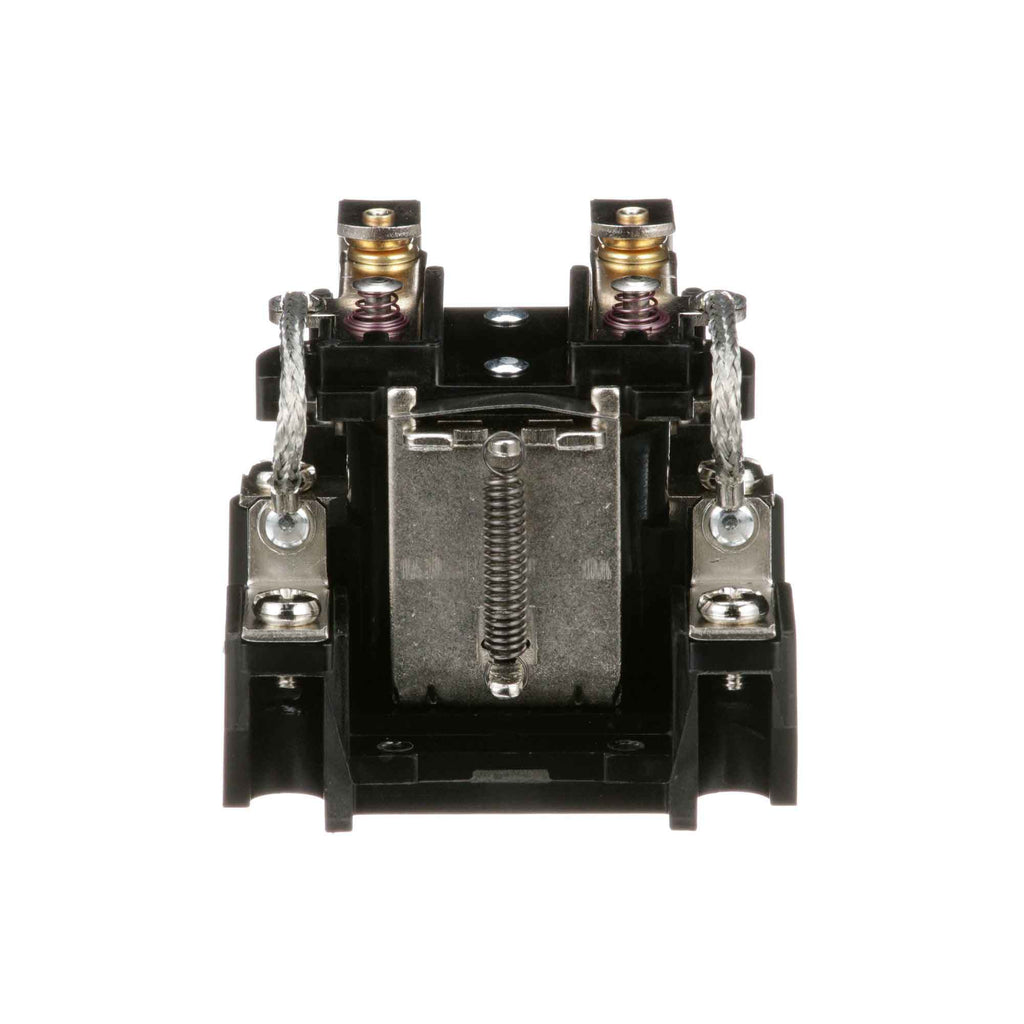

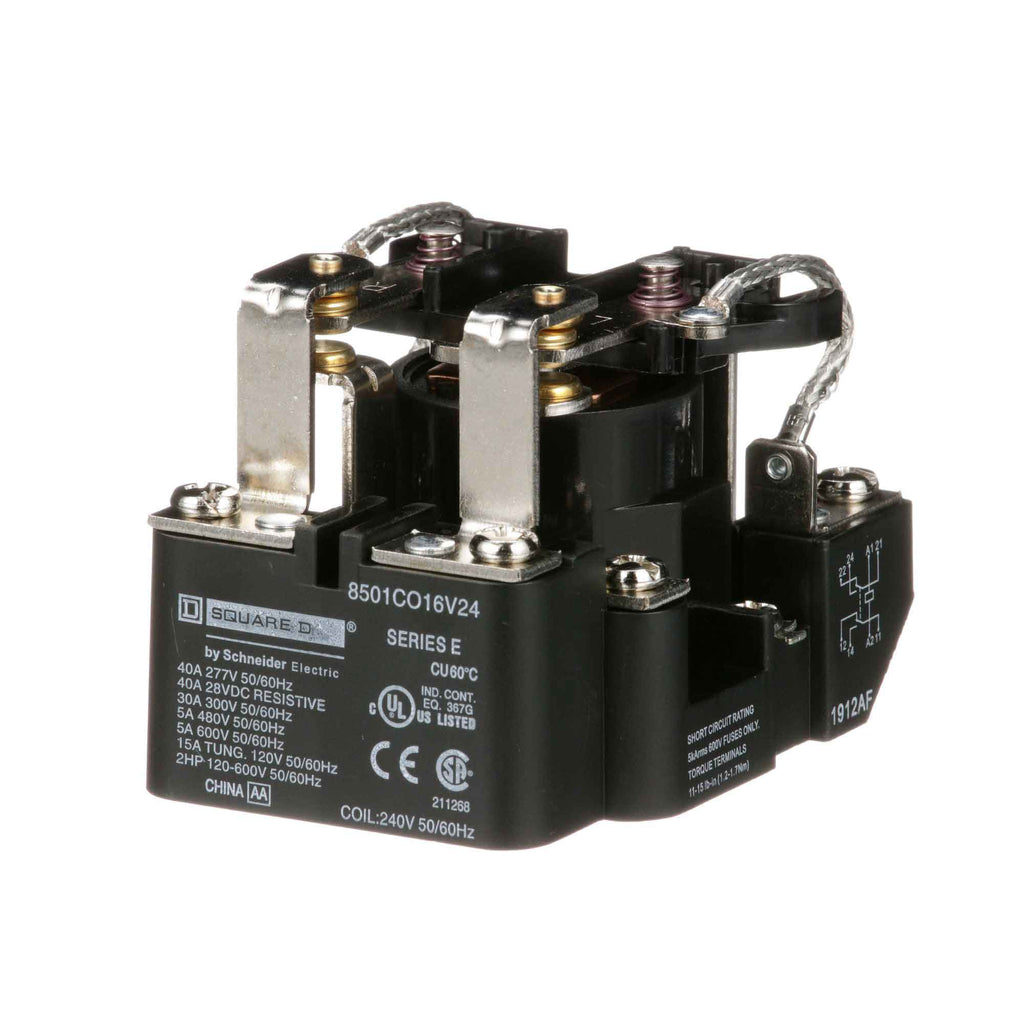

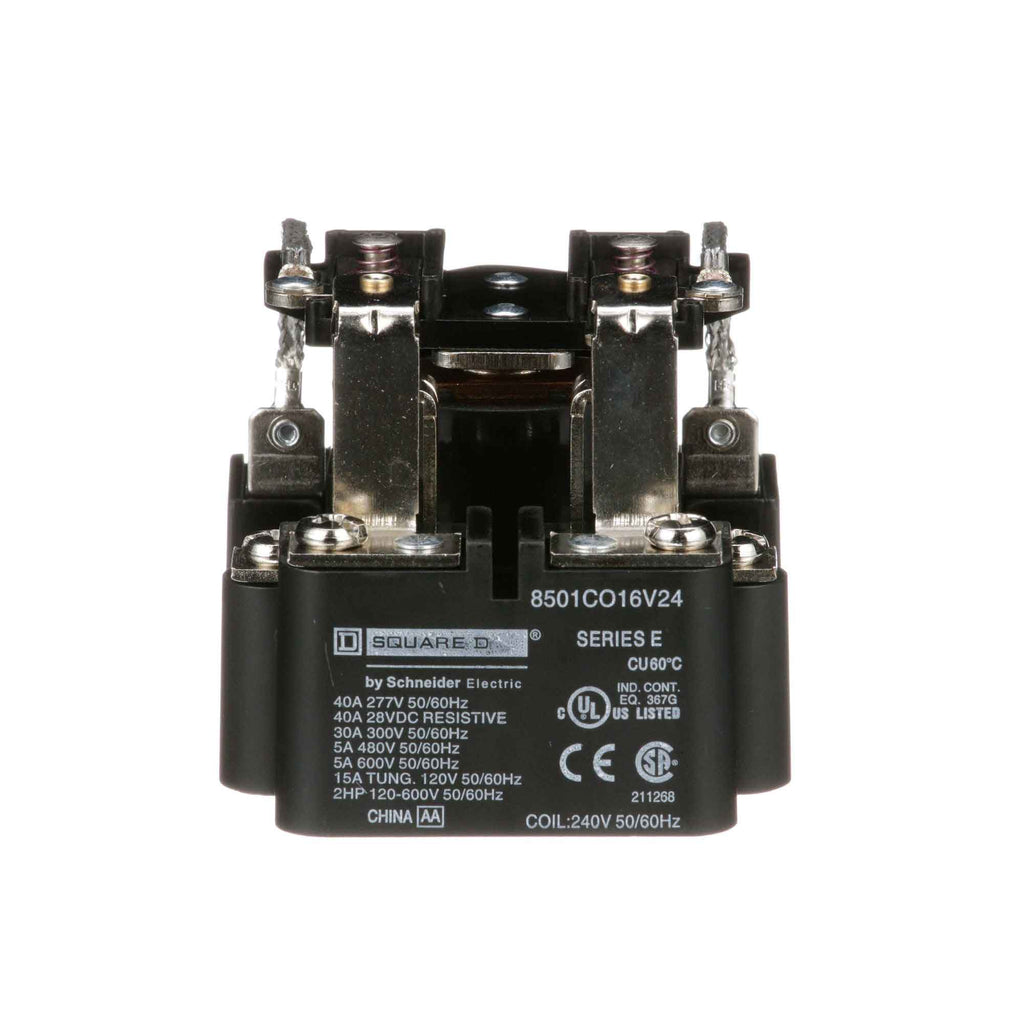

8501CO16V24 is a Square D power relay designed for controlling small single phase motors and light loads with a 30 amp rating at 240 VAC and DPDT contact configuration.8501CO16V24 features a Type C open frame design with riveted construction for enhanced mechanical life, visible contacts for easy status confirmation, and is UL Listed and CSA Certified. It operates at 240 VAC coil voltage, supports 2 normally open and 2 normally closed contacts, and is suitable for applications such as pumps, conveyors, and material handling equipment.

Key Specifications
• Amperage: 30 A resistive at 240 VAC
• Voltage: 240 VAC coil voltage

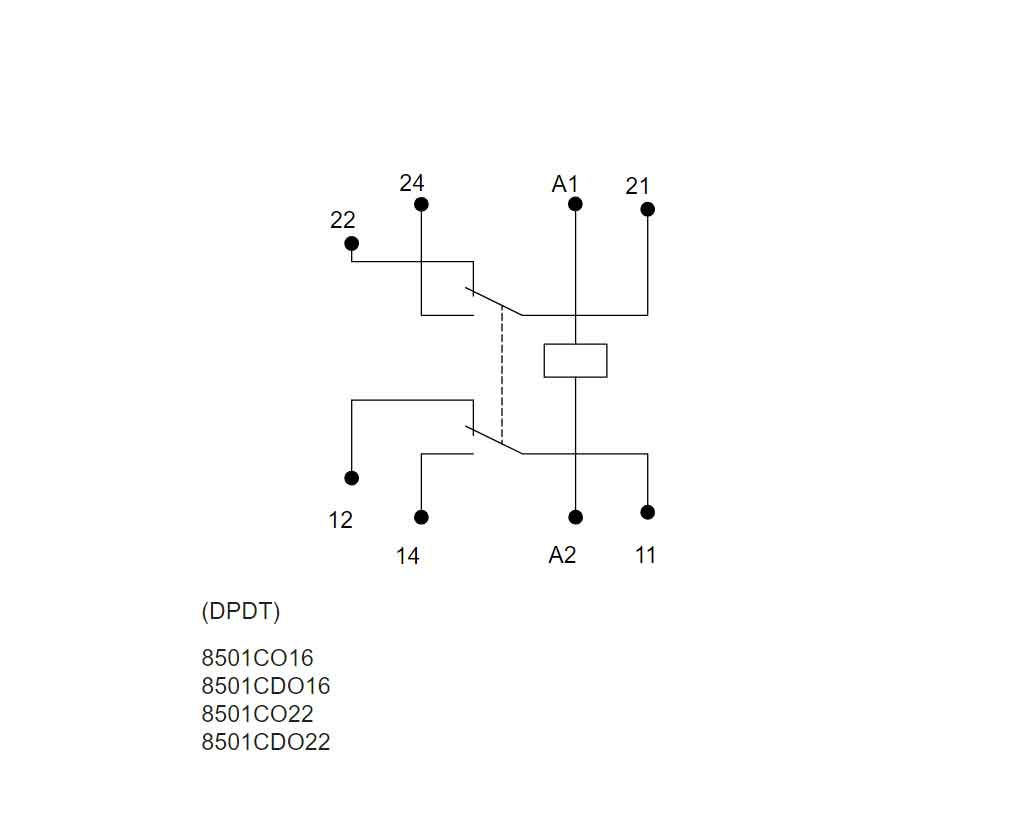

• Contact Configuration: DPDT (2 NO / 2 NC)
• Type: Class 8501 Type C Power Relay
• Mounting: Open frame
• Horsepower Rating: 2 HP at 240 VAC
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant

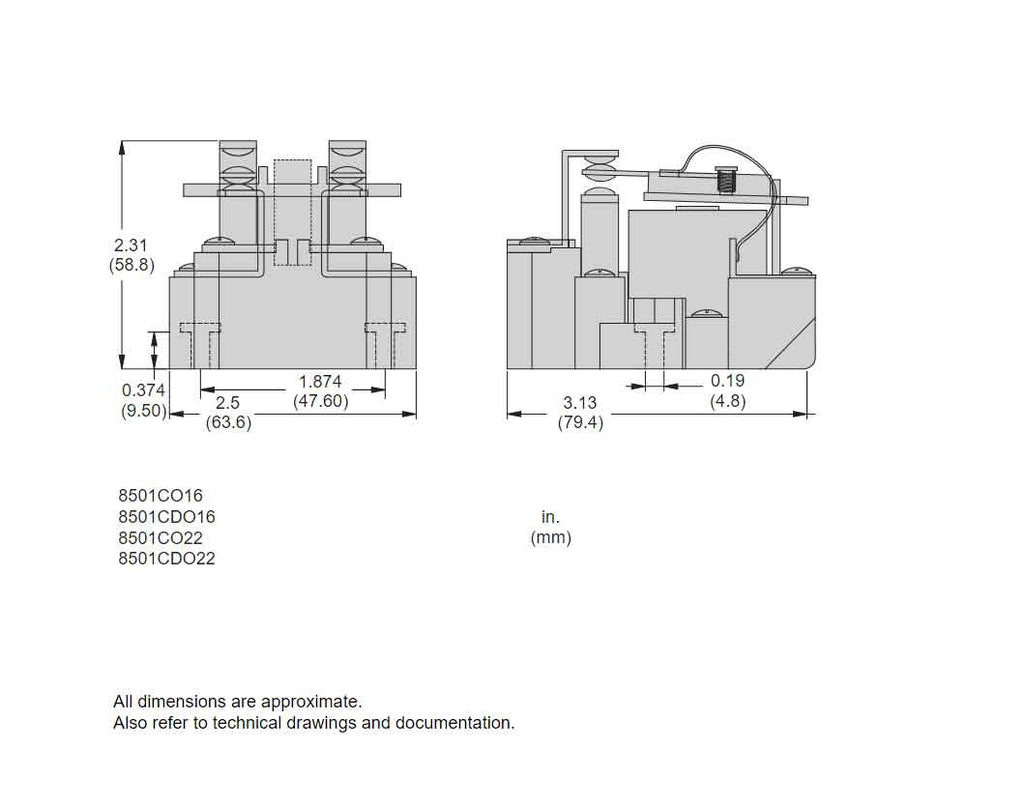

• Dimensions: Approx. 2.31 in H x 3.12 in W x 2.5 in D
• Frequency: 50/60 Hz
• Visible contacts for status confirmation
• Riveted construction for mechanical durability

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO16V24
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052159
• GTIN : 00785901052159
• Country of Origin : China
• Weight : 0.7
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
