8501CO16V04 - Square D Power Relay, 40A, 277VAC, DPDT, 2 NO/2 NC, Panel Mount, Type C, Class 8501, UL Listed, CSA Certified

8501CO16V04

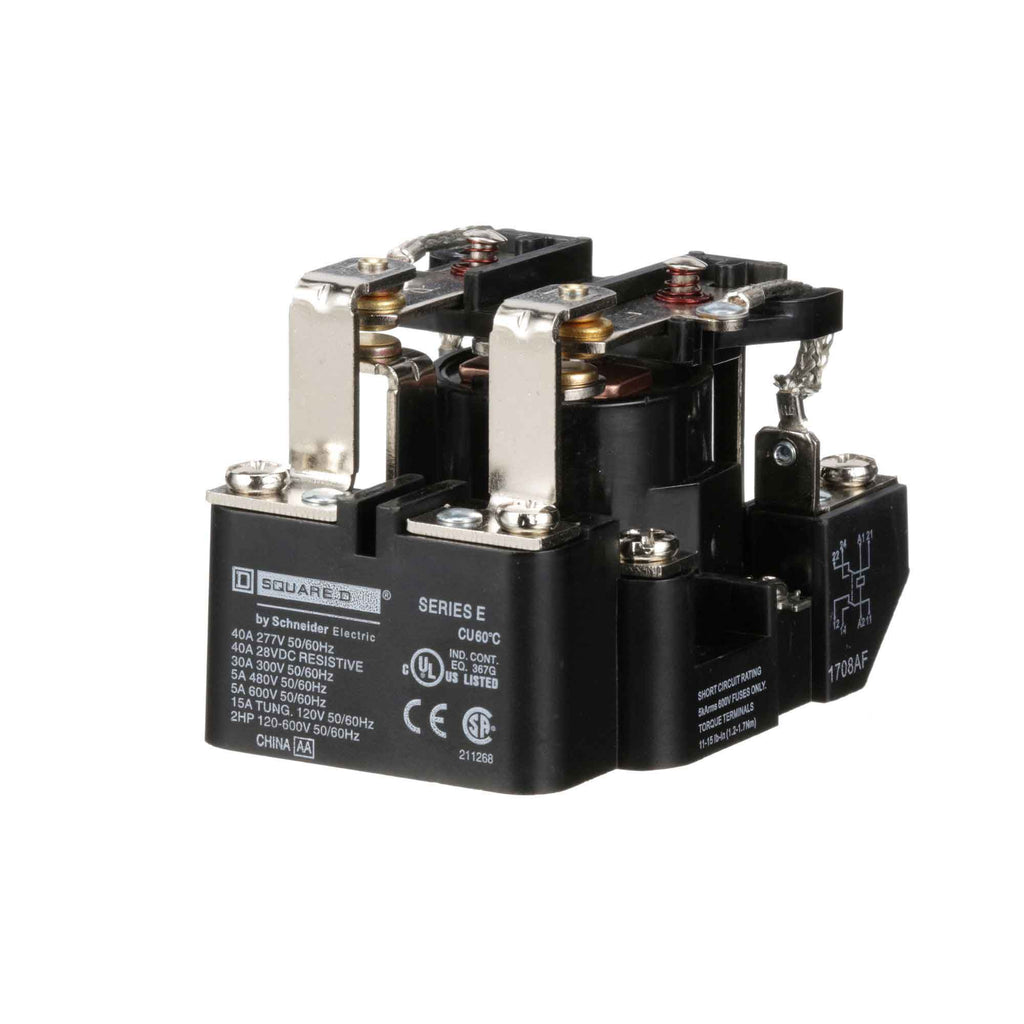

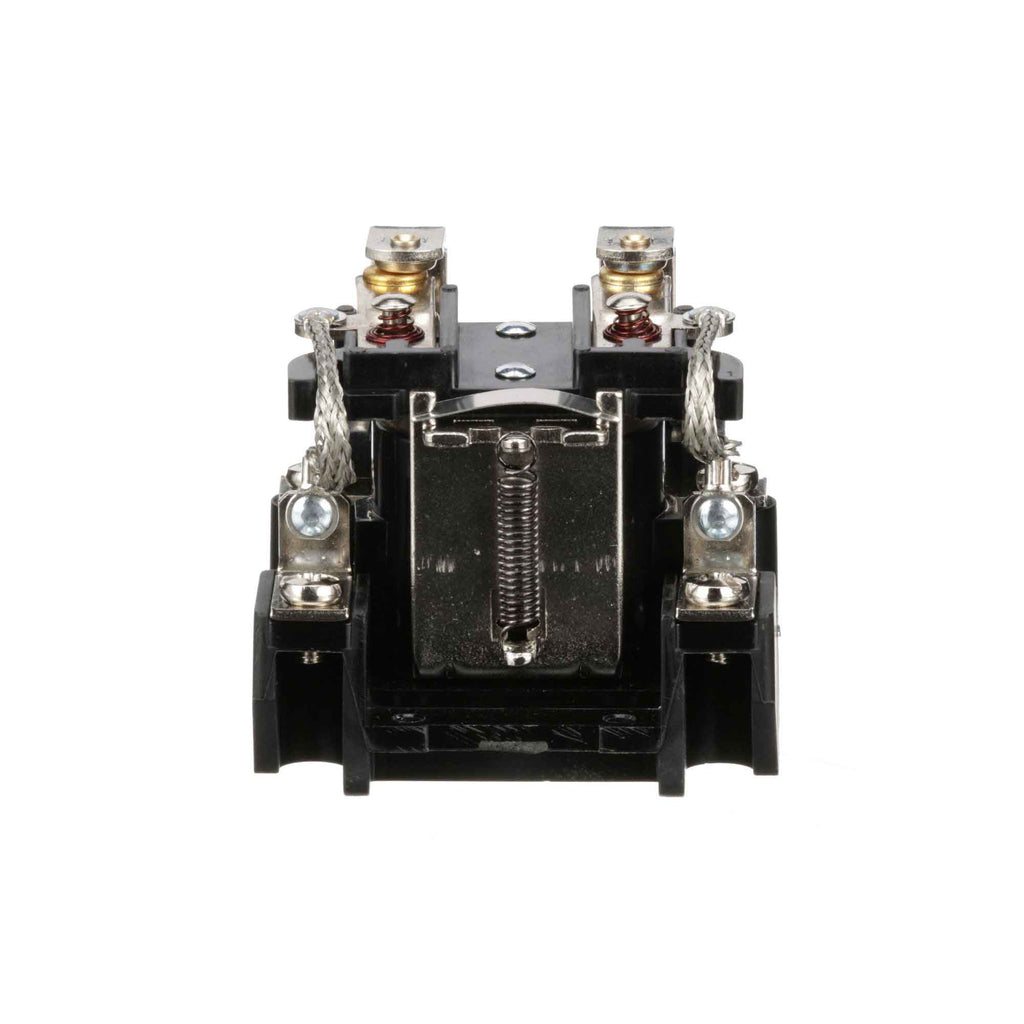

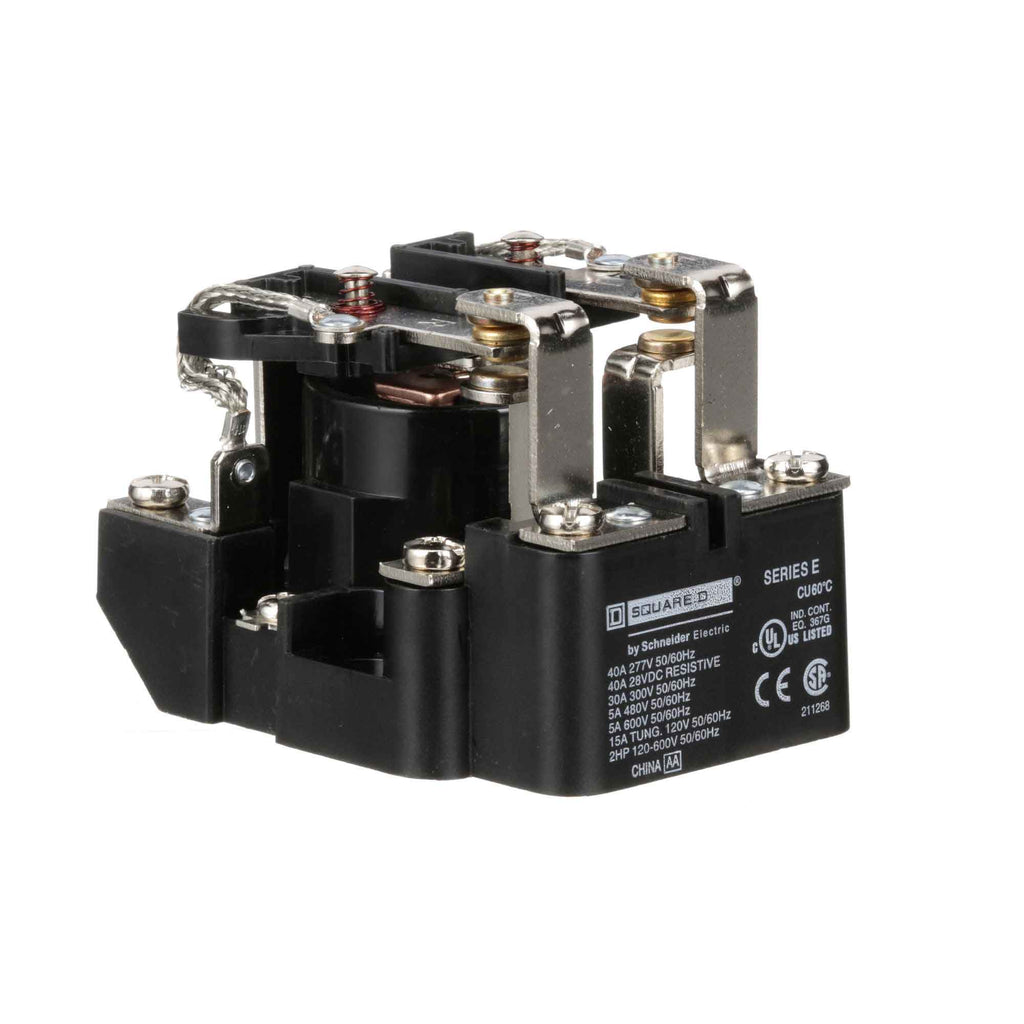

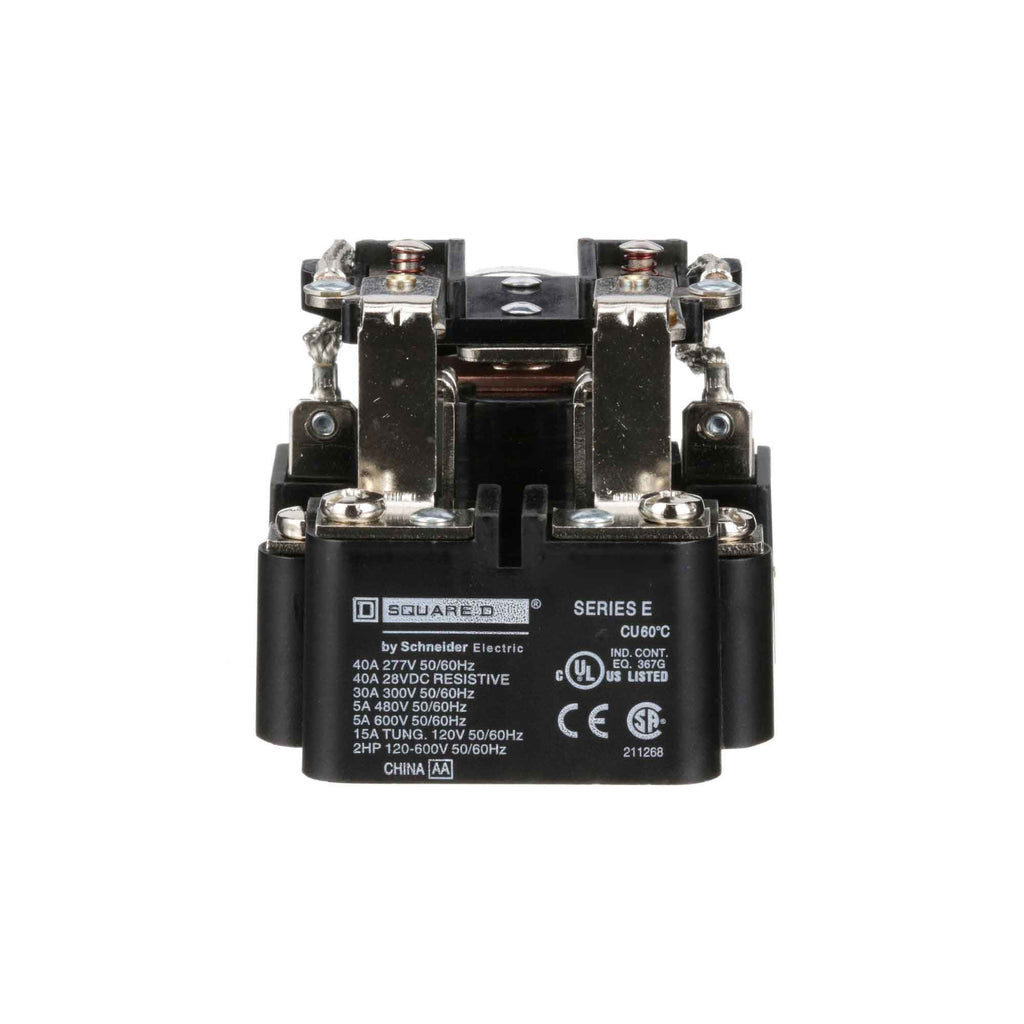

8501CO16V04 is a Square D power relay designed for robust motor control applications.

This relay features a 277 VAC coil, double pole double throw (DPDT) configuration with 2 normally open and 2 normally closed contacts, and is rated for up to 40A at 277VAC (resistive load) or 5A at 600VAC. It is suitable for controlling single-phase motors, heaters, pumps, and other industrial equipment, offering reliable performance in demanding environments. The open-frame, panel-mount design ensures easy installation and maintenance.

Key Specifications

• Part Number: 8501CO16V04
• Manufacturer: Square D
• Category: Motor Control Relay
• Amperage: 40A @ 277VAC (resistive), 5A @ 600VAC
• Voltage: 277VAC coil, 300V/600V contact

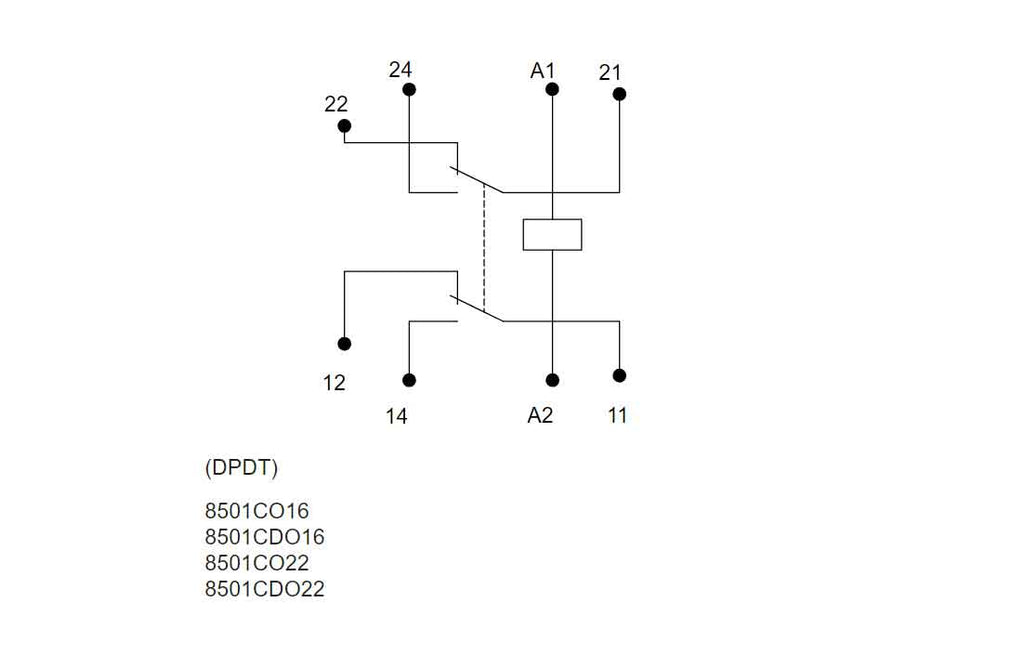

• Poles: DPDT (2 NO, 2 NC)
• Mounting Type: Panel mount
• Interrupt Rating: Not specified
• Series/Frame: Class 8501, Type C
• Trip Unit: Not applicable
• Certifications: UL Listed, CSA Certified, CE Approved, RoHS Compliant
• Coil Power: 10 VA (AC), 4 W (DC)
• Maximum HP: 2 HP @ 120V, 220V, 600V
• Terminals: Screw clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO16V04
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052166
• GTIN : 00785901052166
• Country of Origin : China
• Dimensions : Depth 28.15 in (71.5 cm) Width 17.01 in (43.2 cm) Height 10.35 in (26.3 cm)
• Weight : 0.65
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
