Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
8501CO15V20

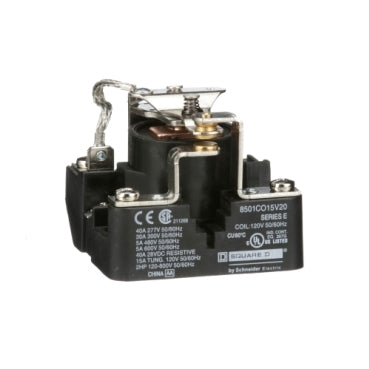

8501CO15V20 is a Square D Class 8501 Type C open frame power relay designed for motor control and light load applications. This relay features a 120 VAC coil, 1-pole SPDT (1NO/1NC) configuration, and is rated for 30A at 300VAC or 5A at 600VAC. It is suitable for use with Class 8501 motor control systems and provides reliable switching for small single-phase motors, heaters, pilot lights, and audible signals.
- Part Number: 8501CO15V20
- Manufacturer: Square D
- Series: Class 8501
- Frame Type: Type C Open Frame
- Amperage Rating: 30A @ 300VAC, 5A @ 600VAC
- Coil Voltage: 120 VAC, 50/60Hz
- Contacts: 1NO/1NC (SPDT)
- Mounting Type: Panel Mount
- Interrupt Rating: 300V/600V
- Standards: UL Listed, CSA Certified, CE, RoHS
- Applications: Motor Control, Lighting, Heaters, Pilot Lights
- Weight: 0.15 lb
Specifications
- Part Number: 8501CO15V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : C
Product Data
- UPC : 785901052104
- GTIN : 00785901052104
- Country of Origin : China
- Dimensions : 2.5 in (63.50 mm) x 2.43 in (61.72 mm)
- Weight : 0.5
- Certification : CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
