8501CO15V14 - Square D 30A 24VAC SPDT Power Relay, 1.5 HP, 1 Pole, Panel Mount

8501CO15V14

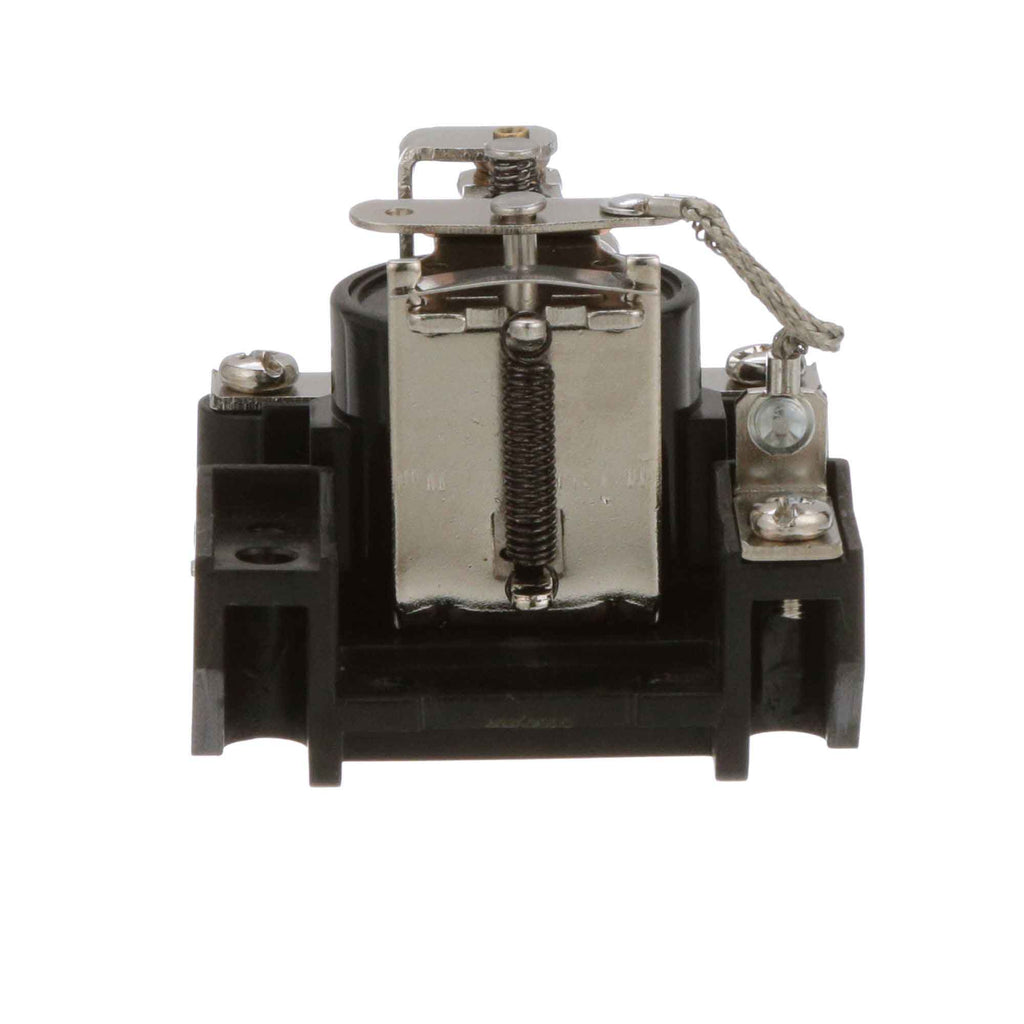

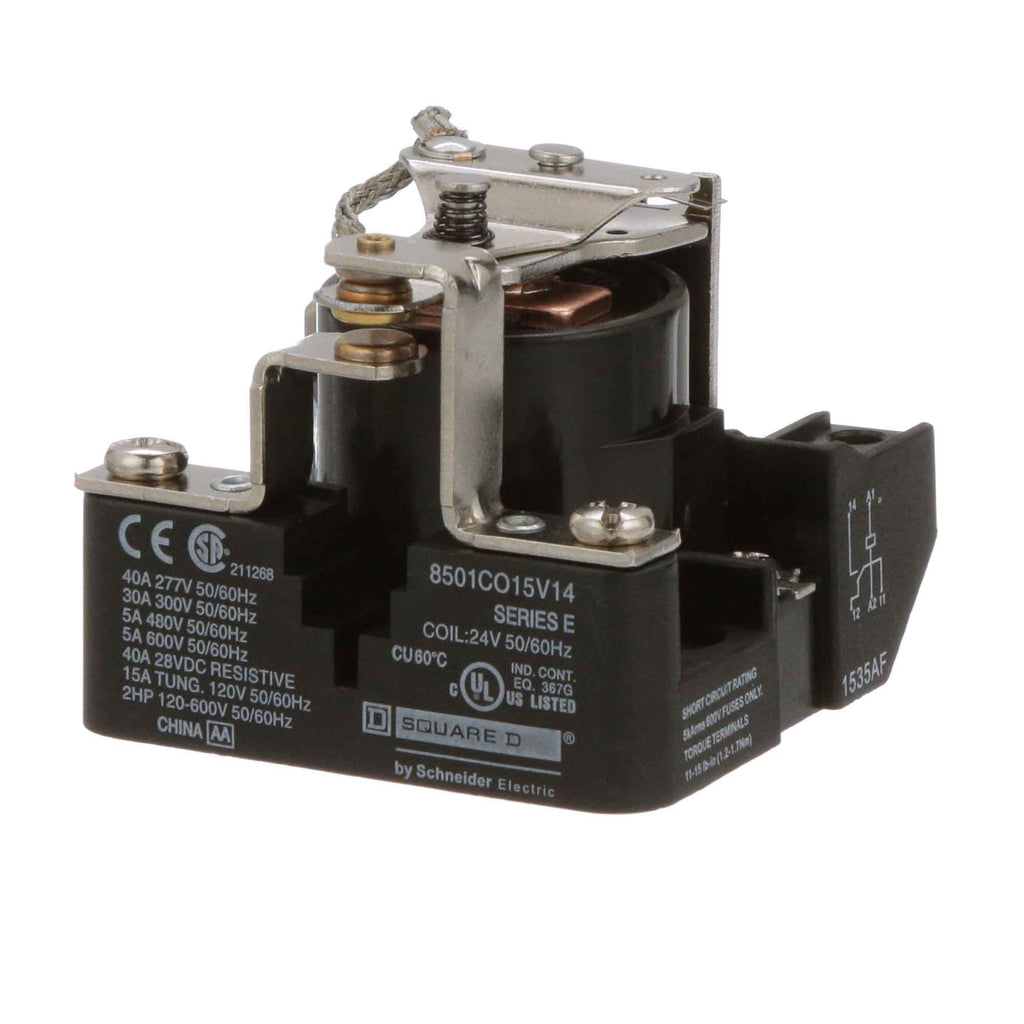

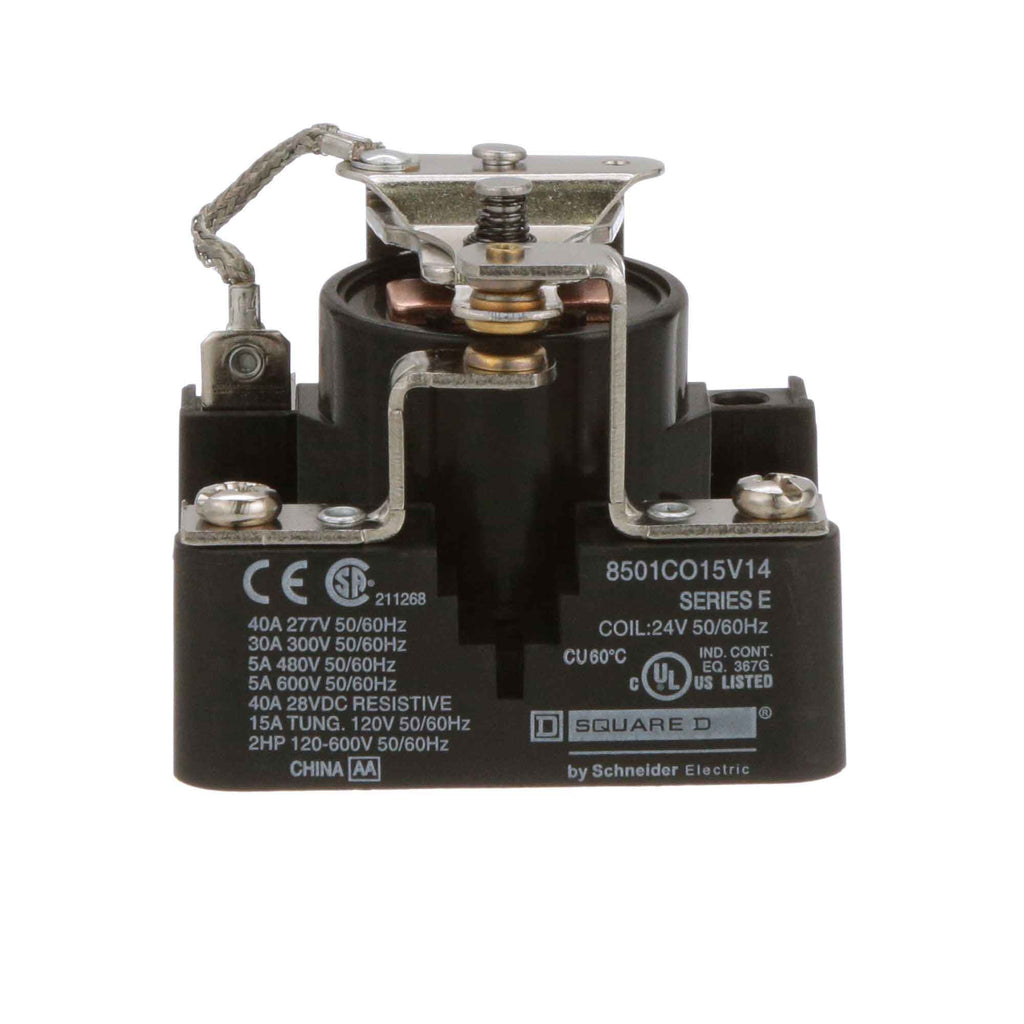

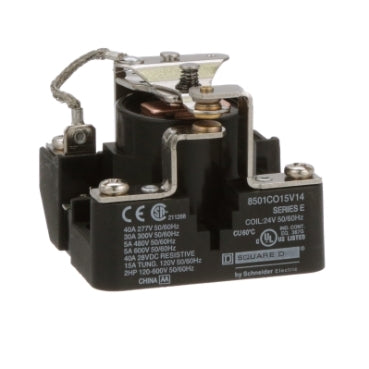

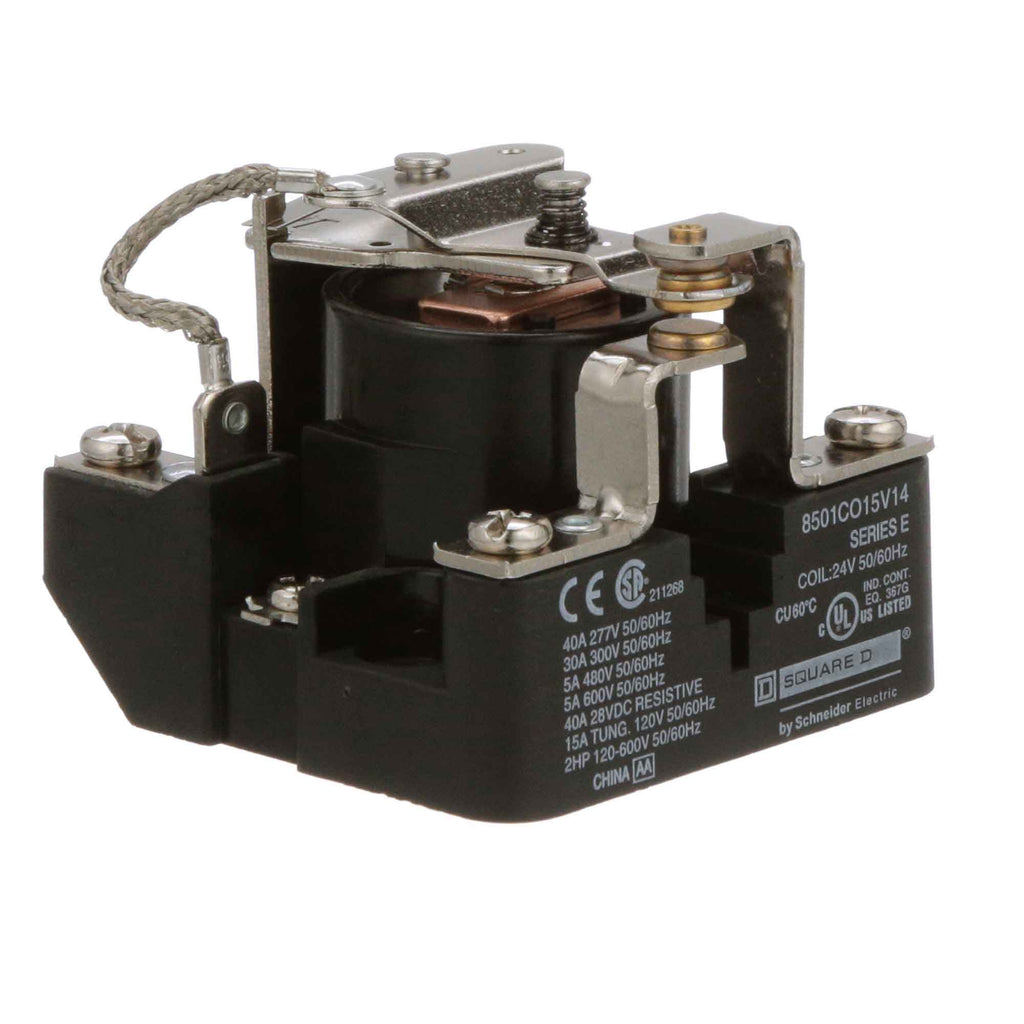

8501CO15V14 is a Square D power relay designed for motor control applications with a 24 VAC coil and SPDT contact configuration.8501CO15V14 features heavy duty contacts rated for 1.5 HP single phase motors at 120, 230, or 600 VAC, with a 30 A resistive rating at 300 VAC and 5 A at 600 VAC. It includes one normally open and one normally closed contact, suitable for controlling small motors and light loads. The relay has a durable open frame construction, panel mount design, and is UL listed and CSA certified.

• Contact Configuration: SPDT (1 NO, 1 NC)
• Coil Voltage: 24 VAC, 50/60 Hz
• Amperage Rating: 30 A resistive at 300 VAC, 5 A at 600 VAC
• Horsepower Rating: 1.5 HP single phase motor
• Poles: 1 Pole
• Mounting Type: Panel Mount
• Interrupt Rating: 30 A resistive at 300 VAC
• Series/Frame: Class 8501
• Certifications: UL Listed, CSA Certified
• Durable open frame construction
• Designed for motor control and light load applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO15V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052098
• GTIN : 00785901052098
• Country of Origin : China

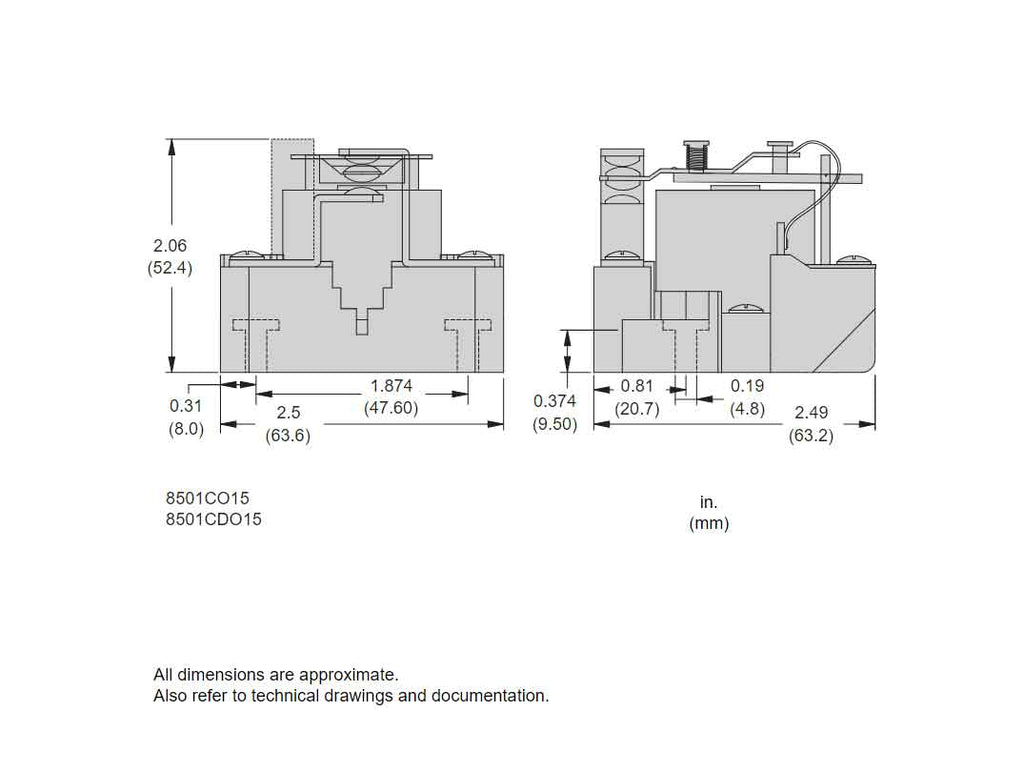

• Dimensions : 2.5 in (63.50 mm) x 2.43 in (61.72 mm)
• Weight : 0.49
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
