82254N - Square D 200 Amp 240 VAC 2-Pole NEMA 1 Non-Fusible Double Throw Safety Switch

82254N

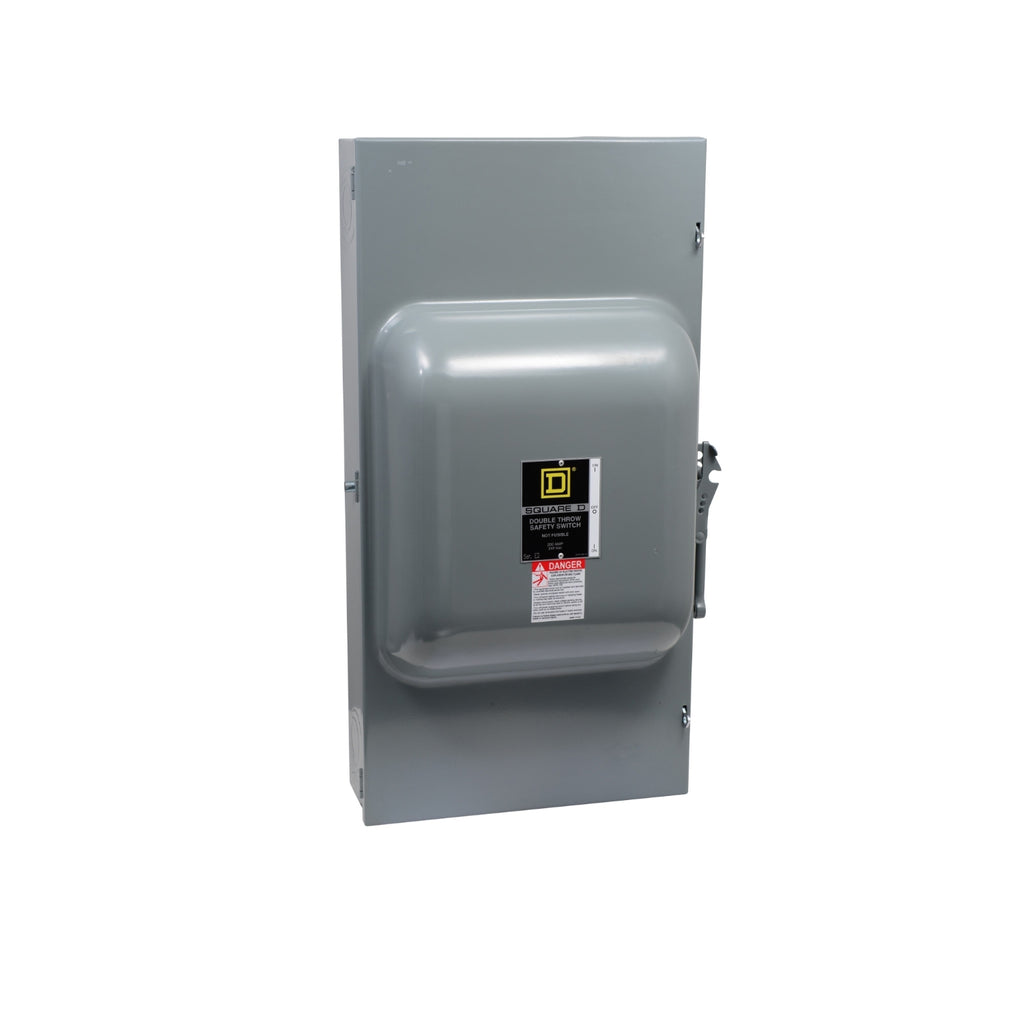

82254N is a Square D 200 Amp 240 VAC 2-Pole NEMA 1 Non-Fusible Double Throw Safety Switch designed for reliable manual transfer applications. This safety switch features a steel enclosure and is ideal for use in industrial and commercial power distribution systems requiring a robust, non-fusible disconnect solution. The 82254N switch is rated for 200 amps and 240 volts AC, with a double throw configuration for safe switching between two power sources. It is constructed with a durable steel enclosure and meets NEMA 1 standards for indoor use. The switch is UL Listed and suitable for manual transfer applications up to 15 horsepower.

• Part Number: 82254N
• Manufacturer: Square D
• Amperage: 200 A
• Voltage: 240 VAC
• Poles: 2
• Enclosure Type: NEMA 1
• Mounting: Wall Mount
• Interrupt Rating: 100 kAIC
• Series/Frame: 82254N
• Switch Type: Non-Fusible Double Throw
• Material: Steel
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 82254N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Type : 82254
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• Fuse Class : H, J
• Configuration : Double Throw
• Switch Style : Non-Fusible
• Nema Rating : 1
• Compatible Frames : PLP

Product Data

• UPC : 785901017417
• GTIN : 00783164229530
• Country of Origin : Mexico
• Dimensions : 30.88 in (784.35 mm) x 19.63 in (498.60 mm) x 9.75 in (247.65 mm) (Height x Width x Depth)
• Weight : 52.001
• Certification : UL Listed
