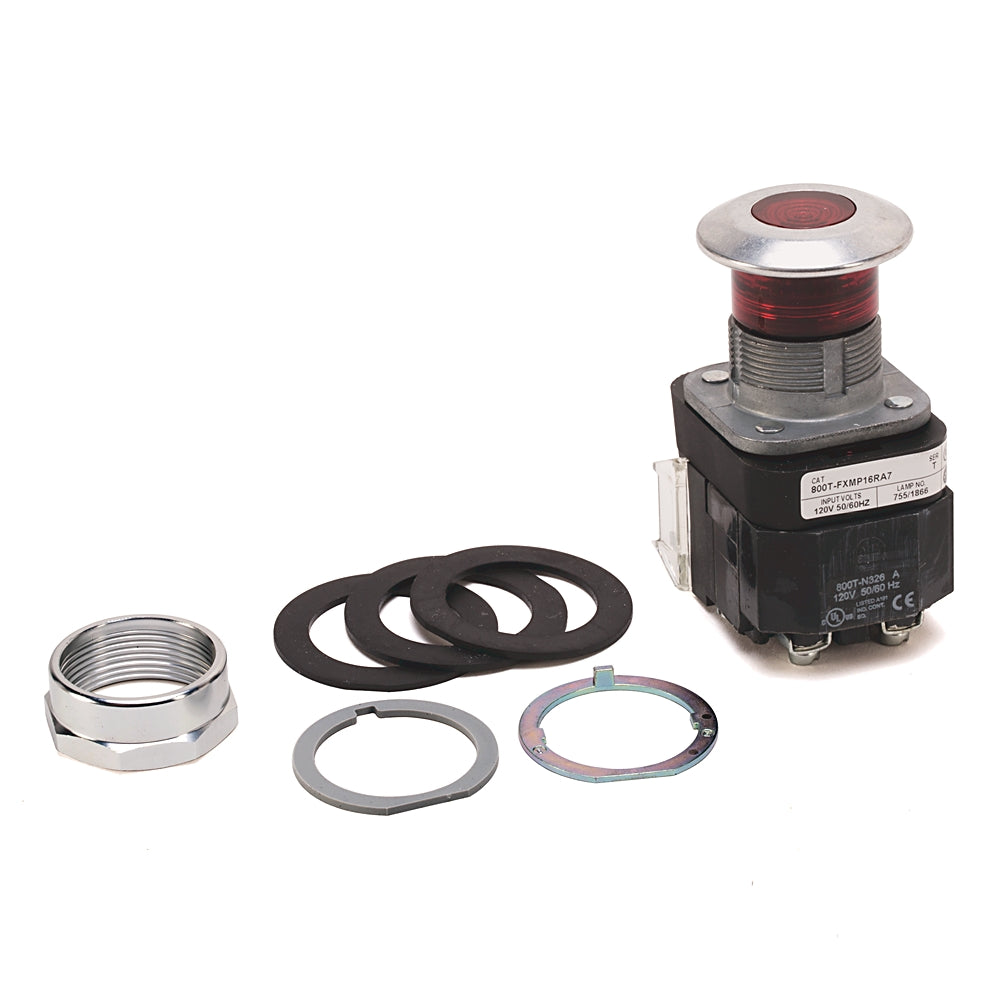

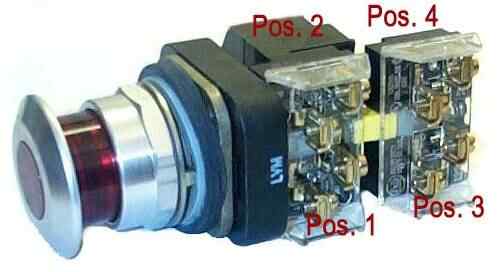

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Push Buttons
- Series
- 800T
- Frame
- 800T
- NEMA rating
- Nema 4
- UPC
- 78118015062
- GTIN
- 1.07812E+13
- Weight
- 0.524 lb
Product description & additional details
800T-FXNP16GA7
800T-FXNP16GA7 is a 30mm push-pull push button pilot device from Allen-Bradley, designed for industrial motor control applications. This unit features a 3-position actuator with momentary-out, maintained-center, and maintained-in operation, and is equipped with a green illuminated lens for clear status indication. The device is built for reliable performance in demanding environments and is compatible with standard mounting configurations.Engineered for durability, the 800T-FXNP16GA7 offers a robust push-pull mechanism with a 40mm mushroom head and is rated for 120V AC, 50/60 Hz operation. The contact configuration includes 1 N.C.L.B. and 1 N.C. standard contacts, supporting a wide range of control circuits. The unit is designed for easy installation and maintenance, making it ideal for use in industrial control panels and machinery.
- Part Number: 800T-FXNP16GA7
- Manufacturer: Allen-Bradley
- Voltage: 120V AC, 50/60 Hz
- Actuator Type: 3-Position Push-Pull
- Operation: Momentary-Out, Maintained-Center, Maintained-In
- Lens Color: Green
- Block Type: Standard
- Contact Configuration: 1 N.C.L.B., 1 N.C.
- Mounting: Standard 30mm Panel Cutout
- Series: 800T
- Head Type: 40mm Mushroom Head
- Electrical Design Lifecycles: 1,000,000
Specifications
- Part Number: 800T-FXNP16GA7
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Push Buttons
- Family : 800T
- Type : 800T
- Nema Rating : Nema 4
Product Data
- UPC : 78118015062
- GTIN : 1.07812E+13
- Weight : 0.524 lb
