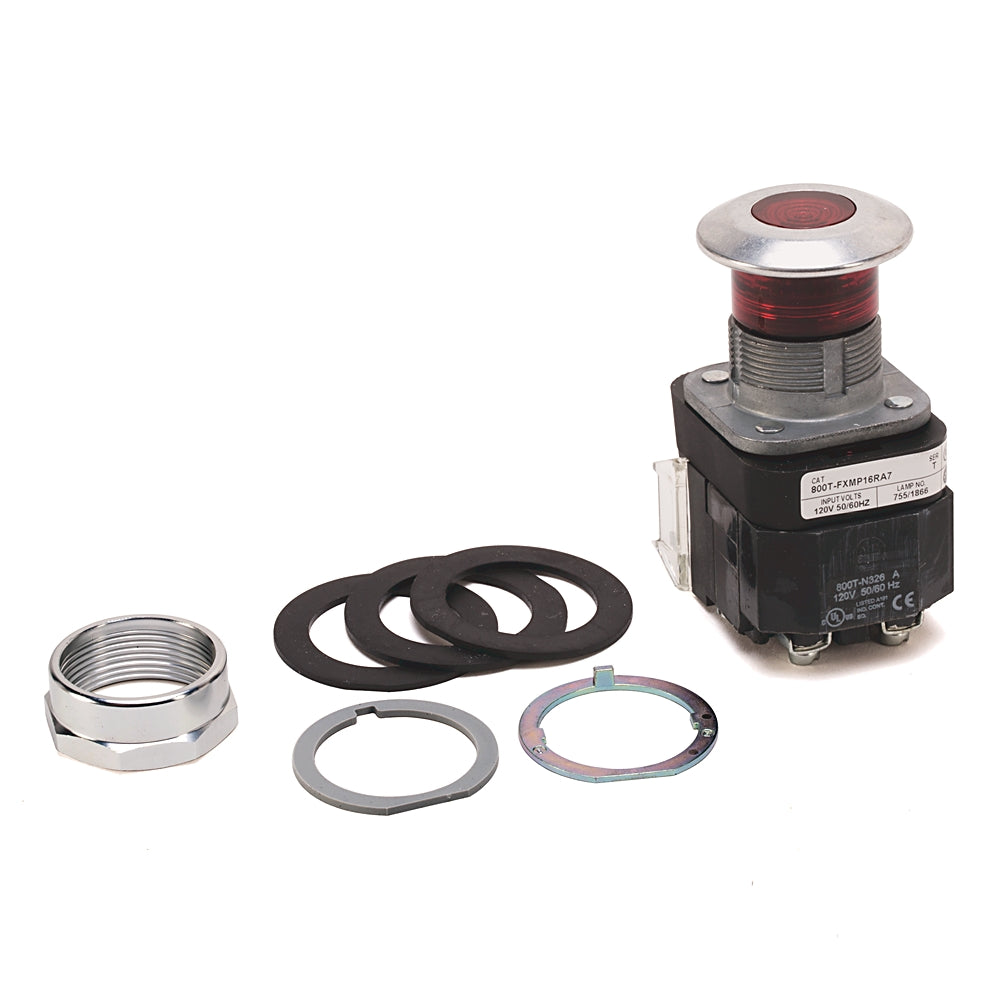

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Push Buttons
- Series
- 800T
- Frame
- 800T
- Rated current
- 10
- Voltage
- 600VAC/VDC
- Connection
- Screw
- NEMA rating
- 1, 4, 12, 13
- Auxiliary contacts
- 1NCLB, 1NC
- Mounting
- Surface
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 781180150494
- GTIN
- 781180150494
- Weight
- 5
Show all specifications (1 more)
- Certification
- ABS, CCC, CE, CSA, EAC, GOST, UL
Product description & additional details
800T-FXMP16RA7
800T-FXMP16RA7 is a 30 mm 3-position push-pull push button with a mushroom head, designed for industrial motor control applications. This Allen-Bradley device features momentary and maintained operation, incandescent illumination, and a red lens for clear status indication. The push button is factory assembled and suitable for standard mounting in control panels. The 800T-FXMP16RA7 offers reliable performance with a current rating of 10 A and a voltage rating of 120 V AC at 50/60 Hz. It is equipped with a standard mushroom head and no twist release, providing easy access and operation. The device is rated for Type 4/13 environments, making it suitable for use in harsh industrial settings. The push button includes one normally closed lighted block and one normally closed contact block for flexible circuit control.
- 30 mm push-pull operator
- 3-position: momentary, maintained, maintained
- 10 A current rating
- 120 V AC, 50/60 Hz voltage rating
- Incandescent illumination
- Red lens color
- Mushroom head type
- Standard block type
- 1 NCLB-1 NC contact configuration
- Type 4/13 protection rating
- Factory assembled
- No twist release
Specifications
- Part Number: 800T-FXMP16RA7
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Push Buttons
- Family : 800T
- Type : 800T
- Voltage : 600VAC/VDC
- Amperage : 10
- Connection : Screw
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Aux Contacts : 1NCLB, 1NC
- Nema Rating : 1, 4, 12, 13
- Circuit Breaker Mounting Style : Surface
Product Data
- UPC : 781180150494
- GTIN : 781180150494
- Weight : 5
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : ABS, CCC, CE, CSA, EAC, GOST, UL
