Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
60106

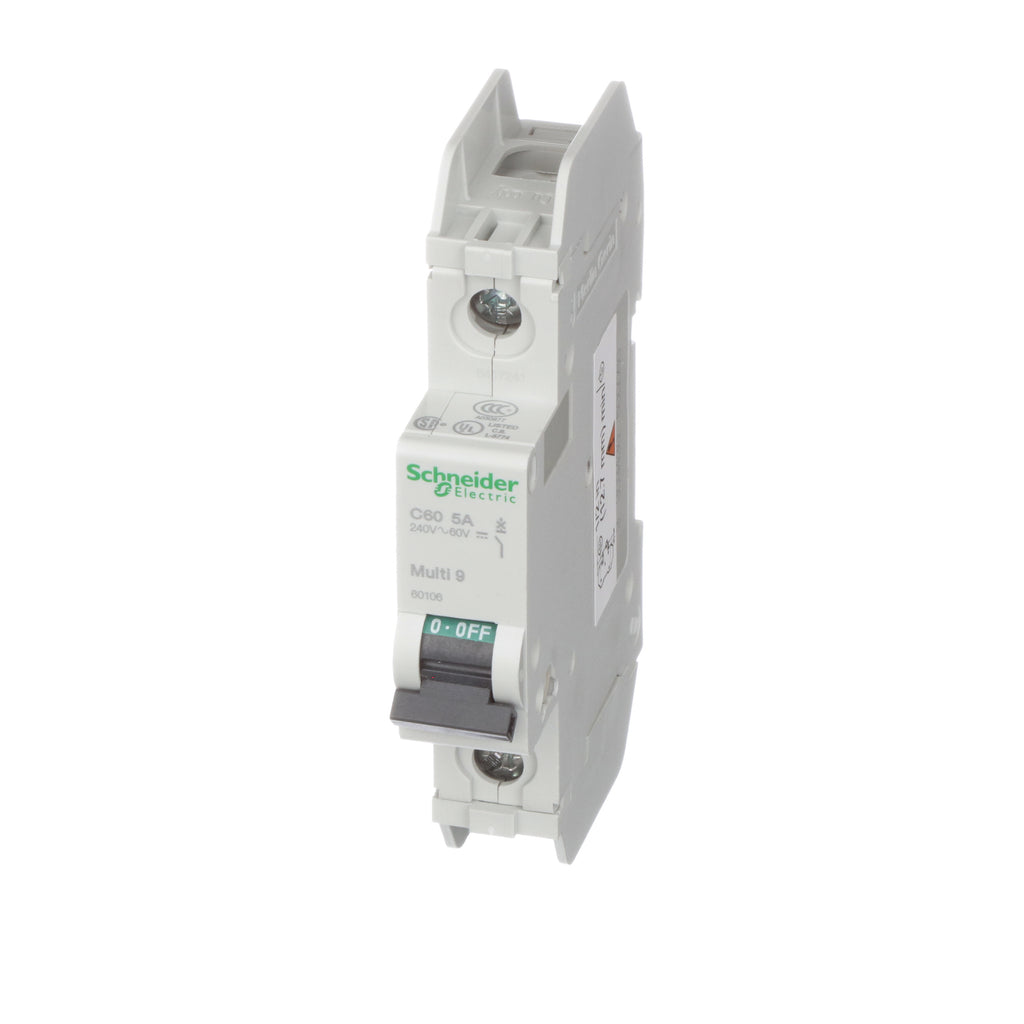

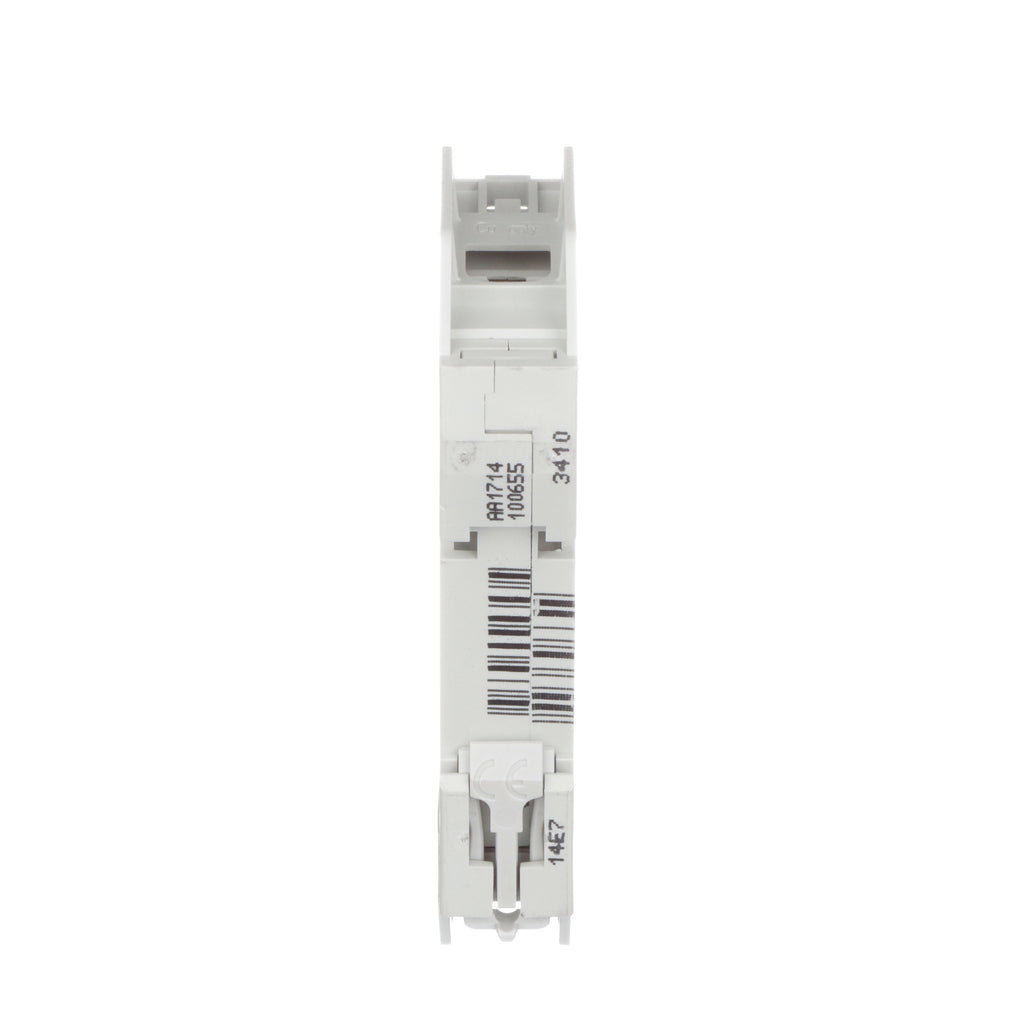

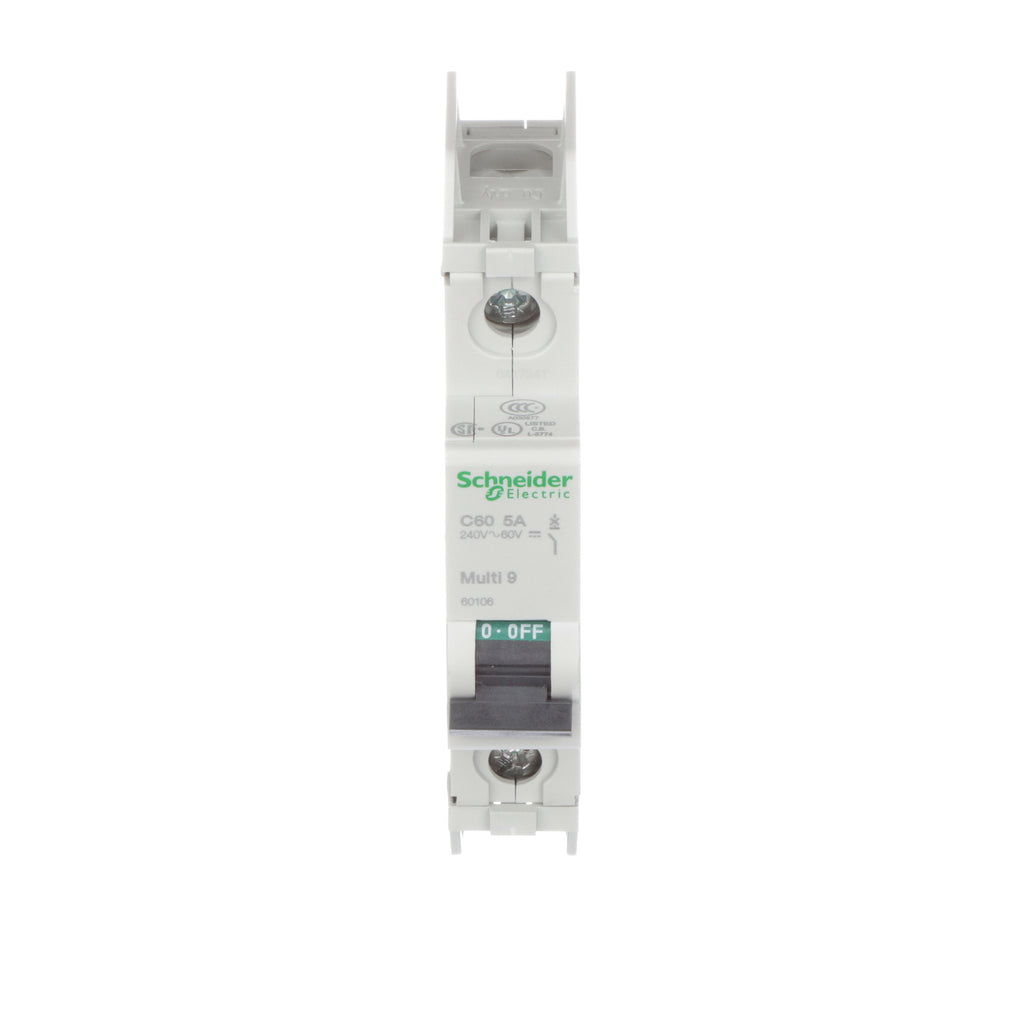

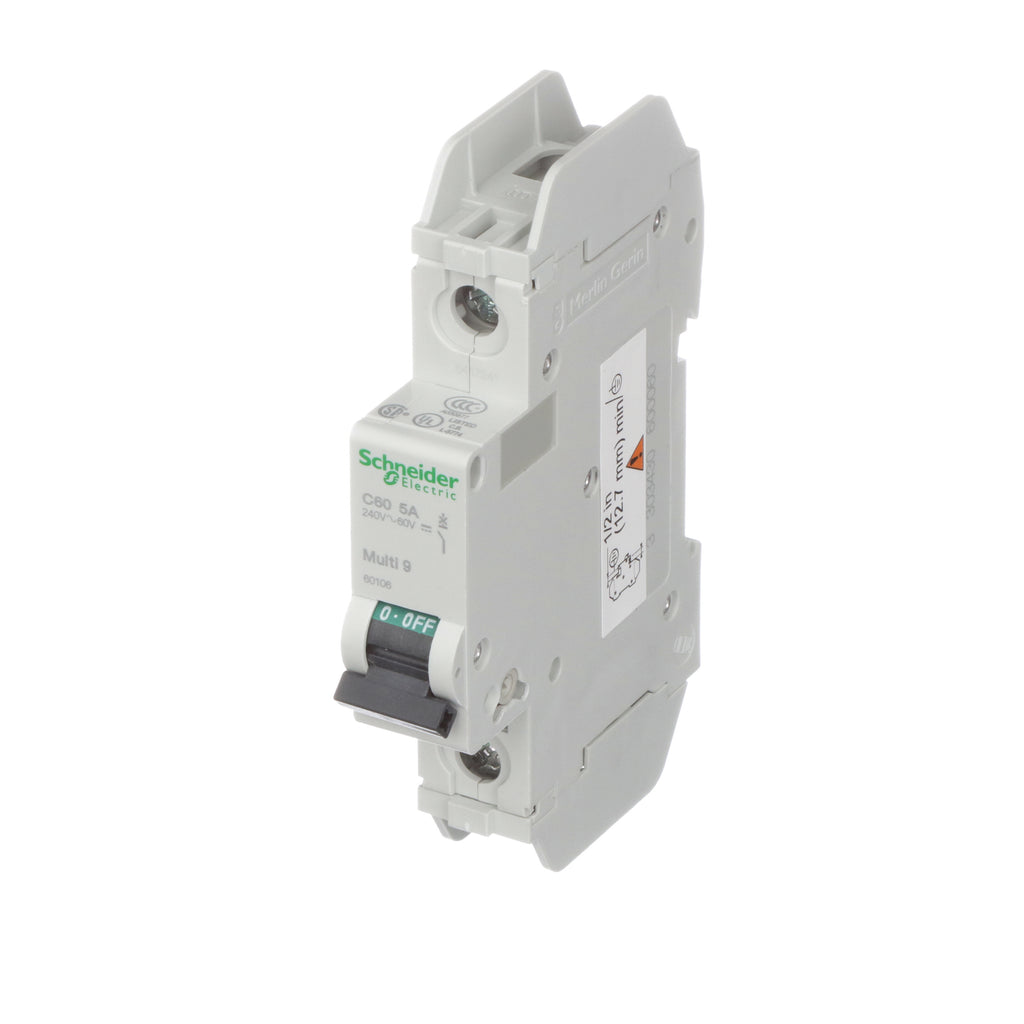

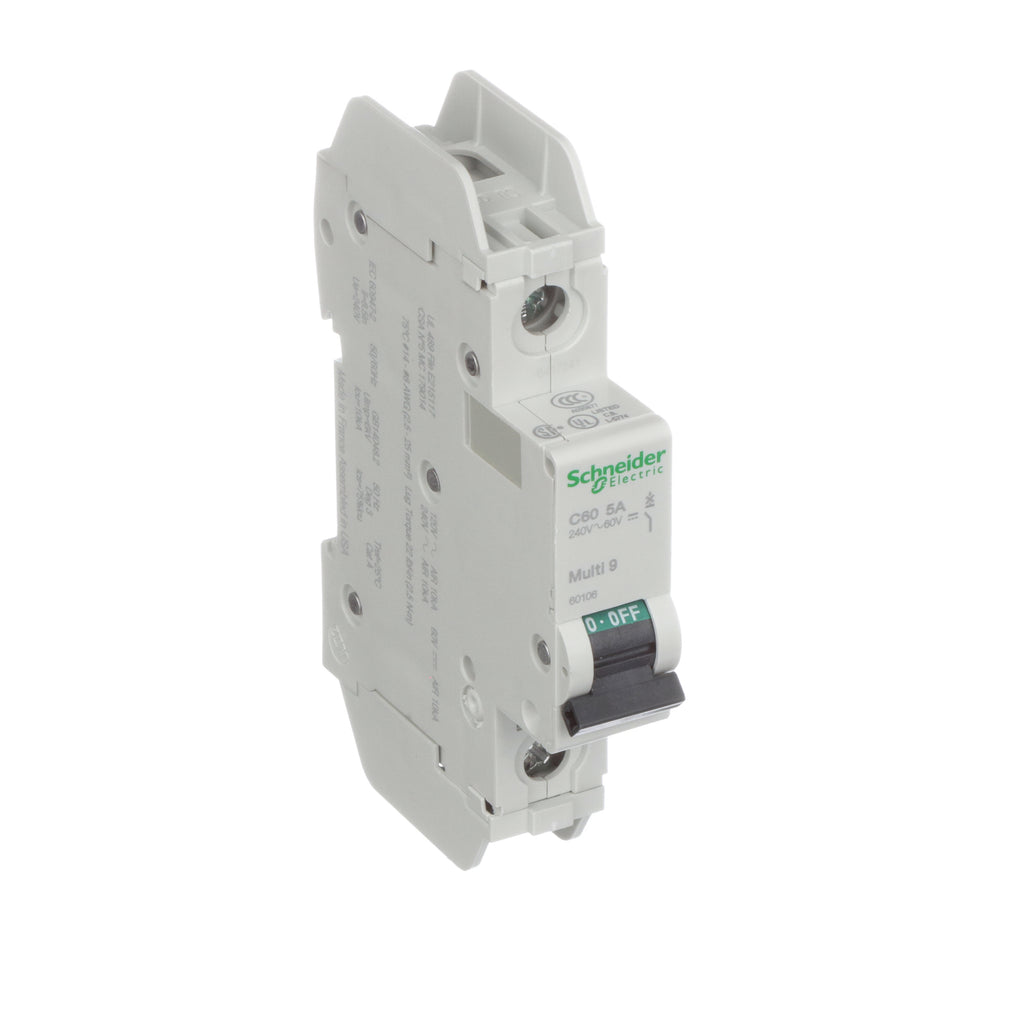

60106 is a Square D 5 amp, 1-pole miniature circuit breaker designed for reliable circuit protection in residential and commercial applications.This Multi9 C60 series breaker features a C Curve trip unit, suitable for general purpose protection with a thermal magnetic trip mechanism. It is rated for 120 volts AC and has a breaking capacity of 10 kA at 120 volts. The breaker mounts on DIN rail and includes tunnel terminals for secure wiring.
- Key Specifications
- Amperage: 5 A
- Voltage: 120 V AC
- Poles: 1
- Series/Frame: Multi9 C60
- Trip Unit: C Curve Thermal Magnetic
- Interrupt Rating: 10 kA @ 120 V
- Mounting Type: DIN Rail
- Terminal Type: Tunnel Terminals
- Part Number: 60106
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : C60
- Voltage : 240
- Amperage : 5
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 783310601067
- GTIN : 00785901208389
- Country of Origin : China
- Dimensions : Height 4.21 in (107 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.12
