Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY4306-7

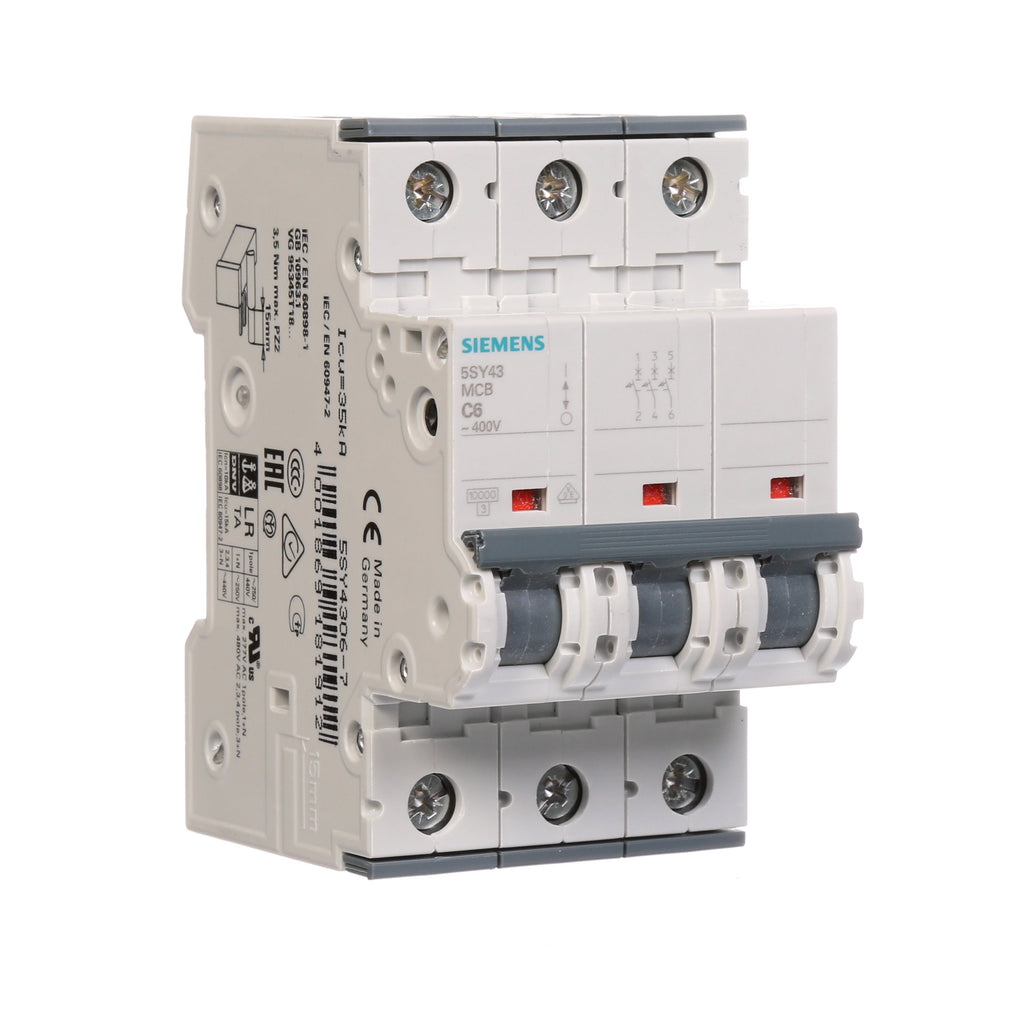

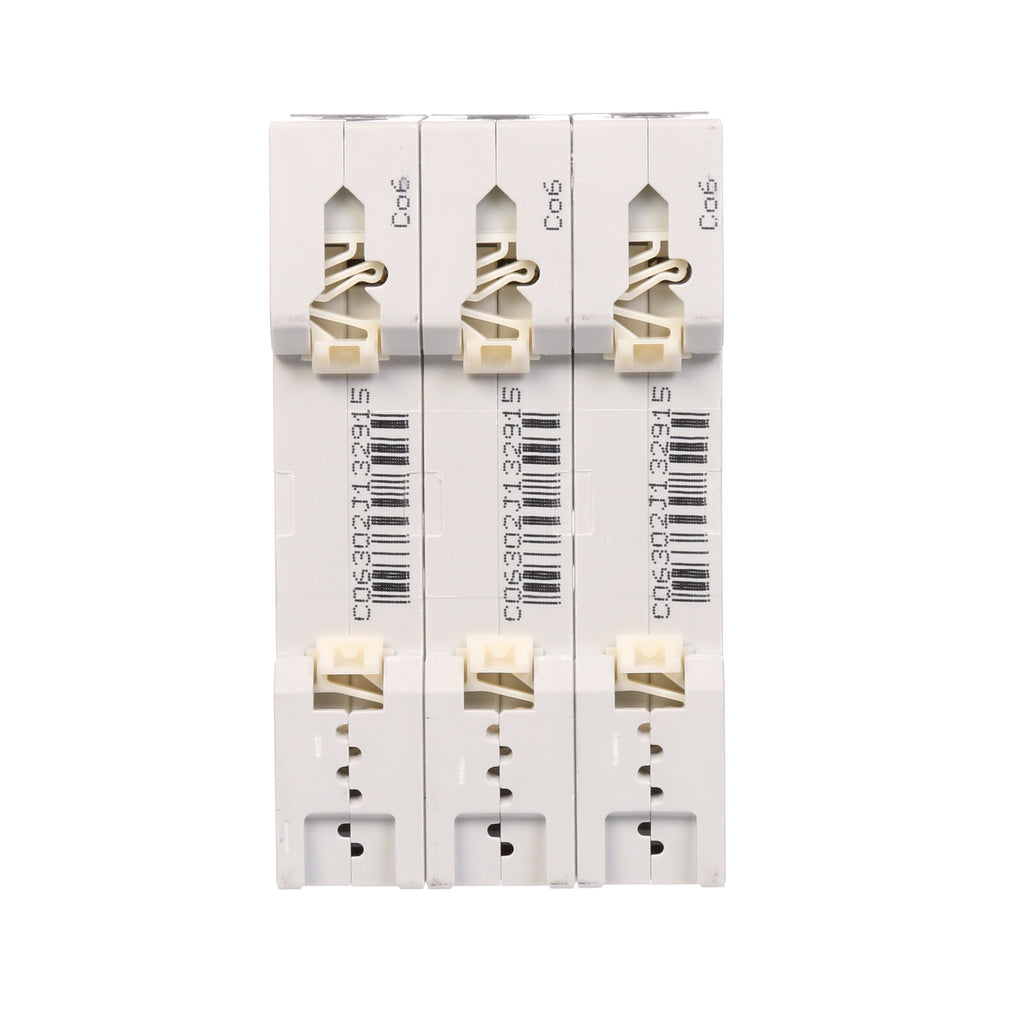

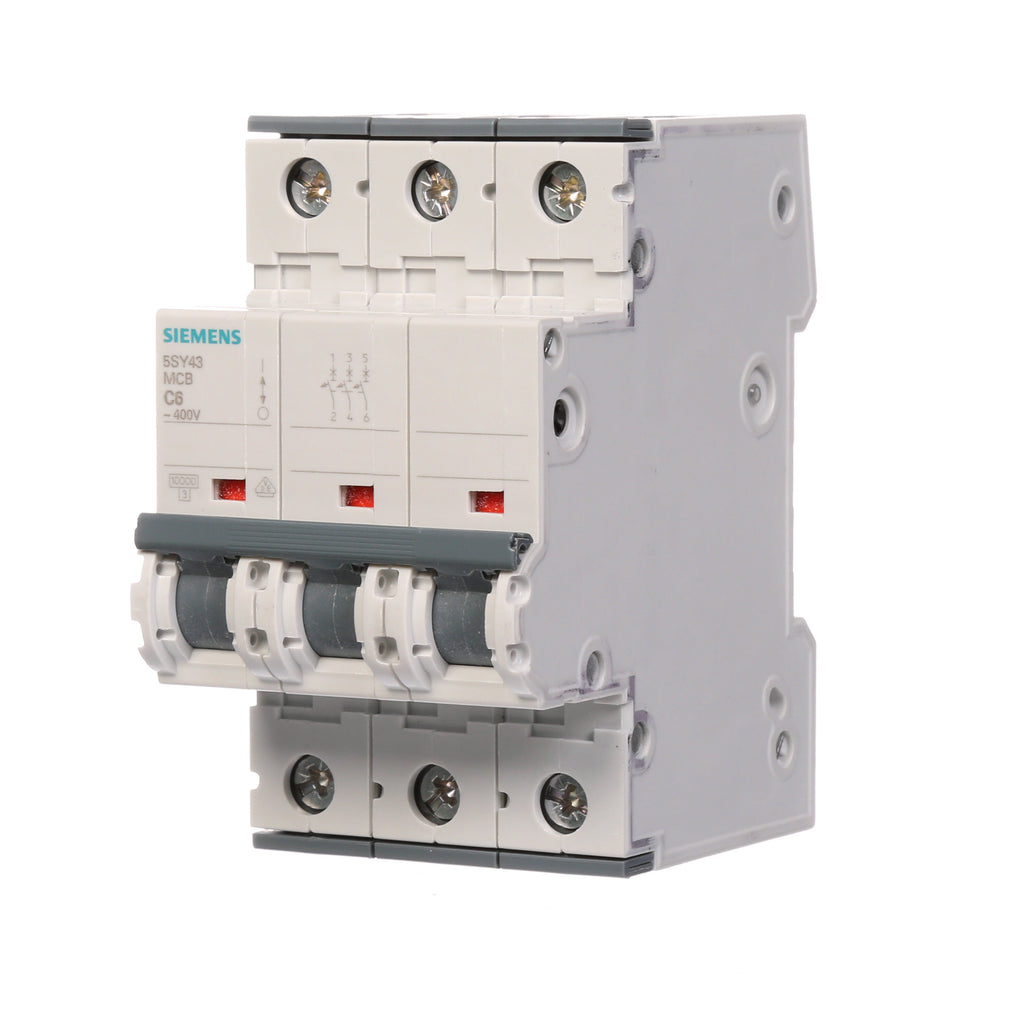

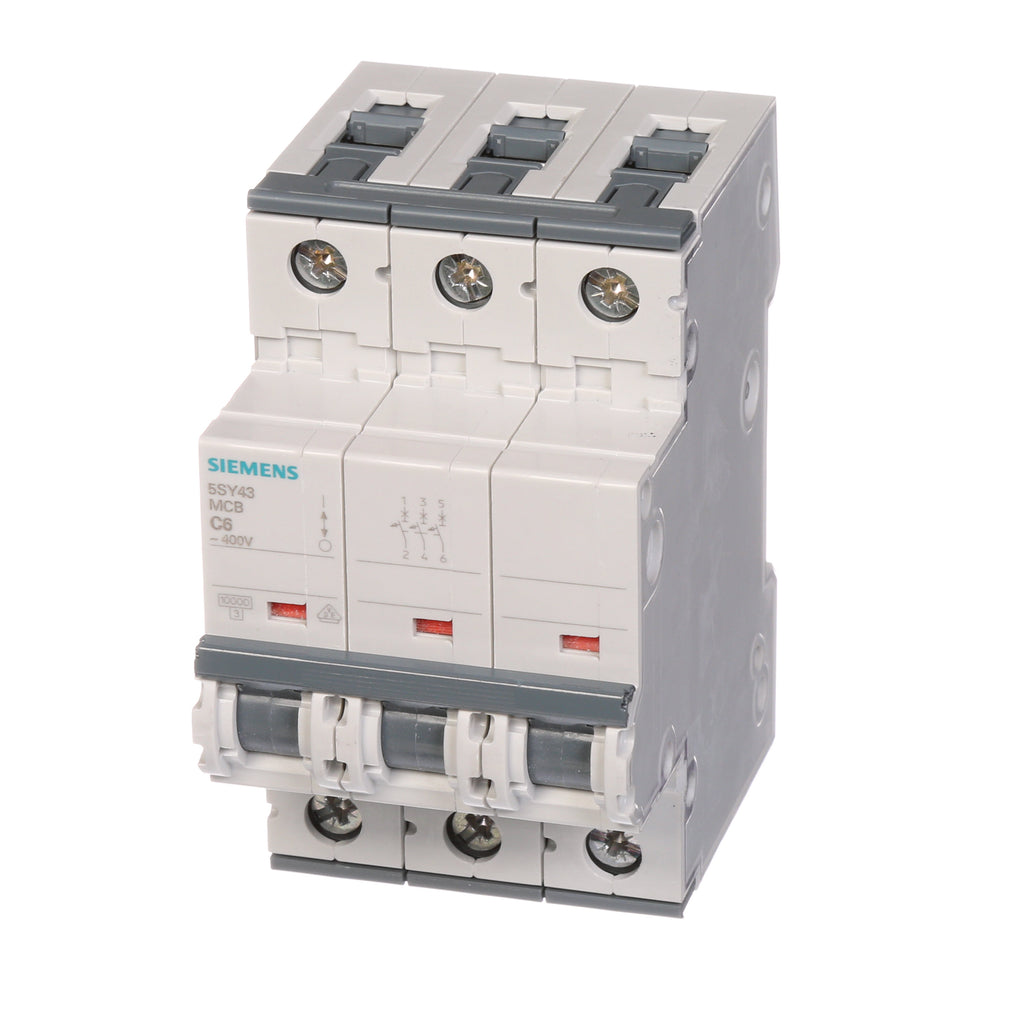

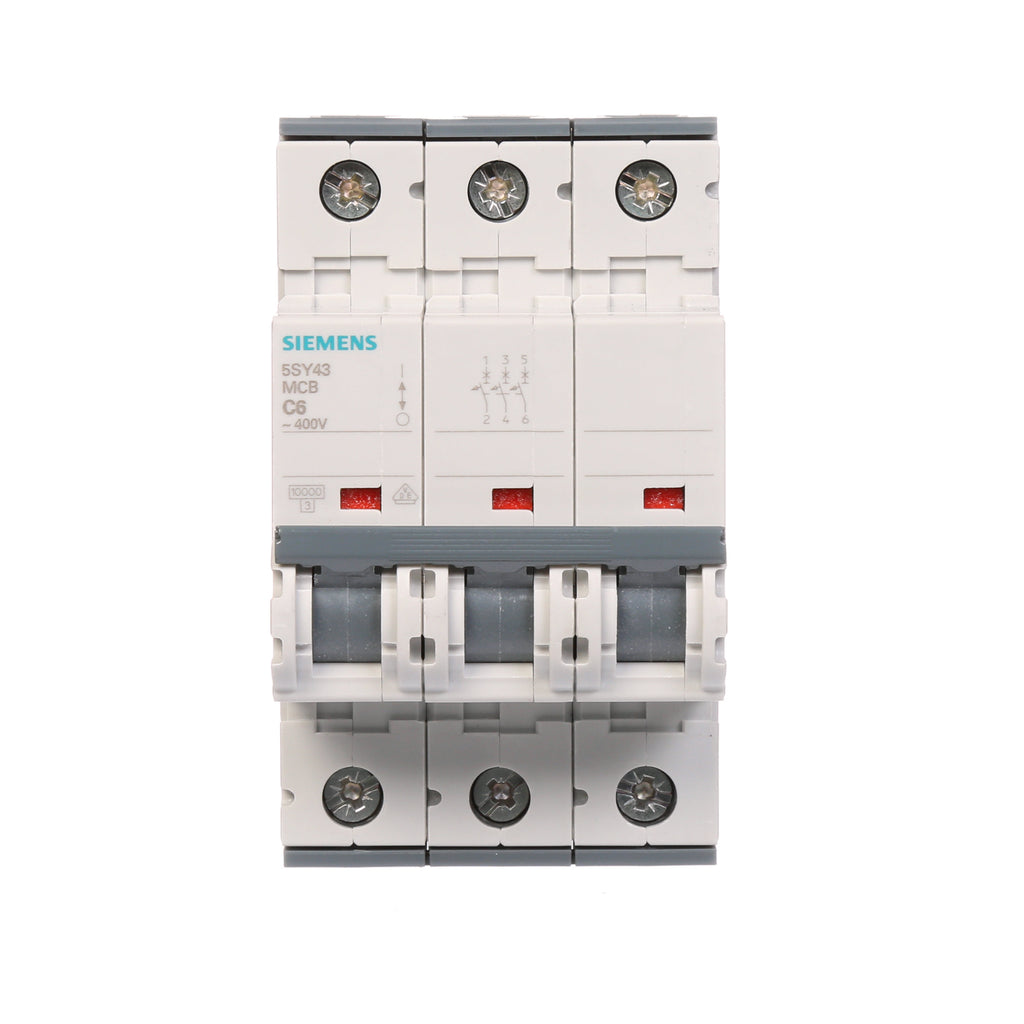

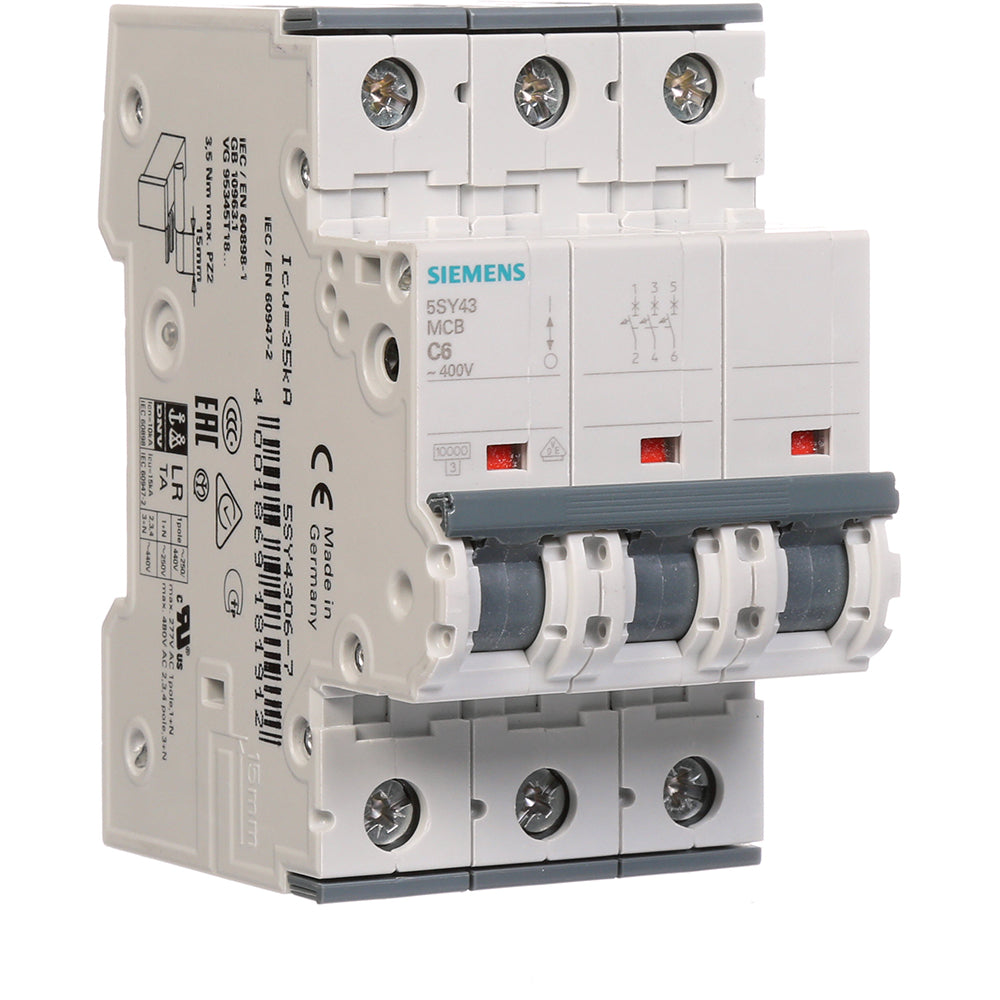

5SY4306-7 is a Siemens 6 Amp 3-pole miniature circuit breaker designed for reliable circuit protection in electrical installations.This Siemens Sentron supplementary protector features a Type C trip characteristic, suitable for medium inrush currents, with a 10kA interrupt rating at 400V. It provides thermal-magnetic trip functionality, ensuring fast response to overloads and short circuits. The breaker mounts on a standard 35mm DIN rail and has an IP20 enclosure rating. It supports line/load screw connections with identical terminals on both sides for flexible wiring. Dimensions are approximately 90 mm height, 54 mm width, and 70 mm depth.
- Amperage: 6 Amp
- Voltage Rating: 400 V
- Number of Poles: 3
- Trip Type: Thermal Magnetic (Type C)
- Interrupt Rating: 10 kA
- Mounting Type: 35 mm DIN Rail
- Enclosure Type: IP20
- Dimensions: 90 mm H x 54 mm W x 70 mm D
- Trip Characteristic: Type C (5 to 10 times rated current)
- Approvals: EN 60898
Specifications
- Part Number: 5SY4306-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Type : 5SY4
- Phase : 3
- AIC rating : 10kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 75455486239
- GTIN : 00754554862392
- Weight : 1.1
