Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY4206-7

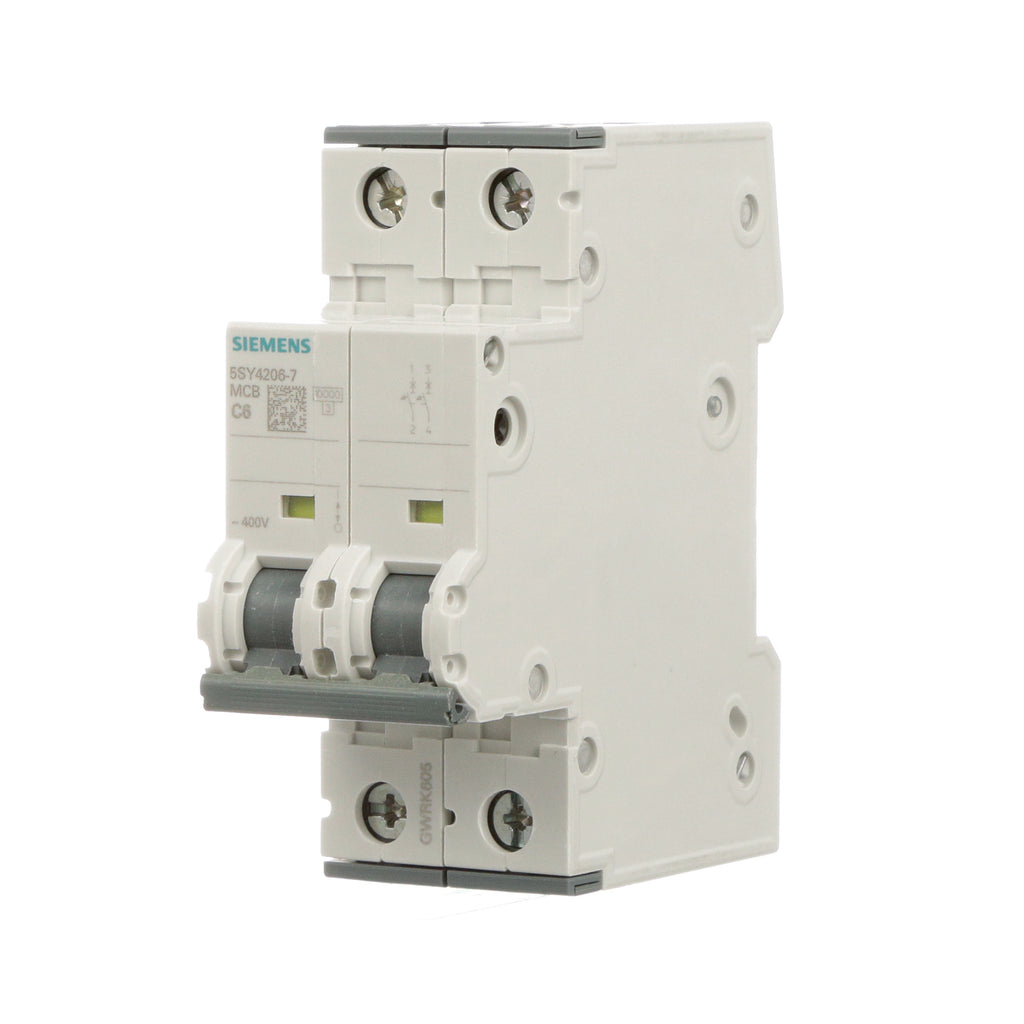

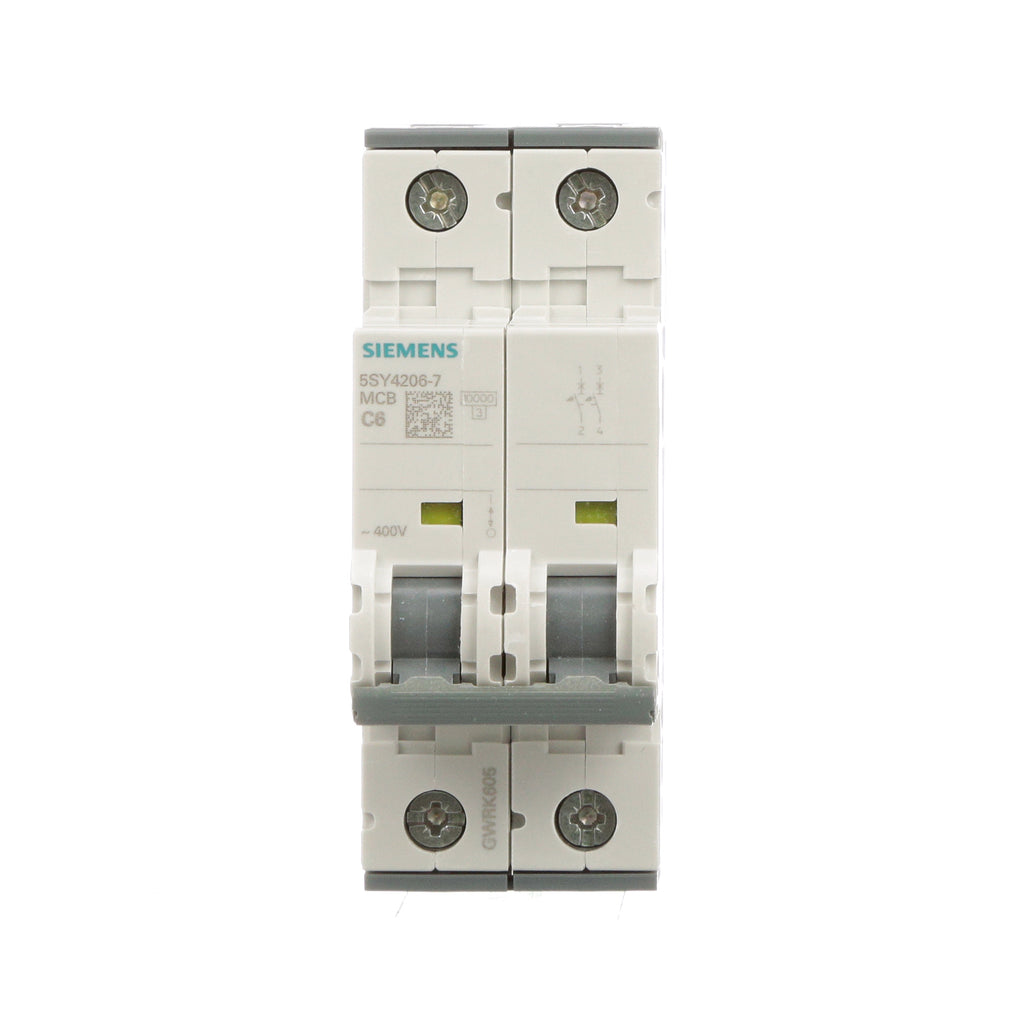

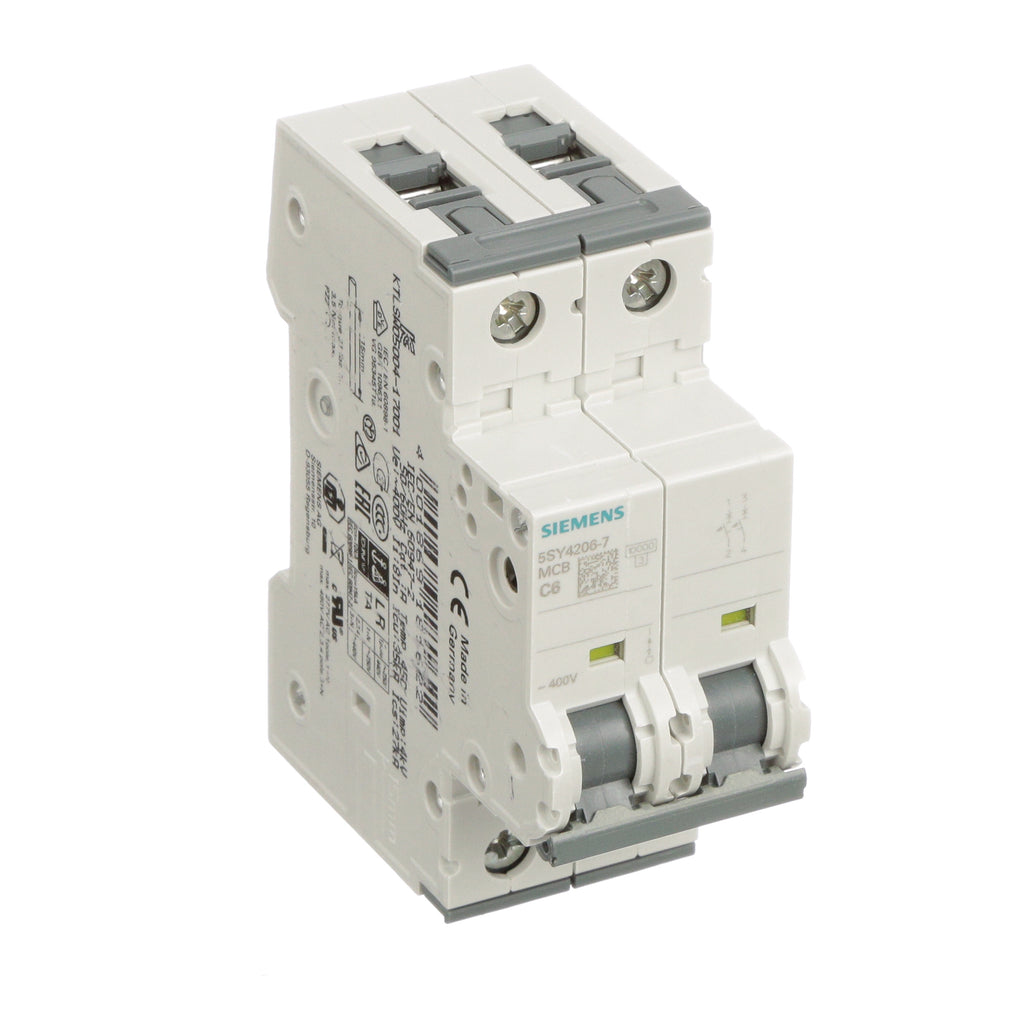

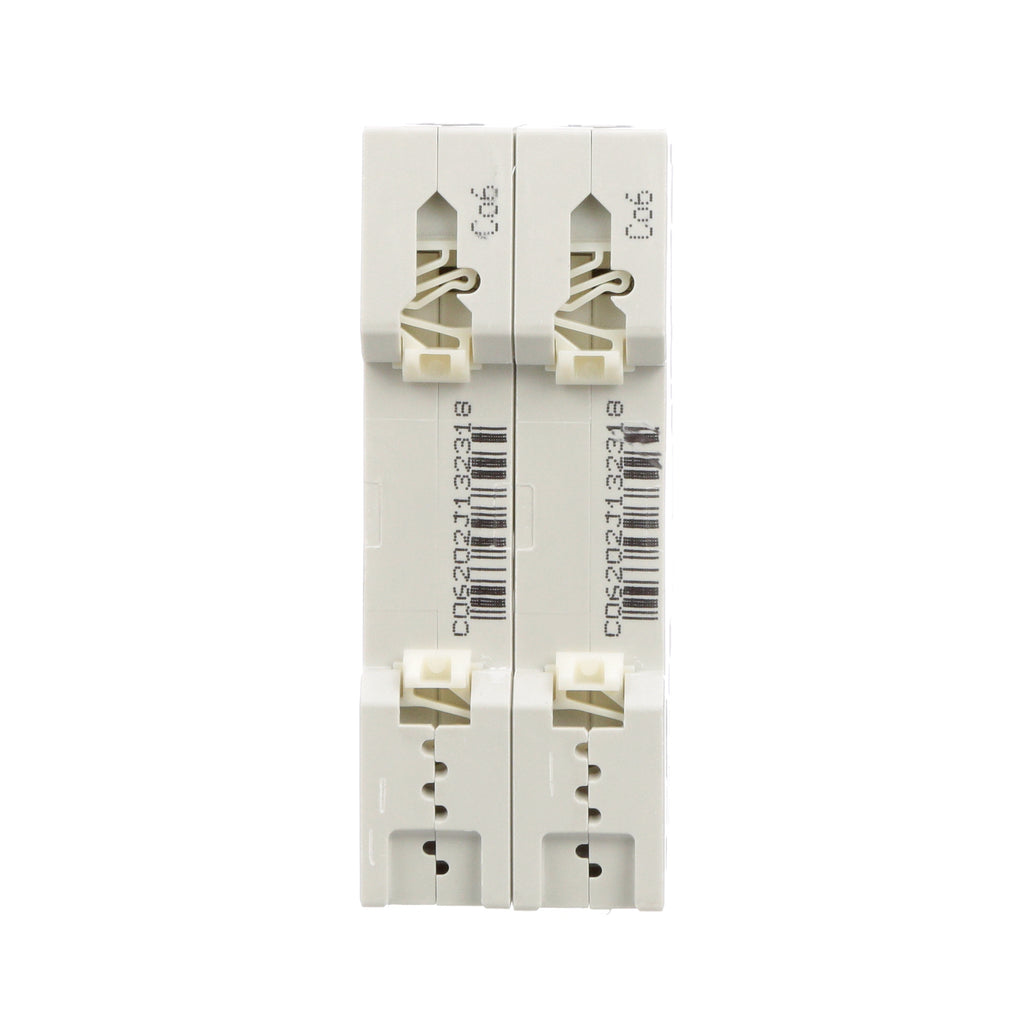

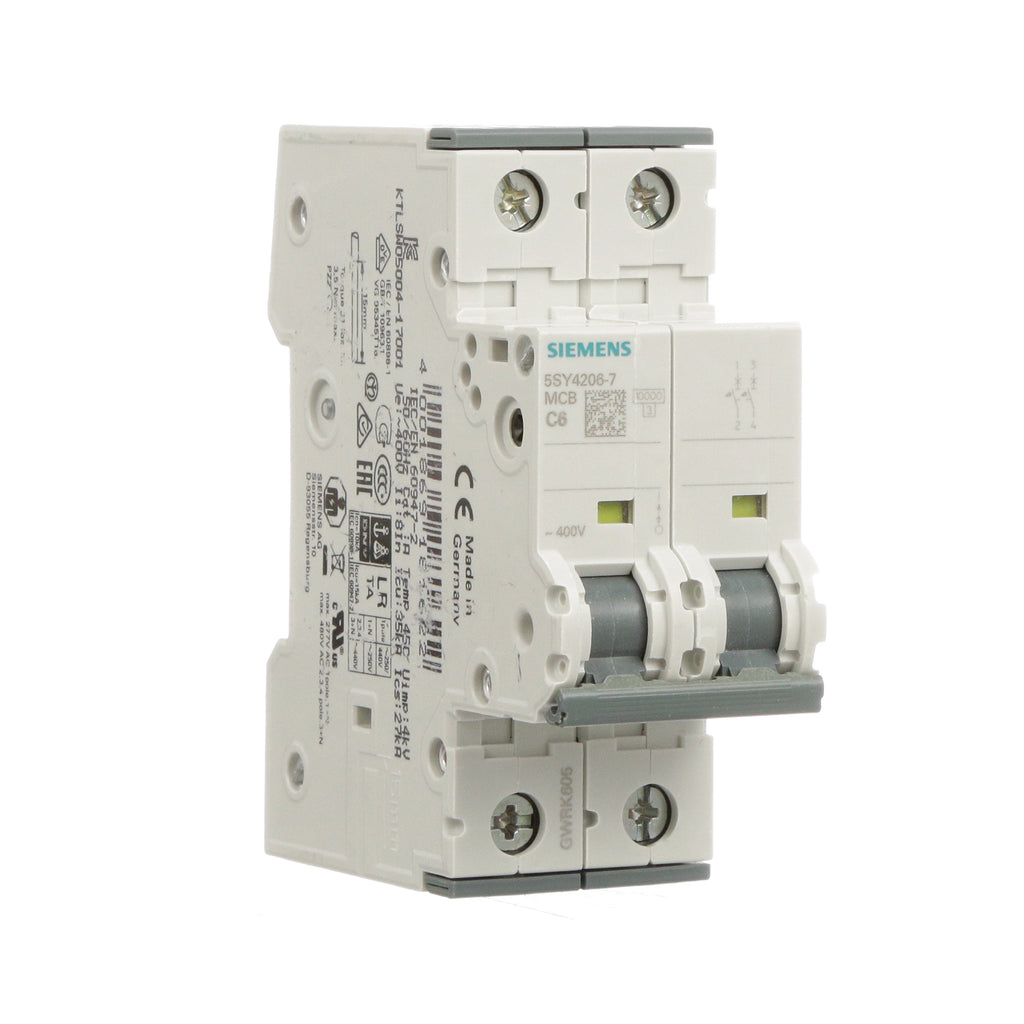

5SY4206-7 is a Siemens 2-pole miniature circuit breaker designed for reliable protection in electrical installations.This circuit breaker features a 6 ampere operational current rating with a C curve tripping characteristic suitable for medium inrush currents. It supports a supply voltage of up to 400 V AC and 60 V DC, with a short-circuit breaking capacity of 10 kA at AC voltage. The device mounts on a standard 35 mm DIN rail and has an IP20 protection rating. It includes a delayed thermal release and instantaneous electromagnetic release for effective overload and short-circuit protection.
- Manufacturer: Siemens
- Part Number: 5SY4206-7
- Poles: 2
- Current Rating: 6 A
- Voltage Rating: 400 V AC, 60 V DC
- Tripping Characteristic: Type C
- Interrupt Rating: 10 kA (AC)
- Mounting Type: 35 mm DIN rail
- Protection Class: IP20
- Thermal and Electromagnetic Trip Unit
- Width: 70 mm
Specifications
- Part Number: 5SY4206-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Type : 5SY4
- Voltage : 400
- Amperage : 6
- Phase : 1
- Poles : 2
- AIC rating : 10kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 754554863450
- GTIN : 04001869181622
- Weight : 10
