2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY4202-7

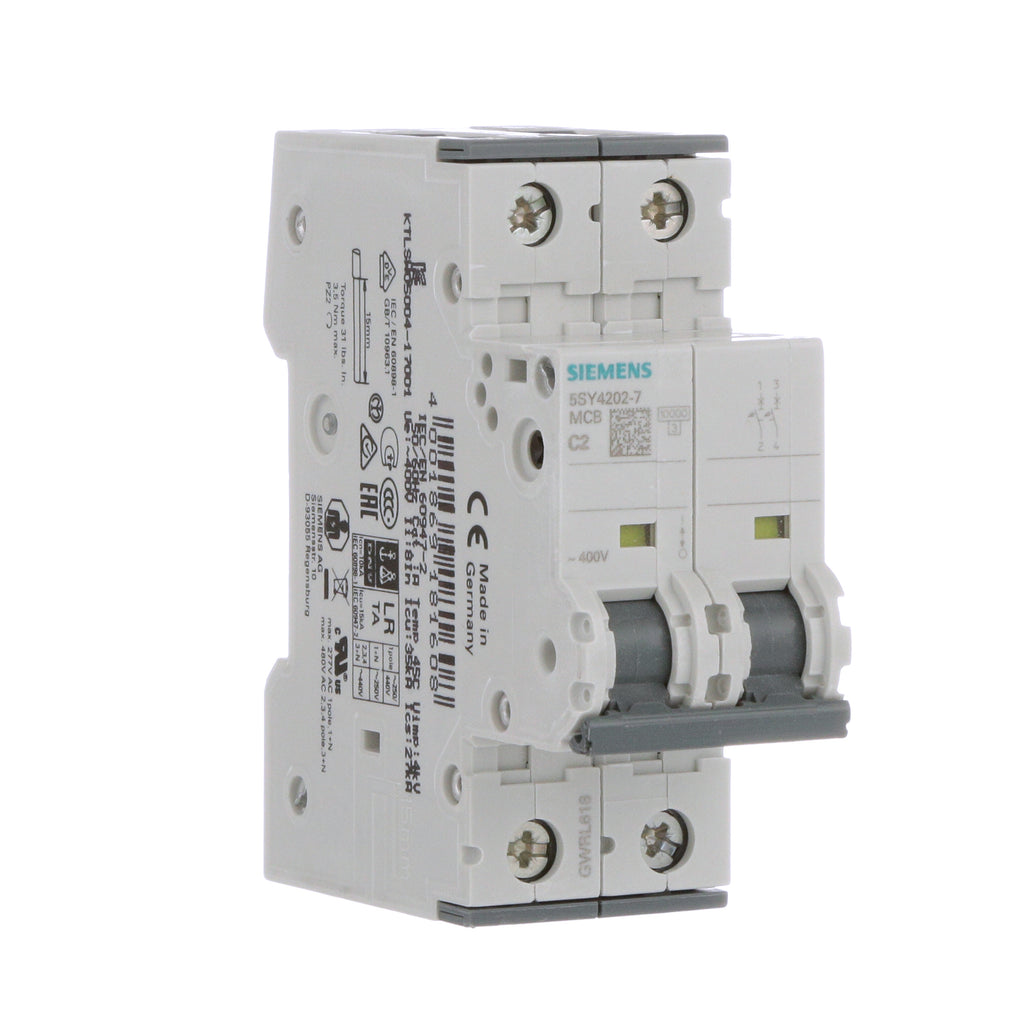

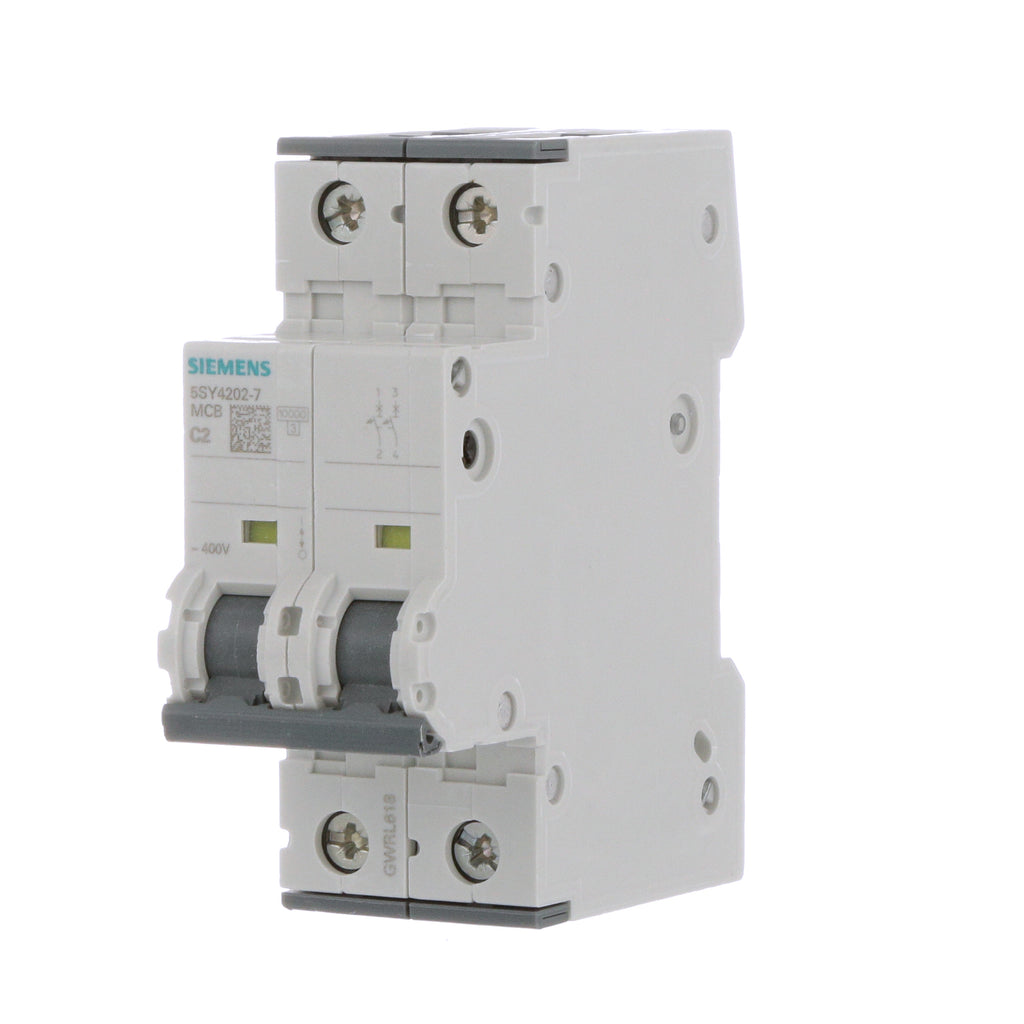

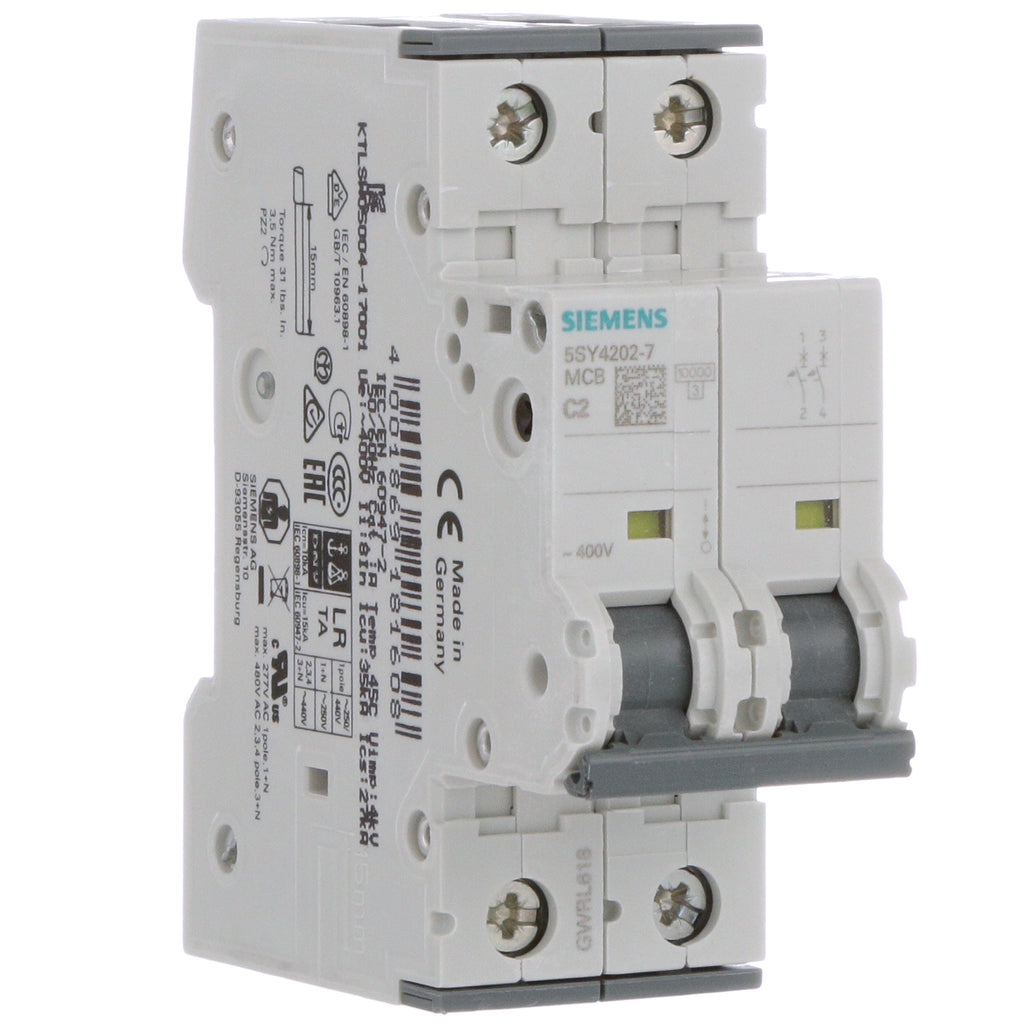

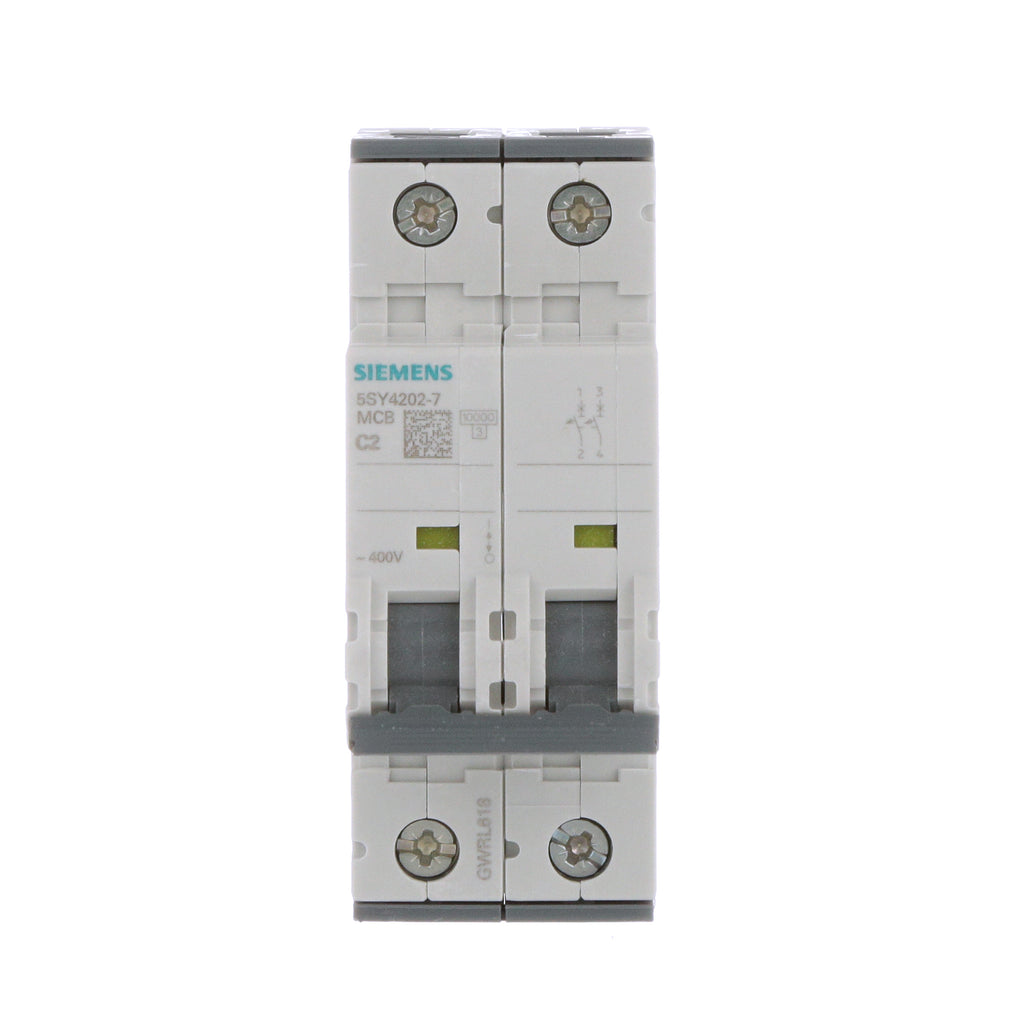

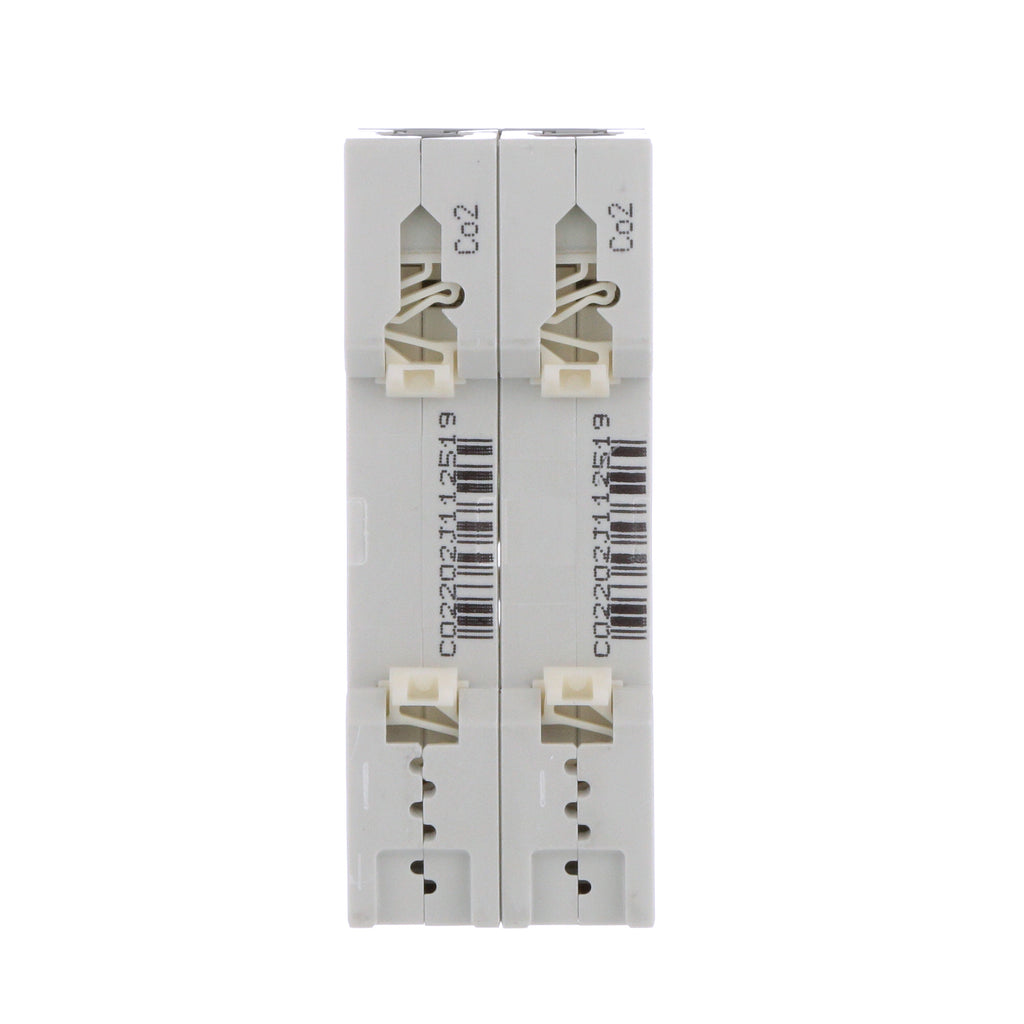

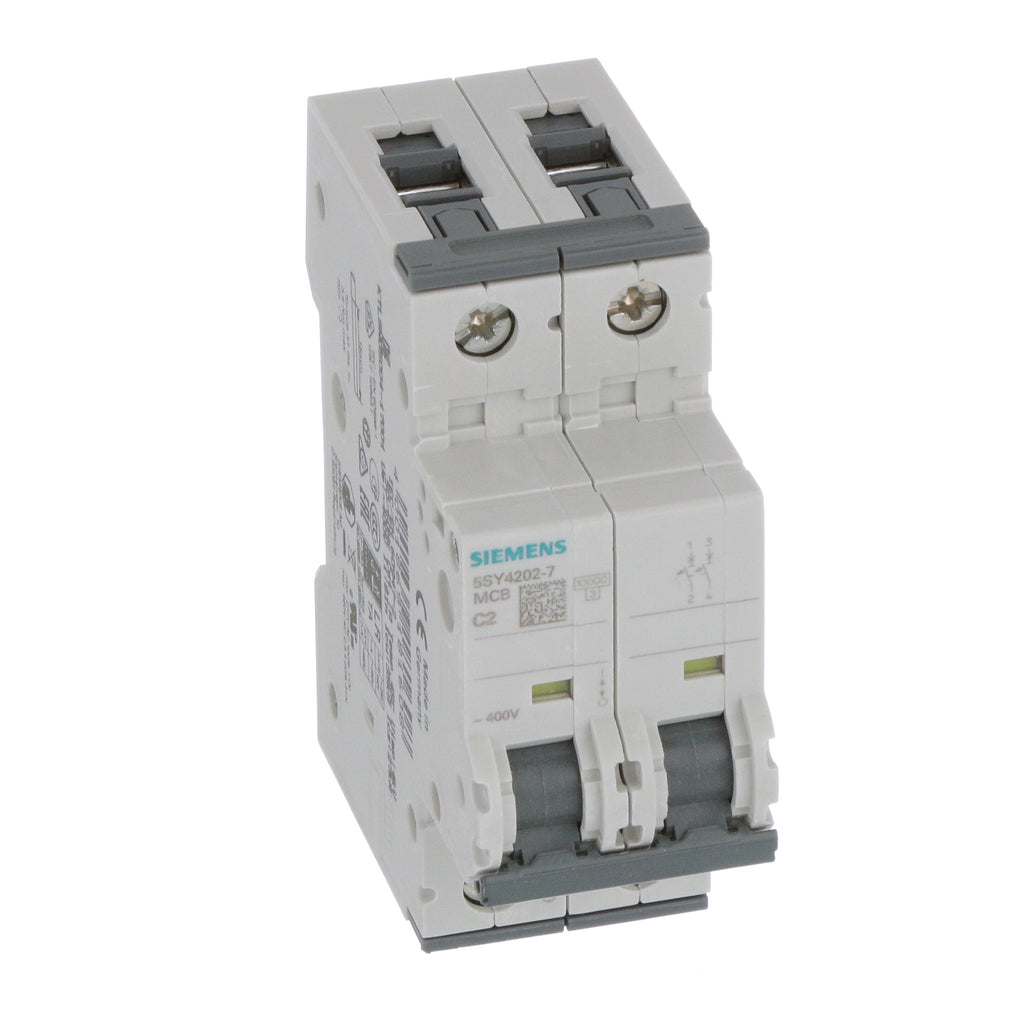

5SY4202-7 is a Siemens 2-pole miniature circuit breaker designed for reliable protection in electrical installations.This Siemens Sentron 5SY4 series circuit breaker features a 2 ampere current rating with a C tripping characteristic, suitable for general-purpose protection. It supports both AC and DC voltages up to 400 V AC and 400 V DC, with a high breaking capacity of 10 kA at rated voltage. The device is designed for DIN rail mounting, ensuring easy installation and removal. It complies with IEC/EN 60898 and IEC/EN 60947-2 standards and offers IP20 protection with connected conductors.
- Key Specifications
- Current Rating: 2 A
- Number of Poles: 2
- Tripping Characteristic: Type C
- Rated Voltage: 400 V AC / 400 V DC
- Breaking Capacity: 10 kA at AC rated voltage
- Mounting Type: DIN Rail
- Series: Sentron 5SY4
- Terminal Type: Screw
- Protection Class: IP20 with connected conductors
- Standards: IEC/EN 60898, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
- Country of Origin: Germany
- Part Number: 5SY4202-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Type : 5SY4
- Voltage : 400
- Amperage : 2
- Phase : 1
- Poles : 2
- AIC rating : 10kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 75455486233
- GTIN : 00754554862330
- Weight : 0.6842
