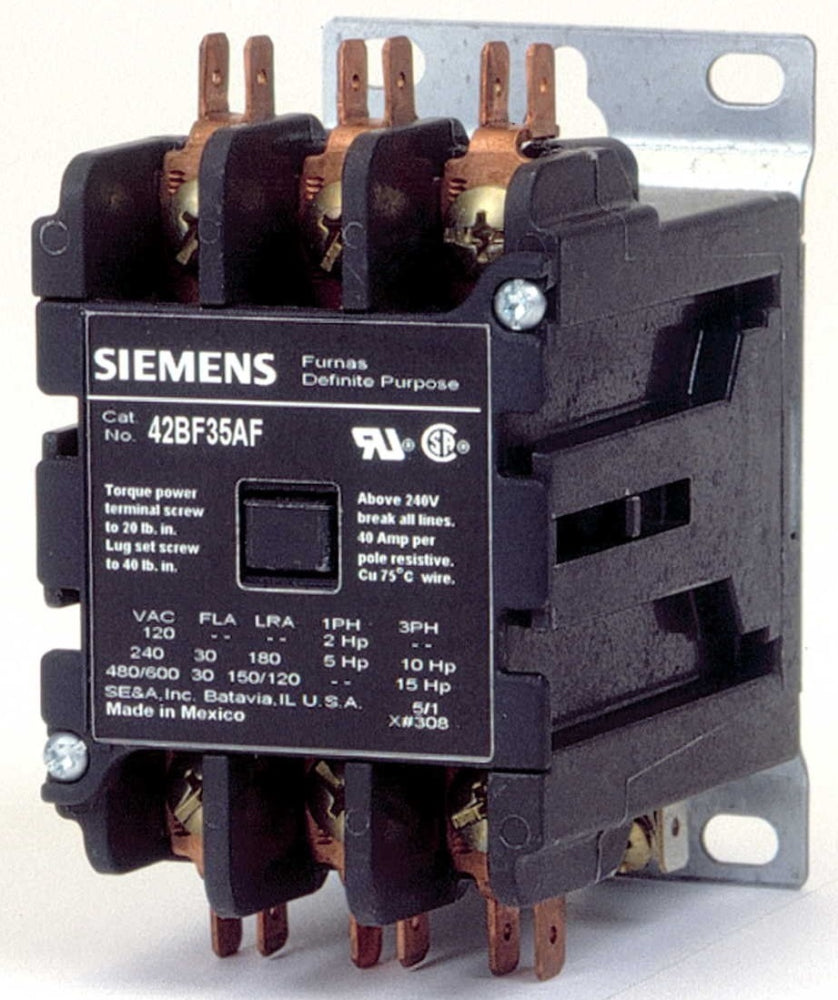

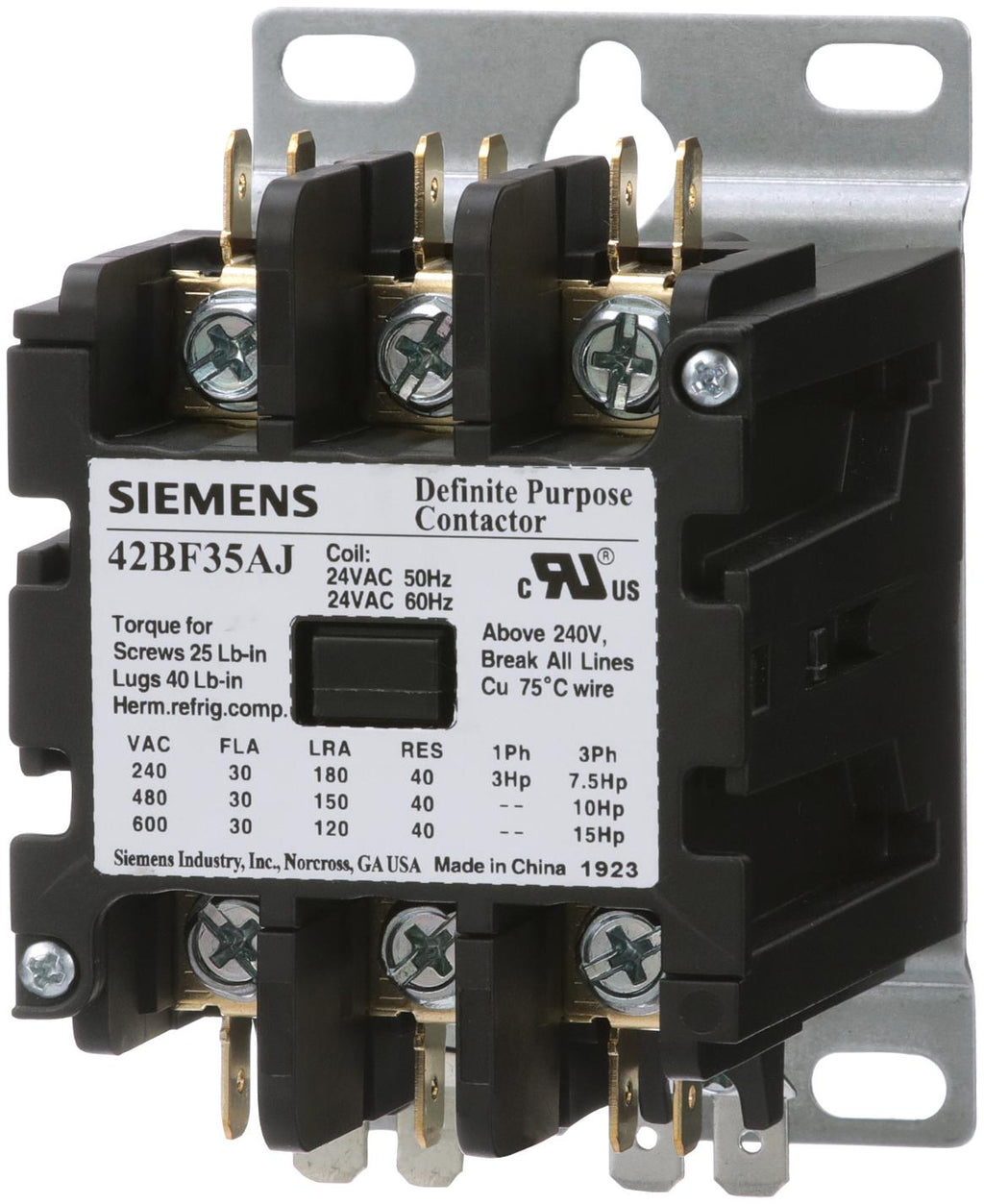

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Furnas
- Sub-Category
- Contactor
- Series
- Class 42
- Frame
- 42BF
- Rated current
- 30
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 240 V
- Country of origin
- China
- Coil Voltage Maximum
- 240
- UPC
- 783087145061
- GTIN
- 00783087145061
- Dimensions
- 4.724 x 2.756 x 2.756 inch
Show all specifications (2 more)
- Weight
- 1.036
- Certification
- ARI 780, ARI 790, cRUus, UL E14900
Product description & additional details
42BF35AG
42BF35AG is a Furnas Class 42 30A 3-pole definite purpose contactor with a 240V AC coil and metal base mount for reliable motor control applications. This contactor features a durable metal base plate for easy mounting, double quick connect terminals, and is designed for use in HVAC, pump, and industrial control systems. The reinforced thermalset polyester housing provides long-lasting performance and quiet operation. Silver cadmium oxide contacts offer weld resistance and reliable switching.
- Part Number: 42BF35AG
- Manufacturer: Furnas
- Series/Frame: Class 42
- Amperage: 30A
- Number of Poles: 3
- Coil Voltage: 208-240V AC
- Mounting Type: Metal Base Plate
- Interrupt Rating: 600V
- Terminals: Double Quick Connect
- Application: Motor Control, HVAC, Pumps
- Visual Contact Position Indication
- Low VA Coil
Specifications
- Part Number: 42BF35AG
- Manufacturer : Furnas
- Brand : Furnas
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 42
- Type : 42BF
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
Product Data
- UPC : 783087145061
- GTIN : 00783087145061
- Country of Origin : China
- Dimensions : 4.724 x 2.756 x 2.756 inch
- Weight : 1.036
- Certification : ARI 780, ARI 790, cRUus, UL E14900
