Description
40EP32AA

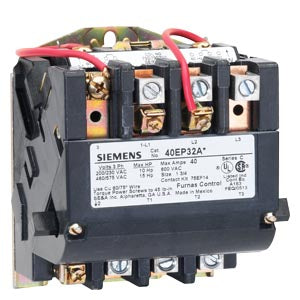

40EP32AA is a Siemens Class 40 non-reversing contactor designed for three-phase motor control applications. This 3-pole, 40A, 600VAC contactor features a dual voltage coil (110-240VAC, 60Hz) and is suitable for use in a variety of industrial and commercial motor control circuits. The 40EP32AA contactor is built with a robust design for reliable switching and long service life. It includes three main NO contacts and one auxiliary NO contact, with a mechanical service life of up to 10,000,000 cycles. The contactor is rated for 10 hp at 220/230V and 15 hp at 575/600V, making it ideal for a wide range of motor loads. The coil is designed for 110-120/220-240VAC, 60Hz operation, and the contactor is suitable for screw terminal connections.
- Part Number: 40EP32AA
- Manufacturer: Siemens
- Series/Frame: Class 40, Size 1.75
- Amperage: 40A
- Voltage: 600VAC
- Poles: 3
- Coil Voltage: 110-240VAC, 60Hz
- Main Contacts: 3 NO
- Auxiliary Contacts: 1 NO
- Mounting Type: Screw terminal
- Interrupt Rating: 40A
- Applications: Three-phase motor control
Specifications
- Part Number: 40EP32AA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 40
- Type : 40EP
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 15 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 240
- Full Load Amps : 40 A
Product Data
- UPC : 783087066922
- GTIN : 00783087066922
- Country of Origin : Mexico
- Dimensions : 0.882 x 0.839 x 0.713 inch
- Weight : 2.91
- Certification : REACH Art 33
