Description
3VA9233-0JB11

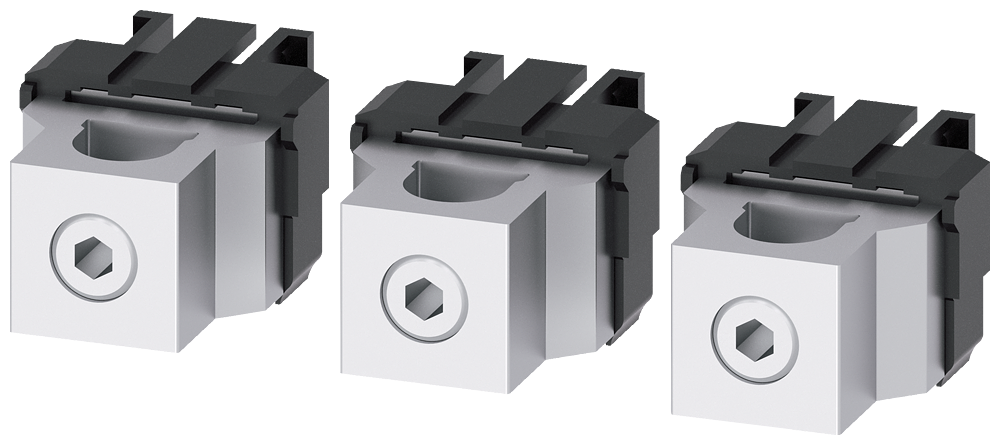

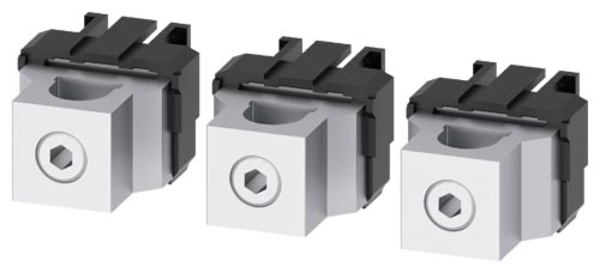

3VA9233-0JB11 - Siemens Sentron small lug terminal for 3VA molded case circuit breakers.
This Siemens Sentron lug terminal features a 3-piece aluminum body design with 1-conductor connection, accepting wire sizes from 14 to 1/0 AWG for copper and aluminum stranded conductors. It is specifically designed for use with 250A 3VA5 frame, 3-pole, 1-wire molded case circuit breakers. The terminal provides secure electrical connections with specified tightening torques for various conductor types and sizes, ensuring reliable performance in low voltage applications.
Key Specifications
- Part Number: 3VA9233-0JB11
- Manufacturer: Siemens
- Type: Small lug terminal
- Conductor Range: 14 to 1/0 AWG
- Compatible Frame: 3VA5 250A
- Poles: 3
- Wires: 1-wire
- Body: 3-piece aluminum
- Copper Stranded Min: 14 AWG
- Copper Stranded Max: 1/0 AWG
- Aluminum Stranded Min: 8 AWG
- Aluminum Stranded Max: 1/0 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA9233-0JB11
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Family : Sentron Series
- Type : 3VA
- Amperage : 250
- Poles : 3
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Compatible Frames : 3VA
Product Data
- UPC : 80476696949
- GTIN : 00804766969492
- Weight : 2 lb
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 1/0
