Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6610-6JQ32-0AA0

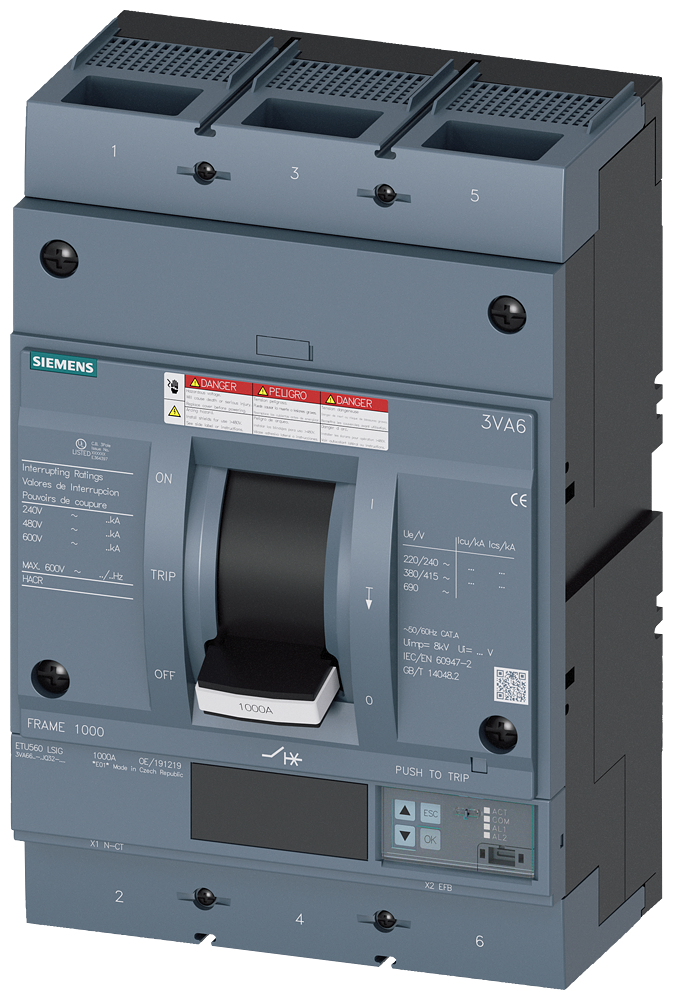

3VA6610-6JQ32-0AA0 is a Siemens SENTRON 3VA6 UL molded case circuit breaker with 1000 A rating and medium breaking capacity.This 3-pole circuit breaker features a 3VA66 frame, ETU560 electronic trip unit with LSIG protection, and lug terminal/nut keeper connections. It offers 65 kAIC at 480 V and 22 kAIC at 600 V interrupting ratings, suitable for line protection in industrial applications. Frequency rating is 50/60 Hz with IP40 enclosure type.
- Part Number: 3VA6610-6JQ32-0AA0
- Manufacturer: Siemens
- Amperage Rating: 1000 A
- Number of Poles: 3
- Frame Size: 3VA66
- Voltage Rating: 600 V
- Interrupt Rating: 22 kAIC at 600 V, 65 kAIC at 480 V
- Trip Unit: ETU560 LSIG
- Breaking Capacity: Class H (medium)
- Frequency: 50/60 Hz
- Connection: Lug terminal / nut keeper
- Enclosure Type: IP40
Specifications
- Part Number: 3VA6610-6JQ32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU560
Product Data
- UPC : 80476698056
- GTIN : 00804766980565
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.764 x 7.008 inch
- Weight : 31.107 lb
- Standards : UL Listed
- Certification : UL Listed
