Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6460-7JP31-0AA0

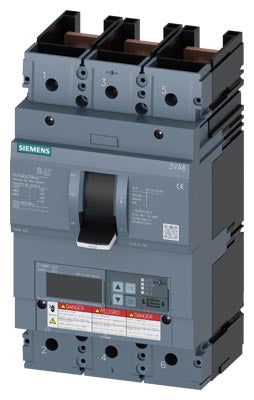

3VA6460-7JP31-0AA0 is a Siemens 3-pole circuit breaker designed for industrial power distribution applications.This circuit breaker features a 3VA6 UL frame with a 600 ampere rating and a maximum voltage of 600 volts. It offers a high interrupt rating of 100kA at 480V with Class C breaking capacity. The device includes an electronic trip unit ETU550 with LSI (long-time, short-time, instantaneous) protection functions and adjustable overload protection ranging from 240 to 600 amps.
- Manufacturer: Siemens
- Part Number: 3VA6460-7JP31-0AA0
- Amperage: 600A
- Voltage Rating: 600V
- Poles: 3
- Frame/Series: 3VA6 UL Frame 600
- Interrupt Rating: 100kA @ 480V (Class C)
- Trip Unit: Electronic ETU550 with LSI
- Overload Protection Range: 240-600A
- Mounting Type: Feed-Thru
- Certifications: UL Listed
Specifications
- Part Number: 3VA6460-7JP31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long Time, Short Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631561
- GTIN : 00804766315619
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
