Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6460-6JP31-0AA0

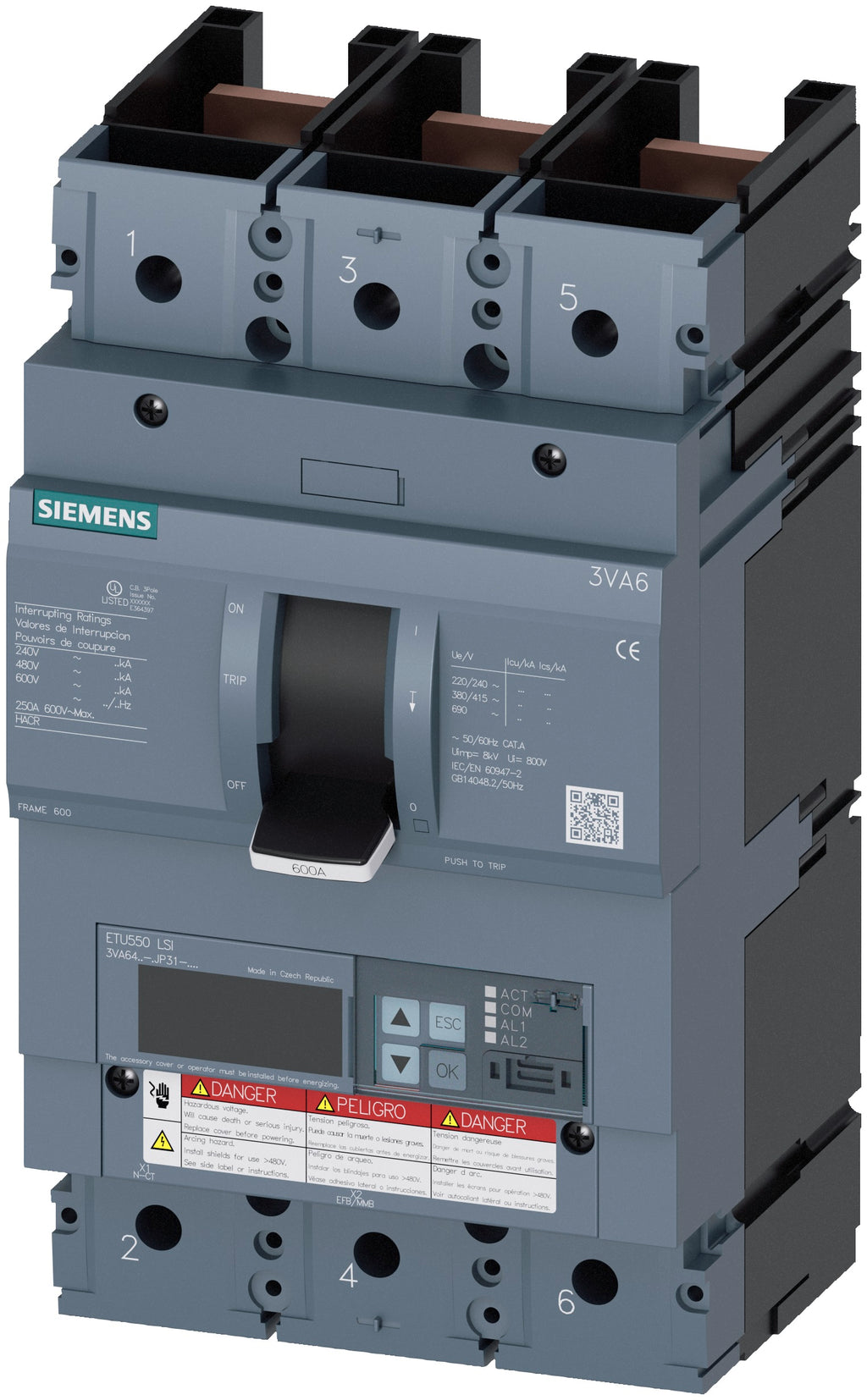

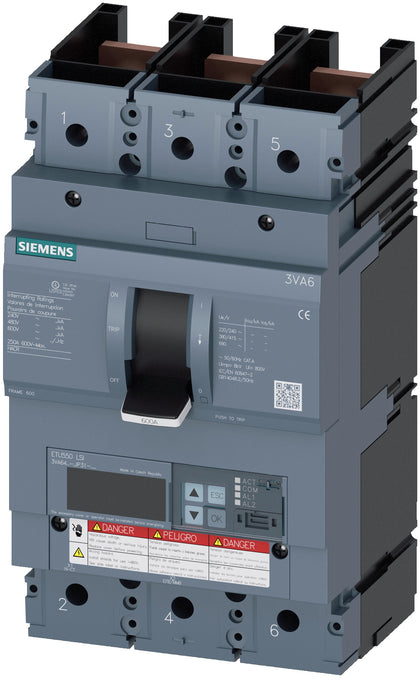

3VA6460-6JP31-0AA0 is a Siemens 3VA6 series molded case circuit breaker rated at 600A with 3 poles and 600V AC.
This UL frame 600 circuit breaker features ETU550 electronic trip unit with LSI protection, breaking capacity class H at 65kA @ 480V, and bolt-on mounting. It provides line protection with long time, short time, and instantaneous trip functions, LCD display, thermal-magnetic operation, and suitability for reverse-fed applications. Non-interchangeable trip unit; does not include lugs.
Key Specifications
- Manufacturer: Siemens
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Frame/Series: 3VA6 UL Frame 600
- Trip Unit: ETU550, LSI
- Interrupt Rating: 65kA @ 480V (Class H)
- Mounting Type: Bolt-On
- Protection: Line Protection
- Features: LCD, Thermal-Magnetic, Reverse-Fed Suitable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA6460-6JP31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time, Short Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631579
- GTIN : 00804766315794
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
