Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6340-7JQ31-0AA0

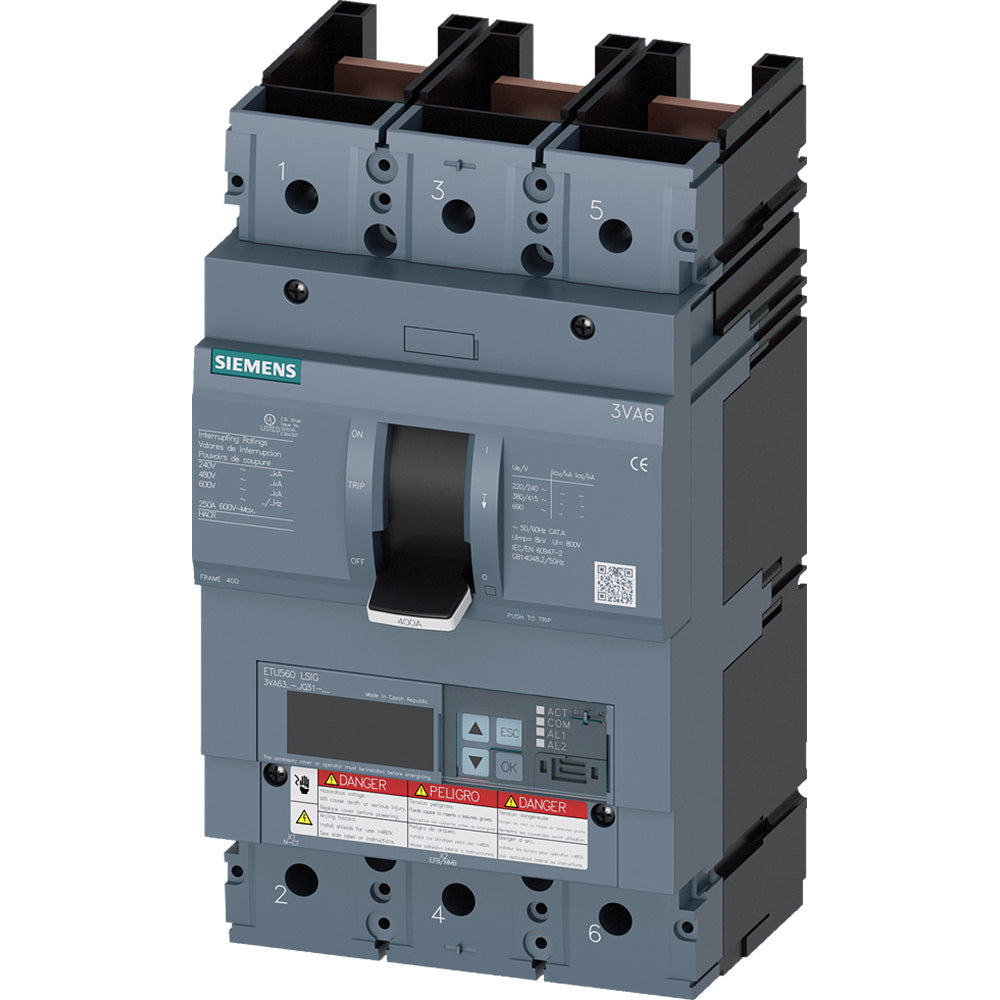

3VA6340-7JQ31-0AA0 is a Siemens 3-pole molded case circuit breaker rated for 400 amps and 600 volts with LSIG trip functions.This Siemens 3VA6 series circuit breaker features a 3-pole configuration with a 400A current rating and 600V voltage rating. It includes solid state protection with LSIG (long time, short time, instantaneous, and ground fault) trip units and an interrupting rating of 100kA at 480V. The breaker uses a feed-thru connection type and meets UL and IEC certifications.
- Key Specifications
- Manufacturer: Siemens
- Series/Frame: 3VA6
- Amperage: 400A
- Voltage: 600V AC
- Poles: 3
- Interrupting Rating: 100kA @ 480V
- Trip Unit: LSIG (Long time, Short time, Instantaneous, Ground fault)
- Connection Type: Feed-Thru
- Mounting Type: Molded Case
- Certifications: UL, IEC
Specifications
- Part Number: 3VA6340-7JQ31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 4
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631294
- GTIN : 00804766312946
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
