Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6340-7HL31-0AA0

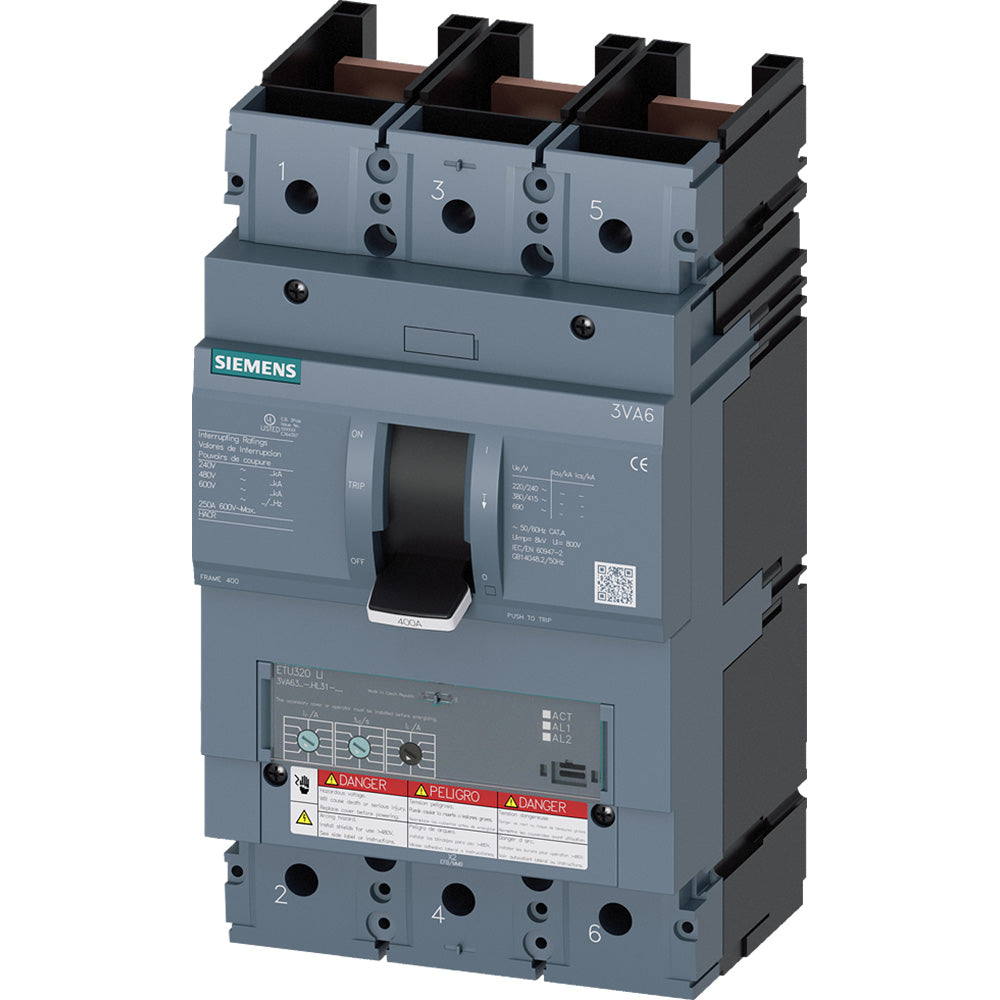

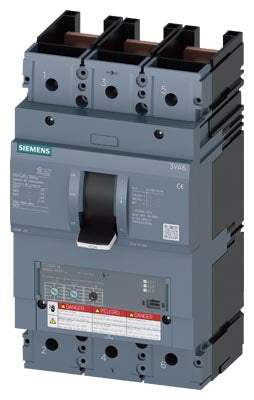

3VA6340-7HL31-0AA0 is a Siemens 3VA6 molded case circuit breaker with 400A rating, 3 poles, and 100 kA interrupting capacity at 480 V.This UL-listed circuit breaker from the 3VA63 frame features ETU320 electronic trip unit with LI protection, line-side termination, and operates at 600 V AC maximum. It provides reliable short-circuit and overload protection for industrial applications with frequency rating of 50/60 Hz and temperature range from -25 to 70 C.
- Part Number: 3VA6340-7HL31-0AA0
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Series/Frame: 3VA6 / 3VA63 400A
- Amperage Rating: 400 A
- Number of Poles: 3
- Voltage Rating: 600 V AC
- Interrupt Rating: 100 kA @ 480 V
- Trip Unit: ETU320 Electronic, LI
- Frequency: 50/60 Hz
- Mounting: Fixed
- Certifications: UL
Specifications
- Part Number: 3VA6340-7HL31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631302
- GTIN : 00804766313028
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
