Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

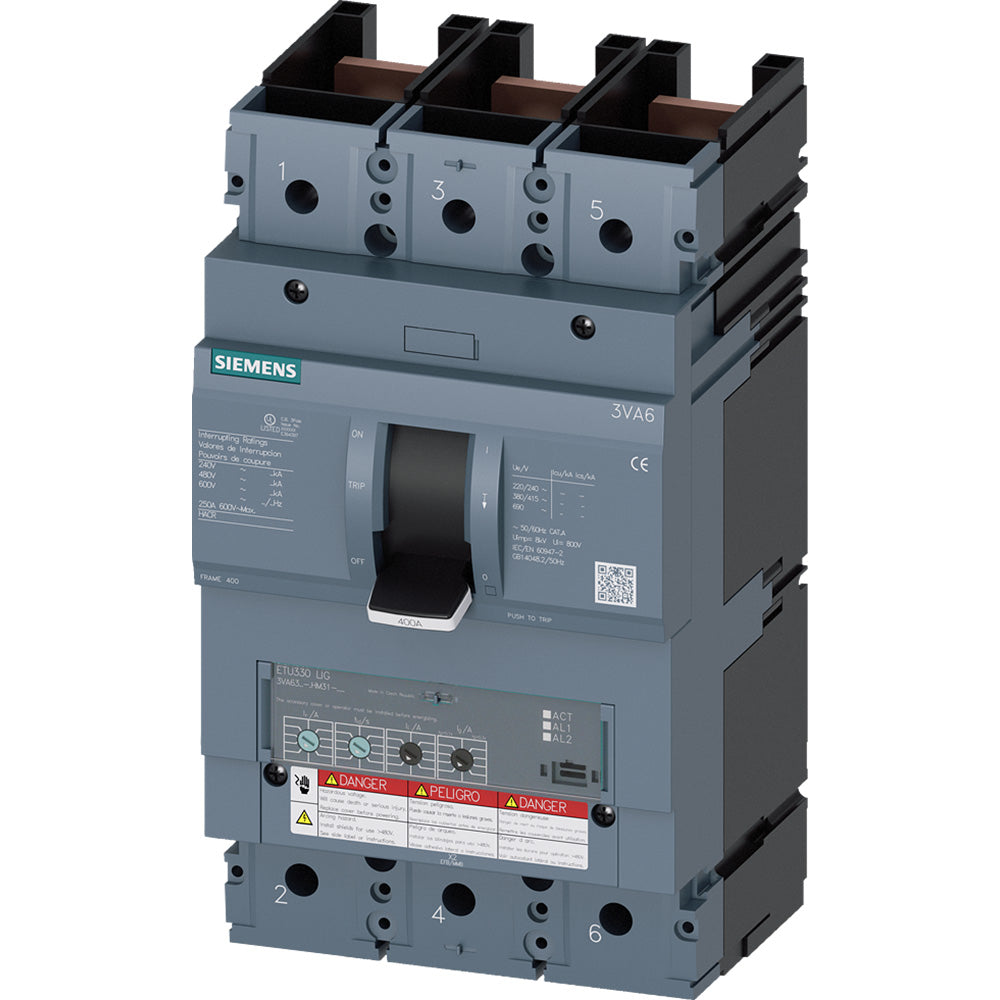

3VA6340-6HM31-0AA0
3VA6340-6HM31-0AA0 is a Siemens 3VA6 molded case circuit breaker designed for industrial, commercial, and residential applications with electronic trip protection and high breaking capacity. This 400-ampere, 3-pole unit features a thermal-magnetic trip mechanism with long-time, instantaneous, and ground fault protection functions suitable for reverse-fed applications. Key Specifications
- Amperage: 400A (adjustable 160A–400A)
- Voltage: 600V UL / 690V IEC
- Poles: 3-pole
- Frame: 3VA6
- Interrupt Rating: 65kA @ 480V (Class H)
- Trip Unit: ETU330 electronic with LIG (Long-time, Instantaneous, Ground fault)
- Mounting Type: Feed-Thru / Bolt-On
- Mechanical Life: 15,000 cycles
- Electrical Life: 6,000 cycles
- Weight: 5.3 kg
- Power Loss: 23.33 W
Specifications
- Part Number: 3VA6340-6HM31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LIG - Long Time, Instantaneous and Ground Fault
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631318
- GTIN : 00804766313189
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
