Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

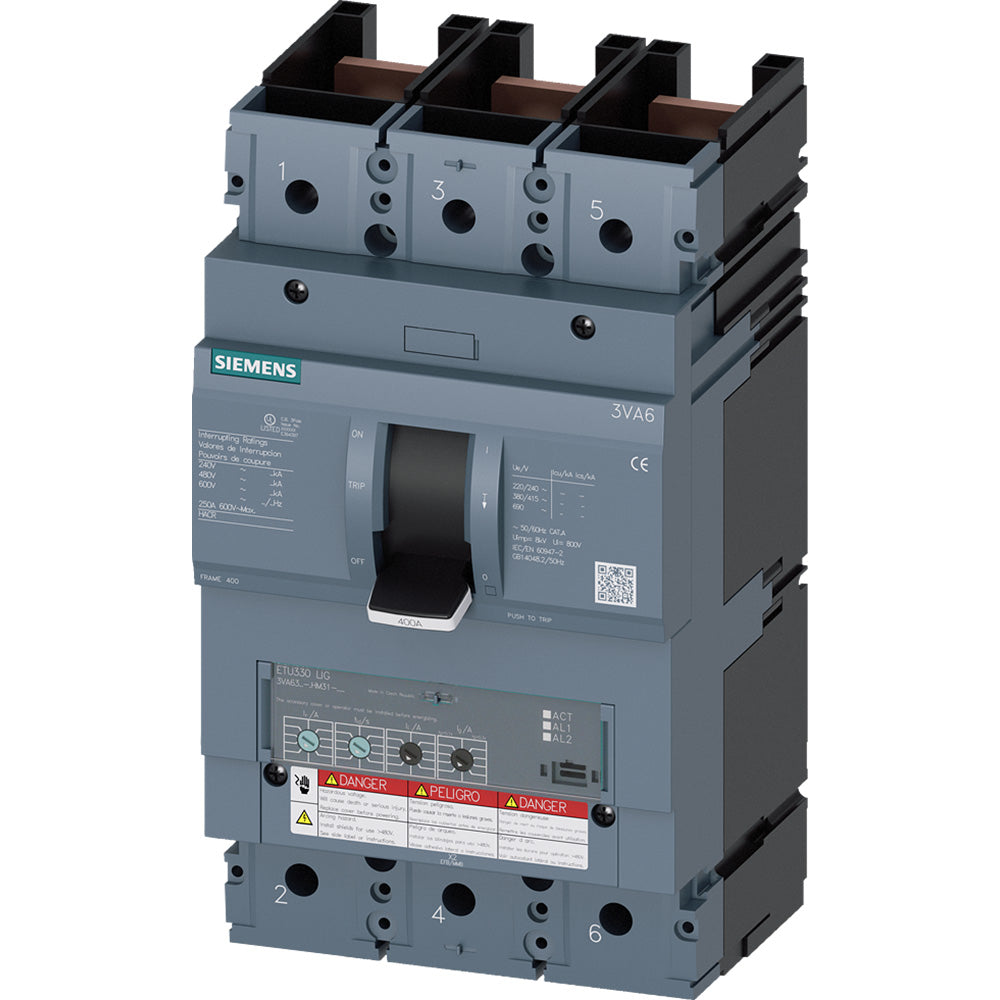

3VA6340-5HM31-0AA0
3VA6340-5HM31-0AA0 is a Siemens 3VA6 molded case circuit breaker with electronic trip unit for system protection.This 3-pole breaker features ETU330 trip unit with LIG function, long time, instantaneous, and ground fault protection. It offers 35 kA interrupting capacity at 480V (Class M), thermal-magnetic operation with adjustable settings, bolt-on mounting, and suitability for reverse feed applications.
- Manufacturer: Siemens
- Frame Size: 3VA6 / 3VA63 400A
- Poles: 3
- Amperage Rating: 400A
- Voltage Rating: 600V AC
- Interrupt Rating: 35 kA at 480V (Class M)
- Trip Unit: ETU330, LIG, Electronic
- Mounting: Bolt-On
- Protection: Line, Overload Ir=160-400A, Short-circuit Ii=1.5-10xIn, Ground-fault Ig=0.2-1xIn
- Phases: 3
Specifications
- Part Number: 3VA6340-5HM31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LIG - Long Time, Instantaneous and Ground Fault
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631336
- GTIN : 00804766313363
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
