Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

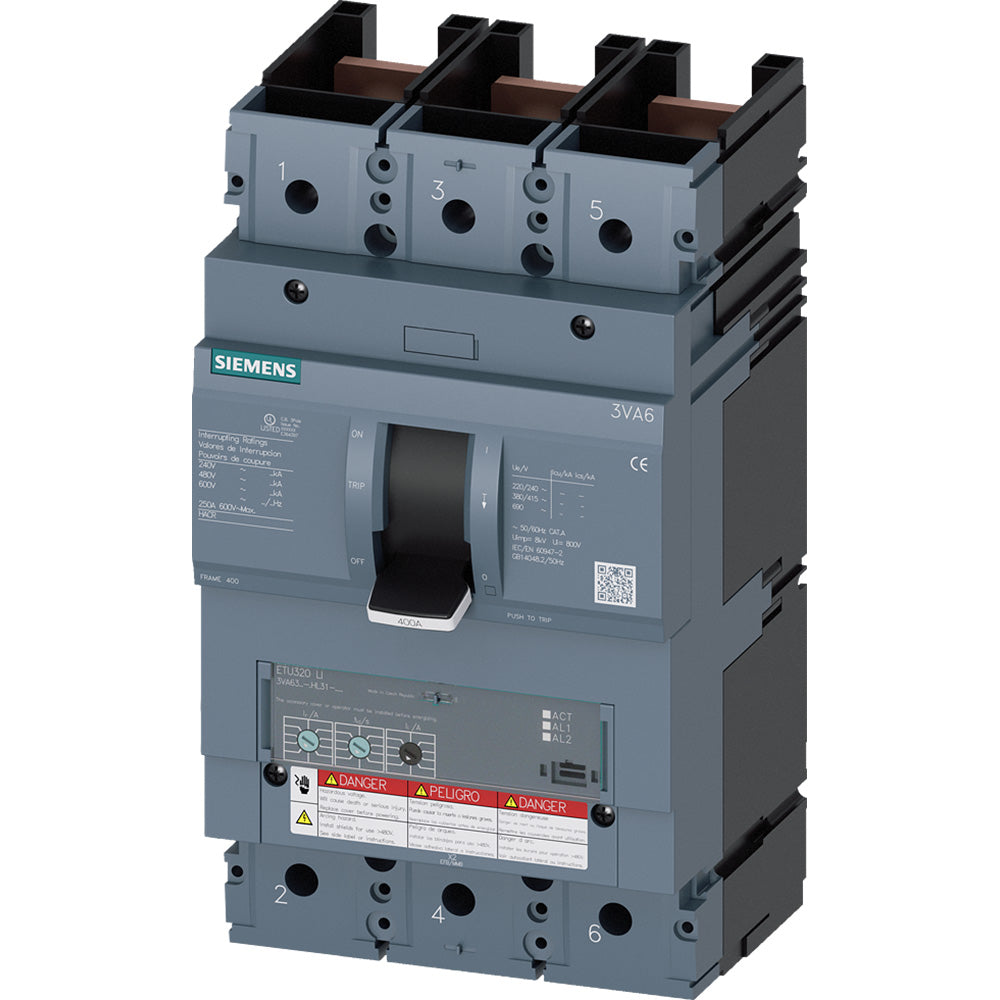

3VA6325-5HL31-0AA0
3VA6325-5HL31-0AA0 is a Siemens 3-pole molded-case circuit breaker designed for system protection with a 250A rated current and 690V AC operating voltage.This circuit breaker features a 3VA6 UL Frame 400 design with a 35kA interrupt rating at 480V, ETU320 electronic trip unit with LI protection, and adjustable overload protection from 100A to 250A.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3VA6325-5HL31-0AA0
- Rated Current: 250 Amps
- Voltage Rating: 690 V AC
- Number of Poles: 3
- Frame Type: 3VA6 UL Frame 400
- Interrupt Rating: 35 kA at 480 V
- Trip Unit: ETU320 with LI protection
- Overload Protection Range: 100A to 250A
- Mounting Type: Bolt-On
- Certifications: UL Listed, HACR Type
Specifications
- Part Number: 3VA6325-5HL31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476631482
- GTIN : 00804766314827
- Weight : 10
- Standards : UL Listed
- Certification : UL Listed
