Description
3VA6225-7JQ31-0AA0

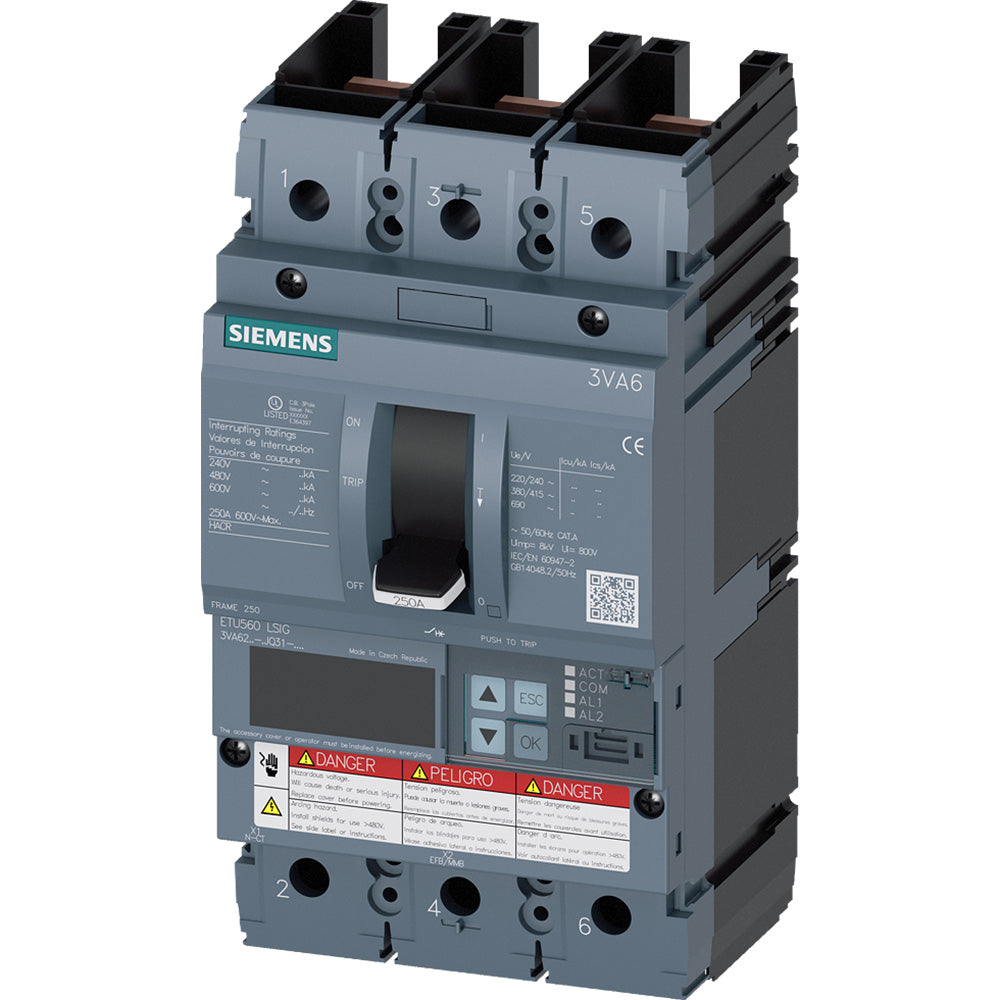

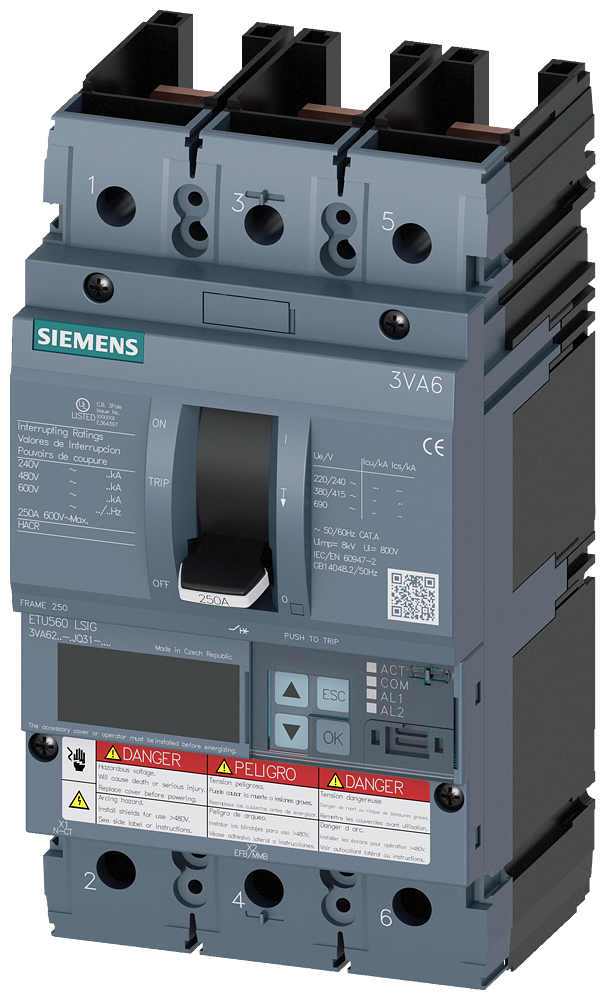

3VA6225-7JQ31-0AA0 is a Siemens 3VA6 molded case circuit breaker rated at 250A, 600VAC, 3-pole with LSIG electronic trip.
This UL frame 250 circuit breaker features ETU560 trip unit with LSIG functions (Long-Time, Short-Time, Instantaneous, Ground Fault), line protection, and 100 kA interrupting capacity at 480V. It supports bolt-on mounting, feed-thru connection, and is suitable for reverse feed applications. Non-interchangeable trip unit includes LCD display and does not include lugs.
Key Specifications
- Amperage: 250A
- Voltage: 600VAC
- Poles: 3
- Frame Size: 3VA6 UL Frame 250
- Trip Unit: ETU560 LSIG
- Interrupt Rating: 100 kA @ 480V
- Mounting: Bolt-On
- Connection: Feed-Thru
- Voltage Type: AC
- Phase: 3
Specifications
- Part Number: 3VA6225-7JQ31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 4
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 804766309342
- Weight : 8 lb
- Standards : UL Listed
- Certification : UL Listed
