2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6115-6HN31-0AA0

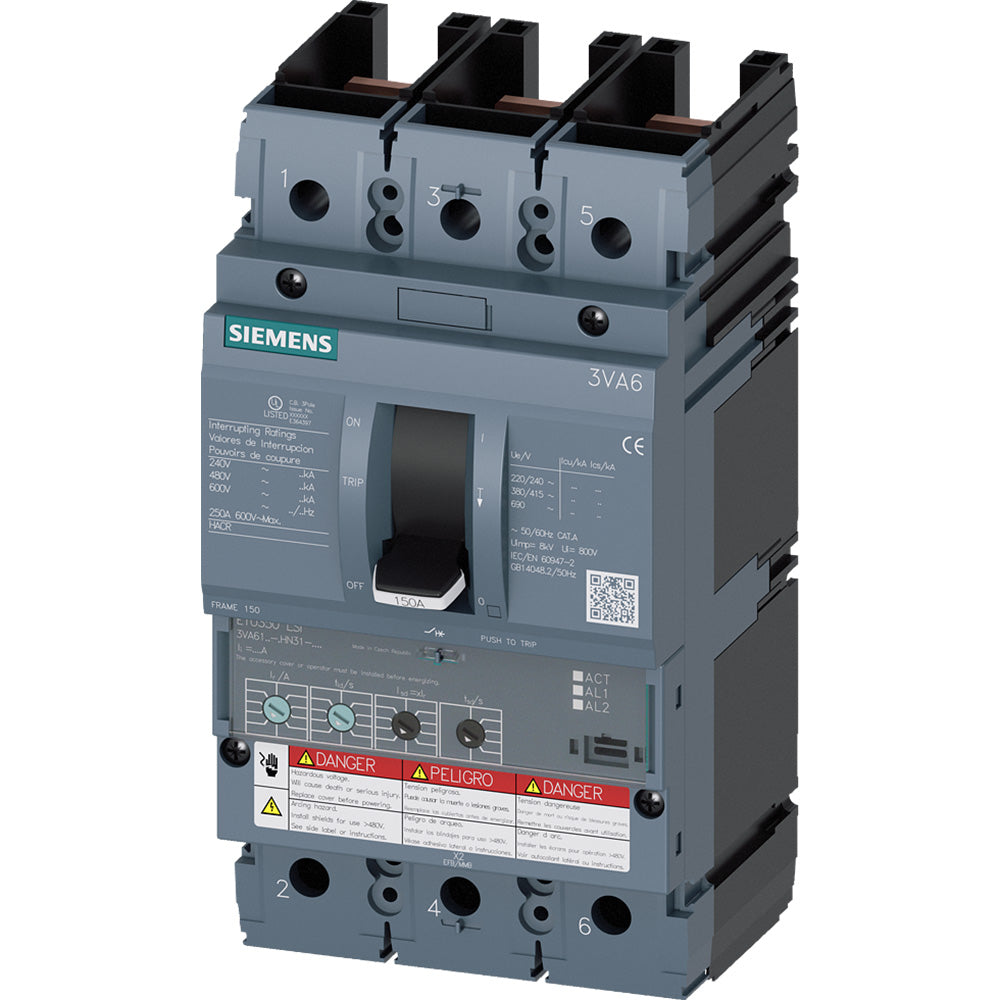

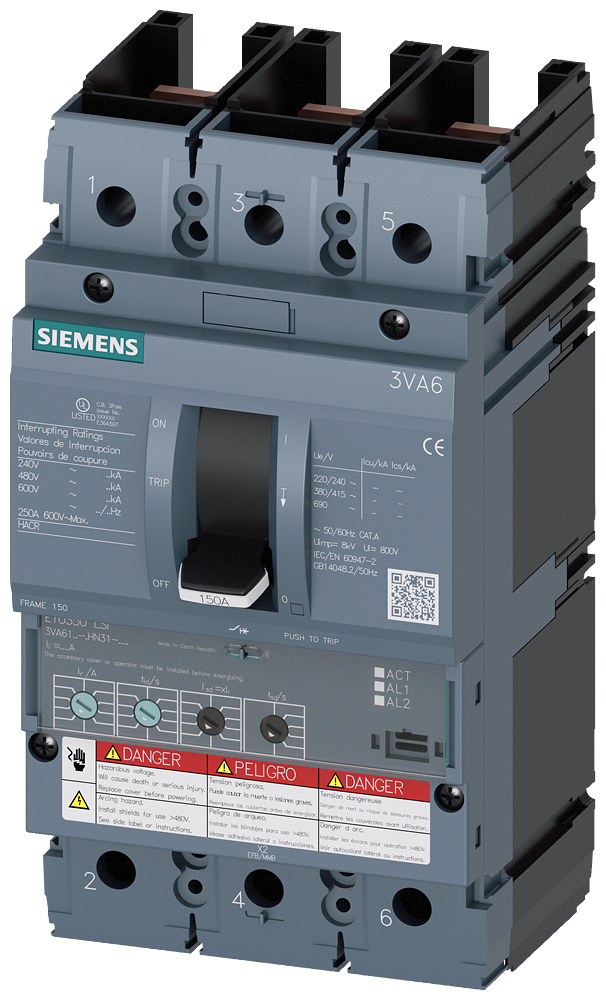

3VA6115-6HN31-0AA0 is a Siemens 3VA6 molded case circuit breaker rated at 150A and 600V.This 3-pole circuit breaker features line protection with ETU350 trip unit providing LSI functions (long time, short time, instantaneous), feed-thru connections, and breaking capacity class H including 65kA at 480V.
- Part Number: 3VA6115-6HN31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA6 UL Frame 150
- Amperage: 150A
- Voltage: 600V
- Poles: 3
- Phase: 3
- Trip Unit: ETU350, LSI
- Connection Type: Feed-Thru
- Interrupt Rating: 65kA @ 480V
- Approvals: UL, IEC
Specifications
- Part Number: 3VA6115-6HN31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long Time, Short Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Solid State
Product Data
- UPC : 80476630527
- GTIN : 00804766305276
- Weight : 8
- Standards : UL Listed
- Certification : UL Listed
