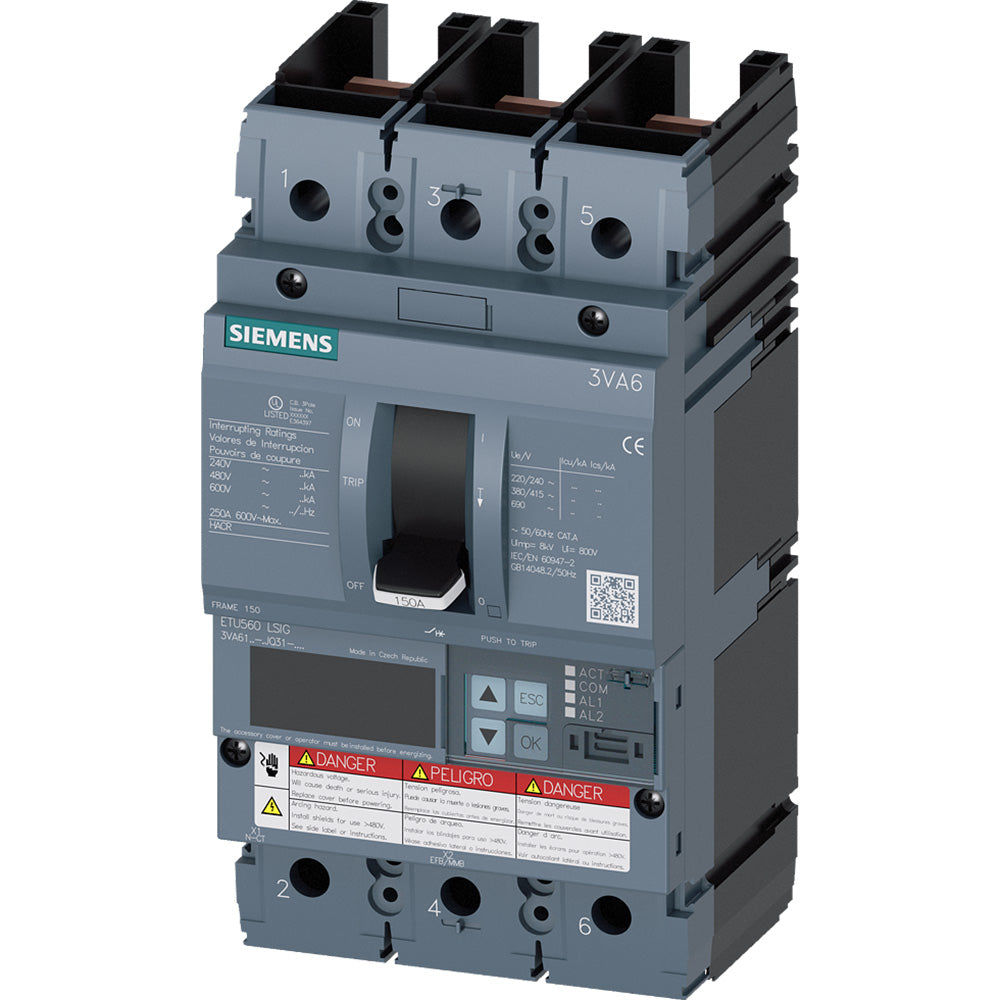

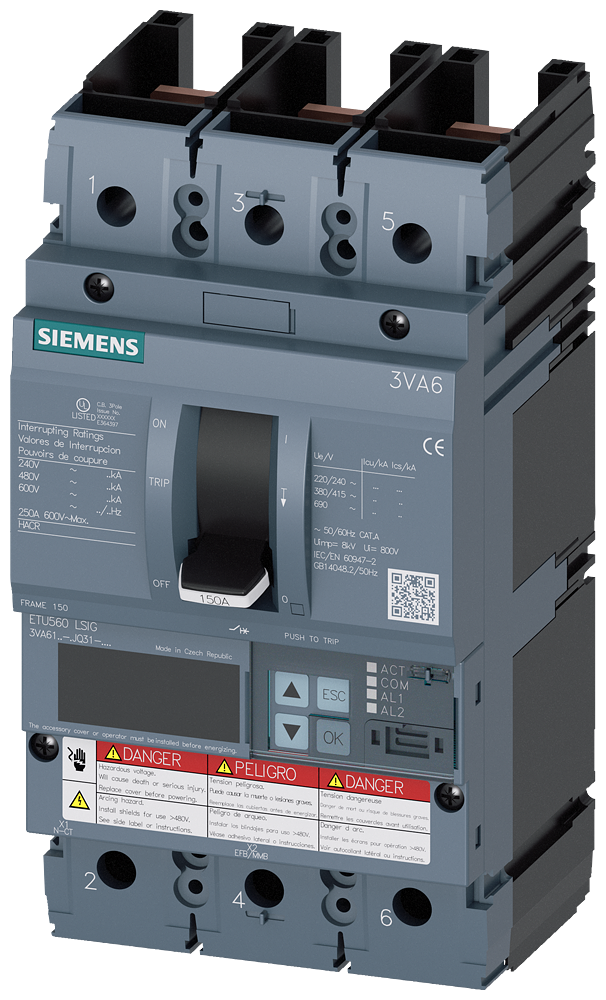

3VA6115-5JQ31-0AA0 - Siemens 150A 600V 3-Pole Molded Case Circuit Breaker 3VA Frame LSIG Trip

3VA6115-5JQ31-0AA0

3VA6115-5JQ31-0AA0 is a Siemens 150 amp, 600 volt, 3-pole molded case circuit breaker from the 3VA series with LSIG electronic trip unit.This circuit breaker features a 3VA6 UL frame with a medium (class M) breaking capacity of 35 kA at 480 V. It provides line protection with an ETU560 electronic trip unit supporting LSIG trip functions. The breaker supports overload protection adjustable from 60 A to 150 A and is designed for feed-thru connection.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 V AC
• Poles: 3
• Frame Type: 3VA6 UL Frame
• Interrupt Rating: 35 kA @ 480 V (Class M)
• Trip Unit: Electronic ETU560 with LSIG functions
• Overload Protection Range: 60 A to 150 A
• Connection Type: Feed-Thru
• Frequency: 50/60 Hz
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3VA6115-5JQ31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 4
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Solid State



Product Data

• UPC : 80476630555
• GTIN : 00804766305559
• Weight : 8 lb
• Standards : UL Listed
• Certification : UL Listed
